iX-led ❯ White LED-modules ❯ Linearis Z 3x11

Linearis Z 3x11

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z 3x11 L28 W55

  • The classic - for installation in luminaires
  • 33 mid-power LEDs
  • pitch distance lengthwise 26 mm and crosswise 20 mm
  • length 280 mm
  • width 55 mm
  • Products

Linearis Z 3x11 L28 W55

Features

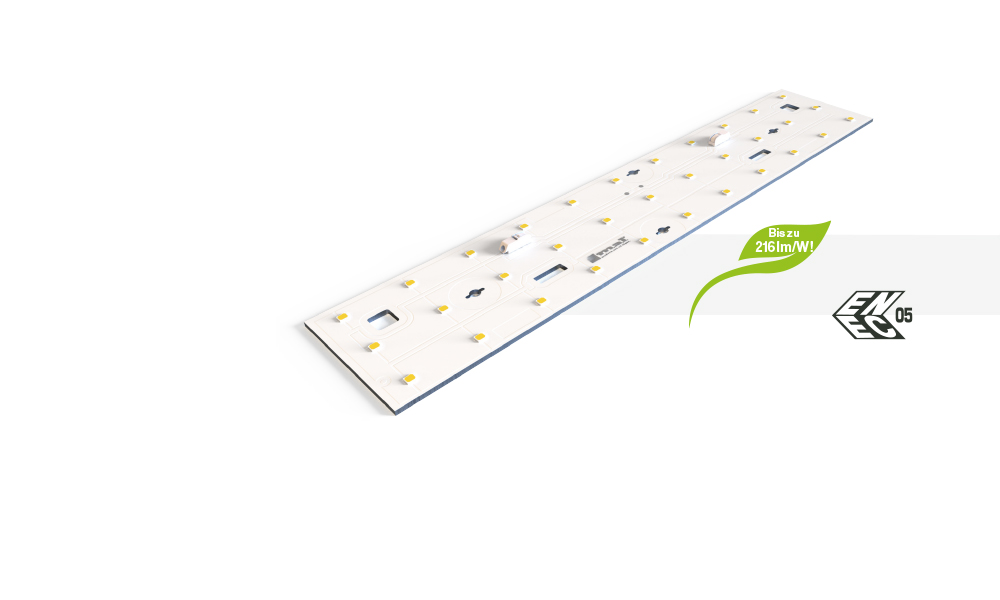

Big module image

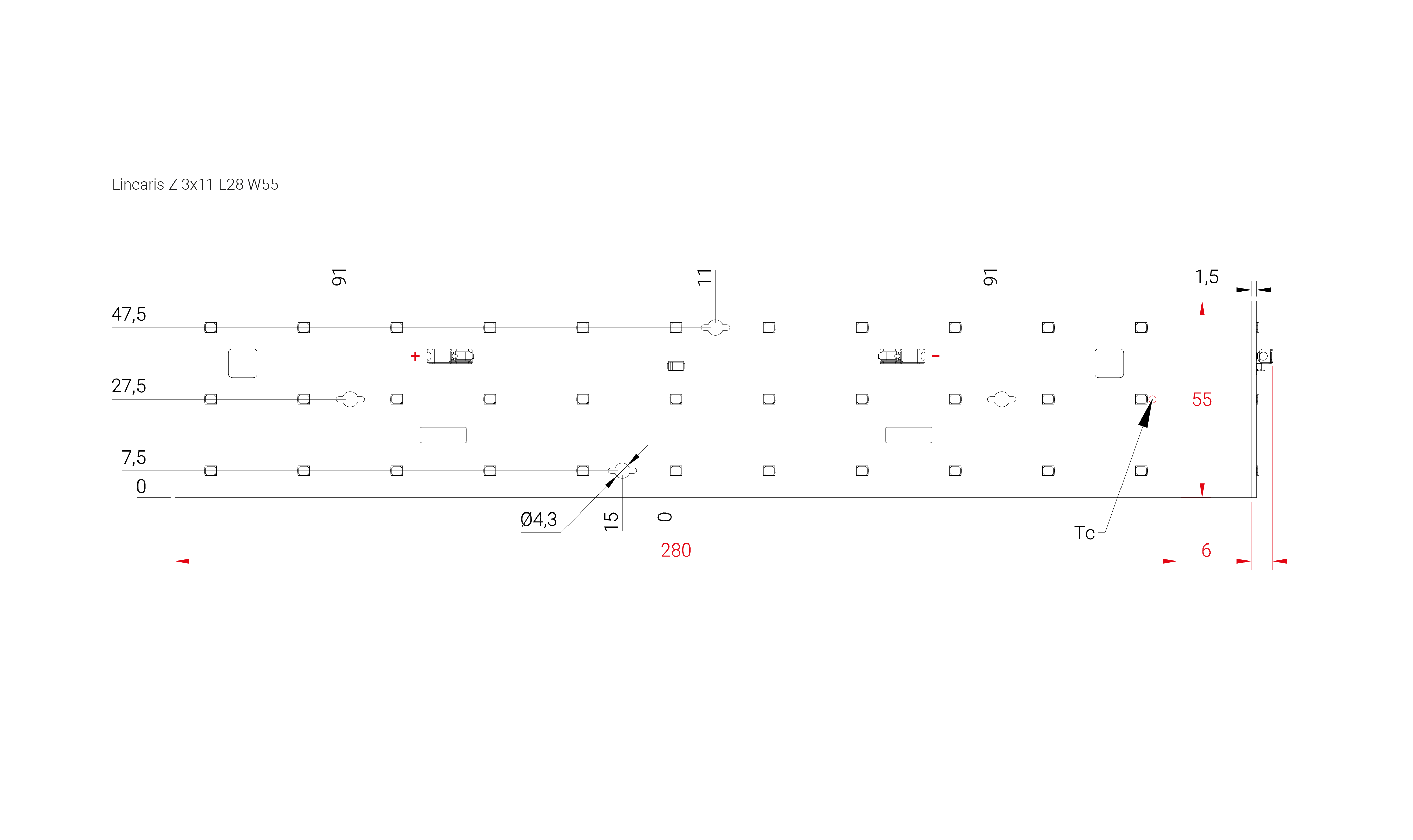

Module drawing
  • The classic - for installation in luminaires
  • 33 mid-power LEDs
  • pitch distance lengthwise 26 mm and crosswise 20 mm
  • length 280 mm
  • width 55 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 34.1 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z 3x11 L28 W55
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z 3x11 G2 L28 W55 827 7517-11000 80 2700 K 75 mA 421 lm 192 lm/W 350 mA 1863 lm 172 lm/W 500 mA 2587 lm 164 lm/W
Linearis Z 3x11 G2 L28 W55 830 7517-11001 80 3000 K 75 mA 448 lm 206 lm/W 350 mA 1986 lm 184 lm/W 500 mA 2757 lm 175 lm/W
Linearis Z 3x11 G2 L28 W55 835 7517-11002 80 3500 K 75 mA 448 lm 206 lm/W 350 mA 1986 lm 184 lm/W 500 mA 2757 lm 175 lm/W
Linearis Z 3x11 G2 L28 W55 840 7517-11003 80 4000 K 75 mA 466 lm 216 lm/W 350 mA 2063 lm 193 lm/W 500 mA 2865 lm 184 lm/W
Linearis Z 3x11 G2 L28 W55 850 7517-11004 80 5000 K 75 mA 466 lm 216 lm/W 350 mA 2063 lm 193 lm/W 500 mA 2865 lm 184 lm/W
Linearis Z 3x11 G2 L28 W55 857 7517-11005 80 5700 K 75 mA 466 lm 216 lm/W 350 mA 2063 lm 193 lm/W 500 mA 2865 lm 184 lm/W
Linearis Z 3x11 G2 L28 W55 865 7517-11006 80 6500 K 75 mA 466 lm 216 lm/W 350 mA 2063 lm 193 lm/W 500 mA 2865 lm 184 lm/W
Linearis Z 3x11 G2 L28 W55 927 7517-11007 90 2700 K 75 mA 421 lm 194 lm/W 350 mA 1876 lm 174 lm/W 500 mA 2604 lm 166 lm/W
Linearis Z 3x11 G2 L28 W55 930 7517-11008 90 3000 K 75 mA 431 lm 198 lm/W 350 mA 1917 lm 178 lm/W 500 mA 2660 lm 169 lm/W
Linearis Z 3x11 G2 L28 W55 935 7517-11009 90 3500 K 75 mA 441 lm 203 lm/W 350 mA 1964 lm 182 lm/W 500 mA 2726 lm 173 lm/W
Linearis Z 3x11 G2 L28 W55 940 7517-11010 90 4000 K 75 mA 446 lm 205 lm/W 350 mA 1984 lm 184 lm/W 500 mA 2754 lm 175 lm/W
Linearis Z 3x11 G2 L28 W55 950 7517-11011 90 5000 K 75 mA 446 lm 205 lm/W 350 mA 1984 lm 184 lm/W 500 mA 2754 lm 175 lm/W
Linearis Z 3x11 G2 L28 W55 957 7517-11012 90 5700 K 75 mA 446 lm 205 lm/W 350 mA 1984 lm 184 lm/W 500 mA 2754 lm 175 lm/W
Linearis Z 3x11 G2 L28 W55 965 7517-11013 90 6500 K 75 mA 441 lm 203 lm/W 350 mA 1964 lm 182 lm/W 500 mA 2726 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Linearis Z 3x11 product

3x11 LED modules have become well established in general use on the market. Many luminaire manufacturers therefore base their luminaires on this format.

There are already many lenses and optics for these modules freely available, which allows the implementation of many applications in luminaires.

We offer 3x11 LED modules as well.

You can choose from seven light colors: CCT 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 5700 K and 6500 K and two color renderings: CRI 80 and CRI 90.

With a light bandwidth of 216 lm/W or just under 3000 lm, the LED modules are available to you for your lighting tasks at your disposal.

Our iX-led standard modules are available at short notice, even in small quantities, and are very advantageous in the overall concept.
