iX-led ❯ White LED-modules ❯ Opticus Daisy M

Opticus Daisy M

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M 2x2

  • square module with LED matrix of 4 for installation in luminaires
  • for LEDiL Daisy optics 2x2
  • 4x4 Mid-Power-LEDs
  • pitch distance along and across 40 mm per 4 matrix
  • length 62 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M L28

  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 7x4 Mid-Power LEDs
  • pitch distance 40 mm per 4 matrix
  • length 280 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M L56

  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 14x4 Mid-Power-LED
  • pitch distance 40 mm per 4 matrix
  • length 560 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M L84

  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 21x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 840 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M L112

  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1 and 28x1
  • 28x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 1120 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M L140

  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1 and 28x1
  • 35x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 1400 mm
  • Products

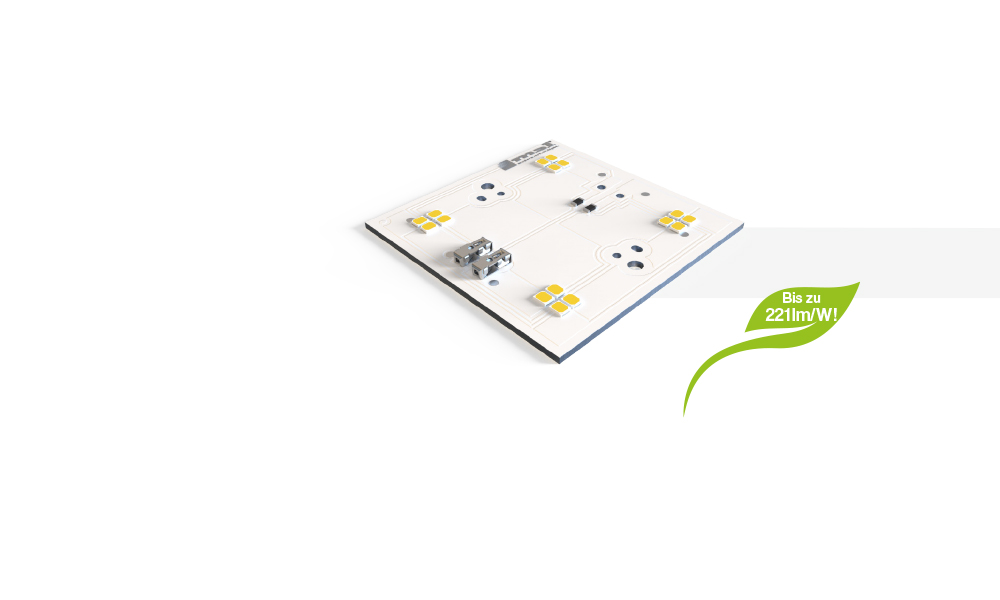

Opticus Daisy M 2x2

Features

Big module image

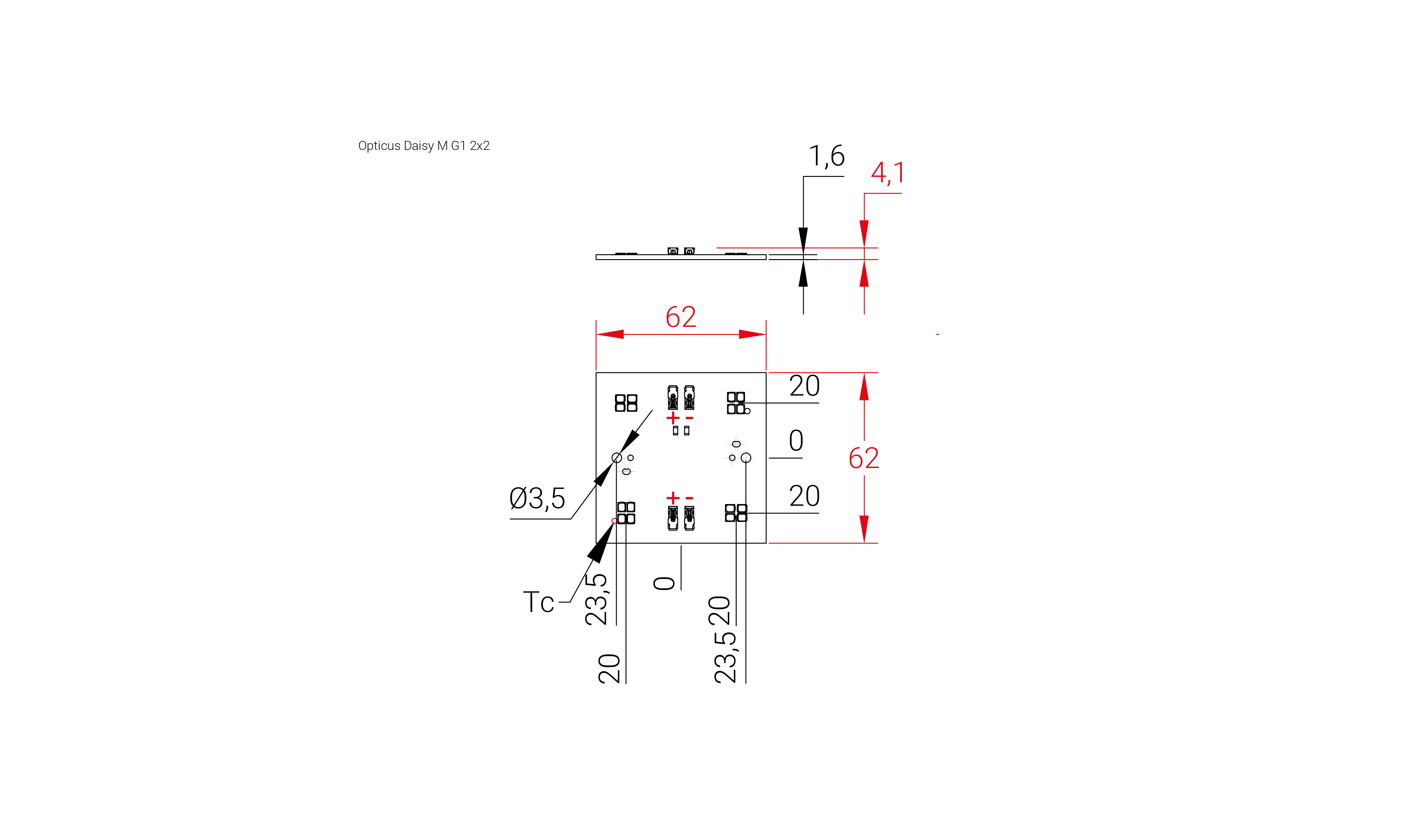

Module drawing
  • square module with LED matrix of 4 for installation in luminaires
  • for LEDiL Daisy optics 2x2
  • 4x4 Mid-Power-LEDs
  • pitch distance along and across 40 mm per 4 matrix
  • length 62 mm
  • width 62 mm
  • 4 connection terminals
  • connection also possible from below
  • rated current 700 mA
  • maximum operating current 850 mA
  • maximum forward voltage 13 V

Downloads

Technical data

Opticus Daisy M 2x2
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M G1 2x2 827 7518-00701 80 2700 K 200 mA 422 lm 194 lm/W 700 mA 1393 lm 171 lm/W 850 mA 1663 lm 166 lm/W
Opticus Daisy M G1 2x2 830 7518-00702 80 3000 K 200 mA 438 lm 207 lm/W 700 mA 1446 lm 183 lm/W 850 mA 1727 lm 177 lm/W
Opticus Daisy M G1 2x2 835 7518-00703 80 3500 K 200 mA 438 lm 207 lm/W 700 mA 1446 lm 183 lm/W 850 mA 1727 lm 177 lm/W
Opticus Daisy M G1 2x2 840 7518-00704 80 4000 K 200 mA 467 lm 221 lm/W 700 mA 1542 lm 195 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M G1 2x2 850 7518-00705 80 5000 K 200 mA 467 lm 221 lm/W 700 mA 1542 lm 195 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M G1 2x2 857 7518-00706 80 5700 K 200 mA 467 lm 221 lm/W 700 mA 1542 lm 195 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M G1 2x2 865 7518-00707 80 6500 K 200 mA 467 lm 221 lm/W 700 mA 1542 lm 195 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M G1 2x2 927 7518-00708 90 2700 K 200 mA 413 lm 193 lm/W 700 mA 1367 lm 171 lm/W 850 mA 1632 lm 166 lm/W
Opticus Daisy M G1 2x2 930 7518-00709 90 3000 K 200 mA 422 lm 198 lm/W 700 mA 1396 lm 175 lm/W 850 mA 1667 lm 169 lm/W
Opticus Daisy M G1 2x2 935 7518-00710 90 3500 K 200 mA 428 lm 200 lm/W 700 mA 1415 lm 177 lm/W 850 mA 1690 lm 172 lm/W
Opticus Daisy M G1 2x2 940 7518-00711 90 4000 K 200 mA 440 lm 206 lm/W 700 mA 1453 lm 182 lm/W 850 mA 1736 lm 176 lm/W
Opticus Daisy M G1 2x2 950 7518-00712 90 5000 K 200 mA 440 lm 206 lm/W 700 mA 1453 lm 182 lm/W 850 mA 1736 lm 176 lm/W
Opticus Daisy M G1 2x2 957 7518-00713 90 5700 K 200 mA 440 lm 206 lm/W 700 mA 1453 lm 182 lm/W 850 mA 1736 lm 176 lm/W
Opticus Daisy M G1 2x2 965 7518-00714 90 6500 K 200 mA 434 lm 203 lm/W 700 mA 1434 lm 180 lm/W 850 mA 1713 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

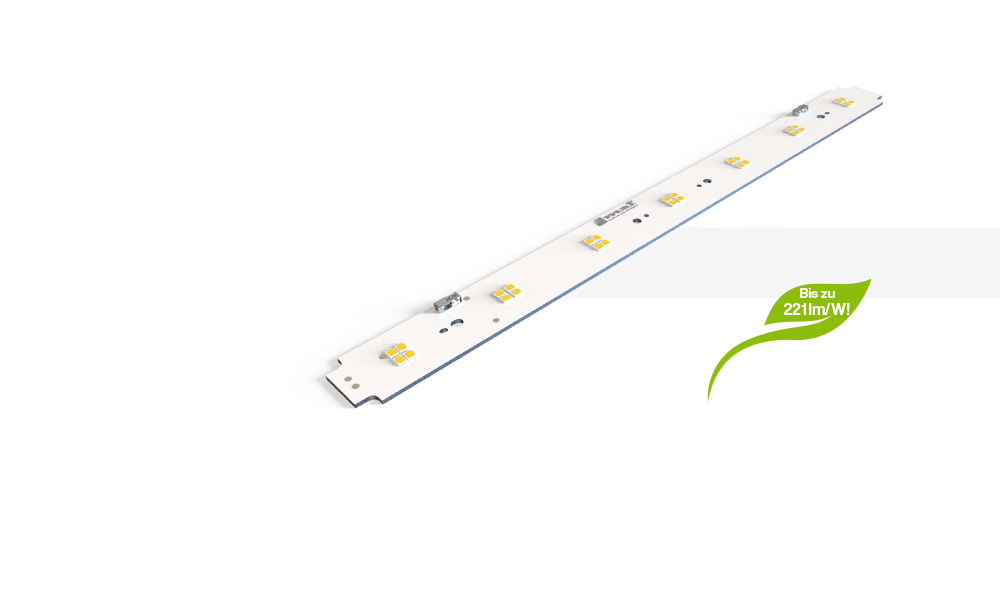

Opticus Daisy M L28

Features

Big module image

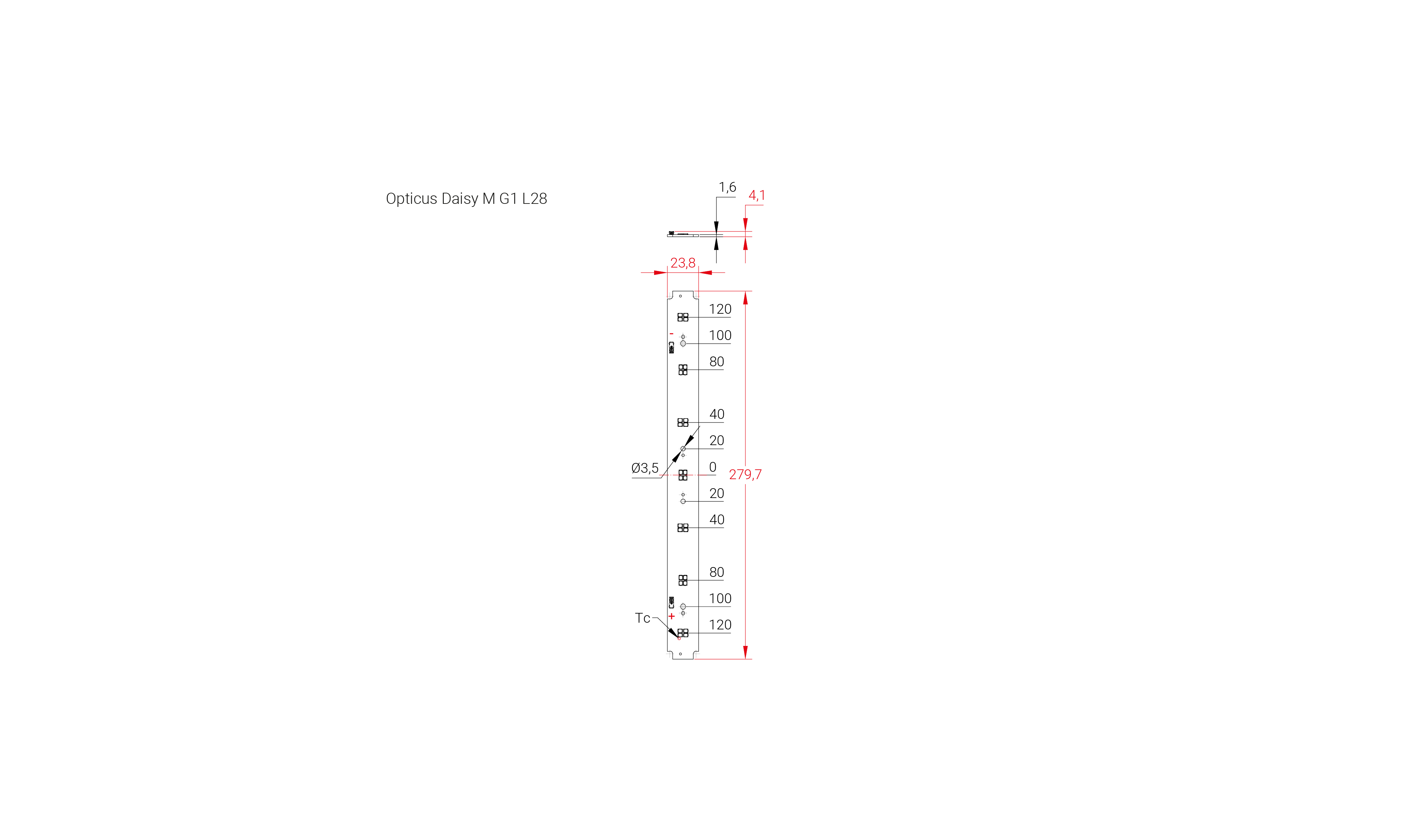

Module drawing
  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 7x4 Mid-Power LEDs
  • pitch distance 40 mm per 4 matrix
  • length 280 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 1050 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 13 V

Downloads

Technical data

Opticus Daisy M L28
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M G1 L28 W24 827 7518-00101 80 2700 K 350 mA 739 lm 194 lm/W 1050 mA 2113 lm 175 lm/W 1500 mA 2933 lm 166 lm/W
Opticus Daisy M G1 L28 W24 830 7518-00102 80 3000 K 350 mA 767 lm 207 lm/W 1050 mA 2194 lm 187 lm/W 1500 mA 3045 lm 177 lm/W
Opticus Daisy M G1 L28 W24 835 7518-00103 80 3500 K 350 mA 767 lm 207 lm/W 1050 mA 2194 lm 187 lm/W 1500 mA 3045 lm 177 lm/W
Opticus Daisy M G1 L28 W24 840 7518-00104 80 4000 K 350 mA 818 lm 221 lm/W 1050 mA 2339 lm 200 lm/W 1500 mA 3247 lm 189 lm/W
Opticus Daisy M G1 L28 W24 850 7518-00105 80 5000 K 350 mA 818 lm 221 lm/W 1050 mA 2339 lm 200 lm/W 1500 mA 3247 lm 189 lm/W
Opticus Daisy M G1 L28 W24 857 7518-00106 80 5700 K 350 mA 818 lm 221 lm/W 1050 mA 2339 lm 200 lm/W 1500 mA 3247 lm 189 lm/W
Opticus Daisy M G1 L28 W24 865 7518-00107 80 6500 K 350 mA 818 lm 221 lm/W 1050 mA 2339 lm 200 lm/W 1500 mA 3247 lm 189 lm/W
Opticus Daisy M G1 L28 W24 927 7518-00108 90 2700 K 350 mA 723 lm 193 lm/W 1050 mA 2074 lm 175 lm/W 1500 mA 2878 lm 165 lm/W
Opticus Daisy M G1 L28 W24 930 7518-00109 90 3000 K 350 mA 739 lm 198 lm/W 1050 mA 2117 lm 179 lm/W 1500 mA 2939 lm 169 lm/W
Opticus Daisy M G1 L28 W24 935 7518-00110 90 3500 K 350 mA 749 lm 200 lm/W 1050 mA 2147 lm 181 lm/W 1500 mA 2979 lm 171 lm/W
Opticus Daisy M G1 L28 W24 940 7518-00111 90 4000 K 350 mA 769 lm 206 lm/W 1050 mA 2205 lm 186 lm/W 1500 mA 3060 lm 176 lm/W
Opticus Daisy M G1 L28 W24 950 7518-00112 90 5000 K 350 mA 769 lm 206 lm/W 1050 mA 2205 lm 186 lm/W 1500 mA 3060 lm 176 lm/W
Opticus Daisy M G1 L28 W24 957 7518-00113 90 5700 K 350 mA 769 lm 206 lm/W 1050 mA 2205 lm 186 lm/W 1500 mA 3060 lm 176 lm/W
Opticus Daisy M G1 L28 W24 965 7518-00114 90 6500 K 350 mA 759 lm 203 lm/W 1050 mA 2176 lm 184 lm/W 1500 mA 3020 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

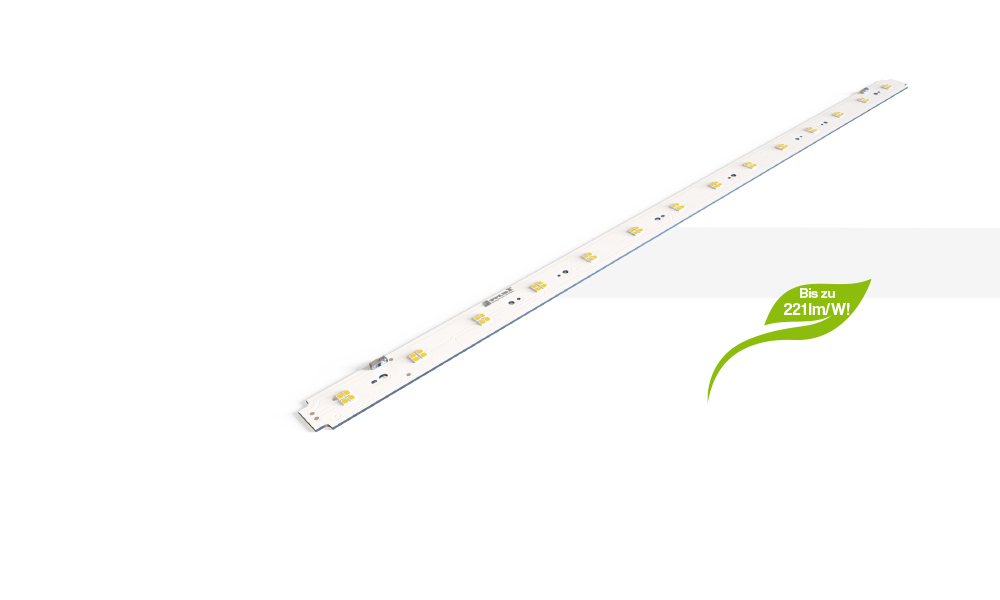

Opticus Daisy M L56

Features

Big module image

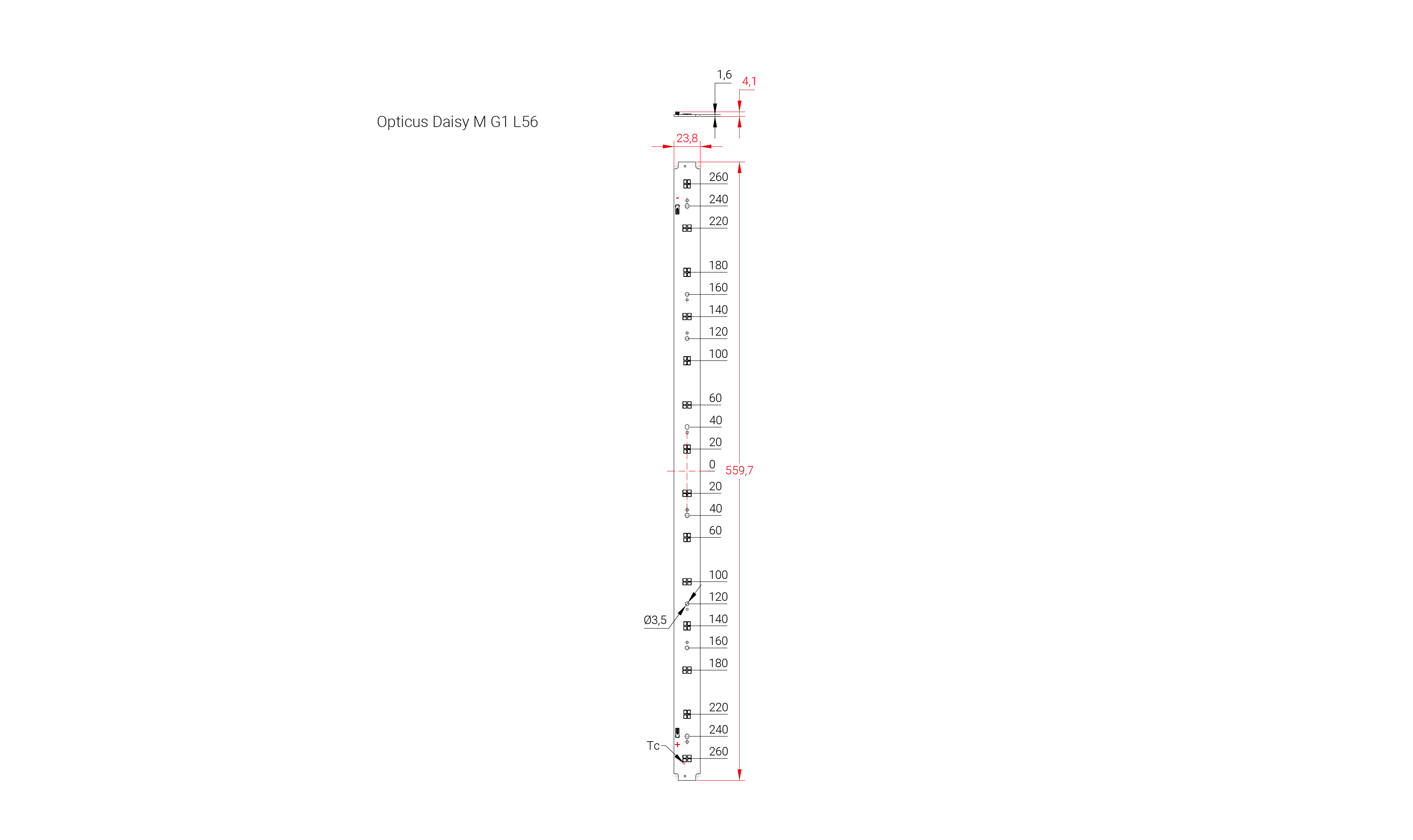

Module drawing
  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 14x4 Mid-Power-LED
  • pitch distance 40 mm per 4 matrix
  • length 560 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 1050 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 26 V

Downloads

Technical data

Opticus Daisy M L56
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M G1 L56 W24 827 7518-00201 80 2700 K 350 mA 1478 lm 194 lm/W 1050 mA 4227 lm 175 lm/W 1500 mA 5866 lm 166 lm/W
Opticus Daisy M G1 L56 W24 830 7518-00202 80 3000 K 350 mA 1534 lm 207 lm/W 1050 mA 4387 lm 187 lm/W 1500 mA 6089 lm 177 lm/W
Opticus Daisy M G1 L56 W24 835 7518-00203 80 3500 K 350 mA 1534 lm 207 lm/W 1050 mA 4387 lm 187 lm/W 1500 mA 6089 lm 177 lm/W
Opticus Daisy M G1 L56 W24 840 7518-00204 80 4000 K 350 mA 1636 lm 221 lm/W 1050 mA 4679 lm 200 lm/W 1500 mA 6494 lm 189 lm/W
Opticus Daisy M G1 L56 W24 850 7518-00205 80 5000 K 350 mA 1636 lm 221 lm/W 1050 mA 4679 lm 200 lm/W 1500 mA 6494 lm 189 lm/W
Opticus Daisy M G1 L56 W24 857 7518-00206 80 5700 K 350 mA 1636 lm 221 lm/W 1050 mA 4679 lm 200 lm/W 1500 mA 6494 lm 189 lm/W
Opticus Daisy M G1 L56 W24 865 7518-00207 80 6500 K 350 mA 1636 lm 221 lm/W 1050 mA 4679 lm 200 lm/W 1500 mA 6494 lm 189 lm/W
Opticus Daisy M G1 L56 W24 927 7518-00208 90 2700 K 350 mA 1447 lm 193 lm/W 1050 mA 4147 lm 175 lm/W 1500 mA 5756 lm 165 lm/W
Opticus Daisy M G1 L56 W24 930 7518-00209 90 3000 K 350 mA 1477 lm 198 lm/W 1050 mA 4235 lm 179 lm/W 1500 mA 5877 lm 169 lm/W
Opticus Daisy M G1 L56 W24 935 7518-00210 90 3500 K 350 mA 1498 lm 200 lm/W 1050 mA 4293 lm 181 lm/W 1500 mA 5958 lm 171 lm/W
Opticus Daisy M G1 L56 W24 940 7518-00211 90 4000 K 350 mA 1538 lm 206 lm/W 1050 mA 4410 lm 186 lm/W 1500 mA 6121 lm 176 lm/W
Opticus Daisy M G1 L56 W24 950 7518-00212 90 5000 K 350 mA 1538 lm 206 lm/W 1050 mA 4410 lm 186 lm/W 1500 mA 6121 lm 176 lm/W
Opticus Daisy M G1 L56 W24 957 7518-00213 90 5700 K 350 mA 1538 lm 206 lm/W 1050 mA 4410 lm 186 lm/W 1500 mA 6121 lm 176 lm/W
Opticus Daisy M G1 L56 W24 965 7518-00214 90 6500 K 350 mA 1518 lm 203 lm/W 1050 mA 4351 lm 184 lm/W 1500 mA 6040 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

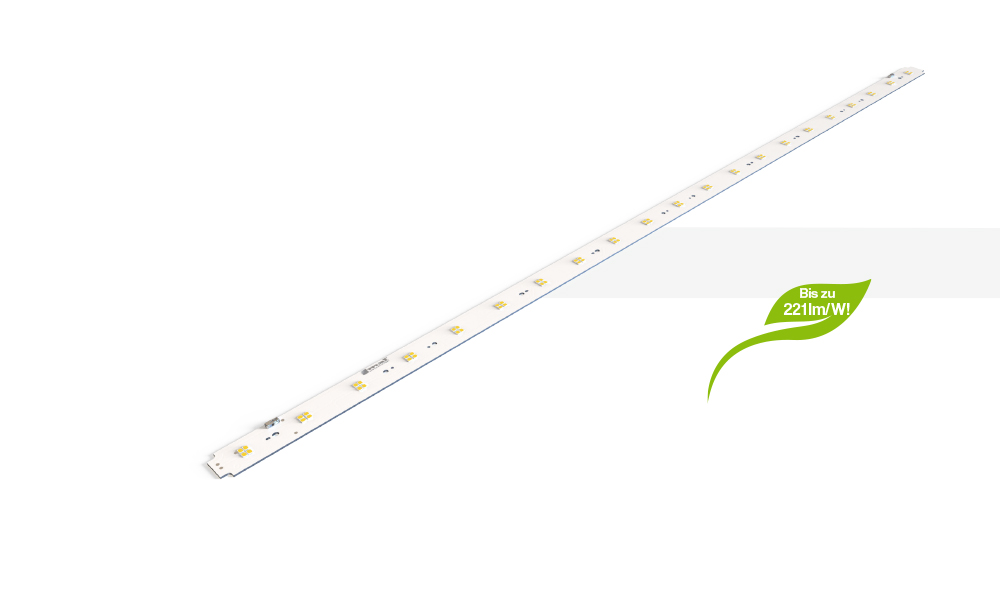

Opticus Daisy M L84

Features

Big module image

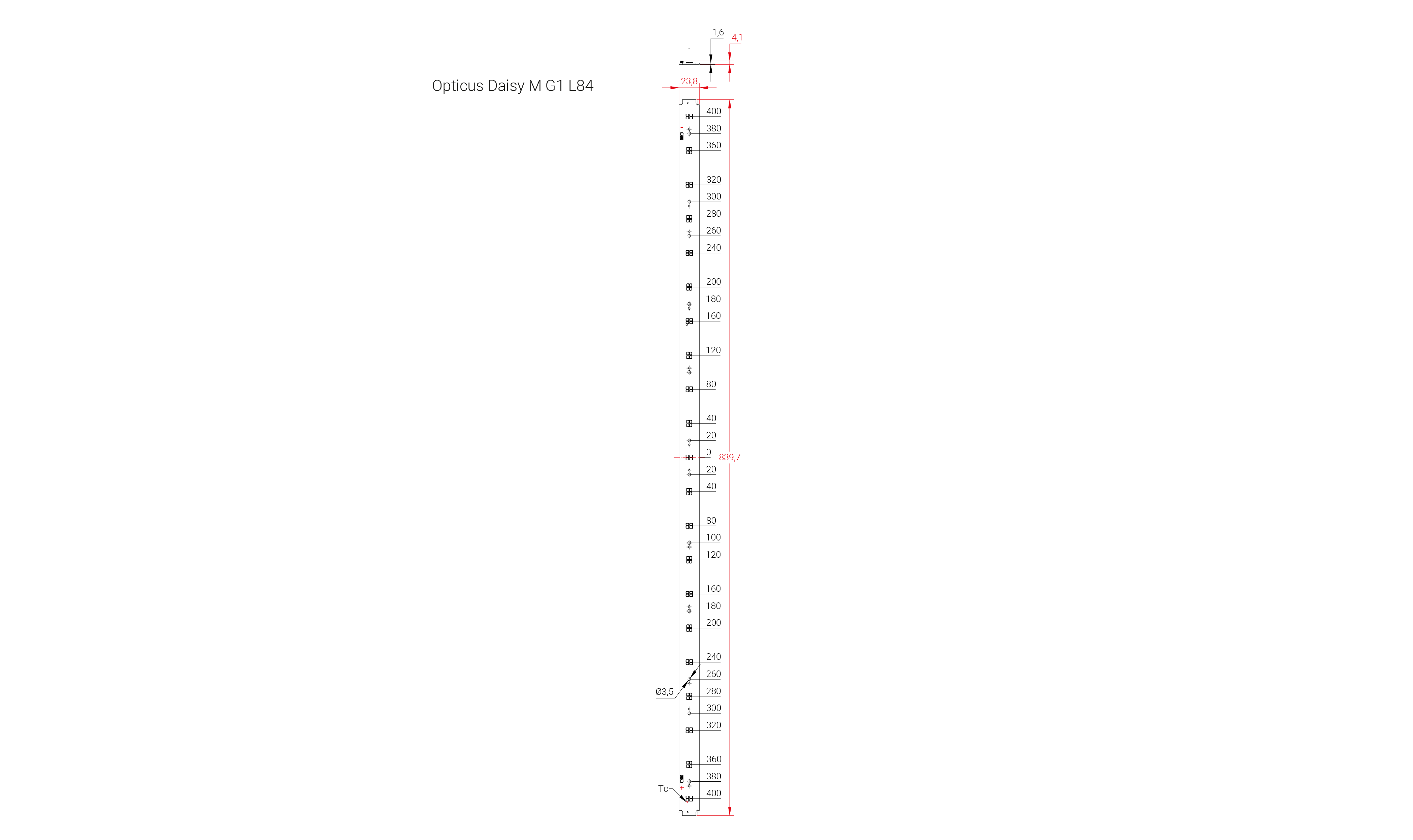

Module drawing
  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 21x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 840 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 1050 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 39 V

Downloads

Technical data

Opticus Daisy M L84
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M G1 L84 W24 827 7518-00301 80 2700 K 350 mA 2217 lm 194 lm/W 1050 mA 6340 lm 175 lm/W 1500 mA 8799 lm 166 lm/W
Opticus Daisy M G1 L84 W24 830 7518-00302 80 3000 K 350 mA 2301 lm 207 lm/W 1050 mA 6581 lm 187 lm/W 1500 mA 9134 lm 177 lm/W
Opticus Daisy M G1 L84 W24 835 7518-00303 80 3500 K 350 mA 2301 lm 207 lm/W 1050 mA 6581 lm 187 lm/W 1500 mA 9134 lm 177 lm/W
Opticus Daisy M G1 L84 W24 840 7518-00304 80 4000 K 350 mA 2454 lm 221 lm/W 1050 mA 7018 lm 200 lm/W 1500 mA 9741 lm 189 lm/W
Opticus Daisy M G1 L84 W24 850 7518-00305 80 5000 K 350 mA 2454 lm 221 lm/W 1050 mA 7018 lm 200 lm/W 1500 mA 9741 lm 189 lm/W
Opticus Daisy M G1 L84 W24 857 7518-00306 80 5700 K 350 mA 2454 lm 221 lm/W 1050 mA 7018 lm 200 lm/W 1500 mA 9741 lm 189 lm/W
Opticus Daisy M G1 L84 W24 865 7518-00307 80 6500 K 350 mA 2454 lm 221 lm/W 1050 mA 7018 lm 200 lm/W 1500 mA 9741 lm 189 lm/W
Opticus Daisy M G1 L84 W24 927 7518-00308 90 2700 K 350 mA 2170 lm 193 lm/W 1050 mA 6221 lm 175 lm/W 1500 mA 8634 lm 165 lm/W
Opticus Daisy M G1 L84 W24 930 7518-00309 90 3000 K 350 mA 2216 lm 198 lm/W 1050 mA 6352 lm 179 lm/W 1500 mA 8816 lm 169 lm/W
Opticus Daisy M G1 L84 W24 935 7518-00310 90 3500 K 350 mA 2246 lm 200 lm/W 1050 mA 6440 lm 181 lm/W 1500 mA 8938 lm 171 lm/W
Opticus Daisy M G1 L84 W24 940 7518-00311 90 4000 K 350 mA 2307 lm 206 lm/W 1050 mA 6615 lm 186 lm/W 1500 mA 9181 lm 176 lm/W
Opticus Daisy M G1 L84 W24 950 7518-00312 90 5000 K 350 mA 2307 lm 206 lm/W 1050 mA 6615 lm 186 lm/W 1500 mA 9181 lm 176 lm/W
Opticus Daisy M G1 L84 W24 957 7518-00313 90 5700 K 350 mA 2307 lm 206 lm/W 1050 mA 6615 lm 186 lm/W 1500 mA 9181 lm 176 lm/W
Opticus Daisy M G1 L84 W24 965 7518-00314 90 6500 K 350 mA 2277 lm 203 lm/W 1050 mA 6527 lm 184 lm/W 1500 mA 9059 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

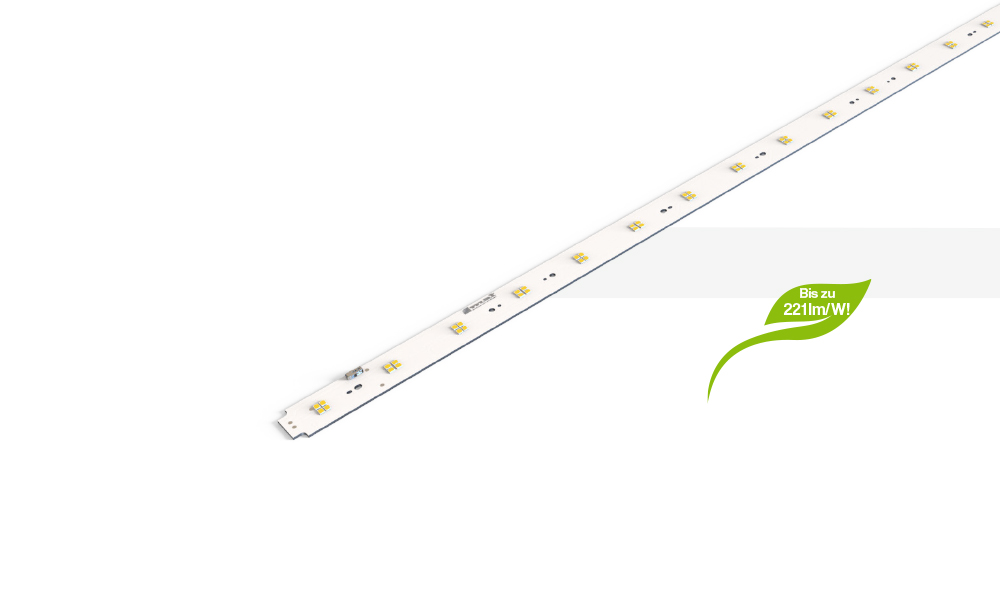

Opticus Daisy M L112

Features

Big module image

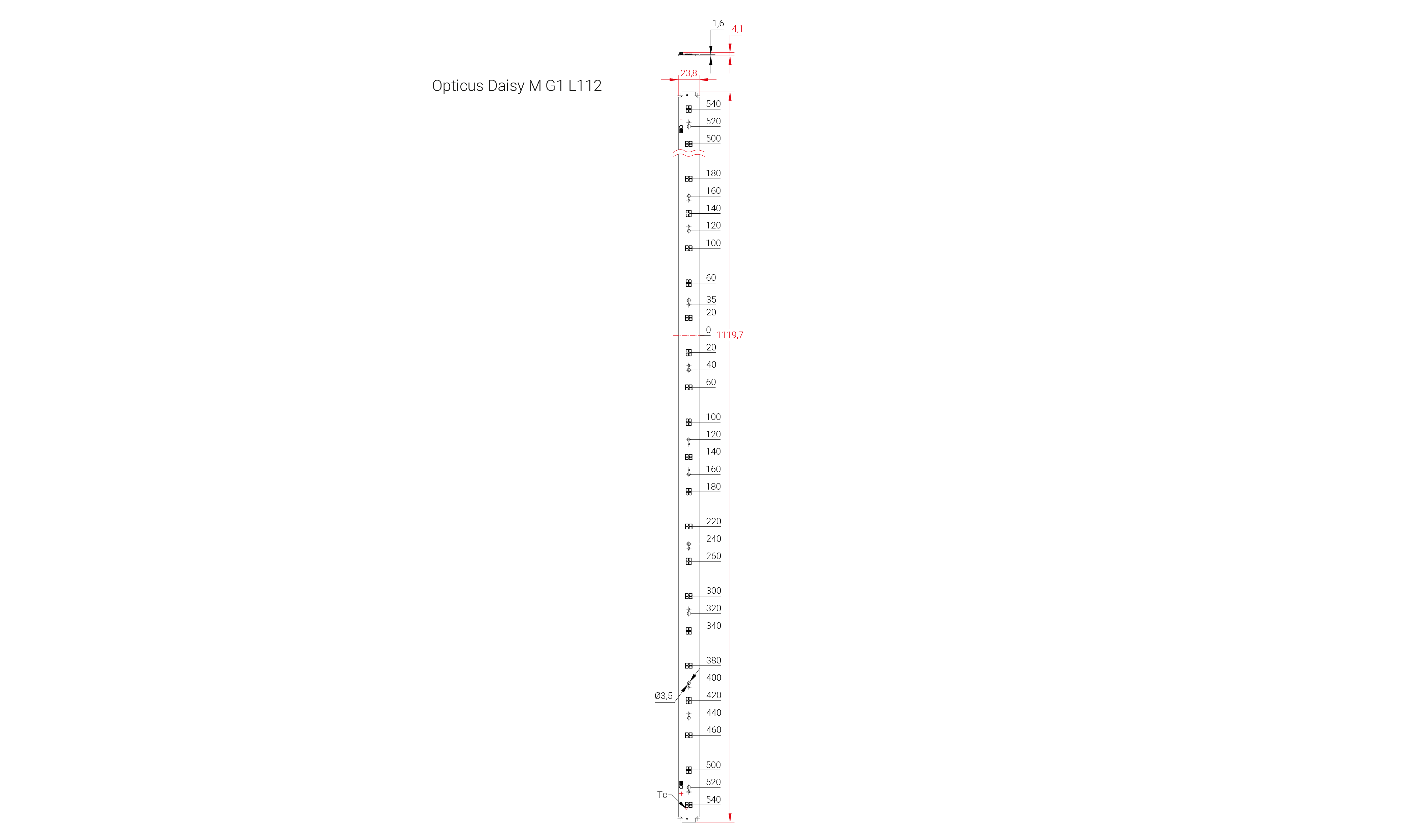

Module drawing
  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1 and 28x1
  • 28x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 1120 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 1050 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 52 V

Downloads

Technical data

Opticus Daisy M L112
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M G1 L112 W24 827 7518-00401 80 2700 K 350 mA 2956 lm 194 lm/W 1050 mA 8453 lm 175 lm/W 1500 mA 11732 lm 166 lm/W
Opticus Daisy M G1 L112 W24 830 7518-00402 80 3000 K 350 mA 3068 lm 207 lm/W 1050 mA 8775 lm 187 lm/W 1500 mA 12179 lm 177 lm/W
Opticus Daisy M G1 L112 W24 835 7518-00403 80 3500 K 350 mA 3068 lm 207 lm/W 1050 mA 8775 lm 187 lm/W 1500 mA 12179 lm 177 lm/W
Opticus Daisy M G1 L112 W24 840 7518-00404 80 4000 K 350 mA 3272 lm 221 lm/W 1050 mA 9358 lm 200 lm/W 1500 mA 12988 lm 189 lm/W
Opticus Daisy M G1 L112 W24 850 7518-00405 80 5000 K 350 mA 3272 lm 221 lm/W 1050 mA 9358 lm 200 lm/W 1500 mA 12988 lm 189 lm/W
Opticus Daisy M G1 L112 W24 857 7518-00406 80 5700 K 350 mA 3272 lm 221 lm/W 1050 mA 9358 lm 200 lm/W 1500 mA 12988 lm 189 lm/W
Opticus Daisy M G1 L112 W24 865 7518-00407 80 6500 K 350 mA 3272 lm 221 lm/W 1050 mA 9358 lm 200 lm/W 1500 mA 12988 lm 189 lm/W
Opticus Daisy M G1 L112 W24 927 7518-00408 90 2700 K 350 mA 2893 lm 193 lm/W 1050 mA 8294 lm 175 lm/W 1500 mA 11512 lm 165 lm/W
Opticus Daisy M G1 L112 W24 930 7518-00409 90 3000 K 350 mA 2954 lm 198 lm/W 1050 mA 8469 lm 179 lm/W 1500 mA 11755 lm 169 lm/W
Opticus Daisy M G1 L112 W24 935 7518-00410 90 3500 K 350 mA 2995 lm 200 lm/W 1050 mA 8586 lm 181 lm/W 1500 mA 11917 lm 171 lm/W
Opticus Daisy M G1 L112 W24 940 7518-00411 90 4000 K 350 mA 3077 lm 206 lm/W 1050 mA 8820 lm 186 lm/W 1500 mA 12241 lm 176 lm/W
Opticus Daisy M G1 L112 W24 950 7518-00412 90 5000 K 350 mA 3077 lm 206 lm/W 1050 mA 8820 lm 186 lm/W 1500 mA 12241 lm 176 lm/W
Opticus Daisy M G1 L112 W24 957 7518-00413 90 5700 K 350 mA 3077 lm 206 lm/W 1050 mA 8820 lm 186 lm/W 1500 mA 12241 lm 176 lm/W
Opticus Daisy M G1 L112 W24 965 7518-00414 90 6500 K 350 mA 3036 lm 203 lm/W 1050 mA 8703 lm 184 lm/W 1500 mA 12079 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Opticus Daisy M L140

Features

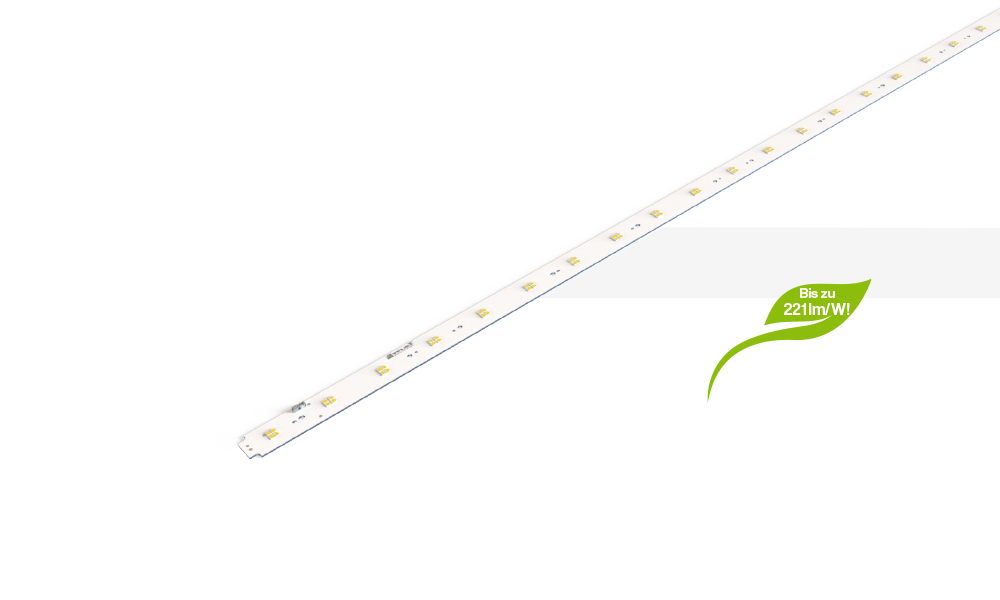

Big module image

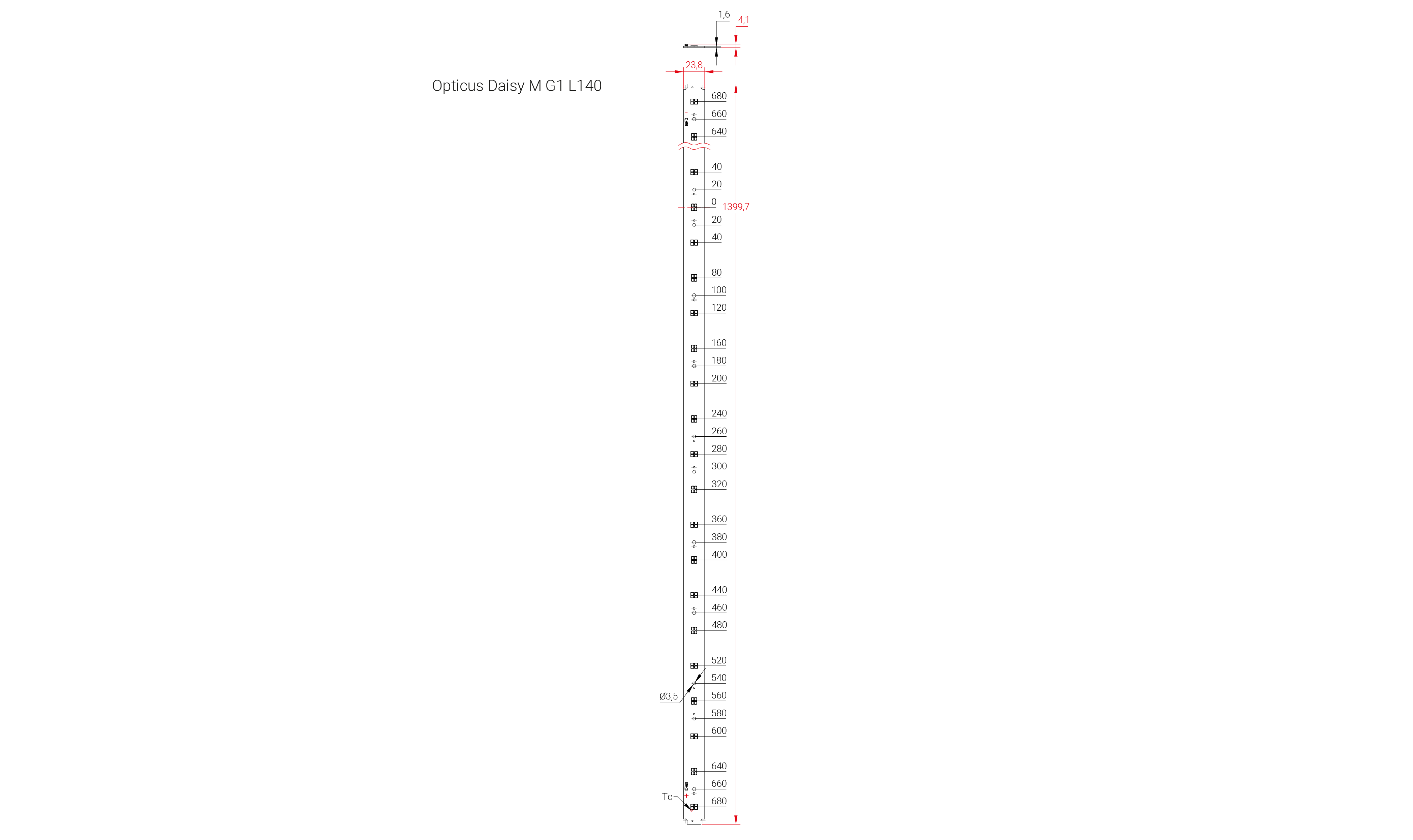

Module drawing
  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1 and 28x1
  • 35x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 1400 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 1050 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 65 V

Downloads

Technical data

Opticus Daisy M L140
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M G1 L140 W24 827 7518-00501 80 2700 K 350 mA 3695 lm 194 lm/W 1050 mA 10566 lm 175 lm/W 1500 mA 14666 lm 166 lm/W
Opticus Daisy M G1 L140 W24 830 7518-00502 80 3000 K 350 mA 3835 lm 207 lm/W 1050 mA 10968 lm 187 lm/W 1500 mA 15224 lm 177 lm/W
Opticus Daisy M G1 L140 W24 835 7518-00503 80 3500 K 350 mA 3835 lm 207 lm/W 1050 mA 10968 lm 187 lm/W 1500 mA 15224 lm 177 lm/W
Opticus Daisy M G1 L140 W24 840 7518-00504 80 4000 K 350 mA 4090 lm 221 lm/W 1050 mA 11697 lm 200 lm/W 1500 mA 16235 lm 189 lm/W
Opticus Daisy M G1 L140 W24 850 7518-00505 80 5000 K 350 mA 4090 lm 221 lm/W 1050 mA 11697 lm 200 lm/W 1500 mA 16235 lm 189 lm/W
Opticus Daisy M G1 L140 W24 857 7518-00506 80 5700 K 350 mA 4090 lm 221 lm/W 1050 mA 11697 lm 200 lm/W 1500 mA 16235 lm 189 lm/W
Opticus Daisy M G1 L140 W24 865 7518-00507 80 6500 K 350 mA 4090 lm 221 lm/W 1050 mA 11697 lm 200 lm/W 1500 mA 16235 lm 189 lm/W
Opticus Daisy M G1 L140 W24 927 7518-00508 90 2700 K 350 mA 3617 lm 193 lm/W 1050 mA 10368 lm 175 lm/W 1500 mA 14389 lm 165 lm/W
Opticus Daisy M G1 L140 W24 930 7518-00509 90 3000 K 350 mA 3693 lm 198 lm/W 1050 mA 10587 lm 179 lm/W 1500 mA 14693 lm 169 lm/W
Opticus Daisy M G1 L140 W24 935 7518-00510 90 3500 K 350 mA 3744 lm 200 lm/W 1050 mA 10733 lm 181 lm/W 1500 mA 14896 lm 171 lm/W
Opticus Daisy M G1 L140 W24 940 7518-00511 90 4000 K 350 mA 3846 lm 206 lm/W 1050 mA 11025 lm 186 lm/W 1500 mA 15301 lm 176 lm/W
Opticus Daisy M G1 L140 W24 950 7518-00512 90 5000 K 350 mA 3846 lm 206 lm/W 1050 mA 11025 lm 186 lm/W 1500 mA 15301 lm 176 lm/W
Opticus Daisy M G1 L140 W24 957 7518-00513 90 5700 K 350 mA 3846 lm 206 lm/W 1050 mA 11025 lm 186 lm/W 1500 mA 15301 lm 176 lm/W
Opticus Daisy M G1 L140 W24 965 7518-00514 90 6500 K 350 mA 3795 lm 203 lm/W 1050 mA 10879 lm 184 lm/W 1500 mA 15099 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Opticus Daisy M products

With our Opticus Daisy M modules, several modules are connected together in series. They are optimized for standard operating currents 350 mA, 700 mA, 1050 mA.

Our Opticus Daisy LED modules are perfectly matched to the popular Daisy optics from LEDiL. With the “Daisy” product series, LEDiL offers outstanding linear optic systems consisting of various lenses and louvre elements.

These can be combined with each other. These lenses are combined with louvre elements. Choose between glossy or matt, as well as black, white and silver. You can choose from different dimensions for both the lenses and the louvre elements.

• 80° lens • 25° x 70° oval lens
• 50° lens • Asymmetry
• 50° lens with improved glare control • Wallwasher
• 35° lens • Lens for free standing luminaires
