Opticus Daisy M1

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M1 L14

  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 4x1
  • 4x4 Mid-Power LEDs
  • pitch distance 40 mm per 4 matrix
  • length 140 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M1 L28

  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 7x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 280 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy M1 L56

  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 28x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 560 mm
  • Products

Opticus Daisy M1 L14

Features

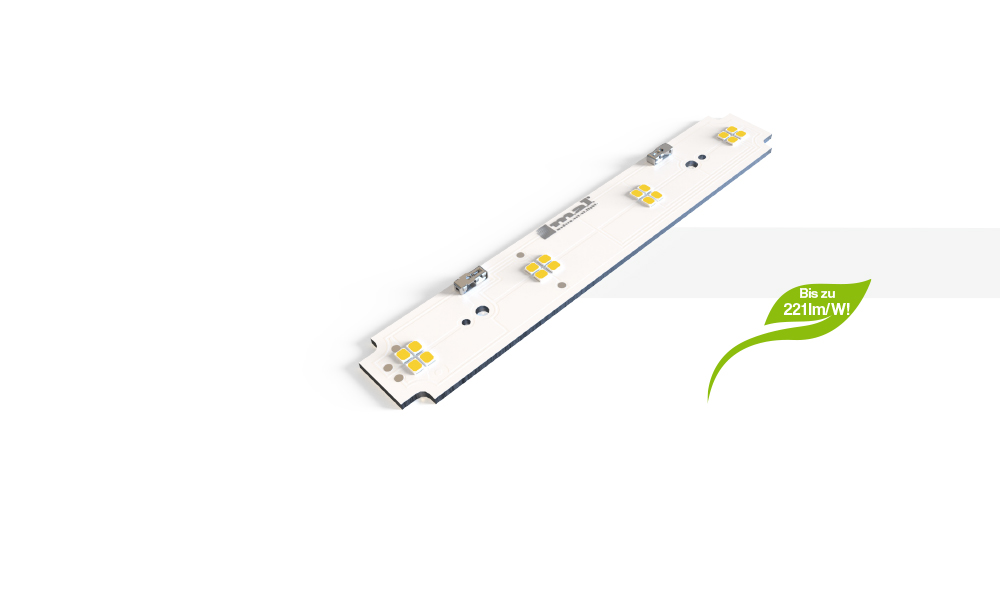

Big module image

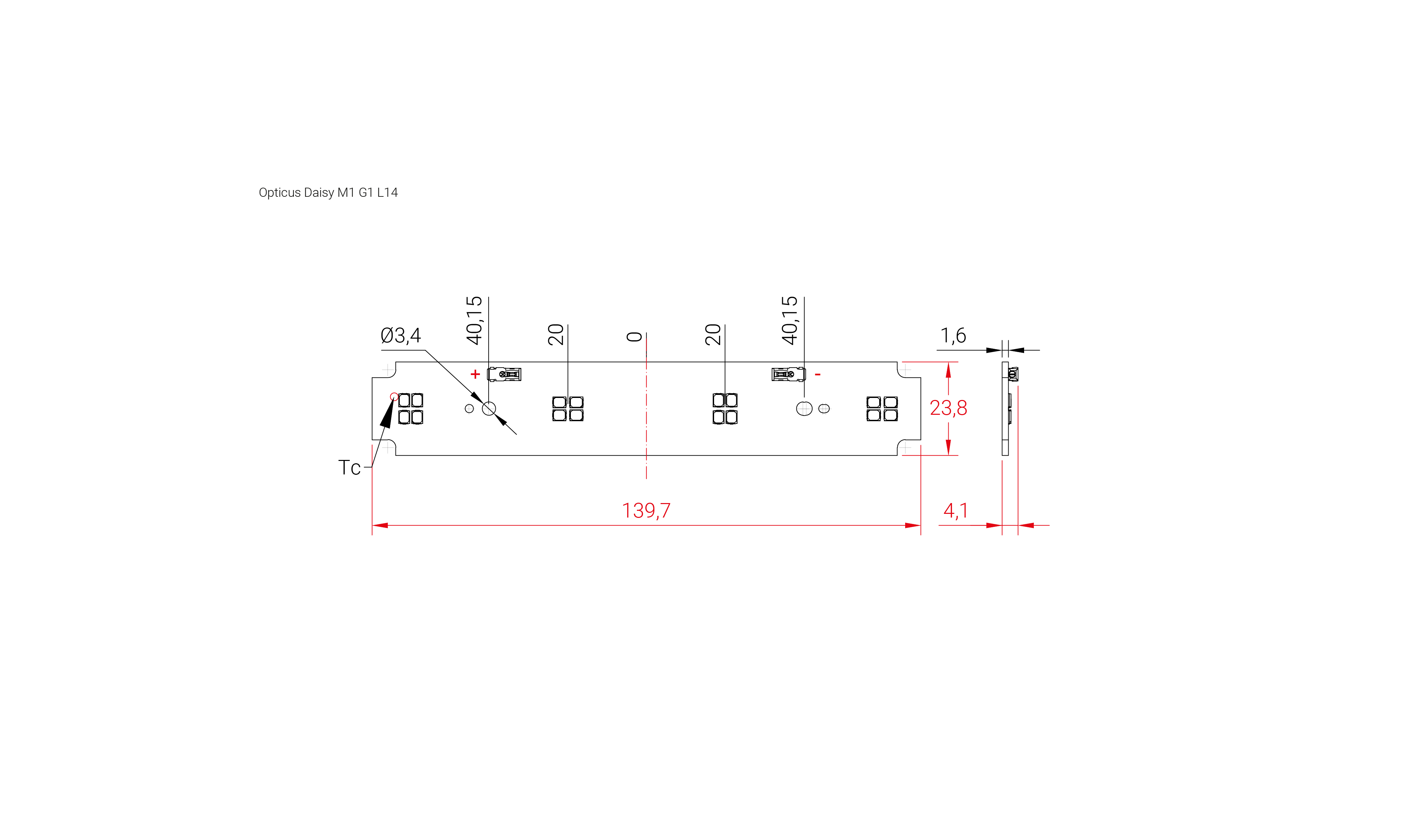

Module drawing
  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 4x1
  • 4x4 Mid-Power LEDs
  • pitch distance 40 mm per 4 matrix
  • length 140 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 600 mA
  • maximum operating current 850 mA
  • maximum forward voltage 13 V

Downloads

Technical data

Opticus Daisy M1 L14
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M1 G1 L14 W24 827 7518-04001 80 2700 K 200 mA 422 lm 194 lm/W 600 mA 1208 lm 175 lm/W 850 mA 1663 lm 166 lm/W
Opticus Daisy M1 G1 L14 W24 830 7518-04002 80 3000 K 200 mA 438 lm 207 lm/W 600 mA 1254 lm 187 lm/W 850 mA 1727 lm 177 lm/W
Opticus Daisy M1 G1 L14 W24 835 7518-04003 80 3500 K 200 mA 438 lm 207 lm/W 600 mA 1254 lm 187 lm/W 850 mA 1727 lm 177 lm/W
Opticus Daisy M1 G1 L14 W24 840 7518-04004 80 4000 K 200 mA 467 lm 221 lm/W 600 mA 1337 lm 200 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M1 G1 L14 W24 850 7518-04005 80 5000 K 200 mA 467 lm 221 lm/W 600 mA 1337 lm 200 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M1 G1 L14 W24 857 7518-04006 80 5700 K 200 mA 467 lm 221 lm/W 600 mA 1337 lm 200 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M1 G1 L14 W24 865 7518-04007 80 6500 K 200 mA 467 lm 221 lm/W 600 mA 1337 lm 200 lm/W 850 mA 1841 lm 189 lm/W
Opticus Daisy M1 G1 L14 W24 927 7518-04008 90 2700 K 200 mA 413 lm 193 lm/W 600 mA 1185 lm 175 lm/W 850 mA 1632 lm 166 lm/W
Opticus Daisy M1 G1 L14 W24 930 7518-04009 90 3000 K 200 mA 422 lm 198 lm/W 600 mA 1210 lm 179 lm/W 850 mA 1667 lm 169 lm/W
Opticus Daisy M1 G1 L14 W24 935 7518-04010 90 3500 K 200 mA 428 lm 200 lm/W 600 mA 1227 lm 181 lm/W 850 mA 1690 lm 172 lm/W
Opticus Daisy M1 G1 L14 W24 940 7518-04011 90 4000 K 200 mA 440 lm 206 lm/W 600 mA 1260 lm 186 lm/W 850 mA 1736 lm 176 lm/W
Opticus Daisy M1 G1 L14 W24 950 7518-04012 90 5000 K 200 mA 440 lm 206 lm/W 600 mA 1260 lm 186 lm/W 850 mA 1736 lm 176 lm/W
Opticus Daisy M1 G1 L14 W24 957 7518-04013 90 5700 K 200 mA 440 lm 206 lm/W 600 mA 1260 lm 186 lm/W 850 mA 1736 lm 176 lm/W
Opticus Daisy M1 G1 L14 W24 965 7518-04014 90 6500 K 200 mA 434 lm 203 lm/W 600 mA 1243 lm 184 lm/W 850 mA 1713 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Opticus Daisy M1 L28

Features

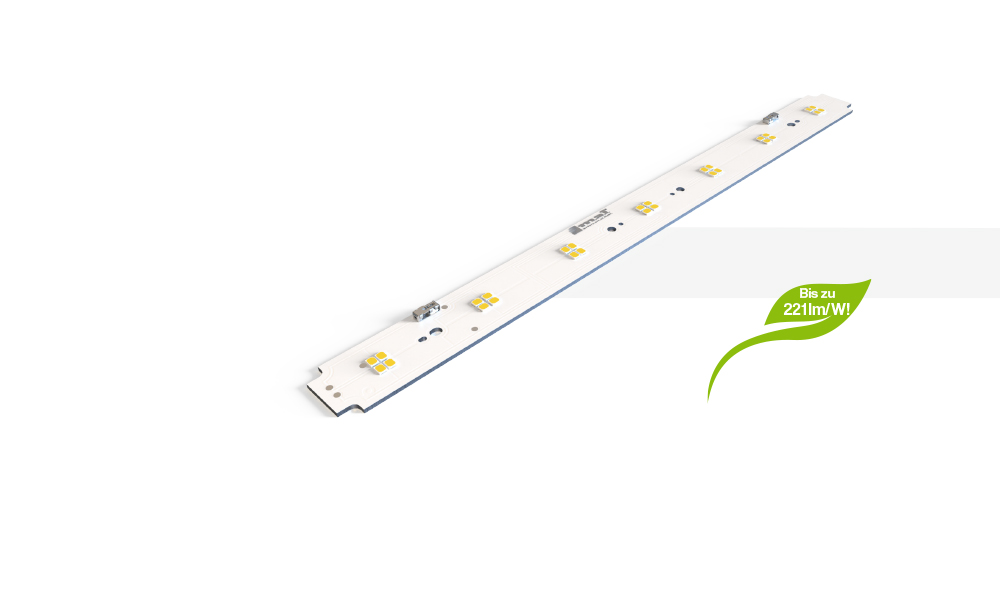

Big module image

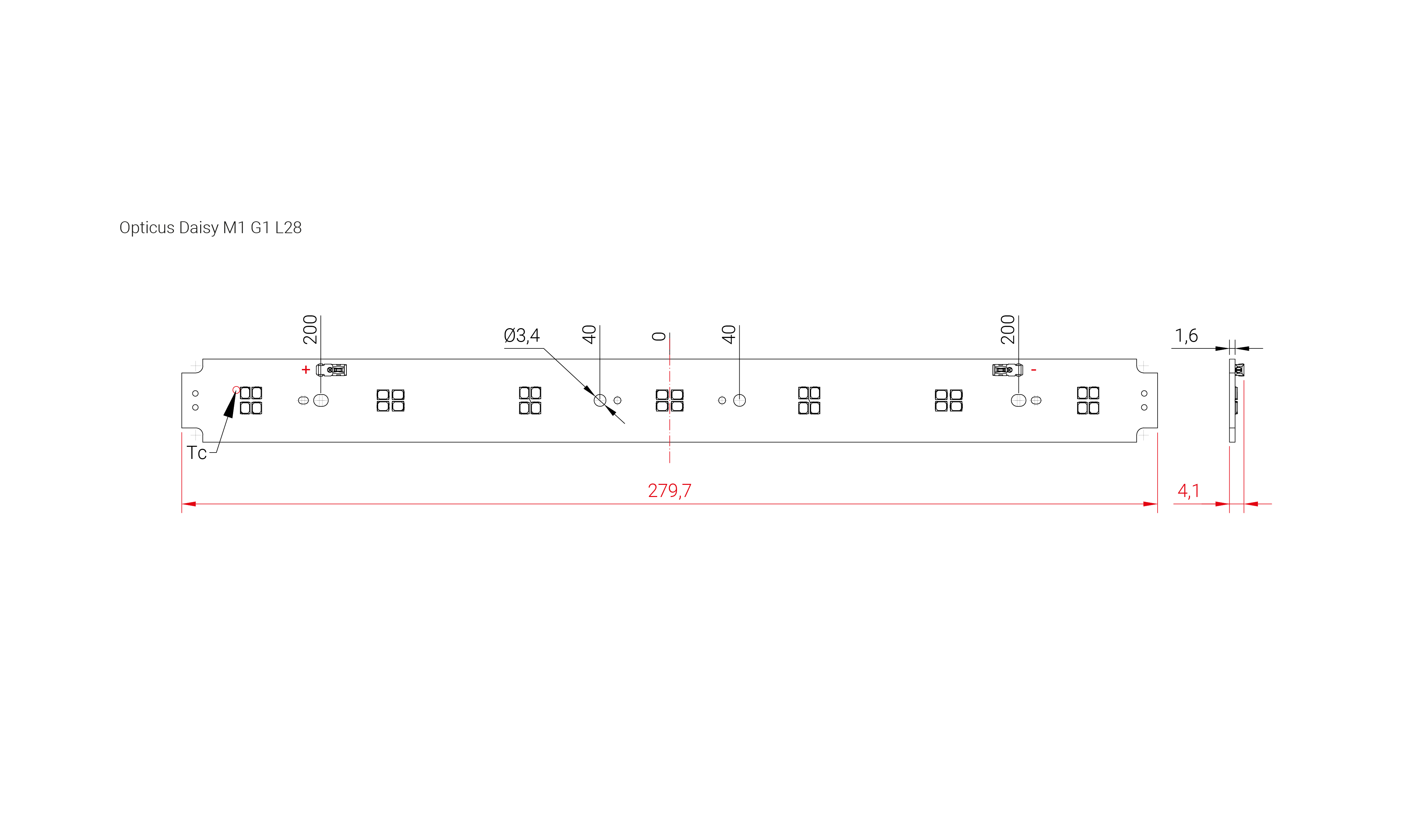

Module drawing
  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 7x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 280 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 600 mA
  • maximum operating current 850 mA
  • maximum forward voltage 22.75 V

Downloads

Technical data

Opticus Daisy M1 L28
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M1 G1 L28 W24 827 7518-04101 80 2700 K 200 mA 739 lm 194 lm/W 600 mA 2113 lm 175 lm/W 850 mA 2911 lm 166 lm/W
Opticus Daisy M1 G1 L28 W24 830 7518-04102 80 3000 K 200 mA 767 lm 207 lm/W 600 mA 2194 lm 187 lm/W 850 mA 3022 lm 177 lm/W
Opticus Daisy M1 G1 L28 W24 835 7518-04103 80 3500 K 200 mA 767 lm 207 lm/W 600 mA 2194 lm 187 lm/W 850 mA 3022 lm 177 lm/W
Opticus Daisy M1 G1 L28 W24 840 7518-04104 80 4000 K 200 mA 818 lm 221 lm/W 600 mA 2339 lm 200 lm/W 850 mA 3223 lm 189 lm/W
Opticus Daisy M1 G1 L28 W24 850 7518-04105 80 5000 K 200 mA 818 lm 221 lm/W 600 mA 2339 lm 200 lm/W 850 mA 3223 lm 189 lm/W
Opticus Daisy M1 G1 L28 W24 857 7518-04106 80 5700 K 200 mA 818 lm 221 lm/W 600 mA 2339 lm 200 lm/W 850 mA 3223 lm 189 lm/W
Opticus Daisy M1 G1 L28 W24 865 7518-04107 80 6500 K 200 mA 818 lm 221 lm/W 600 mA 2339 lm 200 lm/W 850 mA 3223 lm 189 lm/W
Opticus Daisy M1 G1 L28 W24 927 7518-04108 90 2700 K 200 mA 723 lm 193 lm/W 600 mA 2074 lm 175 lm/W 850 mA 2856 lm 166 lm/W
Opticus Daisy M1 G1 L28 W24 930 7518-04109 90 3000 K 200 mA 739 lm 198 lm/W 600 mA 2117 lm 179 lm/W 850 mA 2917 lm 169 lm/W
Opticus Daisy M1 G1 L28 W24 935 7518-04110 90 3500 K 200 mA 749 lm 200 lm/W 600 mA 2147 lm 181 lm/W 850 mA 2957 lm 172 lm/W
Opticus Daisy M1 G1 L28 W24 940 7518-04111 90 4000 K 200 mA 769 lm 206 lm/W 600 mA 2205 lm 186 lm/W 850 mA 3037 lm 176 lm/W
Opticus Daisy M1 G1 L28 W24 950 7518-04112 90 5000 K 200 mA 769 lm 206 lm/W 600 mA 2205 lm 186 lm/W 850 mA 3037 lm 176 lm/W
Opticus Daisy M1 G1 L28 W24 957 7518-04113 90 5700 K 200 mA 769 lm 206 lm/W 600 mA 2205 lm 186 lm/W 850 mA 3037 lm 176 lm/W
Opticus Daisy M1 G1 L28 W24 965 7518-04114 90 6500 K 200 mA 759 lm 203 lm/W 600 mA 2176 lm 184 lm/W 850 mA 2997 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Opticus Daisy M1 L56

Features

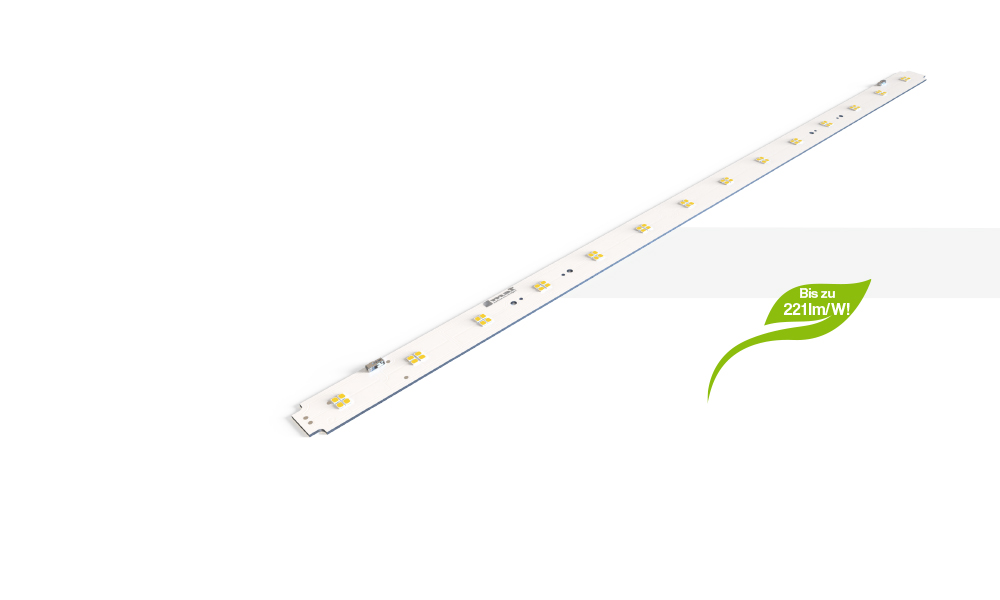

Big module image

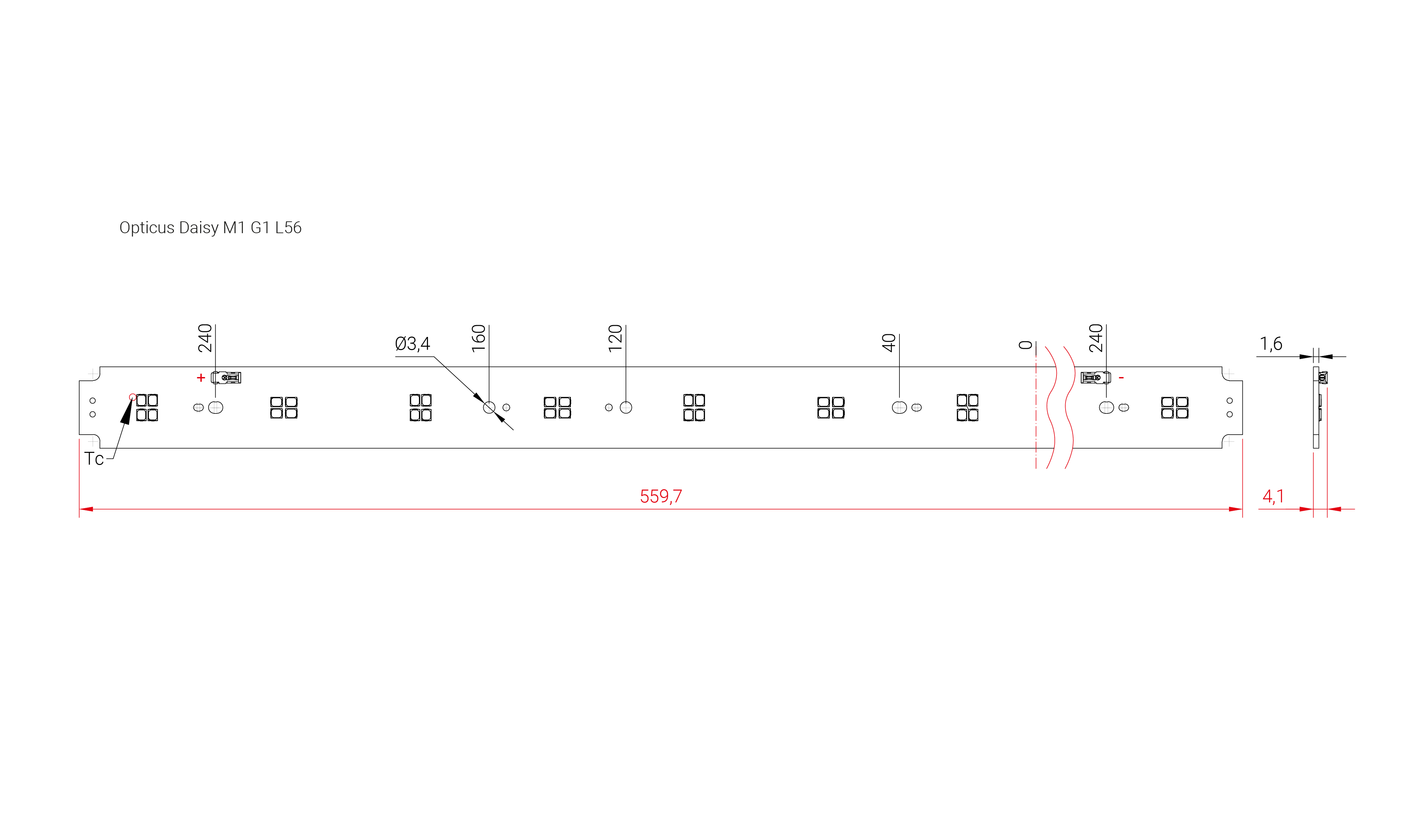

Module drawing
  • linear module with LED 4-matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 28x4 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 560 mm
  • width 24 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 600 mA
  • maximum operating current 850 mA
  • maximum forward voltage 45.5 V

Downloads

Technical data

Opticus Daisy M1 L56
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy M1 G1 L56 W24 827 7518-04201 80 2700 K 200 mA 1478 lm 194 lm/W 600 mA 4227 lm 175 lm/W 850 mA 5822 lm 166 lm/W
Opticus Daisy M1 G1 L56 W24 830 7518-04202 80 3000 K 200 mA 1534 lm 207 lm/W 600 mA 4387 lm 187 lm/W 850 mA 6044 lm 177 lm/W
Opticus Daisy M1 G1 L56 W24 835 7518-04203 80 3500 K 200 mA 1534 lm 207 lm/W 600 mA 4387 lm 187 lm/W 850 mA 6044 lm 177 lm/W
Opticus Daisy M1 G1 L56 W24 840 7518-04204 80 4000 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy M1 G1 L56 W24 850 7518-04205 80 5000 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy M1 G1 L56 W24 857 7518-04206 80 5700 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy M1 G1 L56 W24 865 7518-04207 80 6500 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy M1 G1 L56 W24 927 7518-04208 90 2700 K 200 mA 1447 lm 193 lm/W 600 mA 4147 lm 175 lm/W 850 mA 5712 lm 166 lm/W
Opticus Daisy M1 G1 L56 W24 930 7518-04209 90 3000 K 200 mA 1477 lm 198 lm/W 600 mA 4235 lm 179 lm/W 850 mA 5833 lm 169 lm/W
Opticus Daisy M1 G1 L56 W24 935 7518-04210 90 3500 K 200 mA 1498 lm 200 lm/W 600 mA 4293 lm 181 lm/W 850 mA 5913 lm 172 lm/W
Opticus Daisy M1 G1 L56 W24 940 7518-04211 90 4000 K 200 mA 1538 lm 206 lm/W 600 mA 4410 lm 186 lm/W 850 mA 6074 lm 176 lm/W
Opticus Daisy M1 G1 L56 W24 950 7518-04212 90 5000 K 200 mA 1538 lm 206 lm/W 600 mA 4410 lm 186 lm/W 850 mA 6074 lm 176 lm/W
Opticus Daisy M1 G1 L56 W24 957 7518-04213 90 5700 K 200 mA 1538 lm 206 lm/W 600 mA 4410 lm 186 lm/W 850 mA 6074 lm 176 lm/W
Opticus Daisy M1 G1 L56 W24 965 7518-04214 90 6500 K 200 mA 1518 lm 203 lm/W 600 mA 4351 lm 184 lm/W 850 mA 5994 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Opticus Daisy M1 products

With our Opticus Daisy M1 modules, several modules are connected together in series. They are optimized for low operating currents.

Our Opticus Daisy LED modules are perfectly matched to the popular Daisy optics from LEDiL. With the “Daisy “ product series, LEDiL offers outstanding linear optic systems consisting of various lenses and louvre elements. These can be combined with each other. These lenses are combined with louvre elements. Choose between glossy or matt, as well as black, white and silver. You can choose from different dimensions for both the lenses and the louvre elements.

You can choose between clear and matt lenses. The following options are available to you:

• 80° lens • 25° x 70° oval lens
• 50° lens • Asymmetry
• 50° lens with improved glare control • Wallwasher
• 35° lens • Lens for free standing luminaires
