Opticus Daisy Mini

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy Mini L28

  • linear module for installation in luminaires
  • for LEDiL Daisy Mini optics
  • 14 Mid-Power-LEDs
  • pitch distance 20 mm
  • length 280 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy Mini L56

  • linear module for installation in luminaires
  • for LEDiL Daisy Mini optics
  • 28 Mid-Power-LEDs
  • pitch distance 20 mm
  • length 560 mm
  • Products

Opticus Daisy Mini L28

Features

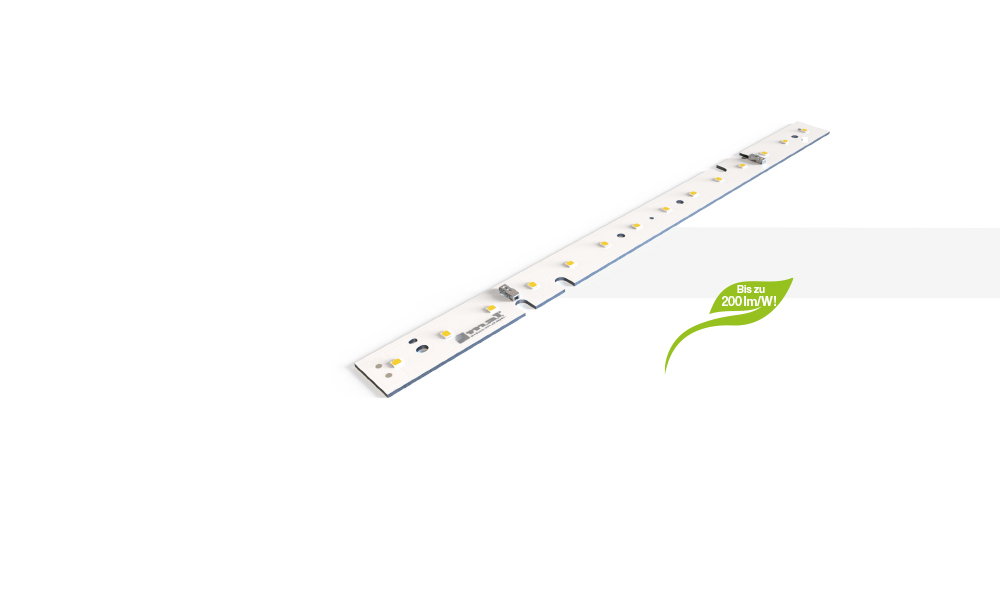

Big module image

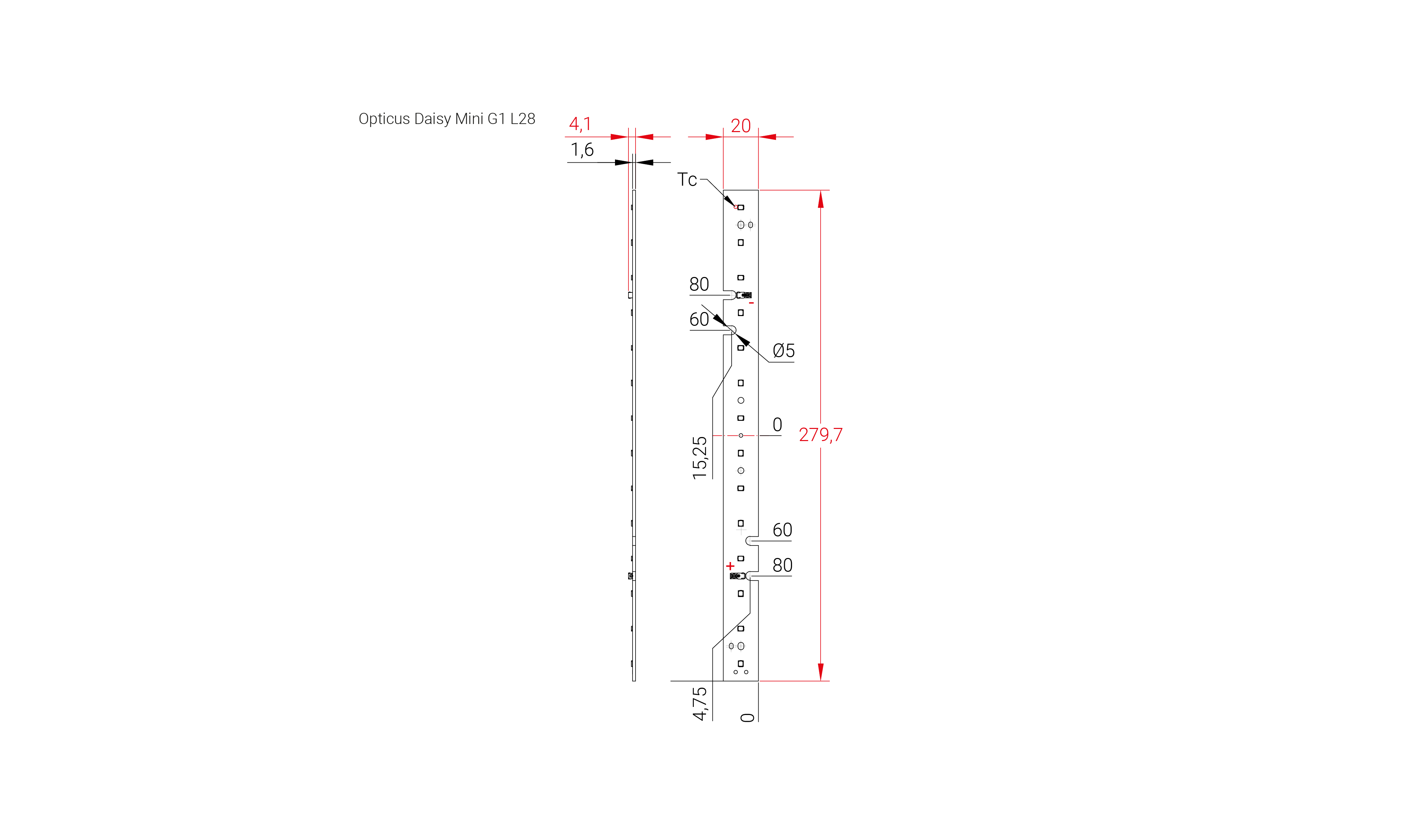

Module drawing
  • linear module for installation in luminaires
  • for LEDiL Daisy Mini optics
  • 14 Mid-Power-LEDs
  • pitch distance 20 mm
  • length 280 mm
  • width 20 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 450 mA
  • maximum operating current 700 mA
  • maximum forward voltage 22.75 V

Downloads

Technical data

Opticus Daisy Mini L28
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy Mini G1 L28 W20 827 7518-03101 80 2700 K 300 mA 1057 lm 175 lm/W 450 mA 1533 lm 164 lm/W 700 mA 2260 lm 149 lm/W
Opticus Daisy Mini G1 L28 W20 830 7518-03102 80 3000 K 300 mA 1097 lm 187 lm/W 450 mA 1591 lm 175 lm/W 700 mA 2346 lm 159 lm/W
Opticus Daisy Mini G1 L28 W20 835 7518-03103 80 3500 K 300 mA 1097 lm 187 lm/W 450 mA 1591 lm 175 lm/W 700 mA 2346 lm 159 lm/W
Opticus Daisy Mini G1 L28 W20 840 7518-03104 80 4000 K 300 mA 1170 lm 200 lm/W 450 mA 1697 lm 187 lm/W 700 mA 2502 lm 170 lm/W
Opticus Daisy Mini G1 L28 W20 850 7518-03105 80 5000 K 300 mA 1170 lm 200 lm/W 450 mA 1697 lm 187 lm/W 700 mA 2502 lm 170 lm/W
Opticus Daisy Mini G1 L28 W20 857 7518-03106 80 5700 K 300 mA 1170 lm 200 lm/W 450 mA 1697 lm 187 lm/W 700 mA 2502 lm 170 lm/W
Opticus Daisy Mini G1 L28 W20 865 7518-03107 80 6500 K 300 mA 1170 lm 200 lm/W 450 mA 1697 lm 187 lm/W 700 mA 2502 lm 170 lm/W
Opticus Daisy Mini G1 L28 W20 927 7518-03108 90 2700 K 300 mA 1037 lm 175 lm/W 450 mA 1504 lm 164 lm/W 700 mA 2216 lm 149 lm/W
Opticus Daisy Mini G1 L28 W20 930 7518-03109 90 3000 K 300 mA 1059 lm 179 lm/W 450 mA 1535 lm 167 lm/W 700 mA 2263 lm 152 lm/W
Opticus Daisy Mini G1 L28 W20 935 7518-03110 90 3500 K 300 mA 1073 lm 181 lm/W 450 mA 1557 lm 170 lm/W 700 mA 2294 lm 154 lm/W
Opticus Daisy Mini G1 L28 W20 940 7518-03111 90 4000 K 300 mA 1102 lm 186 lm/W 450 mA 1599 lm 174 lm/W 700 mA 2356 lm 158 lm/W
Opticus Daisy Mini G1 L28 W20 950 7518-03112 90 5000 K 300 mA 1102 lm 186 lm/W 450 mA 1599 lm 174 lm/W 700 mA 2356 lm 158 lm/W
Opticus Daisy Mini G1 L28 W20 957 7518-03113 90 5700 K 300 mA 1102 lm 186 lm/W 450 mA 1599 lm 174 lm/W 700 mA 2356 lm 158 lm/W
Opticus Daisy Mini G1 L28 W20 965 7518-03114 90 6500 K 300 mA 1088 lm 184 lm/W 450 mA 1578 lm 172 lm/W 700 mA 2325 lm 156 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Opticus Daisy Mini L56

Features

Big module image

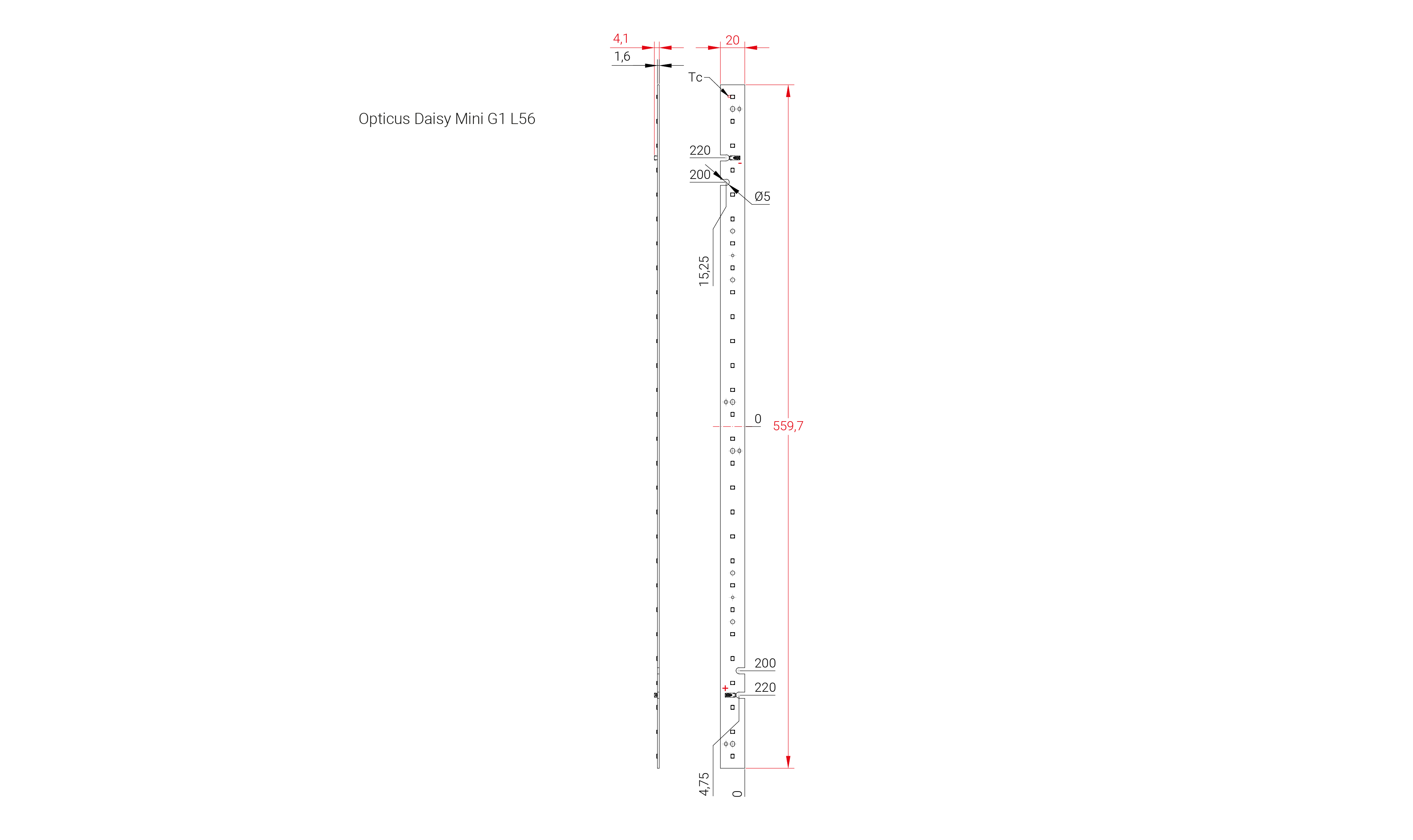

Module drawing
  • linear module for installation in luminaires
  • for LEDiL Daisy Mini optics
  • 28 Mid-Power-LEDs
  • pitch distance 20 mm
  • length 560 mm
  • width 20 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 450 mA
  • maximum operating current 700 mA
  • maximum forward voltage 45.5 V

Downloads

Technical data

Opticus Daisy Mini L56
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy Mini G1 L56 W20 827 7518-03201 80 2700 K 300 mA 2113 lm 175 lm/W 450 mA 3065 lm 164 lm/W 700 mA 4519 lm 149 lm/W
Opticus Daisy Mini G1 L56 W20 830 7518-03202 80 3000 K 300 mA 2194 lm 187 lm/W 450 mA 3182 lm 175 lm/W 700 mA 4692 lm 159 lm/W
Opticus Daisy Mini G1 L56 W20 835 7518-03203 80 3500 K 300 mA 2194 lm 187 lm/W 450 mA 3182 lm 175 lm/W 700 mA 4692 lm 159 lm/W
Opticus Daisy Mini G1 L56 W20 840 7518-03204 80 4000 K 300 mA 2339 lm 200 lm/W 450 mA 3393 lm 187 lm/W 700 mA 5004 lm 170 lm/W
Opticus Daisy Mini G1 L56 W20 850 7518-03205 80 5000 K 300 mA 2339 lm 200 lm/W 450 mA 3393 lm 187 lm/W 700 mA 5004 lm 170 lm/W
Opticus Daisy Mini G1 L56 W20 857 7518-03206 80 5700 K 300 mA 2339 lm 200 lm/W 450 mA 3393 lm 187 lm/W 700 mA 5004 lm 170 lm/W
Opticus Daisy Mini G1 L56 W20 865 7518-03207 80 6500 K 300 mA 2339 lm 200 lm/W 450 mA 3393 lm 187 lm/W 700 mA 5004 lm 170 lm/W
Opticus Daisy Mini G1 L56 W20 927 7518-03208 90 2700 K 300 mA 2074 lm 175 lm/W 450 mA 3007 lm 164 lm/W 700 mA 4431 lm 149 lm/W
Opticus Daisy Mini G1 L56 W20 930 7518-03209 90 3000 K 300 mA 2117 lm 179 lm/W 450 mA 3071 lm 167 lm/W 700 mA 4525 lm 152 lm/W
Opticus Daisy Mini G1 L56 W20 935 7518-03210 90 3500 K 300 mA 2147 lm 181 lm/W 450 mA 3113 lm 170 lm/W 700 mA 4587 lm 154 lm/W
Opticus Daisy Mini G1 L56 W20 940 7518-03211 90 4000 K 300 mA 2205 lm 186 lm/W 450 mA 3198 lm 174 lm/W 700 mA 4712 lm 158 lm/W
Opticus Daisy Mini G1 L56 W20 950 7518-03212 90 5000 K 300 mA 2205 lm 186 lm/W 450 mA 3198 lm 174 lm/W 700 mA 4712 lm 158 lm/W
Opticus Daisy Mini G1 L56 W20 957 7518-03213 90 5700 K 300 mA 2205 lm 186 lm/W 450 mA 3198 lm 174 lm/W 700 mA 4712 lm 158 lm/W
Opticus Daisy Mini G1 L56 W20 965 7518-03214 90 6500 K 300 mA 2176 lm 184 lm/W 450 mA 3156 lm 172 lm/W 700 mA 4650 lm 156 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Opticus Daisy Mini products

Our LED modules Opticus Daisy Mini are optimally matched to the popular optics Daisy Mini from LEDiL.

LEDiL offers with the product family “Daisy Mini” a further development of the popular Daisy system.

It consists of linear optics made up of different lenses and louvre elements that can be combined with each other. Daisy Mini is significantly more compact than its predecessor Daisy.

You can choose between clear and frosted lenses. The following options are available to you:

Combine these lenses with louvre elements. Choose between glossy or matte, as well as black, white and silver. You can choose from different dimensions for both the lenses and the louvre elements. You are welcome to purchase the optics directly from us, just contact us.

With our LED modules Opticus Daisy, outputs of over 200 lm/W or 5000 lm are no problem. Choose between seven light colors: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 5700 K and 6500 K and two color renderings: CRI 80 and CRI 90.

Details of our LED modules in conjunction with Ledil optics can be found at www.ledil.com/product-landing/linear/daisy/.
