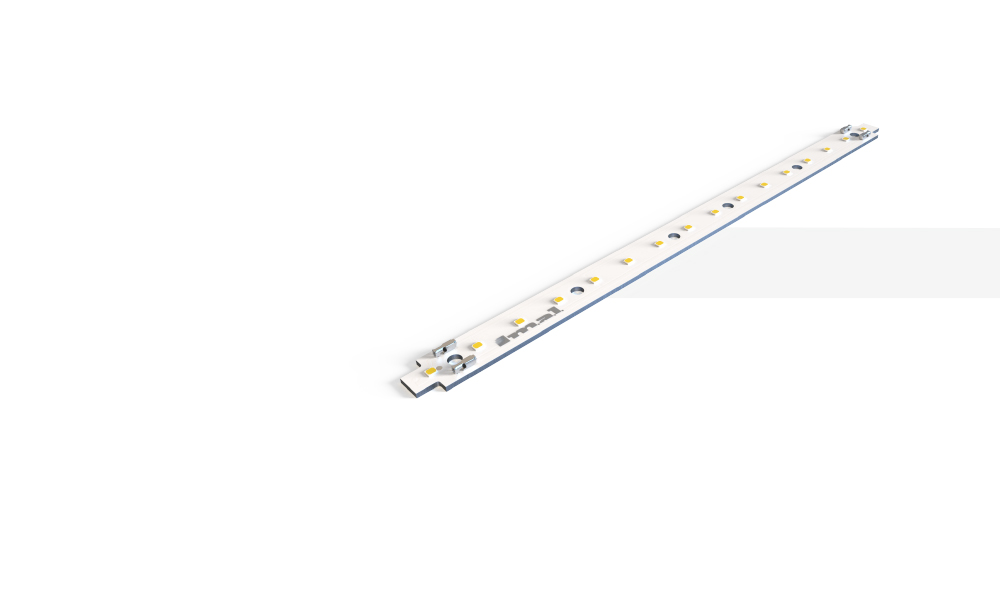

Opticus Louvre Mini L28

  • linear module for installation in luminaires
  • for BJB Louvre Mini 18 optic systems
  • 16 Mid-Power-LEDs
  • pitch distance 17.5 mm
  • length 279.2 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

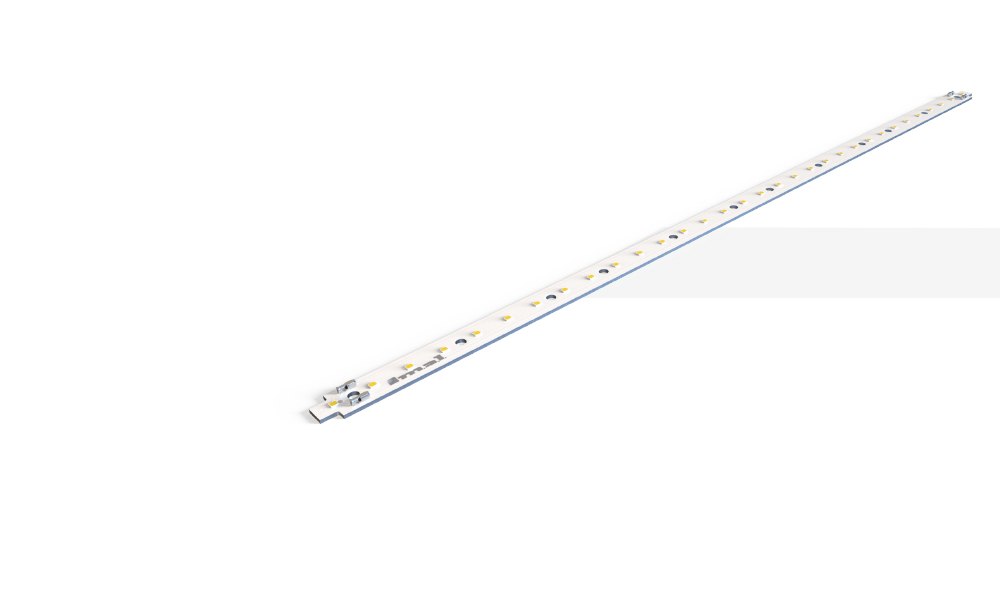

Opticus Louvre Mini L56

  • linear module for installation in luminaires
  • for BJB Louvre Mini 18 optic systems
  • 32 Mid-Power-LEDs
  • pitch distance 17.5 mm
  • length 559.2 mm
  • Products

Opticus Louvre Mini L28

Features

Big module image

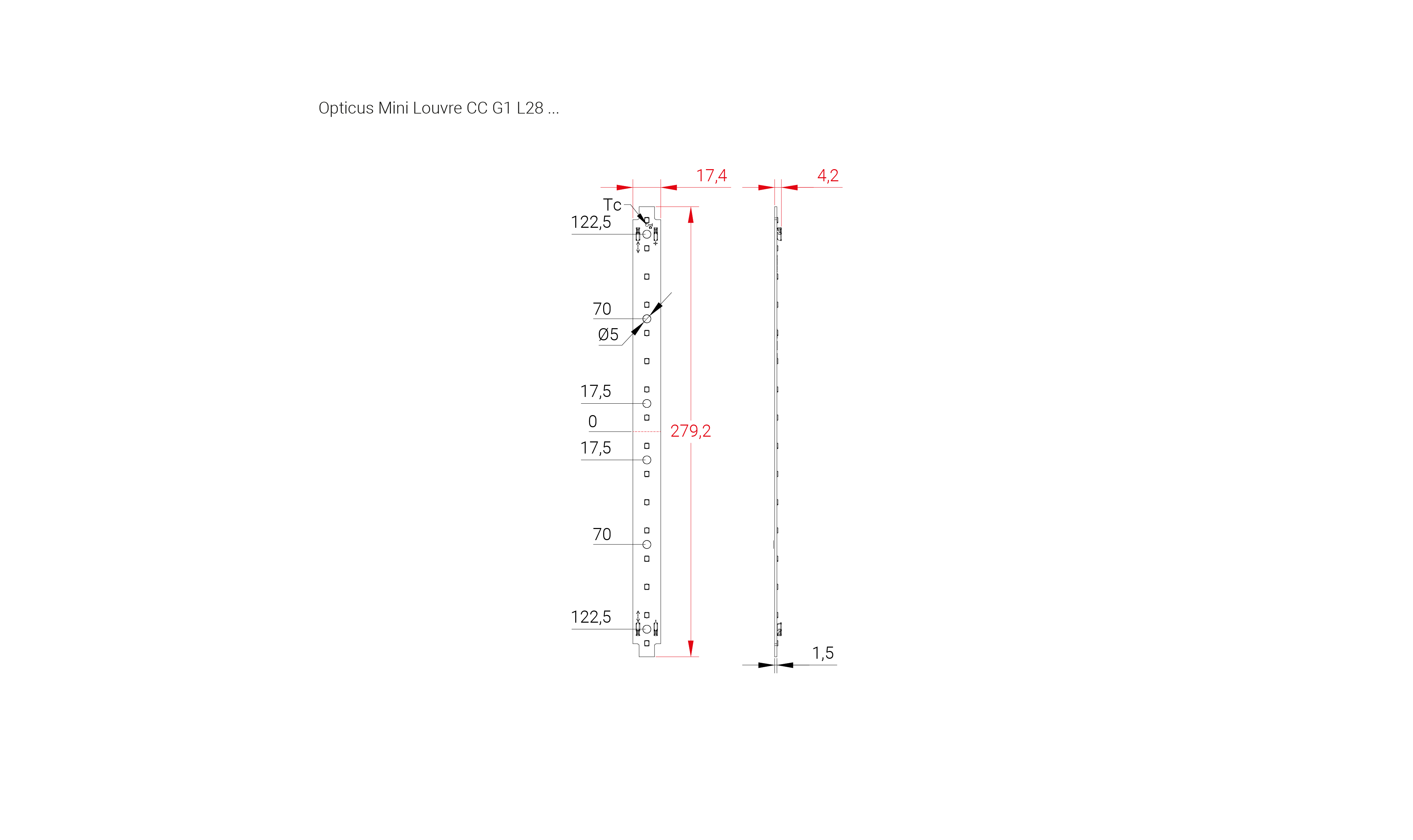

Module drawing
  • linear module for installation in luminaires
  • for BJB Louvre Mini 18 optic systems
  • 16 Mid-Power-LEDs
  • pitch distance 17.5 mm
  • length 279.2 mm
  • width 18 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 12 V

Downloads

Technical data

Opticus Louvre Mini L28
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Louvre Mini CC G1 L28 W18 827 7518-06001 80 2700 K 175 mA 358 lm 192 lm/W 350 mA 700 lm 183 lm/W 700 mA 1345 lm 168 lm/W
Opticus Louvre Mini CC G1 L28 W18 830 7518-06002 80 3000 K 175 mA 372 lm 200 lm/W 350 mA 728 lm 190 lm/W 700 mA 1398 lm 175 lm/W
Opticus Louvre Mini CC G1 L28 W18 835 7518-06003 80 3500 K 175 mA 385 lm 207 lm/W 350 mA 753 lm 197 lm/W 700 mA 1446 lm 181 lm/W
Opticus Louvre Mini CC G1 L28 W18 840 7518-06004 80 4000 K 175 mA 396 lm 213 lm/W 350 mA 775 lm 203 lm/W 700 mA 1489 lm 187 lm/W
Opticus Louvre Mini CC G1 L28 W18 850 7518-06005 80 5000 K 175 mA 396 lm 213 lm/W 350 mA 775 lm 203 lm/W 700 mA 1489 lm 187 lm/W
Opticus Louvre Mini CC G1 L28 W18 857 7518-06006 80 5700 K 175 mA 396 lm 213 lm/W 350 mA 775 lm 203 lm/W 700 mA 1489 lm 187 lm/W
Opticus Louvre Mini CC G1 L28 W18 865 7518-06007 80 6500 K 175 mA 396 lm 213 lm/W 350 mA 775 lm 203 lm/W 700 mA 1489 lm 187 lm/W
Opticus Louvre Mini CC G1 L28 W18 927 7518-06008 90 2700 K 175 mA 363 lm 195 lm/W 350 mA 711 lm 186 lm/W 700 mA 1367 lm 171 lm/W
Opticus Louvre Mini CC G1 L28 W18 930 7518-06009 90 3000 K 175 mA 370 lm 199 lm/W 350 mA 726 lm 190 lm/W 700 mA 1396 lm 175 lm/W
Opticus Louvre Mini CC G1 L28 W18 935 7518-06010 90 3500 K 175 mA 375 lm 202 lm/W 350 mA 736 lm 193 lm/W 700 mA 1415 lm 177 lm/W
Opticus Louvre Mini CC G1 L28 W18 940 7518-06011 90 4000 K 175 mA 386 lm 207 lm/W 350 mA 756 lm 198 lm/W 700 mA 1453 lm 182 lm/W
Opticus Louvre Mini CC G1 L28 W18 950 7518-06012 90 5000 K 175 mA 386 lm 207 lm/W 350 mA 756 lm 198 lm/W 700 mA 1453 lm 182 lm/W
Opticus Louvre Mini CC G1 L28 W18 957 7518-06013 90 5700 K 175 mA 386 lm 207 lm/W 350 mA 756 lm 198 lm/W 700 mA 1453 lm 182 lm/W
Opticus Louvre Mini CC G1 L28 W18 965 7518-06014 90 6500 K 175 mA 381 lm 204 lm/W 350 mA 746 lm 195 lm/W 700 mA 1434 lm 180 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Opticus Louvre Mini L56

Features

Big module image

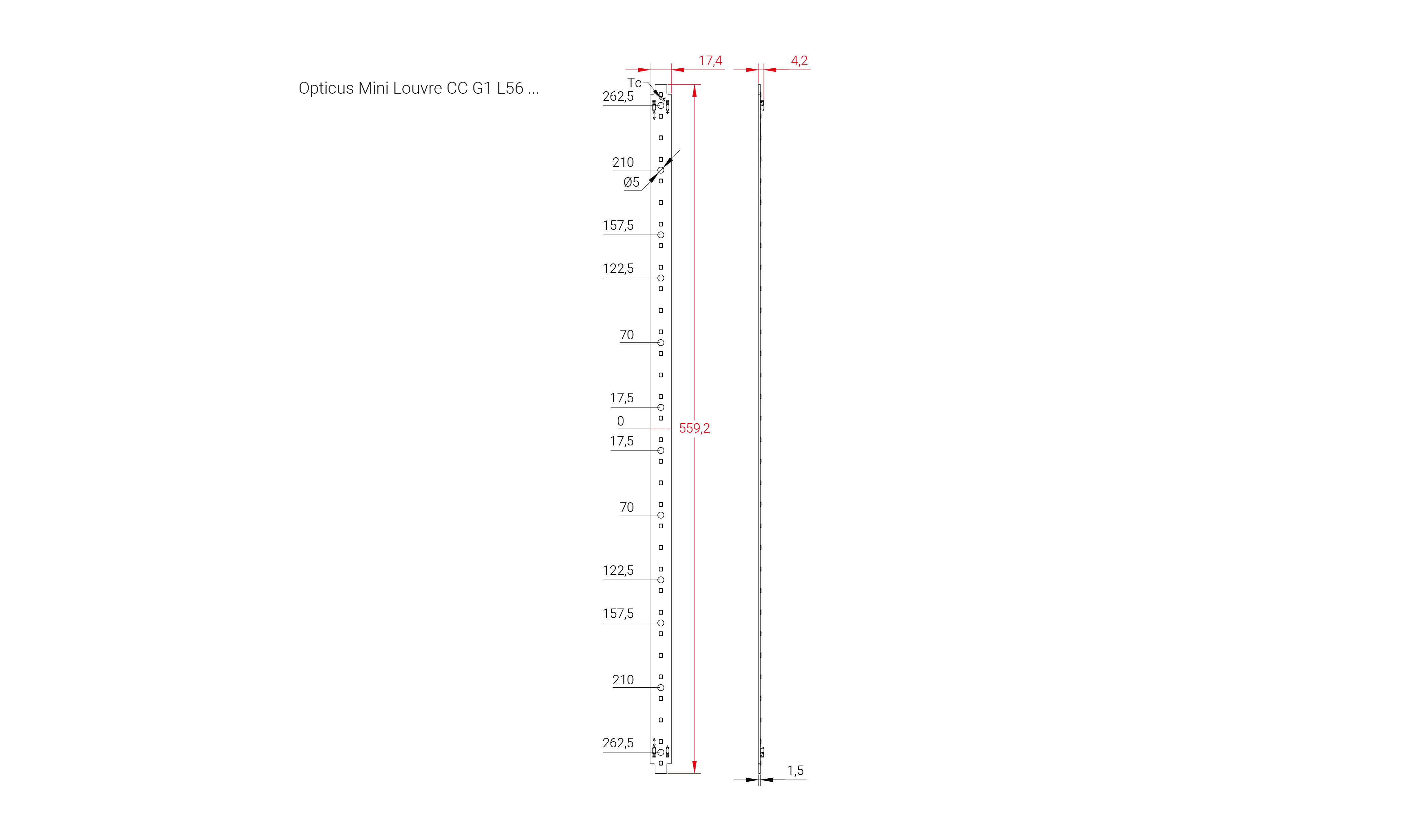

Module drawing
  • linear module for installation in luminaires
  • for BJB Louvre Mini 18 optic systems
  • 32 Mid-Power-LEDs
  • pitch distance 17.5 mm
  • length 559.2 mm
  • width 18 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 24 V

Downloads

Technical data

Opticus Louvre Mini L56
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Louvre Mini CC G1 L56 W18 827 7518-06101 80 2700 K 175 mA 716 lm 192 lm/W 350 mA 1401 lm 183 lm/W 700 mA 2690 lm 168 lm/W
Opticus Louvre Mini CC G1 L56 W18 830 7518-06102 80 3000 K 175 mA 744 lm 200 lm/W 350 mA 1456 lm 190 lm/W 700 mA 2796 lm 175 lm/W
Opticus Louvre Mini CC G1 L56 W18 835 7518-06103 80 3500 K 175 mA 770 lm 207 lm/W 350 mA 1506 lm 197 lm/W 700 mA 2892 lm 181 lm/W
Opticus Louvre Mini CC G1 L56 W18 840 7518-06104 80 4000 K 175 mA 793 lm 213 lm/W 350 mA 1551 lm 203 lm/W 700 mA 2978 lm 187 lm/W
Opticus Louvre Mini CC G1 L56 W18 850 7518-06105 80 5000 K 175 mA 793 lm 213 lm/W 350 mA 1551 lm 203 lm/W 700 mA 2978 lm 187 lm/W
Opticus Louvre Mini CC G1 L56 W18 857 7518-06106 80 5700 K 175 mA 793 lm 213 lm/W 350 mA 1551 lm 203 lm/W 700 mA 2978 lm 187 lm/W
Opticus Louvre Mini CC G1 L56 W18 865 7518-06107 80 6500 K 175 mA 793 lm 213 lm/W 350 mA 1551 lm 203 lm/W 700 mA 2978 lm 187 lm/W
Opticus Louvre Mini CC G1 L56 W18 927 7518-06108 90 2700 K 175 mA 725 lm 195 lm/W 350 mA 1422 lm 186 lm/W 700 mA 2734 lm 171 lm/W
Opticus Louvre Mini CC G1 L56 W18 930 7518-06109 90 3000 K 175 mA 741 lm 199 lm/W 350 mA 1452 lm 190 lm/W 700 mA 2791 lm 175 lm/W
Opticus Louvre Mini CC G1 L56 W18 935 7518-06110 90 3500 K 175 mA 751 lm 202 lm/W 350 mA 1472 lm 193 lm/W 700 mA 2830 lm 177 lm/W
Opticus Louvre Mini CC G1 L56 W18 940 7518-06111 90 4000 K 175 mA 771 lm 207 lm/W 350 mA 1512 lm 198 lm/W 700 mA 2907 lm 182 lm/W
Opticus Louvre Mini CC G1 L56 W18 950 7518-06112 90 5000 K 175 mA 771 lm 207 lm/W 350 mA 1512 lm 198 lm/W 700 mA 2907 lm 182 lm/W
Opticus Louvre Mini CC G1 L56 W18 957 7518-06113 90 5700 K 175 mA 771 lm 207 lm/W 350 mA 1512 lm 198 lm/W 700 mA 2907 lm 182 lm/W
Opticus Louvre Mini CC G1 L56 W18 965 7518-06114 90 6500 K 175 mA 761 lm 204 lm/W 350 mA 1492 lm 195 lm/W 700 mA 2868 lm 180 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Opticus Louvre Mini products

Opticus Louvre Mini - small size, big impact

With our new Opticus Louvre Mini series, we are working with BJB to launch a compact solution that sets new standards in terms of lighting quality, design and functionality. The particularly slim louvre inserts are available in two color variants - black and white - in 18 mm. They therefore offer maximum flexibility for a wide range of applications in office, retail or residential environments.

With its minimalist design, the Opticus Louvre Mini blends seamlessly into the luminaire housing and impresses with its technical sophistication. Mounting the optics is extremely simple: just one click is all it takes - without any additional effort. It is also ideally positioned in terms of lighting technology. Different beam angles - from narrow to wide - enable precise adjustment to the respective lighting situation.

Particularly noteworthy: The Opticus Louvre Mini series meets the highest requirements for glare-free lighting and thus ensures a pleasant lighting atmosphere that is easy on the eyes - ideal for workstations with low UGR values. The 18 mm version has been specially optimized for use in slimline ceiling systems.

Whether in modern offices, stylish stores or high-quality living areas - our Opticus Louvre Mini stands for uncompromising lighting quality in an elegant, compact format.
