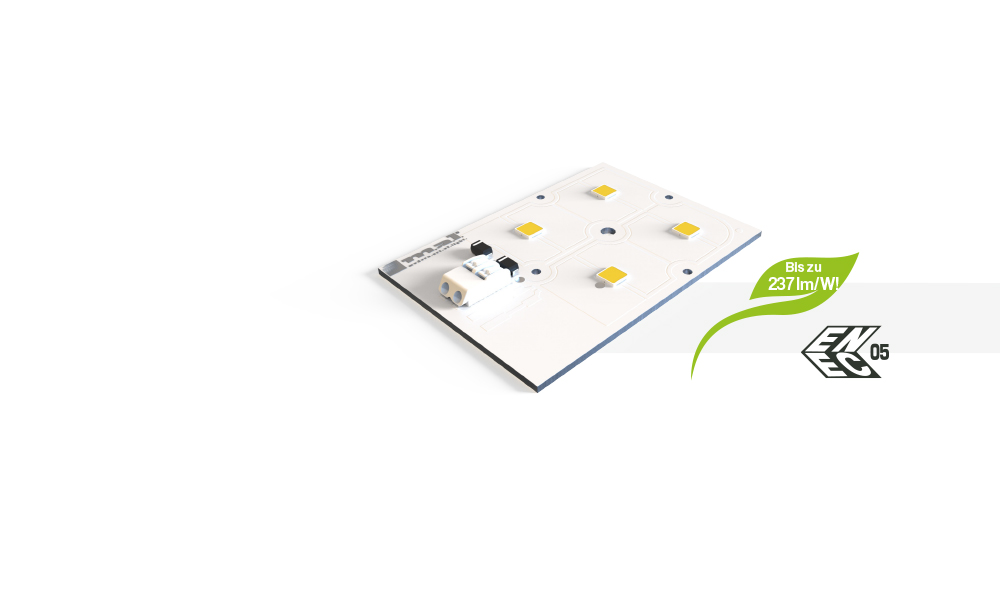

Flexus 5050 HP 2x2

4 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 71 mm

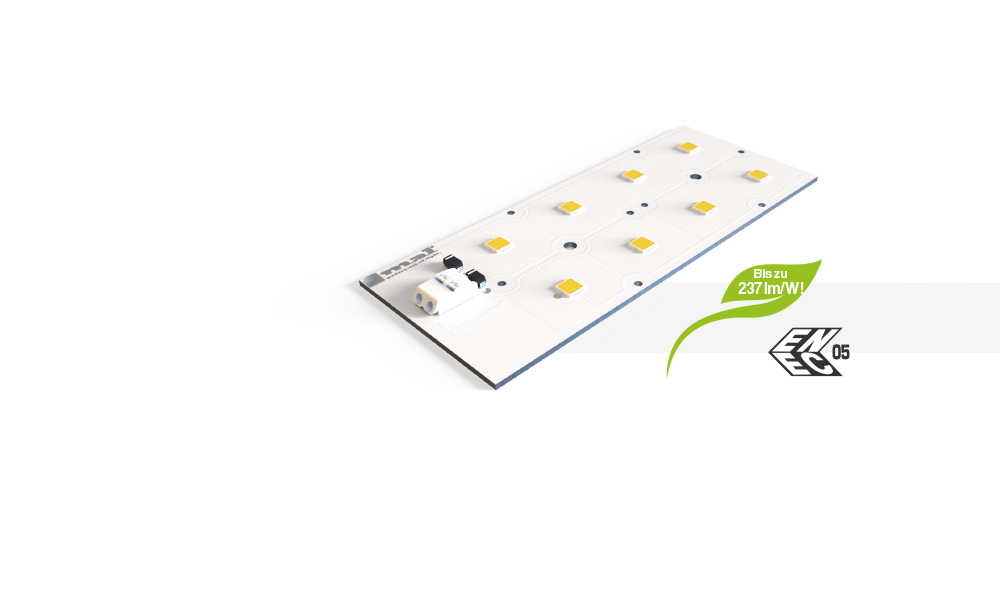

Flexus 5050 HP 2x4

8 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 121 mm

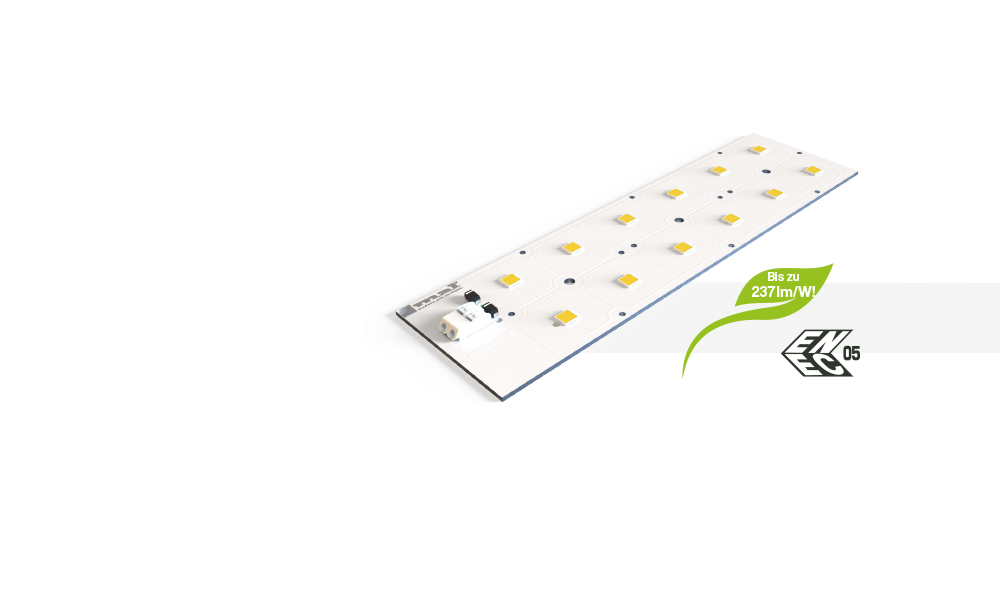

Flexus 5050 HP 2x6

12 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 172 mm

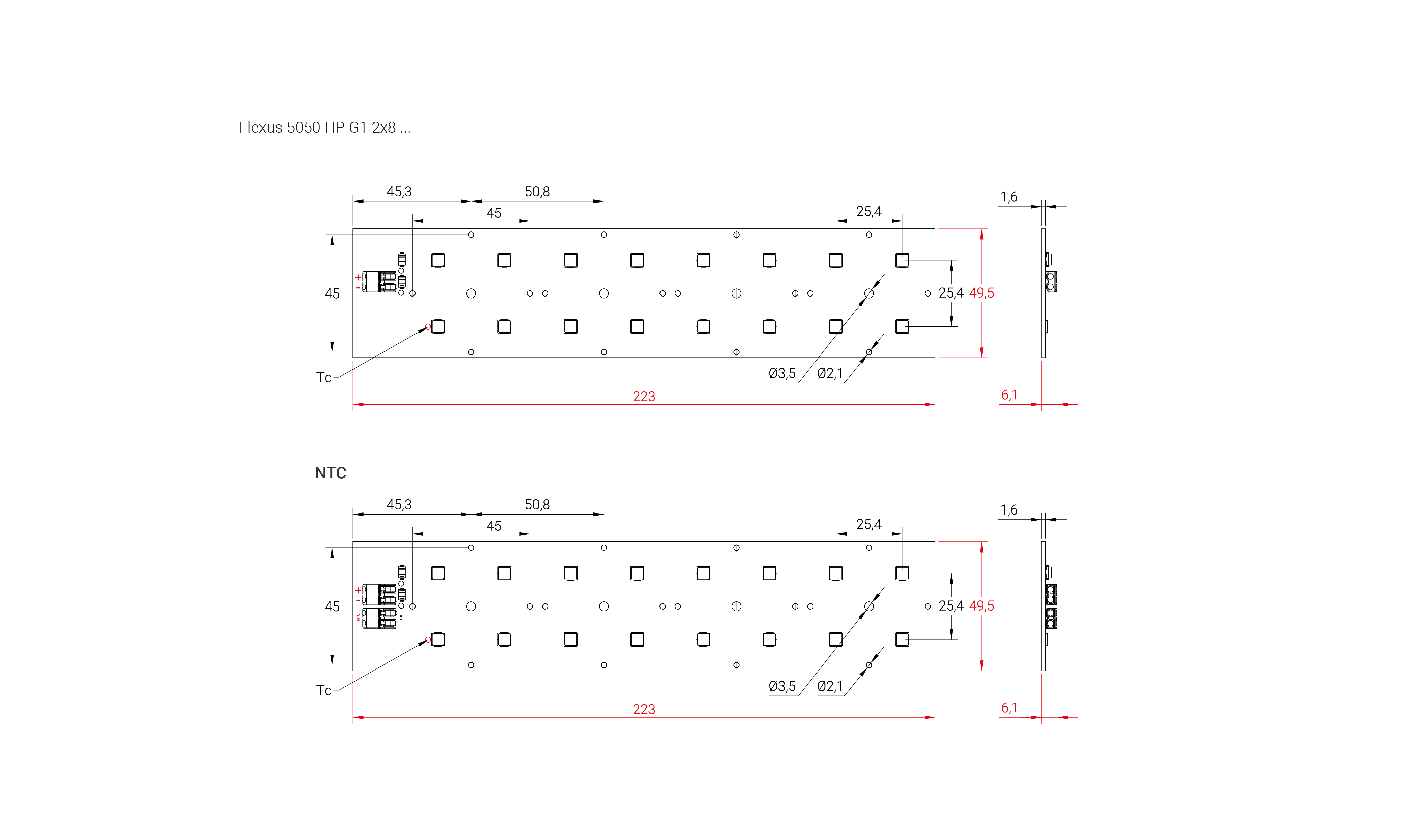

Flexus 5050 HP 2x8

16 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 223 mm

Products
Flexus 5050 HP 2x2
Flexus 5050 HP 2x4
Flexus 5050 HP 2x6
Flexus 5050 HP 2x8

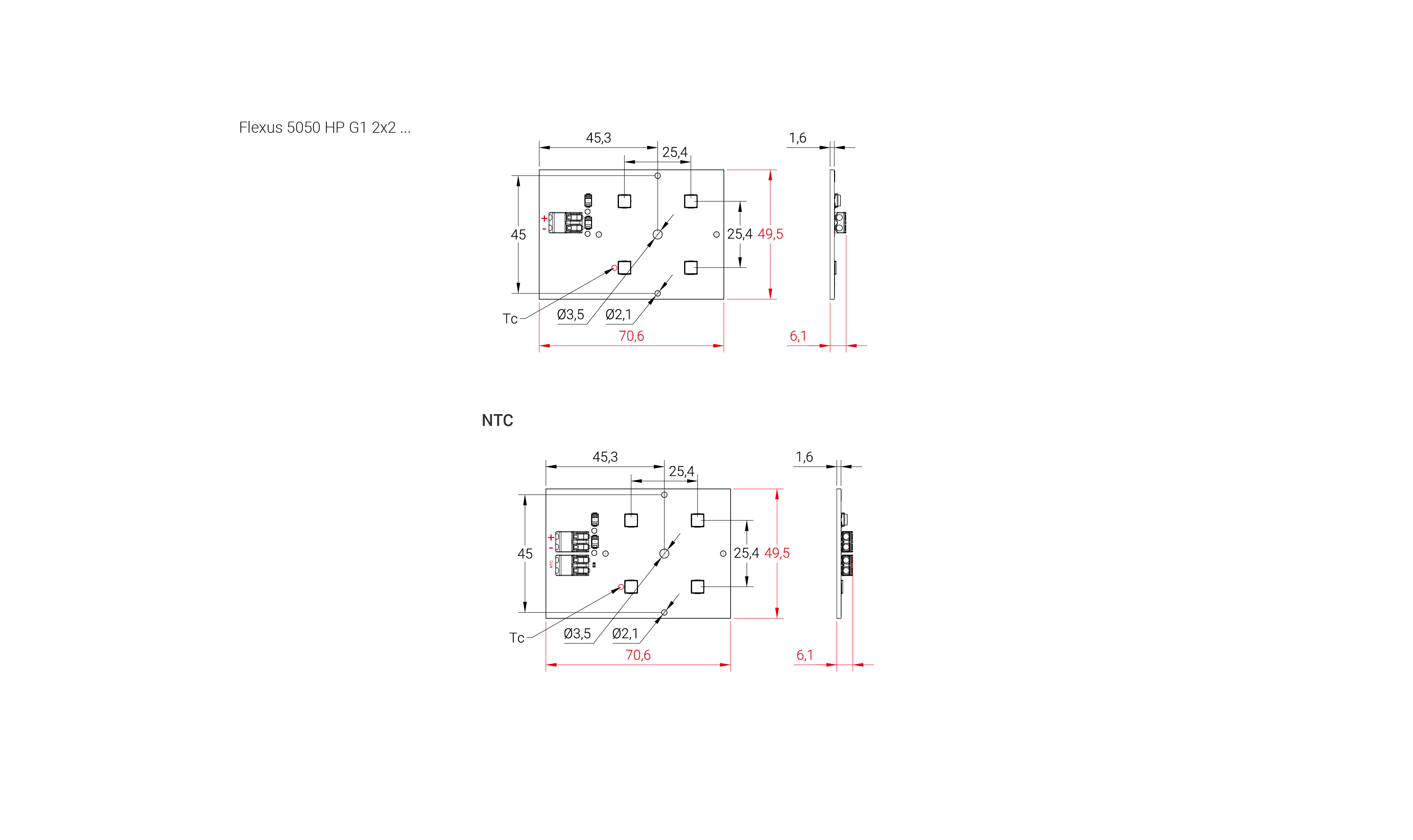

Flexus 5050 HP 2x2

Features

4 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 71 mm
width 50 mm
aluminium core PCB for perfect thermal management
rated current 350 mA
Maximum operating current 1500 mA
Maximum forward voltage 13.6 V
Flexus 5050 HP G1 2x2 with NTC: 4 connection terminals, NTC for temperature monitoring
Flexus 5050 HP G1 2x2 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 HP 2x2
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x2 722	7550-00468	70	2200 K	100 mA	198 lm	188 lm/W	350 mA	685 lm	181 lm/W	1500 mA	2705 lm	153 lm/W
Flexus 5050 HP G1 2x2 727	7550-00469	70	2700 K	100 mA	227 lm	216 lm/W	350 mA	788 lm	208 lm/W	1500 mA	3111 lm	176 lm/W
Flexus 5050 HP G1 2x2 730	7550-00470	70	3000 K	100 mA	240 lm	228 lm/W	350 mA	831 lm	220 lm/W	1500 mA	3282 lm	186 lm/W
Flexus 5050 HP G1 2x2 735	7550-00471	70	3500 K	100 mA	242 lm	230 lm/W	350 mA	839 lm	221 lm/W	1500 mA	3310 lm	187 lm/W
Flexus 5050 HP G1 2x2 740	7550-00472	70	4000 K	100 mA	250 lm	237 lm/W	350 mA	866 lm	229 lm/W	1500 mA	3417 lm	193 lm/W
Flexus 5050 HP G1 2x2 750	7550-00473	70	5000 K	100 mA	250 lm	237 lm/W	350 mA	866 lm	229 lm/W	1500 mA	3417 lm	193 lm/W
Flexus 5050 HP G1 2x2 757	7550-00474	70	5700 K	100 mA	250 lm	237 lm/W	350 mA	866 lm	229 lm/W	1500 mA	3417 lm	193 lm/W
Flexus 5050 HP G1 2x2 765	7550-00475	70	6500 K	100 mA	246 lm	233 lm/W	350 mA	851 lm	225 lm/W	1500 mA	3360 lm	190 lm/W
Flexus 5050 HP G1 2x2 822	7550-00476	80	2200 K	100 mA	182 lm	173 lm/W	350 mA	631 lm	167 lm/W	1500 mA	2491 lm	141 lm/W
Flexus 5050 HP G1 2x2 827	7550-00477	80	2700 K	100 mA	212 lm	202 lm/W	350 mA	736 lm	194 lm/W	1500 mA	2904 lm	164 lm/W
Flexus 5050 HP G1 2x2 830	7550-00478	80	3000 K	100 mA	221 lm	210 lm/W	350 mA	765 lm	202 lm/W	1500 mA	3018 lm	171 lm/W
Flexus 5050 HP G1 2x2 835	7550-00479	80	3500 K	100 mA	227 lm	215 lm/W	350 mA	786 lm	208 lm/W	1500 mA	3104 lm	176 lm/W
Flexus 5050 HP G1 2x2 840	7550-00480	80	4000 K	100 mA	233 lm	221 lm/W	350 mA	808 lm	213 lm/W	1500 mA	3189 lm	181 lm/W
Flexus 5050 HP G1 2x2 850	7550-00481	80	5000 K	100 mA	233 lm	221 lm/W	350 mA	808 lm	213 lm/W	1500 mA	3189 lm	181 lm/W
Flexus 5050 HP G1 2x2 857	7550-00482	80	5700 K	100 mA	233 lm	221 lm/W	350 mA	808 lm	213 lm/W	1500 mA	3189 lm	181 lm/W
Flexus 5050 HP G1 2x2 865	7550-00483	80	6500 K	100 mA	230 lm	219 lm/W	350 mA	799 lm	211 lm/W	1500 mA	3153 lm	179 lm/W
Flexus 5050 HP G1 2x2 922	7550-00484	90	2200 K	100 mA	153 lm	146 lm/W	350 mA	532 lm	140 lm/W	1500 mA	2100 lm	119 lm/W
Flexus 5050 HP G1 2x2 927	7550-00485	90	2700 K	100 mA	180 lm	171 lm/W	350 mA	622 lm	164 lm/W	1500 mA	2456 lm	139 lm/W
Flexus 5050 HP G1 2x2 930	7550-00486	90	3000 K	100 mA	185 lm	175 lm/W	350 mA	640 lm	169 lm/W	1500 mA	2527 lm	143 lm/W
Flexus 5050 HP G1 2x2 935	7550-00487	90	3500 K	100 mA	190 lm	180 lm/W	350 mA	658 lm	174 lm/W	1500 mA	2598 lm	147 lm/W
Flexus 5050 HP G1 2x2 940	7550-00488	90	4000 K	100 mA	196 lm	186 lm/W	350 mA	678 lm	179 lm/W	1500 mA	2677 lm	152 lm/W
Flexus 5050 HP G1 2x2 950	7550-00489	90	5000 K	100 mA	196 lm	186 lm/W	350 mA	678 lm	179 lm/W	1500 mA	2677 lm	152 lm/W
Flexus 5050 HP G1 2x2 957	7550-00490	90	5700 K	100 mA	196 lm	186 lm/W	350 mA	678 lm	179 lm/W	1500 mA	2677 lm	152 lm/W
Flexus 5050 HP G1 2x2 965	7550-00491	90	6500 K	100 mA	195 lm	185 lm/W	350 mA	674 lm	178 lm/W	1500 mA	2662 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 HP 2x2
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x2 722 NTC	7550-00564	70	2200 K	100 mA	198 lm	188 lm/W	350 mA	685 lm	181 lm/W	1500 mA	2705 lm	153 lm/W
Flexus 5050 HP G1 2x2 727 NTC	7550-00565	70	2700 K	100 mA	227 lm	216 lm/W	350 mA	788 lm	208 lm/W	1500 mA	3111 lm	176 lm/W
Flexus 5050 HP G1 2x2 730 NTC	7550-00566	70	3000 K	100 mA	240 lm	228 lm/W	350 mA	831 lm	220 lm/W	1500 mA	3282 lm	186 lm/W
Flexus 5050 HP G1 2x2 735 NTC	7550-00567	70	3500 K	100 mA	242 lm	230 lm/W	350 mA	839 lm	221 lm/W	1500 mA	3310 lm	187 lm/W
Flexus 5050 HP G1 2x2 740 NTC	7550-00568	70	4000 K	100 mA	250 lm	237 lm/W	350 mA	866 lm	229 lm/W	1500 mA	3417 lm	193 lm/W
Flexus 5050 HP G1 2x2 750 NTC	7550-00569	70	5000 K	100 mA	250 lm	237 lm/W	350 mA	866 lm	229 lm/W	1500 mA	3417 lm	193 lm/W
Flexus 5050 HP G1 2x2 757 NTC	7550-00570	70	5700 K	100 mA	250 lm	237 lm/W	350 mA	866 lm	229 lm/W	1500 mA	3417 lm	193 lm/W
Flexus 5050 HP G1 2x2 765 NTC	7550-00571	70	6500 K	100 mA	246 lm	233 lm/W	350 mA	851 lm	225 lm/W	1500 mA	3360 lm	190 lm/W
Flexus 5050 HP G1 2x2 822 NTC	7550-00572	80	2200 K	100 mA	182 lm	173 lm/W	350 mA	631 lm	167 lm/W	1500 mA	2491 lm	141 lm/W
Flexus 5050 HP G1 2x2 827 NTC	7550-00573	80	2700 K	100 mA	212 lm	202 lm/W	350 mA	736 lm	194 lm/W	1500 mA	2904 lm	164 lm/W
Flexus 5050 HP G1 2x2 830 NTC	7550-00574	80	3000 K	100 mA	221 lm	210 lm/W	350 mA	765 lm	202 lm/W	1500 mA	3018 lm	171 lm/W
Flexus 5050 HP G1 2x2 835 NTC	7550-00575	80	3500 K	100 mA	227 lm	215 lm/W	350 mA	786 lm	208 lm/W	1500 mA	3104 lm	176 lm/W
Flexus 5050 HP G1 2x2 840 NTC	7550-00576	80	4000 K	100 mA	233 lm	221 lm/W	350 mA	808 lm	213 lm/W	1500 mA	3189 lm	181 lm/W
Flexus 5050 HP G1 2x2 850 NTC	7550-00577	80	5000 K	100 mA	233 lm	221 lm/W	350 mA	808 lm	213 lm/W	1500 mA	3189 lm	181 lm/W
Flexus 5050 HP G1 2x2 857 NTC	7550-00578	80	5700 K	100 mA	233 lm	221 lm/W	350 mA	808 lm	213 lm/W	1500 mA	3189 lm	181 lm/W
Flexus 5050 HP G1 2x2 865 NTC	7550-00579	80	6500 K	100 mA	230 lm	219 lm/W	350 mA	799 lm	211 lm/W	1500 mA	3153 lm	179 lm/W
Flexus 5050 HP G1 2x2 922 NTC	7550-00580	90	2200 K	100 mA	153 lm	146 lm/W	350 mA	532 lm	140 lm/W	1500 mA	2100 lm	119 lm/W
Flexus 5050 HP G1 2x2 927 NTC	7550-00581	90	2700 K	100 mA	180 lm	171 lm/W	350 mA	622 lm	164 lm/W	1500 mA	2456 lm	139 lm/W
Flexus 5050 HP G1 2x2 930 NTC	7550-00582	90	3000 K	100 mA	185 lm	175 lm/W	350 mA	640 lm	169 lm/W	1500 mA	2527 lm	143 lm/W
Flexus 5050 HP G1 2x2 935 NTC	7550-00583	90	3500 K	100 mA	190 lm	180 lm/W	350 mA	658 lm	174 lm/W	1500 mA	2598 lm	147 lm/W
Flexus 5050 HP G1 2x2 940 NTC	7550-00584	90	4000 K	100 mA	196 lm	186 lm/W	350 mA	678 lm	179 lm/W	1500 mA	2677 lm	152 lm/W
Flexus 5050 HP G1 2x2 950 NTC	7550-00585	90	5000 K	100 mA	196 lm	186 lm/W	350 mA	678 lm	179 lm/W	1500 mA	2677 lm	152 lm/W
Flexus 5050 HP G1 2x2 957 NTC	7550-00586	90	5700 K	100 mA	196 lm	186 lm/W	350 mA	678 lm	179 lm/W	1500 mA	2677 lm	152 lm/W
Flexus 5050 HP G1 2x2 965 NTC	7550-00587	90	6500 K	100 mA	195 lm	185 lm/W	350 mA	674 lm	178 lm/W	1500 mA	2662 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

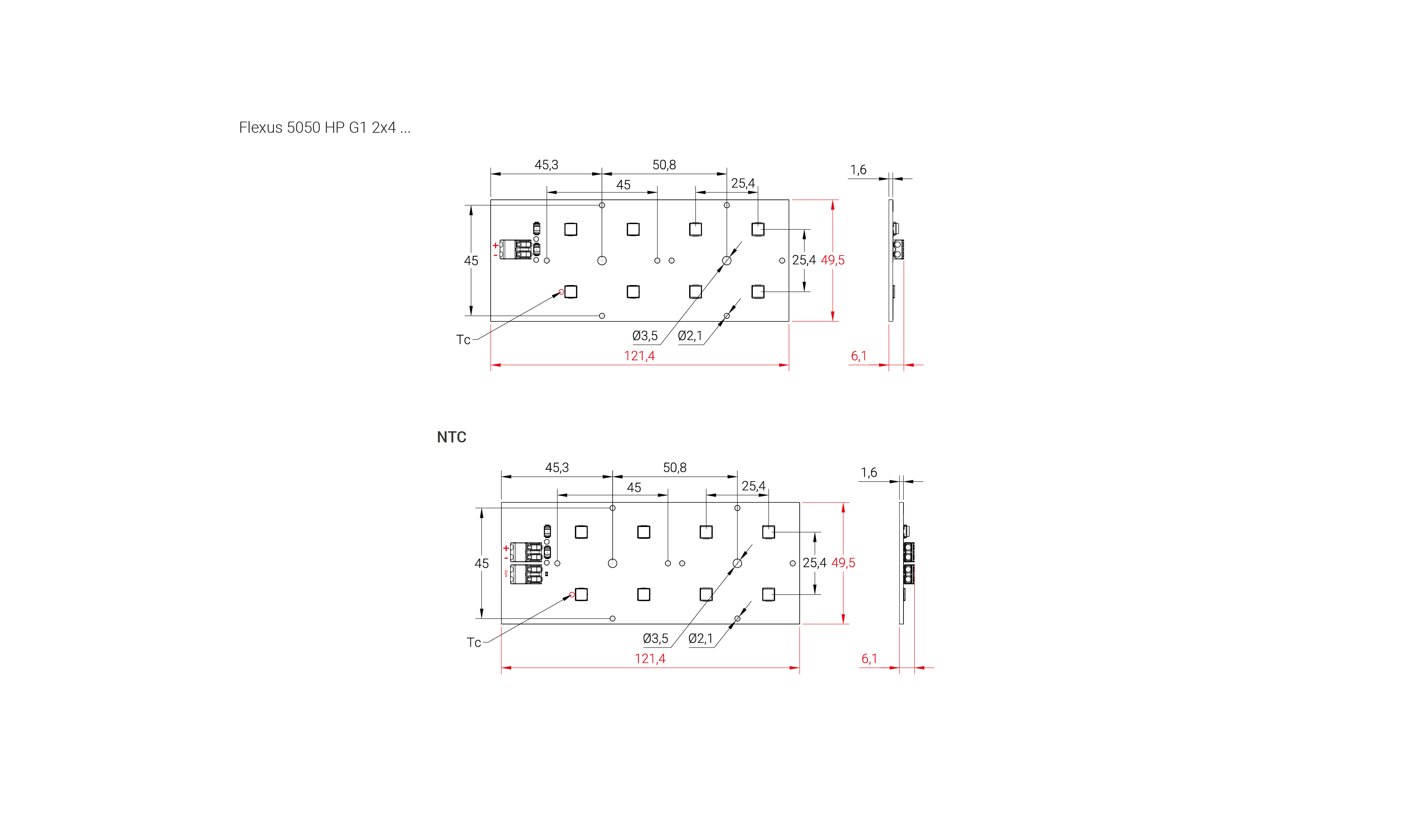

Flexus 5050 HP 2x4

Features

8 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 121 mm
width 50 mm
aluminium core PCB for perfect thermal management
rated current 350 mA
Maximum operating current 1500 mA
Maximum forward voltage 24.5 V
Flexus 5050 HP G1 2x4 with NTC: 4 connection terminals, NTC for temperature monitoring
Flexus 5050 HP G1 2x4 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 HP 2x4
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x4 722	7550-00492	70	2200 K	100 mA	395 lm	188 lm/W	350 mA	1370 lm	181 lm/W	1500 mA	5410 lm	153 lm/W
Flexus 5050 HP G1 2x4 727	7550-00493	70	2700 K	100 mA	455 lm	216 lm/W	350 mA	1576 lm	208 lm/W	1500 mA	6221 lm	176 lm/W
Flexus 5050 HP G1 2x4 730	7550-00494	70	3000 K	100 mA	480 lm	228 lm/W	350 mA	1663 lm	220 lm/W	1500 mA	6563 lm	186 lm/W
Flexus 5050 HP G1 2x4 735	7550-00495	70	3500 K	100 mA	484 lm	230 lm/W	350 mA	1677 lm	221 lm/W	1500 mA	6620 lm	187 lm/W
Flexus 5050 HP G1 2x4 740	7550-00496	70	4000 K	100 mA	499 lm	237 lm/W	350 mA	1731 lm	229 lm/W	1500 mA	6834 lm	193 lm/W
Flexus 5050 HP G1 2x4 750	7550-00497	70	5000 K	100 mA	499 lm	237 lm/W	350 mA	1731 lm	229 lm/W	1500 mA	6834 lm	193 lm/W
Flexus 5050 HP G1 2x4 757	7550-00498	70	5700 K	100 mA	499 lm	237 lm/W	350 mA	1731 lm	229 lm/W	1500 mA	6834 lm	193 lm/W
Flexus 5050 HP G1 2x4 765	7550-00499	70	6500 K	100 mA	491 lm	233 lm/W	350 mA	1702 lm	225 lm/W	1500 mA	6720 lm	190 lm/W
Flexus 5050 HP G1 2x4 822	7550-00500	80	2200 K	100 mA	364 lm	173 lm/W	350 mA	1262 lm	167 lm/W	1500 mA	4983 lm	141 lm/W
Flexus 5050 HP G1 2x4 827	7550-00501	80	2700 K	100 mA	425 lm	202 lm/W	350 mA	1471 lm	194 lm/W	1500 mA	5809 lm	164 lm/W
Flexus 5050 HP G1 2x4 830	7550-00502	80	3000 K	100 mA	441 lm	210 lm/W	350 mA	1529 lm	202 lm/W	1500 mA	6036 lm	171 lm/W
Flexus 5050 HP G1 2x4 835	7550-00503	80	3500 K	100 mA	454 lm	215 lm/W	350 mA	1572 lm	208 lm/W	1500 mA	6207 lm	176 lm/W
Flexus 5050 HP G1 2x4 840	7550-00504	80	4000 K	100 mA	466 lm	221 lm/W	350 mA	1616 lm	213 lm/W	1500 mA	6378 lm	181 lm/W
Flexus 5050 HP G1 2x4 850	7550-00505	80	5000 K	100 mA	466 lm	221 lm/W	350 mA	1616 lm	213 lm/W	1500 mA	6378 lm	181 lm/W
Flexus 5050 HP G1 2x4 857	7550-00506	80	5700 K	100 mA	466 lm	221 lm/W	350 mA	1616 lm	213 lm/W	1500 mA	6378 lm	181 lm/W
Flexus 5050 HP G1 2x4 865	7550-00507	80	6500 K	100 mA	461 lm	219 lm/W	350 mA	1598 lm	211 lm/W	1500 mA	6307 lm	179 lm/W
Flexus 5050 HP G1 2x4 922	7550-00508	90	2200 K	100 mA	307 lm	146 lm/W	350 mA	1064 lm	140 lm/W	1500 mA	4200 lm	119 lm/W
Flexus 5050 HP G1 2x4 927	7550-00509	90	2700 K	100 mA	359 lm	171 lm/W	350 mA	1244 lm	164 lm/W	1500 mA	4912 lm	139 lm/W
Flexus 5050 HP G1 2x4 930	7550-00510	90	3000 K	100 mA	369 lm	175 lm/W	350 mA	1280 lm	169 lm/W	1500 mA	5054 lm	143 lm/W
Flexus 5050 HP G1 2x4 935	7550-00511	90	3500 K	100 mA	380 lm	180 lm/W	350 mA	1316 lm	174 lm/W	1500 mA	5196 lm	147 lm/W
Flexus 5050 HP G1 2x4 940	7550-00512	90	4000 K	100 mA	391 lm	186 lm/W	350 mA	1356 lm	179 lm/W	1500 mA	5353 lm	152 lm/W
Flexus 5050 HP G1 2x4 950	7550-00513	90	5000 K	100 mA	391 lm	186 lm/W	350 mA	1356 lm	179 lm/W	1500 mA	5353 lm	152 lm/W
Flexus 5050 HP G1 2x4 957	7550-00514	90	5700 K	100 mA	391 lm	186 lm/W	350 mA	1356 lm	179 lm/W	1500 mA	5353 lm	152 lm/W
Flexus 5050 HP G1 2x4 965	7550-00515	90	6500 K	100 mA	389 lm	185 lm/W	350 mA	1349 lm	178 lm/W	1500 mA	5325 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 HP 2x4
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x4 722 NTC	7550-00588	70	2200 K	100 mA	395 lm	188 lm/W	350 mA	1370 lm	181 lm/W	1500 mA	5410 lm	153 lm/W
Flexus 5050 HP G1 2x4 727 NTC	7550-00589	70	2700 K	100 mA	455 lm	216 lm/W	350 mA	1576 lm	208 lm/W	1500 mA	6221 lm	176 lm/W
Flexus 5050 HP G1 2x4 730 NTC	7550-00590	70	3000 K	100 mA	480 lm	228 lm/W	350 mA	1663 lm	220 lm/W	1500 mA	6563 lm	186 lm/W
Flexus 5050 HP G1 2x4 735 NTC	7550-00591	70	3500 K	100 mA	484 lm	230 lm/W	350 mA	1677 lm	221 lm/W	1500 mA	6620 lm	187 lm/W
Flexus 5050 HP G1 2x4 740 NTC	7550-00592	70	4000 K	100 mA	499 lm	237 lm/W	350 mA	1731 lm	229 lm/W	1500 mA	6834 lm	193 lm/W
Flexus 5050 HP G1 2x4 750 NTC	7550-00593	70	5000 K	100 mA	499 lm	237 lm/W	350 mA	1731 lm	229 lm/W	1500 mA	6834 lm	193 lm/W
Flexus 5050 HP G1 2x4 757 NTC	7550-00594	70	5700 K	100 mA	499 lm	237 lm/W	350 mA	1731 lm	229 lm/W	1500 mA	6834 lm	193 lm/W
Flexus 5050 HP G1 2x4 765 NTC	7550-00595	70	6500 K	100 mA	491 lm	233 lm/W	350 mA	1702 lm	225 lm/W	1500 mA	6720 lm	190 lm/W
Flexus 5050 HP G1 2x4 822 NTC	7550-00596	80	2200 K	100 mA	364 lm	173 lm/W	350 mA	1262 lm	167 lm/W	1500 mA	4983 lm	141 lm/W
Flexus 5050 HP G1 2x4 827 NTC	7550-00597	80	2700 K	100 mA	425 lm	202 lm/W	350 mA	1471 lm	194 lm/W	1500 mA	5809 lm	164 lm/W
Flexus 5050 HP G1 2x4 830 NTC	7550-00598	80	3000 K	100 mA	441 lm	210 lm/W	350 mA	1529 lm	202 lm/W	1500 mA	6036 lm	171 lm/W
Flexus 5050 HP G1 2x4 835 NTC	7550-00599	80	3500 K	100 mA	454 lm	215 lm/W	350 mA	1572 lm	208 lm/W	1500 mA	6207 lm	176 lm/W
Flexus 5050 HP G1 2x4 840 NTC	7550-00600	80	4000 K	100 mA	466 lm	221 lm/W	350 mA	1616 lm	213 lm/W	1500 mA	6378 lm	181 lm/W
Flexus 5050 HP G1 2x4 850 NTC	7550-00601	80	5000 K	100 mA	466 lm	221 lm/W	350 mA	1616 lm	213 lm/W	1500 mA	6378 lm	181 lm/W
Flexus 5050 HP G1 2x4 857 NTC	7550-00602	80	5700 K	100 mA	466 lm	221 lm/W	350 mA	1616 lm	213 lm/W	1500 mA	6378 lm	181 lm/W
Flexus 5050 HP G1 2x4 865 NTC	7550-00603	80	6500 K	100 mA	461 lm	219 lm/W	350 mA	1598 lm	211 lm/W	1500 mA	6307 lm	179 lm/W
Flexus 5050 HP G1 2x4 922 NTC	7550-00604	90	2200 K	100 mA	307 lm	146 lm/W	350 mA	1064 lm	140 lm/W	1500 mA	4200 lm	119 lm/W
Flexus 5050 HP G1 2x4 927 NTC	7550-00605	90	2700 K	100 mA	359 lm	171 lm/W	350 mA	1244 lm	164 lm/W	1500 mA	4912 lm	139 lm/W
Flexus 5050 HP G1 2x4 930 NTC	7550-00606	90	3000 K	100 mA	369 lm	175 lm/W	350 mA	1280 lm	169 lm/W	1500 mA	5054 lm	143 lm/W
Flexus 5050 HP G1 2x4 935 NTC	7550-00607	90	3500 K	100 mA	380 lm	180 lm/W	350 mA	1316 lm	174 lm/W	1500 mA	5196 lm	147 lm/W
Flexus 5050 HP G1 2x4 940 NTC	7550-00608	90	4000 K	100 mA	391 lm	186 lm/W	350 mA	1356 lm	179 lm/W	1500 mA	5353 lm	152 lm/W
Flexus 5050 HP G1 2x4 950 NTC	7550-00609	90	5000 K	100 mA	391 lm	186 lm/W	350 mA	1356 lm	179 lm/W	1500 mA	5353 lm	152 lm/W
Flexus 5050 HP G1 2x4 957 NTC	7550-00610	90	5700 K	100 mA	391 lm	186 lm/W	350 mA	1356 lm	179 lm/W	1500 mA	5353 lm	152 lm/W
Flexus 5050 HP G1 2x4 965 NTC	7550-00611	90	6500 K	100 mA	389 lm	185 lm/W	350 mA	1349 lm	178 lm/W	1500 mA	5325 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

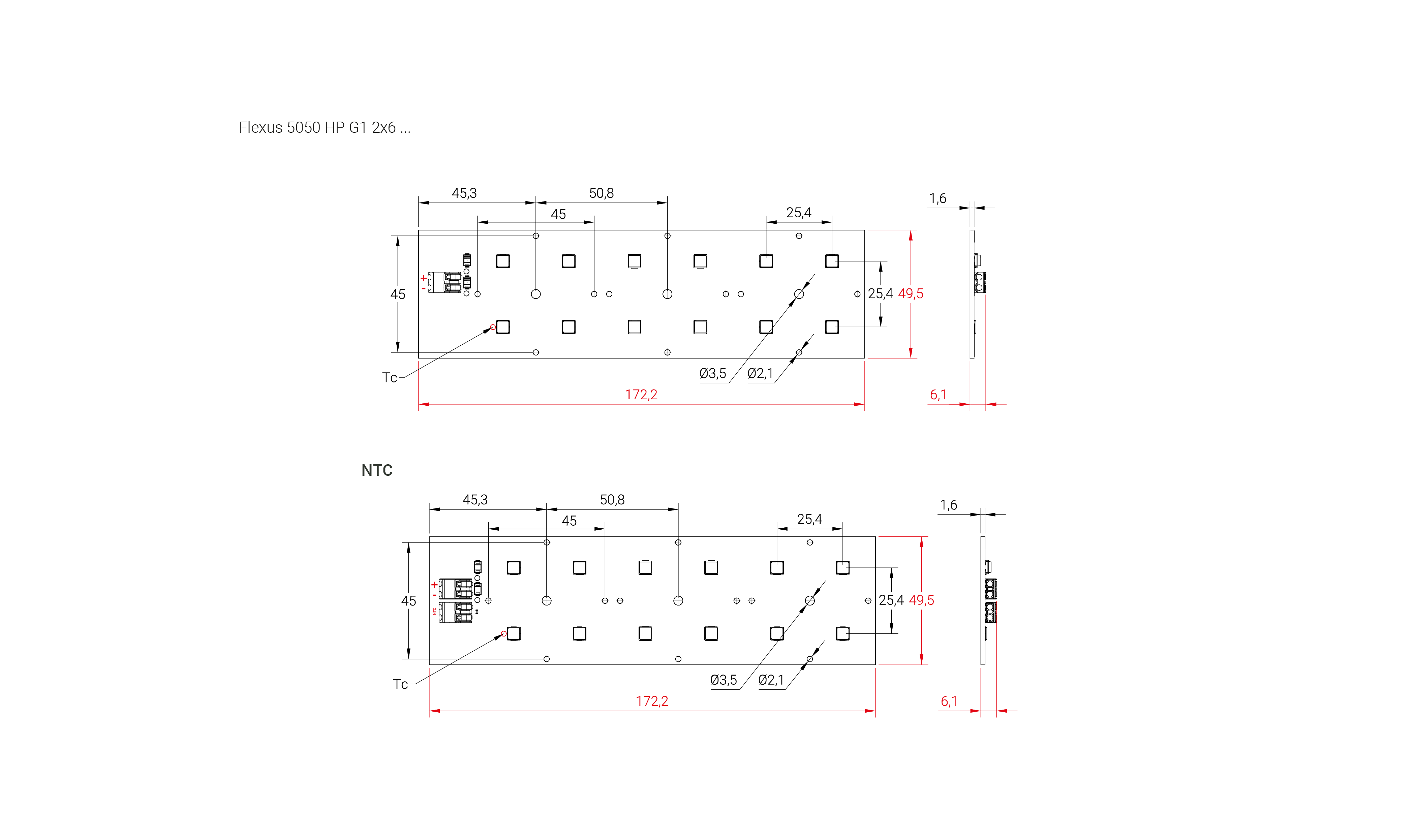

Flexus 5050 HP 2x6

Features

12 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 172 mm
width 50 mm
aluminium core PCB for perfect thermal management
rated current 350 mA
Maximum operating current 1500 mA
Maximum forward voltage 36.8 V
Flexus 5050 HP G1 2x6 with NTC: 4 connection terminals, NTC for temperature monitoring
Flexus 5050 HP G1 2x6 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 HP 2x6
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x6 722	7550-00516	70	2200 K	100 mA	593 lm	188 lm/W	350 mA	2056 lm	181 lm/W	1500 mA	8115 lm	153 lm/W
Flexus 5050 HP G1 2x6 727	7550-00517	70	2700 K	100 mA	682 lm	216 lm/W	350 mA	2364 lm	208 lm/W	1500 mA	9332 lm	176 lm/W
Flexus 5050 HP G1 2x6 730	7550-00518	70	3000 K	100 mA	720 lm	228 lm/W	350 mA	2494 lm	220 lm/W	1500 mA	9845 lm	186 lm/W
Flexus 5050 HP G1 2x6 735	7550-00519	70	3500 K	100 mA	726 lm	230 lm/W	350 mA	2516 lm	221 lm/W	1500 mA	9930 lm	187 lm/W
Flexus 5050 HP G1 2x6 740	7550-00520	70	4000 K	100 mA	749 lm	237 lm/W	350 mA	2597 lm	229 lm/W	1500 mA	10250 lm	193 lm/W
Flexus 5050 HP G1 2x6 750	7550-00521	70	5000 K	100 mA	749 lm	237 lm/W	350 mA	2597 lm	229 lm/W	1500 mA	10250 lm	193 lm/W
Flexus 5050 HP G1 2x6 757	7550-00522	70	5700 K	100 mA	749 lm	237 lm/W	350 mA	2597 lm	229 lm/W	1500 mA	10250 lm	193 lm/W
Flexus 5050 HP G1 2x6 765	7550-00523	70	6500 K	100 mA	737 lm	233 lm/W	350 mA	2553 lm	225 lm/W	1500 mA	10080 lm	190 lm/W
Flexus 5050 HP G1 2x6 822	7550-00524	80	2200 K	100 mA	546 lm	173 lm/W	350 mA	1893 lm	167 lm/W	1500 mA	7474 lm	141 lm/W
Flexus 5050 HP G1 2x6 827	7550-00525	80	2700 K	100 mA	637 lm	202 lm/W	350 mA	2207 lm	194 lm/W	1500 mA	8713 lm	164 lm/W
Flexus 5050 HP G1 2x6 830	7550-00526	80	3000 K	100 mA	662 lm	210 lm/W	350 mA	2294 lm	202 lm/W	1500 mA	9055 lm	171 lm/W
Flexus 5050 HP G1 2x6 835	7550-00527	80	3500 K	100 mA	681 lm	215 lm/W	350 mA	2359 lm	208 lm/W	1500 mA	9311 lm	176 lm/W
Flexus 5050 HP G1 2x6 840	7550-00528	80	4000 K	100 mA	699 lm	221 lm/W	350 mA	2424 lm	213 lm/W	1500 mA	9567 lm	181 lm/W
Flexus 5050 HP G1 2x6 850	7550-00529	80	5000 K	100 mA	699 lm	221 lm/W	350 mA	2424 lm	213 lm/W	1500 mA	9567 lm	181 lm/W
Flexus 5050 HP G1 2x6 857	7550-00530	80	5700 K	100 mA	699 lm	221 lm/W	350 mA	2424 lm	213 lm/W	1500 mA	9567 lm	181 lm/W
Flexus 5050 HP G1 2x6 865	7550-00531	80	6500 K	100 mA	691 lm	219 lm/W	350 mA	2397 lm	211 lm/W	1500 mA	9460 lm	179 lm/W
Flexus 5050 HP G1 2x6 922	7550-00532	90	2200 K	100 mA	460 lm	146 lm/W	350 mA	1596 lm	140 lm/W	1500 mA	6300 lm	119 lm/W
Flexus 5050 HP G1 2x6 927	7550-00533	90	2700 K	100 mA	539 lm	171 lm/W	350 mA	1866 lm	164 lm/W	1500 mA	7367 lm	139 lm/W
Flexus 5050 HP G1 2x6 930	7550-00534	90	3000 K	100 mA	554 lm	175 lm/W	350 mA	1920 lm	169 lm/W	1500 mA	7581 lm	143 lm/W
Flexus 5050 HP G1 2x6 935	7550-00535	90	3500 K	100 mA	570 lm	180 lm/W	350 mA	1975 lm	174 lm/W	1500 mA	7795 lm	147 lm/W
Flexus 5050 HP G1 2x6 940	7550-00536	90	4000 K	100 mA	587 lm	186 lm/W	350 mA	2034 lm	179 lm/W	1500 mA	8030 lm	152 lm/W
Flexus 5050 HP G1 2x6 950	7550-00537	90	5000 K	100 mA	587 lm	186 lm/W	350 mA	2034 lm	179 lm/W	1500 mA	8030 lm	152 lm/W
Flexus 5050 HP G1 2x6 957	7550-00538	90	5700 K	100 mA	587 lm	186 lm/W	350 mA	2034 lm	179 lm/W	1500 mA	8030 lm	152 lm/W
Flexus 5050 HP G1 2x6 965	7550-00539	90	6500 K	100 mA	584 lm	185 lm/W	350 mA	2023 lm	178 lm/W	1500 mA	7987 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 HP 2x6
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x6 722 NTC	7550-00612	70	2200 K	100 mA	593 lm	188 lm/W	350 mA	2056 lm	181 lm/W	1500 mA	8115 lm	153 lm/W
Flexus 5050 HP G1 2x6 727 NTC	7550-00613	70	2700 K	100 mA	682 lm	216 lm/W	350 mA	2364 lm	208 lm/W	1500 mA	9332 lm	176 lm/W
Flexus 5050 HP G1 2x6 730 NTC	7550-00614	70	3000 K	100 mA	720 lm	228 lm/W	350 mA	2494 lm	220 lm/W	1500 mA	9845 lm	186 lm/W
Flexus 5050 HP G1 2x6 735 NTC	7550-00615	70	3500 K	100 mA	726 lm	230 lm/W	350 mA	2516 lm	221 lm/W	1500 mA	9930 lm	187 lm/W
Flexus 5050 HP G1 2x6 740 NTC	7550-00616	70	4000 K	100 mA	749 lm	237 lm/W	350 mA	2597 lm	229 lm/W	1500 mA	10250 lm	193 lm/W
Flexus 5050 HP G1 2x6 750 NTC	7550-00617	70	5000 K	100 mA	749 lm	237 lm/W	350 mA	2597 lm	229 lm/W	1500 mA	10250 lm	193 lm/W
Flexus 5050 HP G1 2x6 757 NTC	7550-00618	70	5700 K	100 mA	749 lm	237 lm/W	350 mA	2597 lm	229 lm/W	1500 mA	10250 lm	193 lm/W
Flexus 5050 HP G1 2x6 765 NTC	7550-00619	70	6500 K	100 mA	737 lm	233 lm/W	350 mA	2553 lm	225 lm/W	1500 mA	10080 lm	190 lm/W
Flexus 5050 HP G1 2x6 822 NTC	7550-00620	80	2200 K	100 mA	546 lm	173 lm/W	350 mA	1893 lm	167 lm/W	1500 mA	7474 lm	141 lm/W
Flexus 5050 HP G1 2x6 827 NTC	7550-00621	80	2700 K	100 mA	637 lm	202 lm/W	350 mA	2207 lm	194 lm/W	1500 mA	8713 lm	164 lm/W
Flexus 5050 HP G1 2x6 830 NTC	7550-00622	80	3000 K	100 mA	662 lm	210 lm/W	350 mA	2294 lm	202 lm/W	1500 mA	9055 lm	171 lm/W
Flexus 5050 HP G1 2x6 835 NTC	7550-00623	80	3500 K	100 mA	681 lm	215 lm/W	350 mA	2359 lm	208 lm/W	1500 mA	9311 lm	176 lm/W
Flexus 5050 HP G1 2x6 840 NTC	7550-00624	80	4000 K	100 mA	699 lm	221 lm/W	350 mA	2424 lm	213 lm/W	1500 mA	9567 lm	181 lm/W
Flexus 5050 HP G1 2x6 850 NTC	7550-00625	80	5000 K	100 mA	699 lm	221 lm/W	350 mA	2424 lm	213 lm/W	1500 mA	9567 lm	181 lm/W
Flexus 5050 HP G1 2x6 857 NTC	7550-00626	80	5700 K	100 mA	699 lm	221 lm/W	350 mA	2424 lm	213 lm/W	1500 mA	9567 lm	181 lm/W
Flexus 5050 HP G1 2x6 865 NTC	7550-00627	80	6500 K	100 mA	691 lm	219 lm/W	350 mA	2397 lm	211 lm/W	1500 mA	9460 lm	179 lm/W
Flexus 5050 HP G1 2x6 922 NTC	7550-00628	90	2200 K	100 mA	460 lm	146 lm/W	350 mA	1596 lm	140 lm/W	1500 mA	6300 lm	119 lm/W
Flexus 5050 HP G1 2x6 927 NTC	7550-00629	90	2700 K	100 mA	539 lm	171 lm/W	350 mA	1866 lm	164 lm/W	1500 mA	7367 lm	139 lm/W
Flexus 5050 HP G1 2x6 930 NTC	7550-00630	90	3000 K	100 mA	554 lm	175 lm/W	350 mA	1920 lm	169 lm/W	1500 mA	7581 lm	143 lm/W
Flexus 5050 HP G1 2x6 935 NTC	7550-00631	90	3500 K	100 mA	570 lm	180 lm/W	350 mA	1975 lm	174 lm/W	1500 mA	7795 lm	147 lm/W
Flexus 5050 HP G1 2x6 940 NTC	7550-00632	90	4000 K	100 mA	587 lm	186 lm/W	350 mA	2034 lm	179 lm/W	1500 mA	8030 lm	152 lm/W
Flexus 5050 HP G1 2x6 950 NTC	7550-00633	90	5000 K	100 mA	587 lm	186 lm/W	350 mA	2034 lm	179 lm/W	1500 mA	8030 lm	152 lm/W
Flexus 5050 HP G1 2x6 957 NTC	7550-00634	90	5700 K	100 mA	587 lm	186 lm/W	350 mA	2034 lm	179 lm/W	1500 mA	8030 lm	152 lm/W
Flexus 5050 HP G1 2x6 965 NTC	7550-00635	90	6500 K	100 mA	584 lm	185 lm/W	350 mA	2023 lm	178 lm/W	1500 mA	7987 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 HP 2x8

Features

16 High Performance High-Power-LEDs
square module for installation in luminaires
designed for 2x2 optics from various manufacturers
pitch distance along and across 25 mm
length 223 mm
width 50 mm
aluminium core PCB for perfect thermal management
rated current 350 mA
Maximum operating current 1500 mA
Maximum forward voltage 49.0 V
Flexus 5050 HP G1 2x8 with NTC: 4 connection terminals, NTC for temperature monitoring
Flexus 5050 HP G1 2x8 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 HP 2x8
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x8 722	7550-00540	70	2200 K	100 mA	791 lm	188 lm/W	350 mA	2741 lm	181 lm/W	1500 mA	10820 lm	153 lm/W
Flexus 5050 HP G1 2x8 727	7550-00541	70	2700 K	100 mA	910 lm	216 lm/W	350 mA	3152 lm	208 lm/W	1500 mA	12443 lm	176 lm/W
Flexus 5050 HP G1 2x8 730	7550-00542	70	3000 K	100 mA	959 lm	228 lm/W	350 mA	3325 lm	220 lm/W	1500 mA	13126 lm	186 lm/W
Flexus 5050 HP G1 2x8 735	7550-00543	70	3500 K	100 mA	968 lm	230 lm/W	350 mA	3354 lm	221 lm/W	1500 mA	13240 lm	187 lm/W
Flexus 5050 HP G1 2x8 740	7550-00544	70	4000 K	100 mA	999 lm	237 lm/W	350 mA	3462 lm	229 lm/W	1500 mA	13667 lm	193 lm/W
Flexus 5050 HP G1 2x8 750	7550-00545	70	5000 K	100 mA	999 lm	237 lm/W	350 mA	3462 lm	229 lm/W	1500 mA	13667 lm	193 lm/W
Flexus 5050 HP G1 2x8 757	7550-00546	70	5700 K	100 mA	999 lm	237 lm/W	350 mA	3462 lm	229 lm/W	1500 mA	13667 lm	193 lm/W
Flexus 5050 HP G1 2x8 765	7550-00547	70	6500 K	100 mA	982 lm	233 lm/W	350 mA	3405 lm	225 lm/W	1500 mA	13439 lm	190 lm/W
Flexus 5050 HP G1 2x8 822	7550-00548	80	2200 K	100 mA	728 lm	173 lm/W	350 mA	2525 lm	167 lm/W	1500 mA	9966 lm	141 lm/W
Flexus 5050 HP G1 2x8 827	7550-00549	80	2700 K	100 mA	849 lm	202 lm/W	350 mA	2943 lm	194 lm/W	1500 mA	11617 lm	164 lm/W
Flexus 5050 HP G1 2x8 830	7550-00550	80	3000 K	100 mA	882 lm	210 lm/W	350 mA	3058 lm	202 lm/W	1500 mA	12073 lm	171 lm/W
Flexus 5050 HP G1 2x8 835	7550-00551	80	3500 K	100 mA	907 lm	215 lm/W	350 mA	3145 lm	208 lm/W	1500 mA	12414 lm	176 lm/W
Flexus 5050 HP G1 2x8 840	7550-00552	80	4000 K	100 mA	932 lm	221 lm/W	350 mA	3231 lm	213 lm/W	1500 mA	12756 lm	181 lm/W
Flexus 5050 HP G1 2x8 850	7550-00553	80	5000 K	100 mA	932 lm	221 lm/W	350 mA	3231 lm	213 lm/W	1500 mA	12756 lm	181 lm/W
Flexus 5050 HP G1 2x8 857	7550-00554	80	5700 K	100 mA	932 lm	221 lm/W	350 mA	3231 lm	213 lm/W	1500 mA	12756 lm	181 lm/W
Flexus 5050 HP G1 2x8 865	7550-00555	80	6500 K	100 mA	922 lm	219 lm/W	350 mA	3195 lm	211 lm/W	1500 mA	12614 lm	179 lm/W
Flexus 5050 HP G1 2x8 922	7550-00556	90	2200 K	100 mA	614 lm	146 lm/W	350 mA	2128 lm	140 lm/W	1500 mA	8400 lm	119 lm/W
Flexus 5050 HP G1 2x8 927	7550-00557	90	2700 K	100 mA	718 lm	171 lm/W	350 mA	2488 lm	164 lm/W	1500 mA	9823 lm	139 lm/W
Flexus 5050 HP G1 2x8 930	7550-00558	90	3000 K	100 mA	739 lm	175 lm/W	350 mA	2561 lm	169 lm/W	1500 mA	10108 lm	143 lm/W
Flexus 5050 HP G1 2x8 935	7550-00559	90	3500 K	100 mA	760 lm	180 lm/W	350 mA	2633 lm	174 lm/W	1500 mA	10393 lm	147 lm/W
Flexus 5050 HP G1 2x8 940	7550-00560	90	4000 K	100 mA	783 lm	186 lm/W	350 mA	2712 lm	179 lm/W	1500 mA	10706 lm	152 lm/W
Flexus 5050 HP G1 2x8 950	7550-00561	90	5000 K	100 mA	783 lm	186 lm/W	350 mA	2712 lm	179 lm/W	1500 mA	10706 lm	152 lm/W
Flexus 5050 HP G1 2x8 957	7550-00562	90	5700 K	100 mA	783 lm	186 lm/W	350 mA	2712 lm	179 lm/W	1500 mA	10706 lm	152 lm/W
Flexus 5050 HP G1 2x8 965	7550-00563	90	6500 K	100 mA	778 lm	185 lm/W	350 mA	2698 lm	178 lm/W	1500 mA	10649 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 HP 2x8
Description	Order-nr.	CRI	CCT	HE			RT			HO
Description	Order-nr.	CRI	CCT	I_f	Flux	LPW	I_f	Flux	LPW	I_f	Flux	LPW
Flexus 5050 HP G1 2x8 722 NTC	7550-00636	70	2200 K	100 mA	791 lm	188 lm/W	350 mA	2741 lm	181 lm/W	1500 mA	10820 lm	153 lm/W
Flexus 5050 HP G1 2x8 727 NTC	7550-00637	70	2700 K	100 mA	910 lm	216 lm/W	350 mA	3152 lm	208 lm/W	1500 mA	12443 lm	176 lm/W
Flexus 5050 HP G1 2x8 730 NTC	7550-00638	70	3000 K	100 mA	959 lm	228 lm/W	350 mA	3325 lm	220 lm/W	1500 mA	13126 lm	186 lm/W
Flexus 5050 HP G1 2x8 735 NTC	7550-00639	70	3500 K	100 mA	968 lm	230 lm/W	350 mA	3354 lm	221 lm/W	1500 mA	13240 lm	187 lm/W
Flexus 5050 HP G1 2x8 740 NTC	7550-00640	70	4000 K	100 mA	999 lm	237 lm/W	350 mA	3462 lm	229 lm/W	1500 mA	13667 lm	193 lm/W
Flexus 5050 HP G1 2x8 750 NTC	7550-00641	70	5000 K	100 mA	999 lm	237 lm/W	350 mA	3462 lm	229 lm/W	1500 mA	13667 lm	193 lm/W
Flexus 5050 HP G1 2x8 757 NTC	7550-00642	70	5700 K	100 mA	999 lm	237 lm/W	350 mA	3462 lm	229 lm/W	1500 mA	13667 lm	193 lm/W
Flexus 5050 HP G1 2x8 765 NTC	7550-00643	70	6500 K	100 mA	982 lm	233 lm/W	350 mA	3405 lm	225 lm/W	1500 mA	13439 lm	190 lm/W
Flexus 5050 HP G1 2x8 822 NTC	7550-00644	80	2200 K	100 mA	728 lm	173 lm/W	350 mA	2525 lm	167 lm/W	1500 mA	9966 lm	141 lm/W
Flexus 5050 HP G1 2x8 827 NTC	7550-00645	80	2700 K	100 mA	849 lm	202 lm/W	350 mA	2943 lm	194 lm/W	1500 mA	11617 lm	164 lm/W
Flexus 5050 HP G1 2x8 830 NTC	7550-00646	80	3000 K	100 mA	882 lm	210 lm/W	350 mA	3058 lm	202 lm/W	1500 mA	12073 lm	171 lm/W
Flexus 5050 HP G1 2x8 835 NTC	7550-00647	80	3500 K	100 mA	907 lm	215 lm/W	350 mA	3145 lm	208 lm/W	1500 mA	12414 lm	176 lm/W
Flexus 5050 HP G1 2x8 840 NTC	7550-00648	80	4000 K	100 mA	932 lm	221 lm/W	350 mA	3231 lm	213 lm/W	1500 mA	12756 lm	181 lm/W
Flexus 5050 HP G1 2x8 850 NTC	7550-00649	80	5000 K	100 mA	932 lm	221 lm/W	350 mA	3231 lm	213 lm/W	1500 mA	12756 lm	181 lm/W
Flexus 5050 HP G1 2x8 857 NTC	7550-00650	80	5700 K	100 mA	932 lm	221 lm/W	350 mA	3231 lm	213 lm/W	1500 mA	12756 lm	181 lm/W
Flexus 5050 HP G1 2x8 865 NTC	7550-00651	80	6500 K	100 mA	922 lm	219 lm/W	350 mA	3195 lm	211 lm/W	1500 mA	12614 lm	179 lm/W
Flexus 5050 HP G1 2x8 922 NTC	7550-00652	90	2200 K	100 mA	614 lm	146 lm/W	350 mA	2128 lm	140 lm/W	1500 mA	8400 lm	119 lm/W
Flexus 5050 HP G1 2x8 927 NTC	7550-00653	90	2700 K	100 mA	718 lm	171 lm/W	350 mA	2488 lm	164 lm/W	1500 mA	9823 lm	139 lm/W
Flexus 5050 HP G1 2x8 930 NTC	7550-00654	90	3000 K	100 mA	739 lm	175 lm/W	350 mA	2561 lm	169 lm/W	1500 mA	10108 lm	143 lm/W
Flexus 5050 HP G1 2x8 935 NTC	7550-00655	90	3500 K	100 mA	760 lm	180 lm/W	350 mA	2633 lm	174 lm/W	1500 mA	10393 lm	147 lm/W
Flexus 5050 HP G1 2x8 940 NTC	7550-00656	90	4000 K	100 mA	783 lm	186 lm/W	350 mA	2712 lm	179 lm/W	1500 mA	10706 lm	152 lm/W
Flexus 5050 HP G1 2x8 950 NTC	7550-00657	90	5000 K	100 mA	783 lm	186 lm/W	350 mA	2712 lm	179 lm/W	1500 mA	10706 lm	152 lm/W
Flexus 5050 HP G1 2x8 957 NTC	7550-00658	90	5700 K	100 mA	783 lm	186 lm/W	350 mA	2712 lm	179 lm/W	1500 mA	10706 lm	152 lm/W
Flexus 5050 HP G1 2x8 965 NTC	7550-00659	90	6500 K	100 mA	778 lm	185 lm/W	350 mA	2698 lm	178 lm/W	1500 mA	10649 lm	151 lm/W

Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Flexus 5050 High Performance products

iX-led Flexus 5050 HighPerformance is a further development of the proven Flexus LED module family. The Flexus 5050 HP is equipped with an LED with the highest performance currently available.
Efficiencies of up to 237 lm/W are achieved. Or luminous fluxes of up to 13700 lm.

We offer the Flexus 5050 HP with or without an NTC for temperature monitoring. A single module with temperature monitoring is usually sufficient for several LED modules per luminaire. This enables you to design cost-efficient lighting systems. The Flexus 5050 HP is available in four lengths with 2x2, 2x4, 2x6 and 2x8 LEDs.

With CRI 70, CRI 80 and CRI 90, three colour renderings are available. We also offer eight light colours in the range from 2200 K to 6500 K. The Flexus 5050 HP is compatible with multiple optics from many manufacturers. This enables a high degree of flexibility in the lighting task. Far beyond the field of street lighting.

The family is rounded off by these LED modules:

Flexus 5050 PP outstanding price-performance ratio
Flexus 5050 CT extremely compact high-performance modules
Flexus HighPower LED module with robust high-power LEDs
Flexus MidPower Mid Power performance in a compact design
Flexus Color Flexus in 11 colours from Far-Red to Royal-Blue
