Flexus 5050 PP

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Flexus 5050 PP 2x2

  • 4 High-Power-LEDs
  • Square module for installation in luminaires
  • designed for 2x2 optics for various manufacturers
  • pitch distance along and across 25 mm
  • length 71 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Flexus 5050 PP 2x4

  • 8 High-Power-LEDs
  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • pitch distance along and across 25 mm
  • length 121 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Flexus 5050 PP 2x6

  • 12 High-Power-LEDs
  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • pitch distance along and across 25 mm
  • length 172 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

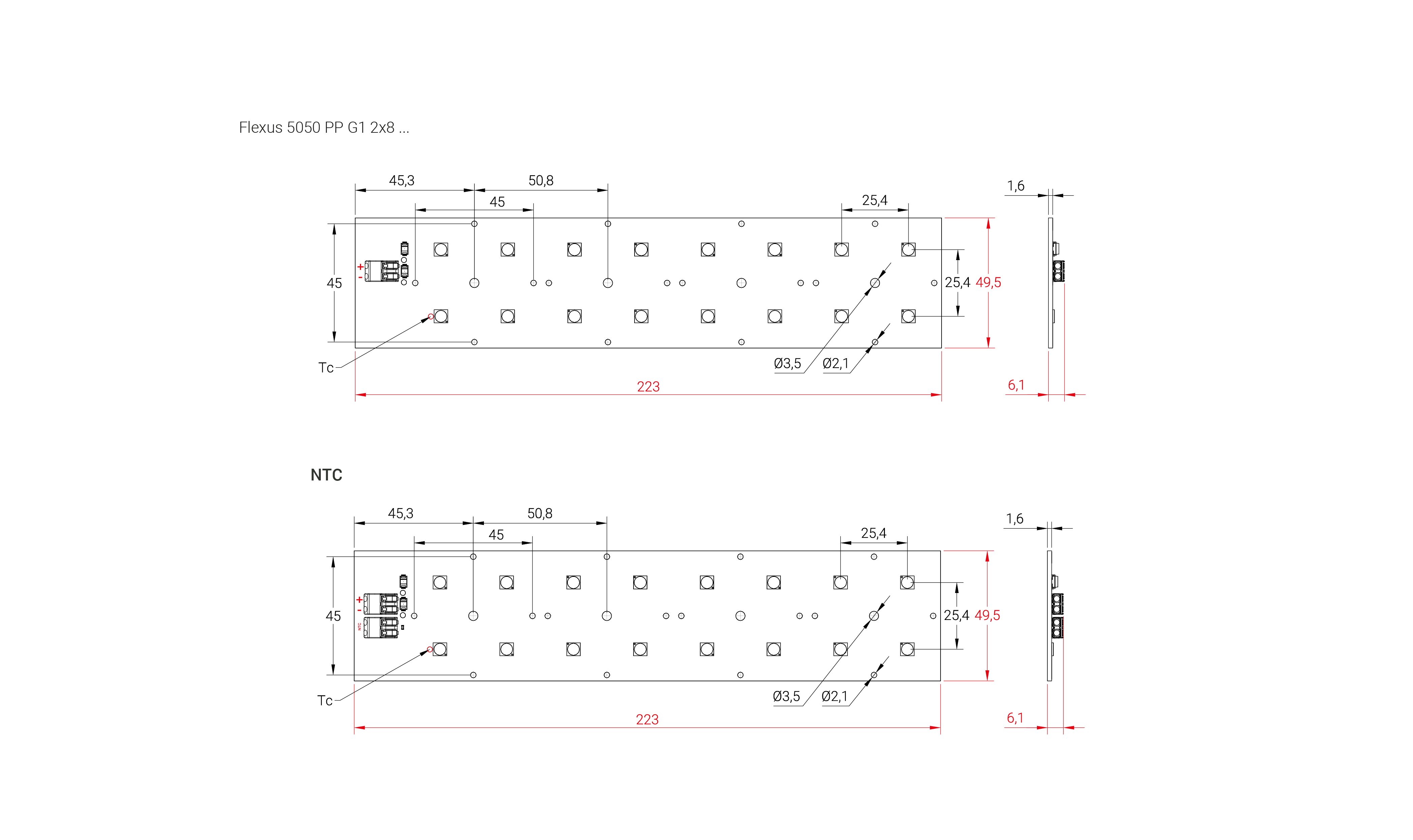

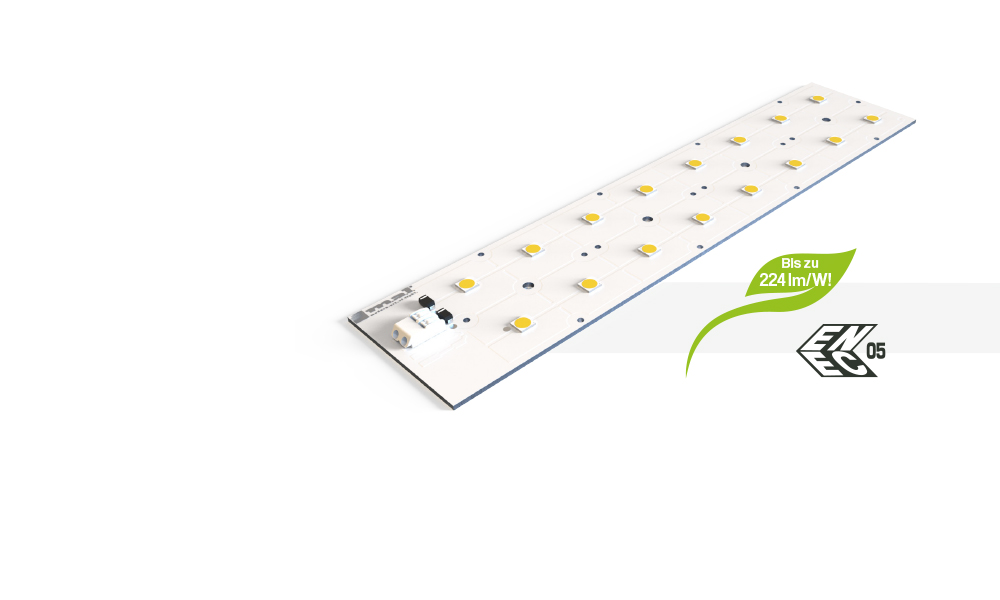

Flexus 5050 PP 2x8

  • 16 High-Power-LEDs
  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • pitch distance along and across 25 mm
  • length 223 mm
  • Products

Flexus 5050 PP 2x2

Features

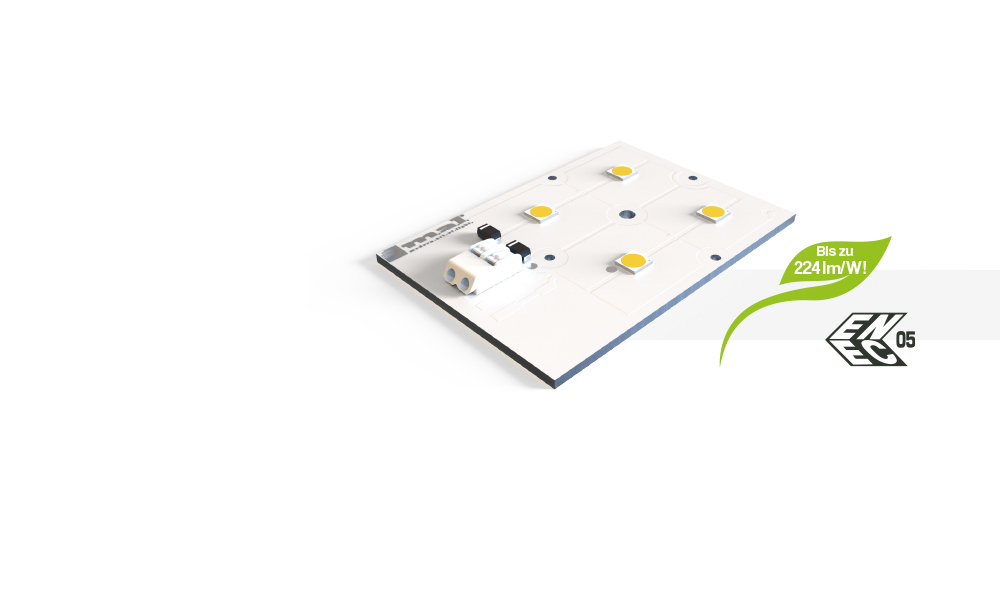

Big module image

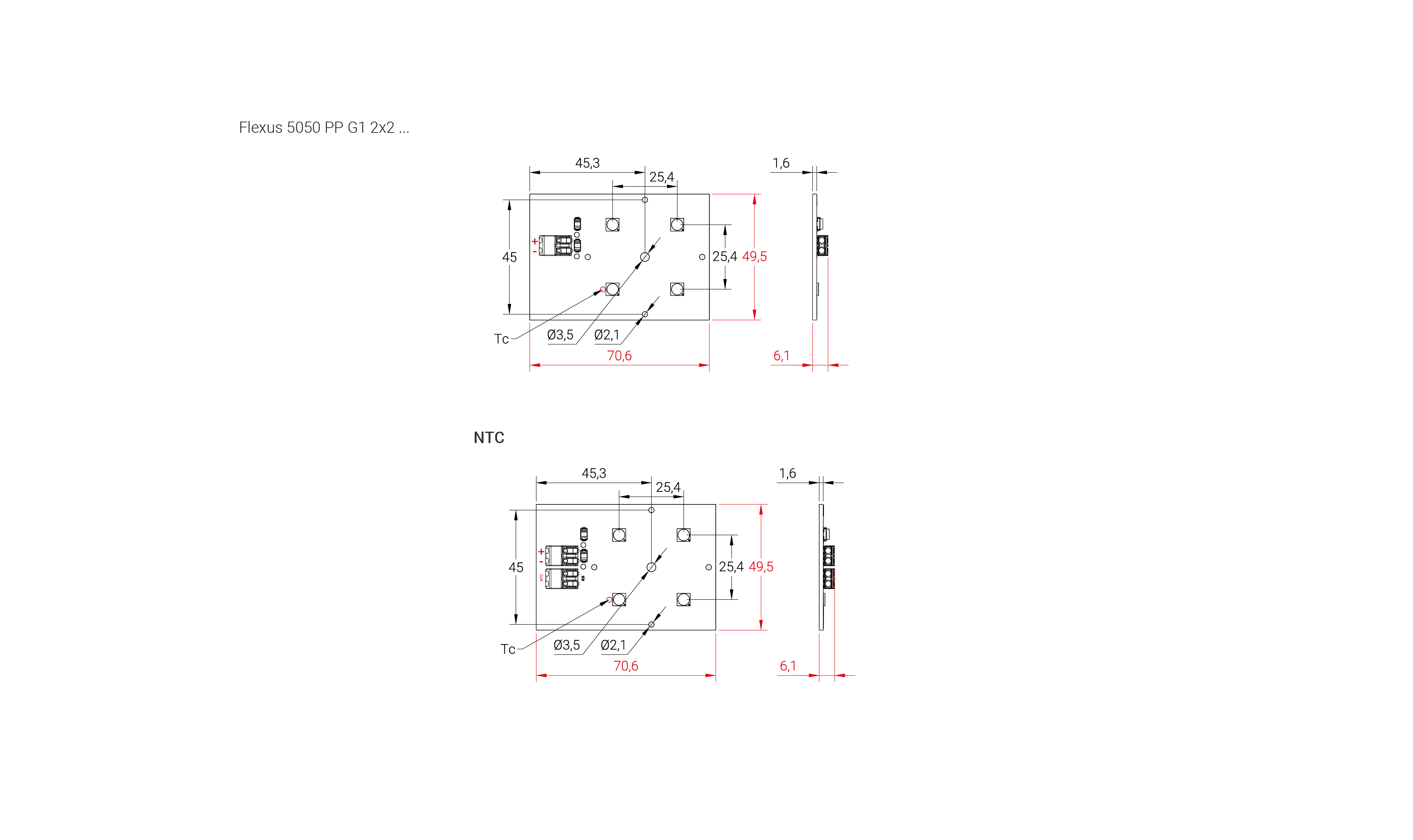

Module drawing
  • 4 High-Power-LEDs
  • Square module for installation in luminaires
  • designed for 2x2 optics for various manufacturers
  • pitch distance along and across 25 mm
  • length 71 mm
  • width 50 mm
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 12.5 V
  • Flexus 5050 G1 2x2 with NTC: 4 connection terminals, NTC for temperature monitoring
  • Flexus 5050 G1 2x2 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 PP 2x2
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x2 727 7550-00300 70 2700 K 200 mA 432 lm 203 lm/W 350 mA 746 lm 197 lm/W 1500 mA 2883 lm 161 lm/W
Flexus 5050 PP G1 2x2 730 7550-00301 70 3000 K 200 mA 454 lm 213 lm/W 350 mA 784 lm 207 lm/W 1500 mA 3030 lm 170 lm/W
Flexus 5050 PP G1 2x2 735 7550-00302 70 3500 K 200 mA 462 lm 217 lm/W 350 mA 796 lm 210 lm/W 1500 mA 3079 lm 172 lm/W
Flexus 5050 PP G1 2x2 740 7550-00303 70 4000 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 750 7550-00304 70 5000 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 757 7550-00305 70 5700 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 765 7550-00306 70 6500 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 827 7550-00307 80 2700 K 200 mA 408 lm 192 lm/W 350 mA 704 lm 186 lm/W 1500 mA 2722 lm 152 lm/W
Flexus 5050 PP G1 2x2 830 7550-00308 80 3000 K 200 mA 424 lm 199 lm/W 350 mA 731 lm 193 lm/W 1500 mA 2827 lm 158 lm/W
Flexus 5050 PP G1 2x2 835 7550-00309 80 3500 K 200 mA 435 lm 205 lm/W 350 mA 751 lm 198 lm/W 1500 mA 2904 lm 163 lm/W
Flexus 5050 PP G1 2x2 840 7550-00310 80 4000 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 850 7550-00311 80 5000 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 857 7550-00312 80 5700 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 865 7550-00313 80 6500 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 927 7550-00314 90 2700 K 200 mA 343 lm 161 lm/W 350 mA 592 lm 156 lm/W 1500 mA 2288 lm 128 lm/W
Flexus 5050 PP G1 2x2 930 7550-00315 90 3000 K 200 mA 354 lm 166 lm/W 350 mA 610 lm 161 lm/W 1500 mA 2358 lm 132 lm/W
Flexus 5050 PP G1 2x2 935 7550-00316 90 3500 K 200 mA 364 lm 171 lm/W 350 mA 628 lm 166 lm/W 1500 mA 2428 lm 136 lm/W
Flexus 5050 PP G1 2x2 940 7550-00317 90 4000 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Flexus 5050 PP G1 2x2 950 7550-00318 90 5000 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Flexus 5050 PP G1 2x2 957 7550-00319 90 5700 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Flexus 5050 PP G1 2x2 965 7550-00320 90 6500 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Flexus 5050 PP 2x2
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x2 727 NTC 7550-00384 70 2700 K 200 mA 432 lm 203 lm/W 350 mA 746 lm 197 lm/W 1500 mA 2883 lm 161 lm/W
Flexus 5050 PP G1 2x2 730 NTC 7550-00385 70 3000 K 200 mA 454 lm 213 lm/W 350 mA 784 lm 207 lm/W 1500 mA 3030 lm 170 lm/W
Flexus 5050 PP G1 2x2 735 NTC 7550-00386 70 3500 K 200 mA 462 lm 217 lm/W 350 mA 796 lm 210 lm/W 1500 mA 3079 lm 172 lm/W
Flexus 5050 PP G1 2x2 740 NTC 7550-00387 70 4000 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 750 NTC 7550-00388 70 5000 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 757 NTC 7550-00389 70 5700 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 765 NTC 7550-00390 70 6500 K 200 mA 477 lm 224 lm/W 350 mA 823 lm 217 lm/W 1500 mA 3184 lm 178 lm/W
Flexus 5050 PP G1 2x2 827 NTC 7550-00391 80 2700 K 200 mA 408 lm 192 lm/W 350 mA 704 lm 186 lm/W 1500 mA 2722 lm 152 lm/W
Flexus 5050 PP G1 2x2 830 NTC 7550-00392 80 3000 K 200 mA 424 lm 199 lm/W 350 mA 731 lm 193 lm/W 1500 mA 2827 lm 158 lm/W
Flexus 5050 PP G1 2x2 835 NTC 7550-00393 80 3500 K 200 mA 435 lm 205 lm/W 350 mA 751 lm 198 lm/W 1500 mA 2904 lm 163 lm/W
Flexus 5050 PP G1 2x2 840 NTC 7550-00394 80 4000 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 850 NTC 7550-00395 80 5000 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 857 NTC 7550-00396 80 5700 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 865 NTC 7550-00397 80 6500 K 200 mA 446 lm 210 lm/W 350 mA 769 lm 203 lm/W 1500 mA 2974 lm 167 lm/W
Flexus 5050 PP G1 2x2 927 NTC 7550-00398 90 2700 K 200 mA 343 lm 161 lm/W 350 mA 592 lm 156 lm/W 1500 mA 2288 lm 128 lm/W
Flexus 5050 PP G1 2x2 930 NTC 7550-00399 90 3000 K 200 mA 354 lm 166 lm/W 350 mA 610 lm 161 lm/W 1500 mA 2358 lm 132 lm/W
Flexus 5050 PP G1 2x2 935 NTC 7550-00400 90 3500 K 200 mA 364 lm 171 lm/W 350 mA 628 lm 166 lm/W 1500 mA 2428 lm 136 lm/W
Flexus 5050 PP G1 2x2 940 NTC 7550-00401 90 4000 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Flexus 5050 PP G1 2x2 950 NTC 7550-00402 90 5000 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Flexus 5050 PP G1 2x2 957 NTC 7550-00403 90 5700 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Flexus 5050 PP G1 2x2 965 NTC 7550-00404 90 6500 K 200 mA 374 lm 176 lm/W 350 mA 646 lm 170 lm/W 1500 mA 2498 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 PP 2x4

Features

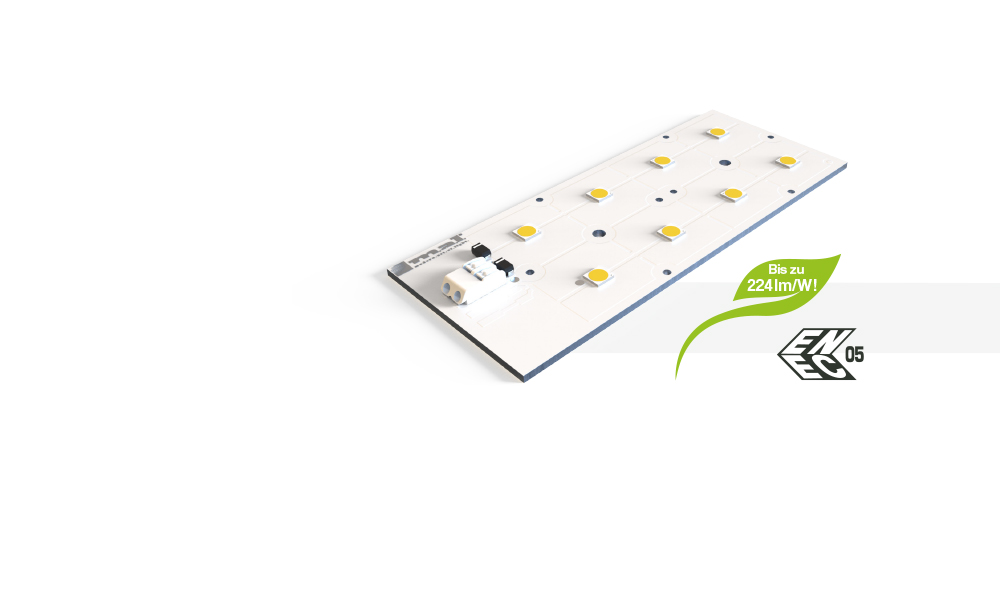

Big module image

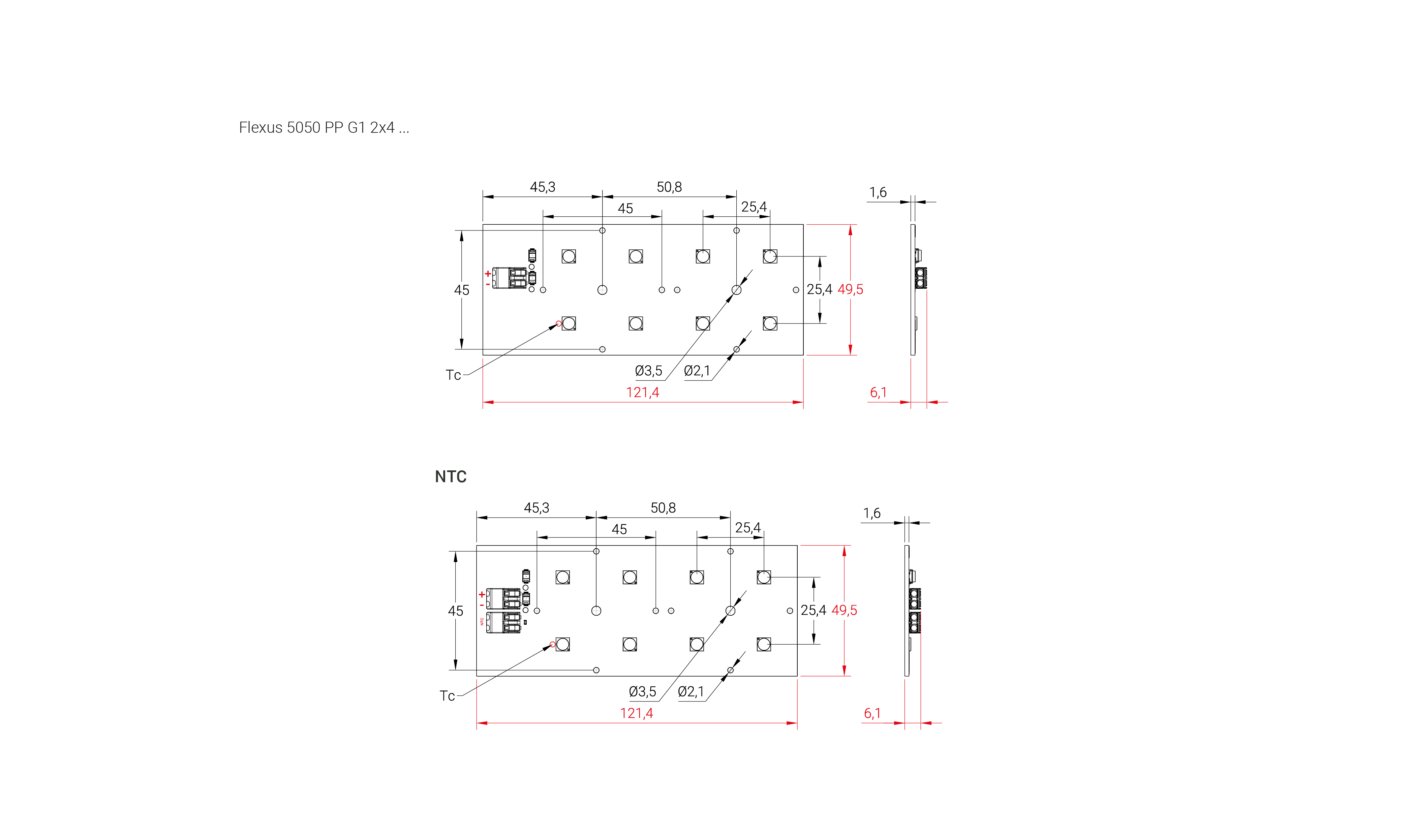

Module drawing
  • 8 High-Power-LEDs
  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • pitch distance along and across 25 mm
  • length 121 mm
  • width 50 mm
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 24.9 V
  • Flexus 5050 G1 2x4 with NTC: 4 connection terminals, NTC for temperature monitoring
  • Flexus 5050 G1 2x4 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 PP 2x4
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x4 727 7550-00321 70 2700 K 200 mA 864 lm 203 lm/W 350 mA 1491 lm 197 lm/W 1500 mA 5766 lm 161 lm/W
Flexus 5050 PP G1 2x4 730 7550-00322 70 3000 K 200 mA 908 lm 213 lm/W 350 mA 1567 lm 207 lm/W 1500 mA 6060 lm 170 lm/W
Flexus 5050 PP G1 2x4 735 7550-00323 70 3500 K 200 mA 923 lm 217 lm/W 350 mA 1592 lm 210 lm/W 1500 mA 6158 lm 172 lm/W
Flexus 5050 PP G1 2x4 740 7550-00324 70 4000 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 750 7550-00325 70 5000 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 757 7550-00326 70 5700 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 765 7550-00327 70 6500 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 827 7550-00328 80 2700 K 200 mA 816 lm 192 lm/W 350 mA 1408 lm 186 lm/W 1500 mA 5444 lm 152 lm/W
Flexus 5050 PP G1 2x4 830 7550-00329 80 3000 K 200 mA 848 lm 199 lm/W 350 mA 1462 lm 193 lm/W 1500 mA 5654 lm 158 lm/W
Flexus 5050 PP G1 2x4 835 7550-00330 80 3500 K 200 mA 871 lm 205 lm/W 350 mA 1502 lm 198 lm/W 1500 mA 5808 lm 163 lm/W
Flexus 5050 PP G1 2x4 840 7550-00331 80 4000 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 850 7550-00332 80 5000 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 857 7550-00333 80 5700 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 865 7550-00334 80 6500 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 927 7550-00335 90 2700 K 200 mA 686 lm 161 lm/W 350 mA 1183 lm 156 lm/W 1500 mA 4577 lm 128 lm/W
Flexus 5050 PP G1 2x4 930 7550-00336 90 3000 K 200 mA 707 lm 166 lm/W 350 mA 1220 lm 161 lm/W 1500 mA 4717 lm 132 lm/W
Flexus 5050 PP G1 2x4 935 7550-00337 90 3500 K 200 mA 728 lm 171 lm/W 350 mA 1256 lm 166 lm/W 1500 mA 4857 lm 136 lm/W
Flexus 5050 PP G1 2x4 940 7550-00338 90 4000 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Flexus 5050 PP G1 2x4 950 7550-00339 90 5000 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Flexus 5050 PP G1 2x4 957 7550-00340 90 5700 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Flexus 5050 PP G1 2x4 965 7550-00341 90 6500 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Flexus 5050 PP 2x4
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x4 727 NTC 7550-00405 70 2700 K 200 mA 864 lm 203 lm/W 350 mA 1491 lm 197 lm/W 1500 mA 5766 lm 161 lm/W
Flexus 5050 PP G1 2x4 730 NTC 7550-00406 70 3000 K 200 mA 908 lm 213 lm/W 350 mA 1567 lm 207 lm/W 1500 mA 6060 lm 170 lm/W
Flexus 5050 PP G1 2x4 735 NTC 7550-00407 70 3500 K 200 mA 923 lm 217 lm/W 350 mA 1592 lm 210 lm/W 1500 mA 6158 lm 172 lm/W
Flexus 5050 PP G1 2x4 740 NTC 7550-00408 70 4000 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 750 NTC 7550-00409 70 5000 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 757 NTC 7550-00410 70 5700 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 765 NTC 7550-00411 70 6500 K 200 mA 955 lm 224 lm/W 350 mA 1647 lm 217 lm/W 1500 mA 6368 lm 178 lm/W
Flexus 5050 PP G1 2x4 827 NTC 7550-00412 80 2700 K 200 mA 816 lm 192 lm/W 350 mA 1408 lm 186 lm/W 1500 mA 5444 lm 152 lm/W
Flexus 5050 PP G1 2x4 830 NTC 7550-00413 80 3000 K 200 mA 848 lm 199 lm/W 350 mA 1462 lm 193 lm/W 1500 mA 5654 lm 158 lm/W
Flexus 5050 PP G1 2x4 835 NTC 7550-00414 80 3500 K 200 mA 871 lm 205 lm/W 350 mA 1502 lm 198 lm/W 1500 mA 5808 lm 163 lm/W
Flexus 5050 PP G1 2x4 840 NTC 7550-00415 80 4000 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 850 NTC 7550-00416 80 5000 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 857 NTC 7550-00417 80 5700 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 865 NTC 7550-00418 80 6500 K 200 mA 892 lm 210 lm/W 350 mA 1538 lm 203 lm/W 1500 mA 5948 lm 167 lm/W
Flexus 5050 PP G1 2x4 927 NTC 7550-00419 90 2700 K 200 mA 686 lm 161 lm/W 350 mA 1183 lm 156 lm/W 1500 mA 4577 lm 128 lm/W
Flexus 5050 PP G1 2x4 930 NTC 7550-00420 90 3000 K 200 mA 707 lm 166 lm/W 350 mA 1220 lm 161 lm/W 1500 mA 4717 lm 132 lm/W
Flexus 5050 PP G1 2x4 935 NTC 7550-00421 90 3500 K 200 mA 728 lm 171 lm/W 350 mA 1256 lm 166 lm/W 1500 mA 4857 lm 136 lm/W
Flexus 5050 PP G1 2x4 940 NTC 7550-00422 90 4000 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Flexus 5050 PP G1 2x4 950 NTC 7550-00423 90 5000 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Flexus 5050 PP G1 2x4 957 NTC 7550-00424 90 5700 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Flexus 5050 PP G1 2x4 965 NTC 7550-00425 90 6500 K 200 mA 749 lm 176 lm/W 350 mA 1292 lm 170 lm/W 1500 mA 4997 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 PP 2x6

Features

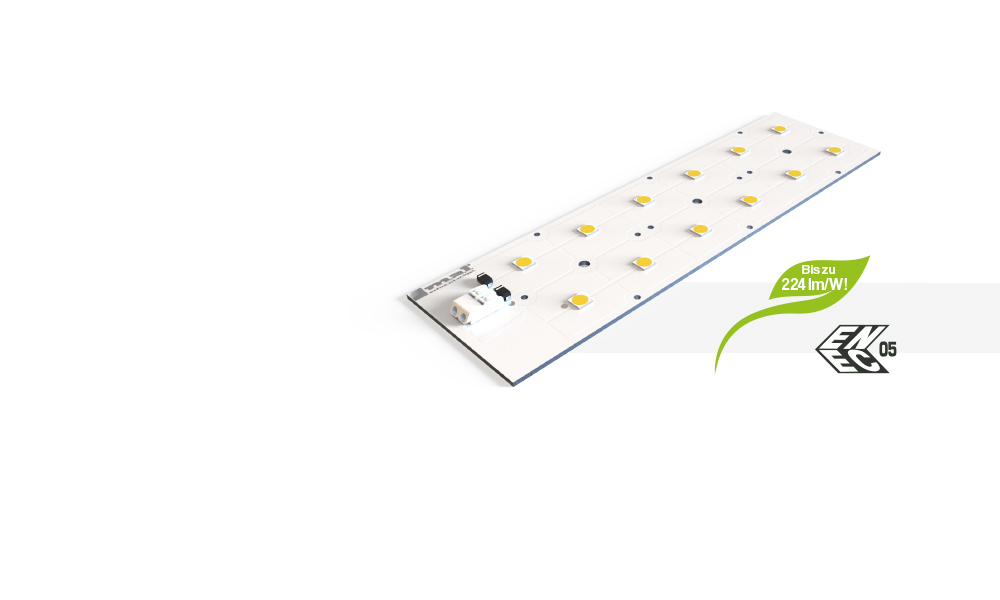

Big module image

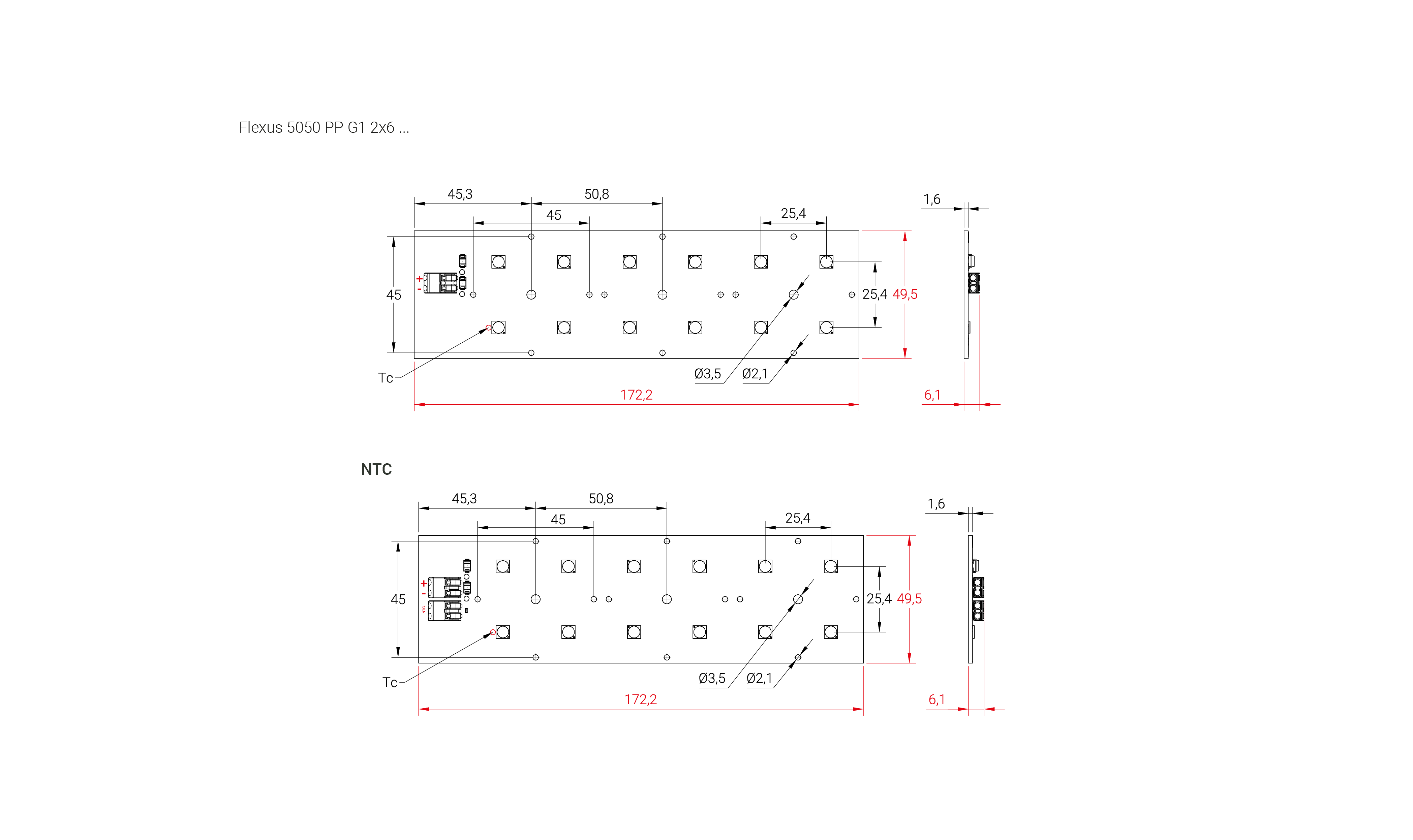

Module drawing
  • 12 High-Power-LEDs
  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • pitch distance along and across 25 mm
  • length 172 mm
  • width 50 mm
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 37.4 V
  • Flexus 5050 G1 2x6 with NTC: 4 connection terminals, NTC for temperature monitoring
  • Flexus 5050 G1 2x6 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 PP 2x6
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x6 727 7550-00342 70 2700 K 200 mA 1297 lm 203 lm/W 350 mA 2237 lm 197 lm/W 1500 mA 8650 lm 161 lm/W
Flexus 5050 PP G1 2x6 730 7550-00343 70 3000 K 200 mA 1363 lm 213 lm/W 350 mA 2351 lm 207 lm/W 1500 mA 9090 lm 170 lm/W
Flexus 5050 PP G1 2x6 735 7550-00344 70 3500 K 200 mA 1385 lm 217 lm/W 350 mA 2389 lm 210 lm/W 1500 mA 9237 lm 172 lm/W
Flexus 5050 PP G1 2x6 740 7550-00345 70 4000 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 750 7550-00346 70 5000 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 757 7550-00347 70 5700 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 765 7550-00348 70 6500 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 827 7550-00349 80 2700 K 200 mA 1224 lm 192 lm/W 350 mA 2112 lm 186 lm/W 1500 mA 8167 lm 152 lm/W
Flexus 5050 PP G1 2x6 830 7550-00350 80 3000 K 200 mA 1271 lm 199 lm/W 350 mA 2193 lm 193 lm/W 1500 mA 8482 lm 158 lm/W
Flexus 5050 PP G1 2x6 835 7550-00351 80 3500 K 200 mA 1306 lm 205 lm/W 350 mA 2253 lm 198 lm/W 1500 mA 8712 lm 163 lm/W
Flexus 5050 PP G1 2x6 840 7550-00352 80 4000 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 850 7550-00353 80 5000 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 857 7550-00354 80 5700 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 865 7550-00355 80 6500 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 927 7550-00356 90 2700 K 200 mA 1029 lm 161 lm/W 350 mA 1775 lm 156 lm/W 1500 mA 6865 lm 128 lm/W
Flexus 5050 PP G1 2x6 930 7550-00357 90 3000 K 200 mA 1061 lm 166 lm/W 350 mA 1829 lm 161 lm/W 1500 mA 7075 lm 132 lm/W
Flexus 5050 PP G1 2x6 935 7550-00358 90 3500 K 200 mA 1092 lm 171 lm/W 350 mA 1884 lm 166 lm/W 1500 mA 7285 lm 136 lm/W
Flexus 5050 PP G1 2x6 940 7550-00359 90 4000 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Flexus 5050 PP G1 2x6 950 7550-00360 90 5000 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Flexus 5050 PP G1 2x6 957 7550-00361 90 5700 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Flexus 5050 PP G1 2x6 965 7550-00362 90 6500 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Flexus 5050 PP 2x6
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x6 727 NTC 7550-00426 70 2700 K 200 mA 1297 lm 203 lm/W 350 mA 2237 lm 197 lm/W 1500 mA 8650 lm 161 lm/W
Flexus 5050 PP G1 2x6 730 NTC 7550-00427 70 3000 K 200 mA 1363 lm 213 lm/W 350 mA 2351 lm 207 lm/W 1500 mA 9090 lm 170 lm/W
Flexus 5050 PP G1 2x6 735 NTC 7550-00428 70 3500 K 200 mA 1385 lm 217 lm/W 350 mA 2389 lm 210 lm/W 1500 mA 9237 lm 172 lm/W
Flexus 5050 PP G1 2x6 740 NTC 7550-00429 70 4000 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 750 NTC 7550-00430 70 5000 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 757 NTC 7550-00431 70 5700 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 765 NTC 7550-00432 70 6500 K 200 mA 1432 lm 224 lm/W 350 mA 2470 lm 217 lm/W 1500 mA 9552 lm 178 lm/W
Flexus 5050 PP G1 2x6 827 NTC 7550-00433 80 2700 K 200 mA 1224 lm 192 lm/W 350 mA 2112 lm 186 lm/W 1500 mA 8167 lm 152 lm/W
Flexus 5050 PP G1 2x6 830 NTC 7550-00434 80 3000 K 200 mA 1271 lm 199 lm/W 350 mA 2193 lm 193 lm/W 1500 mA 8482 lm 158 lm/W
Flexus 5050 PP G1 2x6 835 NTC 7550-00435 80 3500 K 200 mA 1306 lm 205 lm/W 350 mA 2253 lm 198 lm/W 1500 mA 8712 lm 163 lm/W
Flexus 5050 PP G1 2x6 840 NTC 7550-00436 80 4000 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 850 NTC 7550-00437 80 5000 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 857 NTC 7550-00438 80 5700 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 865 NTC 7550-00439 80 6500 K 200 mA 1337 lm 210 lm/W 350 mA 2307 lm 203 lm/W 1500 mA 8922 lm 167 lm/W
Flexus 5050 PP G1 2x6 927 NTC 7550-00440 90 2700 K 200 mA 1029 lm 161 lm/W 350 mA 1775 lm 156 lm/W 1500 mA 6865 lm 128 lm/W
Flexus 5050 PP G1 2x6 930 NTC 7550-00441 90 3000 K 200 mA 1061 lm 166 lm/W 350 mA 1829 lm 161 lm/W 1500 mA 7075 lm 132 lm/W
Flexus 5050 PP G1 2x6 935 NTC 7550-00442 90 3500 K 200 mA 1092 lm 171 lm/W 350 mA 1884 lm 166 lm/W 1500 mA 7285 lm 136 lm/W
Flexus 5050 PP G1 2x6 940 NTC 7550-00443 90 4000 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Flexus 5050 PP G1 2x6 950 NTC 7550-00444 90 5000 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Flexus 5050 PP G1 2x6 957 NTC 7550-00445 90 5700 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Flexus 5050 PP G1 2x6 965 NTC 7550-00446 90 6500 K 200 mA 1123 lm 176 lm/W 350 mA 1938 lm 170 lm/W 1500 mA 7495 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 5050 PP 2x8

Features

Big module image
Module drawing
  • 16 High-Power-LEDs
  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • pitch distance along and across 25 mm
  • length 223 mm
  • width 50 mm
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 49.9 V
  • Flexus 5050 G1 2x8 with NTC: 4 connection terminals, NTC for temperature monitoring
  • Flexus 5050 G1 2x8 without NTC: 2 connection terminals

Downloads

Technical data

Flexus 5050 PP 2x8
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x8 727 7550-00363 70 2700 K 200 mA 1729 lm 203 lm/W 350 mA 2982 lm 197 lm/W 1500 mA 11533 lm 161 lm/W
Flexus 5050 PP G1 2x8 730 7550-00364 70 3000 K 200 mA 1817 lm 213 lm/W 350 mA 3134 lm 207 lm/W 1500 mA 12121 lm 170 lm/W
Flexus 5050 PP G1 2x8 735 7550-00365 70 3500 K 200 mA 1846 lm 217 lm/W 350 mA 3185 lm 210 lm/W 1500 mA 12316 lm 172 lm/W
Flexus 5050 PP G1 2x8 740 7550-00366 70 4000 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 750 7550-00367 70 5000 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 757 7550-00368 70 5700 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 765 7550-00369 70 6500 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 827 7550-00370 80 2700 K 200 mA 1632 lm 192 lm/W 350 mA 2816 lm 186 lm/W 1500 mA 10889 lm 152 lm/W
Flexus 5050 PP G1 2x8 830 7550-00371 80 3000 K 200 mA 1695 lm 199 lm/W 350 mA 2924 lm 193 lm/W 1500 mA 11309 lm 158 lm/W
Flexus 5050 PP G1 2x8 835 7550-00372 80 3500 K 200 mA 1741 lm 205 lm/W 350 mA 3004 lm 198 lm/W 1500 mA 11617 lm 163 lm/W
Flexus 5050 PP G1 2x8 840 7550-00373 80 4000 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 850 7550-00374 80 5000 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 857 7550-00375 80 5700 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 865 7550-00376 80 6500 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 927 7550-00377 90 2700 K 200 mA 1372 lm 161 lm/W 350 mA 2367 lm 156 lm/W 1500 mA 9153 lm 128 lm/W
Flexus 5050 PP G1 2x8 930 7550-00378 90 3000 K 200 mA 1414 lm 166 lm/W 350 mA 2439 lm 161 lm/W 1500 mA 9433 lm 132 lm/W
Flexus 5050 PP G1 2x8 935 7550-00379 90 3500 K 200 mA 1456 lm 171 lm/W 350 mA 2512 lm 166 lm/W 1500 mA 9713 lm 136 lm/W
Flexus 5050 PP G1 2x8 940 7550-00380 90 4000 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Flexus 5050 PP G1 2x8 950 7550-00381 90 5000 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Flexus 5050 PP G1 2x8 957 7550-00382 90 5700 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Flexus 5050 PP G1 2x8 965 7550-00383 90 6500 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Flexus 5050 PP 2x8
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus 5050 PP G1 2x8 727 NTC 7550-00447 70 2700 K 200 mA 1729 lm 203 lm/W 350 mA 2982 lm 197 lm/W 1500 mA 11533 lm 161 lm/W
Flexus 5050 PP G1 2x8 730 NTC 7550-00448 70 3000 K 200 mA 1817 lm 213 lm/W 350 mA 3134 lm 207 lm/W 1500 mA 12121 lm 170 lm/W
Flexus 5050 PP G1 2x8 735 NTC 7550-00449 70 3500 K 200 mA 1846 lm 217 lm/W 350 mA 3185 lm 210 lm/W 1500 mA 12316 lm 172 lm/W
Flexus 5050 PP G1 2x8 740 NTC 7550-00450 70 4000 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 750 NTC 7550-00451 70 5000 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 757 NTC 7550-00452 70 5700 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 765 NTC 7550-00453 70 6500 K 200 mA 1909 lm 224 lm/W 350 mA 3293 lm 217 lm/W 1500 mA 12736 lm 178 lm/W
Flexus 5050 PP G1 2x8 827 NTC 7550-00454 80 2700 K 200 mA 1632 lm 192 lm/W 350 mA 2816 lm 186 lm/W 1500 mA 10889 lm 152 lm/W
Flexus 5050 PP G1 2x8 830 NTC 7550-00455 80 3000 K 200 mA 1695 lm 199 lm/W 350 mA 2924 lm 193 lm/W 1500 mA 11309 lm 158 lm/W
Flexus 5050 PP G1 2x8 835 NTC 7550-00456 80 3500 K 200 mA 1741 lm 205 lm/W 350 mA 3004 lm 198 lm/W 1500 mA 11617 lm 163 lm/W
Flexus 5050 PP G1 2x8 840 NTC 7550-00457 80 4000 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 850 NTC 7550-00458 80 5000 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 857 NTC 7550-00459 80 5700 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 865 NTC 7550-00460 80 6500 K 200 mA 1783 lm 210 lm/W 350 mA 3076 lm 203 lm/W 1500 mA 11897 lm 167 lm/W
Flexus 5050 PP G1 2x8 927 NTC 7550-00461 90 2700 K 200 mA 1372 lm 161 lm/W 350 mA 2367 lm 156 lm/W 1500 mA 9153 lm 128 lm/W
Flexus 5050 PP G1 2x8 930 NTC 7550-00462 90 3000 K 200 mA 1414 lm 166 lm/W 350 mA 2439 lm 161 lm/W 1500 mA 9433 lm 132 lm/W
Flexus 5050 PP G1 2x8 935 NTC 7550-00463 90 3500 K 200 mA 1456 lm 171 lm/W 350 mA 2512 lm 166 lm/W 1500 mA 9713 lm 136 lm/W
Flexus 5050 PP G1 2x8 940 NTC 7550-00464 90 4000 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Flexus 5050 PP G1 2x8 950 NTC 7550-00465 90 5000 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Flexus 5050 PP G1 2x8 957 NTC 7550-00466 90 5700 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Flexus 5050 PP G1 2x8 965 NTC 7550-00467 90 6500 K 200 mA 1498 lm 176 lm/W 350 mA 2584 lm 170 lm/W 1500 mA 9993 lm 140 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Flexus 5050 Price Performance products

iX-led Flexus 5050 PricePerformance is a further development of the proven Flexus LED module family. For the Flexus 5050 PP, we use an LED with an outstanding price-performance ratio. The result is impressive with up to 224 lm/W or 12700 lm.

We offer the Flexus 5050 PP with or without an NTC for temperature monitoring. A single module with temperature monitoring is usually sufficient for several LED modules per luminaire. This enables you to design cost-efficient lighting systems.

The Flexus 5050 PP is available in four lengths with 2x2, 2x4, 2x6 and 2x8 LEDs. With CRI 70, CRI 80 and CRI 90, three colour renderings are available. We also offer seven light colours in the range from 2700 K to 6500 K. The Flexus 5050 PP is compatible with multiple optics from many manufacturers. This enables a high degree of flexibility in the lighting task. Far beyond the field of street lighting.

The family is rounded off by these LED modules:
