Flexus HighPower

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

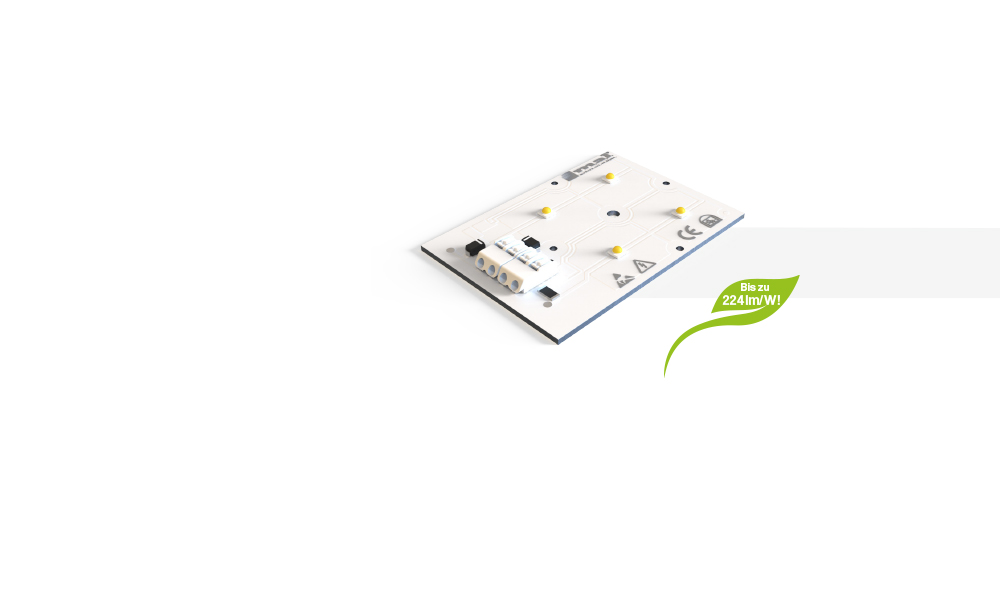

Flexus 2x2

  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • 4 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 71 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

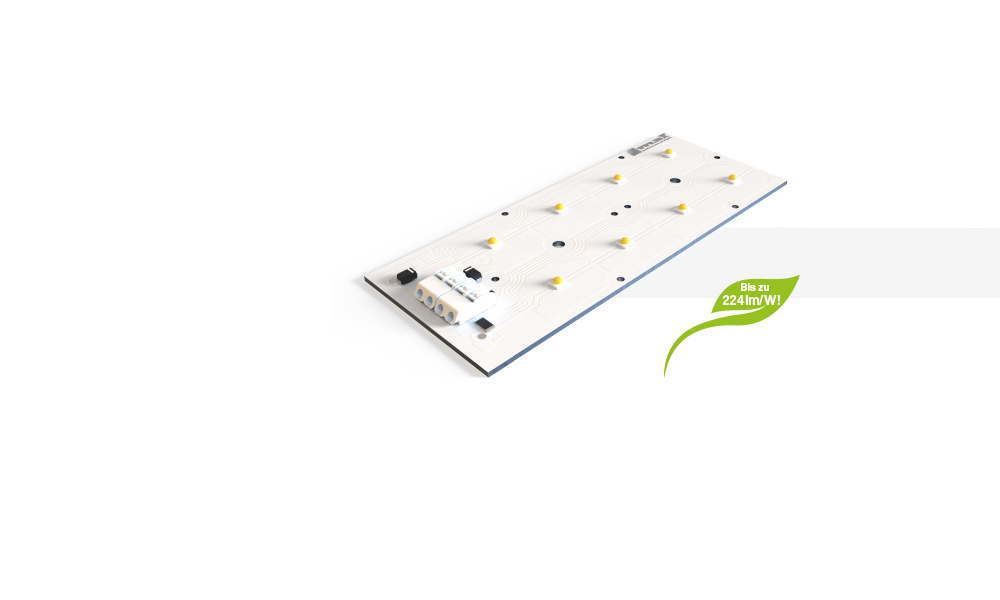

Flexus 2x4

  • square module for installation in luminaires
  • designed for 2x2 and 2x4 optics from various manufacturers
  • 8 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 121 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

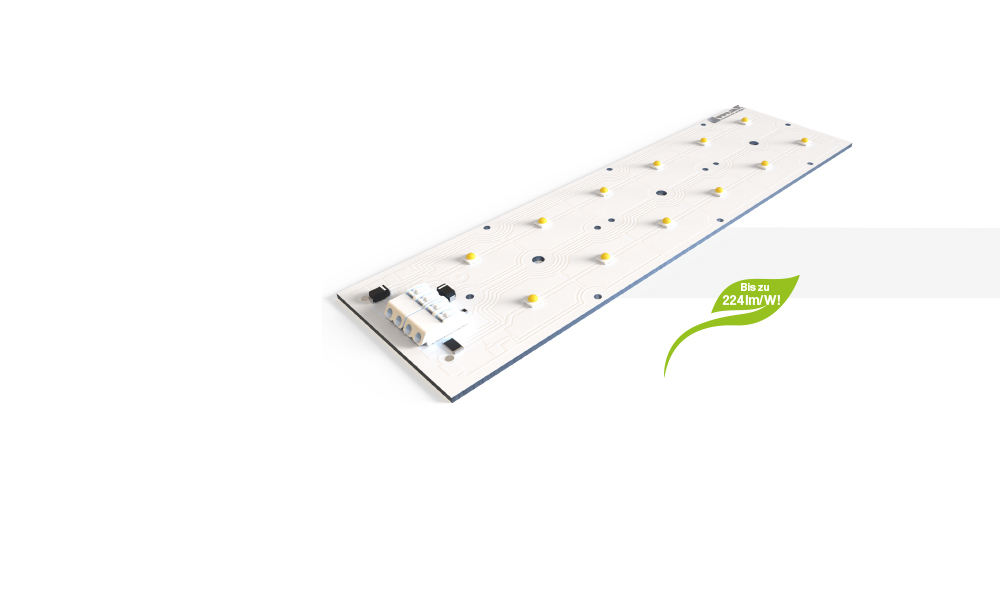

Flexus 2x6

  • square module for installation in luminaires
  • designed for 2x6 optics from various manufacturers
  • 12 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 172 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

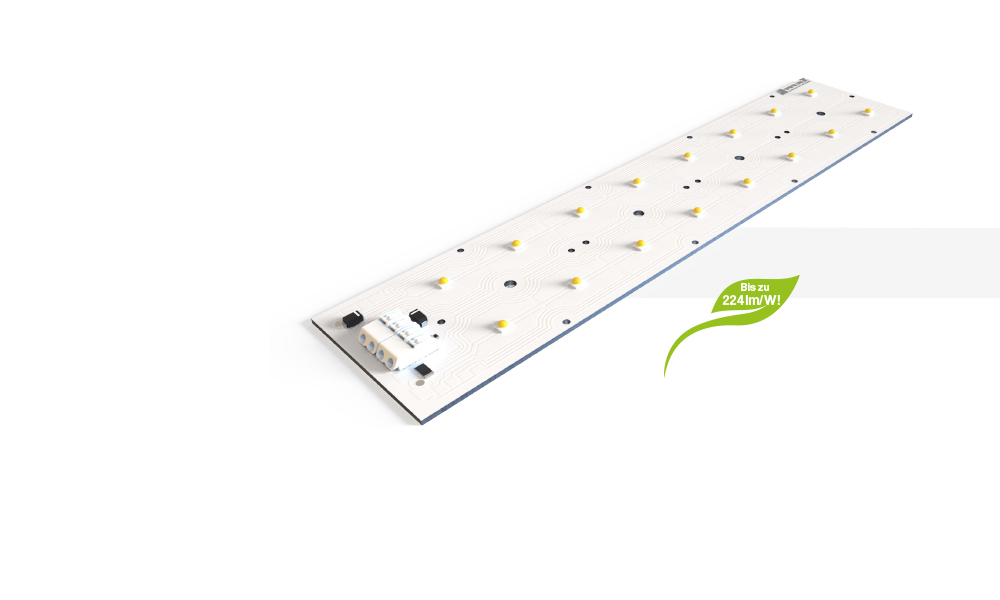

Flexus 2x8

  • square module for installation in luminaires
  • designed for 2x2 and 2x8 optics from various manufacturers
  • 16 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 223 mm
  • Products

Flexus 2x2

Features

Big module image

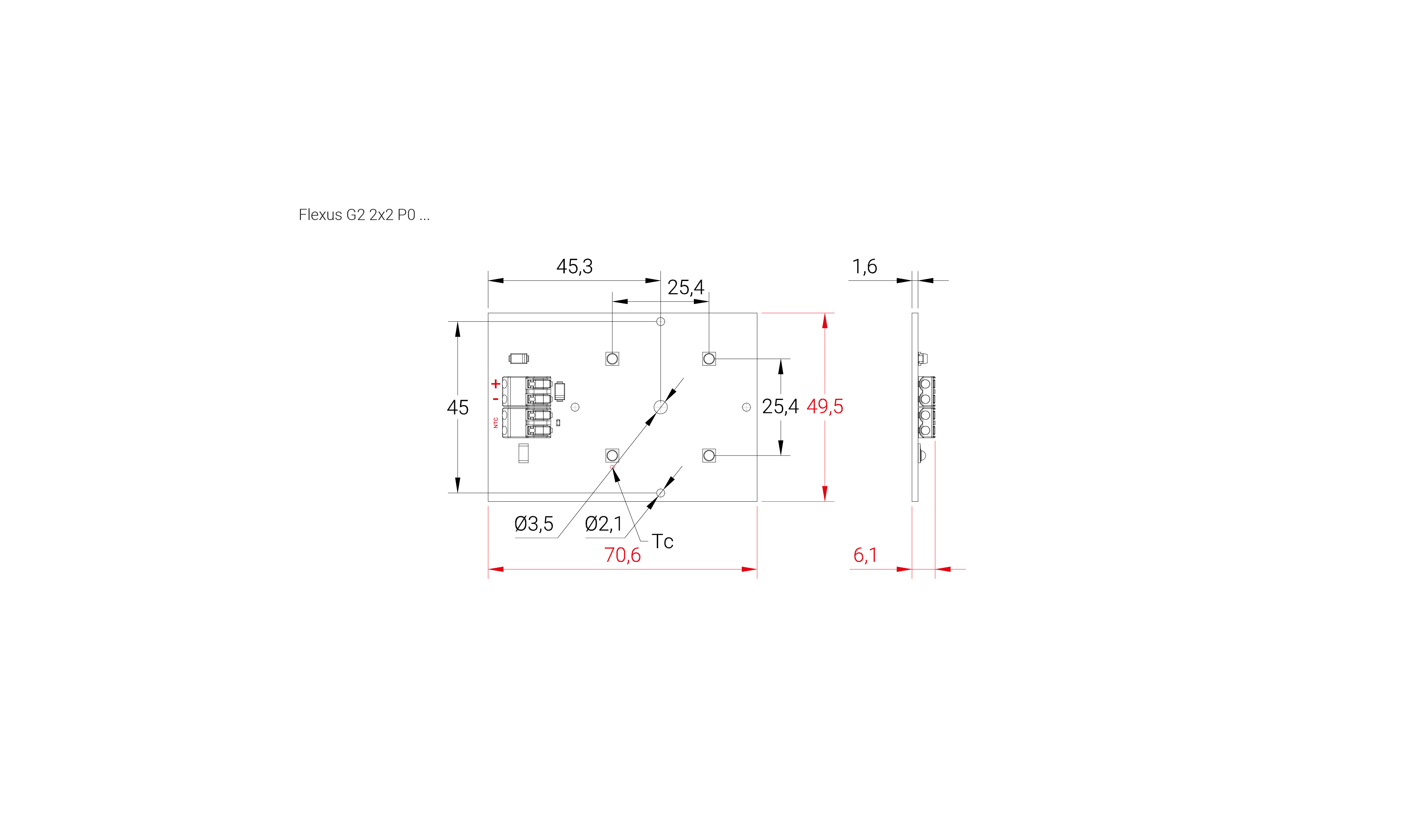

Module drawing
  • square module for installation in luminaires
  • designed for 2x2 optics from various manufacturers
  • 4 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 71 mm
  • width 50 mm
  • 4 connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 13.6 V
  • with NTC for temperature monitoring, reverse polarity protection and TVS diode

Downloads

Technical data

Flexus 2x2
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus G2 2x2 P0 730 7550-03000 70 3000 K 100 mA 223 lm 209 lm/W 350 mA 727 lm 187 lm/W 1500 mA 2472 lm 136 lm/W
Flexus G2 2x2 P0 830 7550-03001 80 3000 K 100 mA 190 lm 174 lm/W 350 mA 616 lm 154 lm/W 1500 mA 1940 lm 103 lm/W
Flexus G2 2x2 P0 740 7550-03002 70 4000 K 100 mA 240 lm 224 lm/W 350 mA 780 lm 201 lm/W 1500 mA 2652 lm 146 lm/W
Flexus G2 2x2 P0 840 7550-03003 80 4000 K 100 mA 203 lm 186 lm/W 350 mA 656 lm 164 lm/W 1500 mA 2068 lm 109 lm/W
Flexus G2 2x2 P0 750 7550-03004 70 5000 K 100 mA 240 lm 224 lm/W 350 mA 780 lm 201 lm/W 1500 mA 2652 lm 146 lm/W
Flexus G2 2x2 P0 850 7550-03005 80 5000 K 100 mA 203 lm 186 lm/W 350 mA 656 lm 164 lm/W 1500 mA 2068 lm 109 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 2x4

Features

Big module image

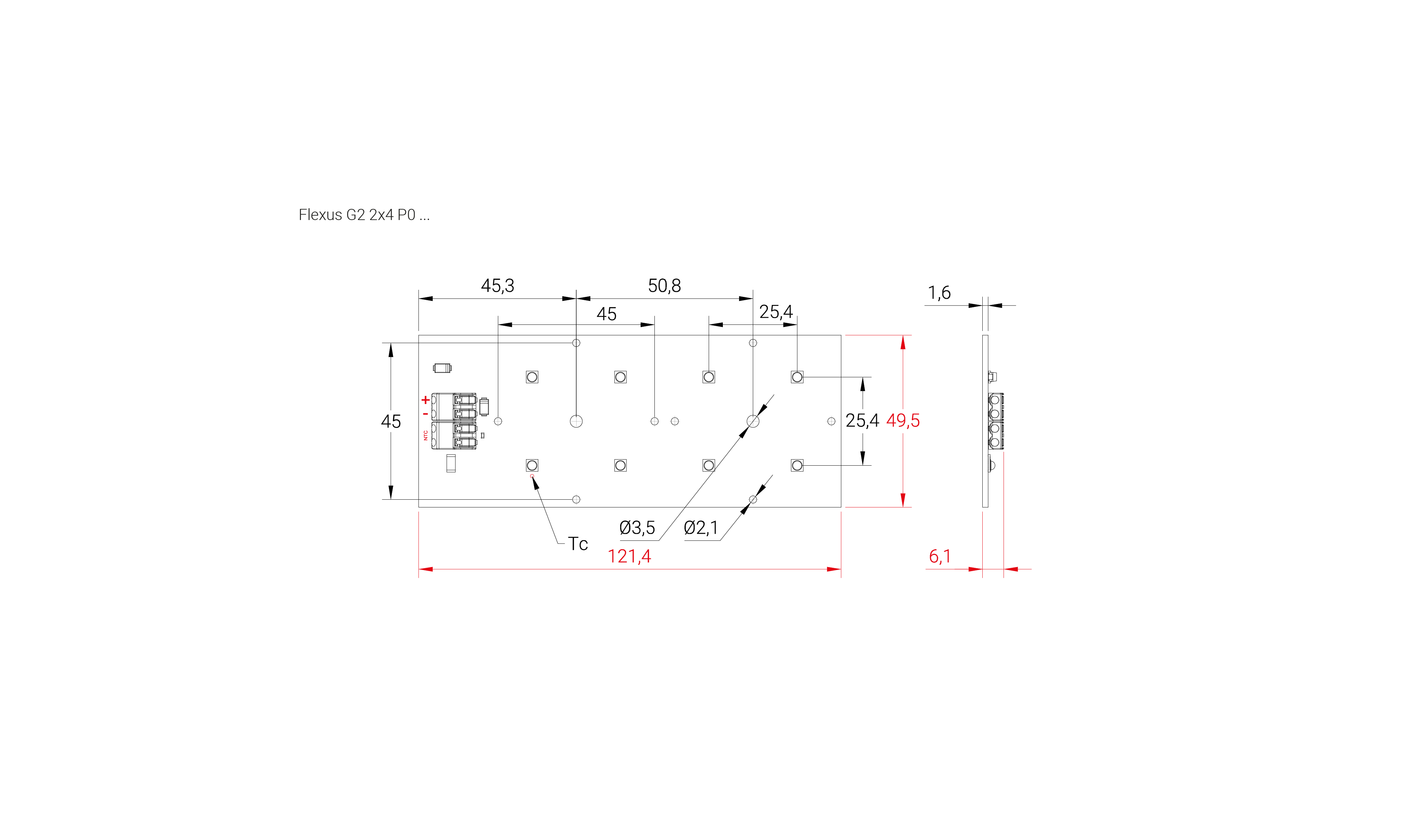

Module drawing
  • square module for installation in luminaires
  • designed for 2x2 and 2x4 optics from various manufacturers
  • 8 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 121 mm
  • width 50 mm
  • 4 connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 27.2 V
  • with NTC for temperature monitoring, reverse polarity protection and TVS diode

Downloads

Technical data

Flexus 2x4
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus G2 2x4 P0 730 7550-03006 70 3000 K 100 mA 446 lm 209 lm/W 350 mA 1454 lm 187 lm/W 1500 mA 4944 lm 136 lm/W
Flexus G2 2x4 P0 830 7550-03007 80 3000 K 100 mA 381 lm 174 lm/W 350 mA 1232 lm 154 lm/W 1500 mA 3880 lm 103 lm/W
Flexus G2 2x4 P0 740 7550-03008 70 4000 K 100 mA 479 lm 224 lm/W 350 mA 1560 lm 201 lm/W 1500 mA 5304 lm 146 lm/W
Flexus G2 2x4 P0 840 7550-03009 80 4000 K 100 mA 406 lm 186 lm/W 350 mA 1312 lm 164 lm/W 1500 mA 4136 lm 109 lm/W
Flexus G2 2x4 P0 750 7550-03010 70 5000 K 100 mA 479 lm 224 lm/W 350 mA 1560 lm 201 lm/W 1500 mA 5304 lm 146 lm/W
Flexus G2 2x4 P0 850 7550-03011 80 5000 K 100 mA 406 lm 186 lm/W 350 mA 1312 lm 164 lm/W 1500 mA 4136 lm 109 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 2x6

Features

Big module image

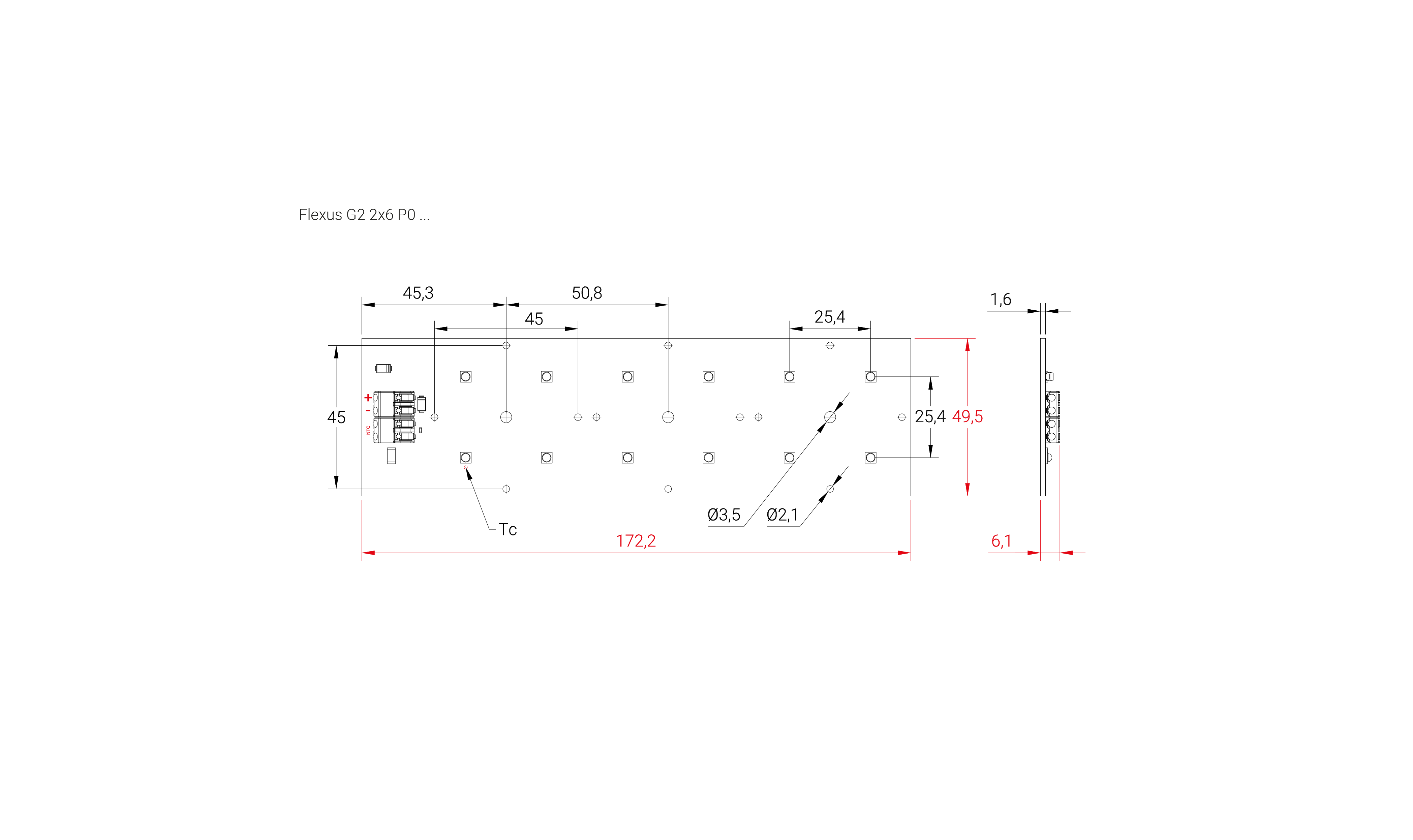

Module drawing
  • square module for installation in luminaires
  • designed for 2x6 optics from various manufacturers
  • 12 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 172 mm
  • width 50 mm
  • 4 connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 40.8 V
  • with NTC for temperature monitoring, reverse polarity protection and TVS diode

Downloads

Technical data

Flexus 2x6
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus G2 2x6 P0 730 7550-03012 70 3000 K 100 mA 670 lm 209 lm/W 350 mA 2181 lm 187 lm/W 1500 mA 7416 lm 136 lm/W
Flexus G2 2x6 P0 830 7550-03013 80 3000 K 100 mA 571 lm 174 lm/W 350 mA 1848 lm 154 lm/W 1500 mA 5820 lm 103 lm/W
Flexus G2 2x6 P0 740 7550-03014 70 4000 K 100 mA 719 lm 224 lm/W 350 mA 2340 lm 201 lm/W 1500 mA 7956 lm 146 lm/W
Flexus G2 2x6 P0 840 7550-03015 80 4000 K 100 mA 608 lm 186 lm/W 350 mA 1968 lm 164 lm/W 1500 mA 6204 lm 109 lm/W
Flexus G2 2x6 P0 750 7550-03016 70 5000 K 100 mA 719 lm 224 lm/W 350 mA 2340 lm 201 lm/W 1500 mA 7956 lm 146 lm/W
Flexus G2 2x6 P0 850 7550-03017 80 5000 K 100 mA 608 lm 186 lm/W 350 mA 1968 lm 164 lm/W 1500 mA 6204 lm 109 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Flexus 2x8

Features

Big module image

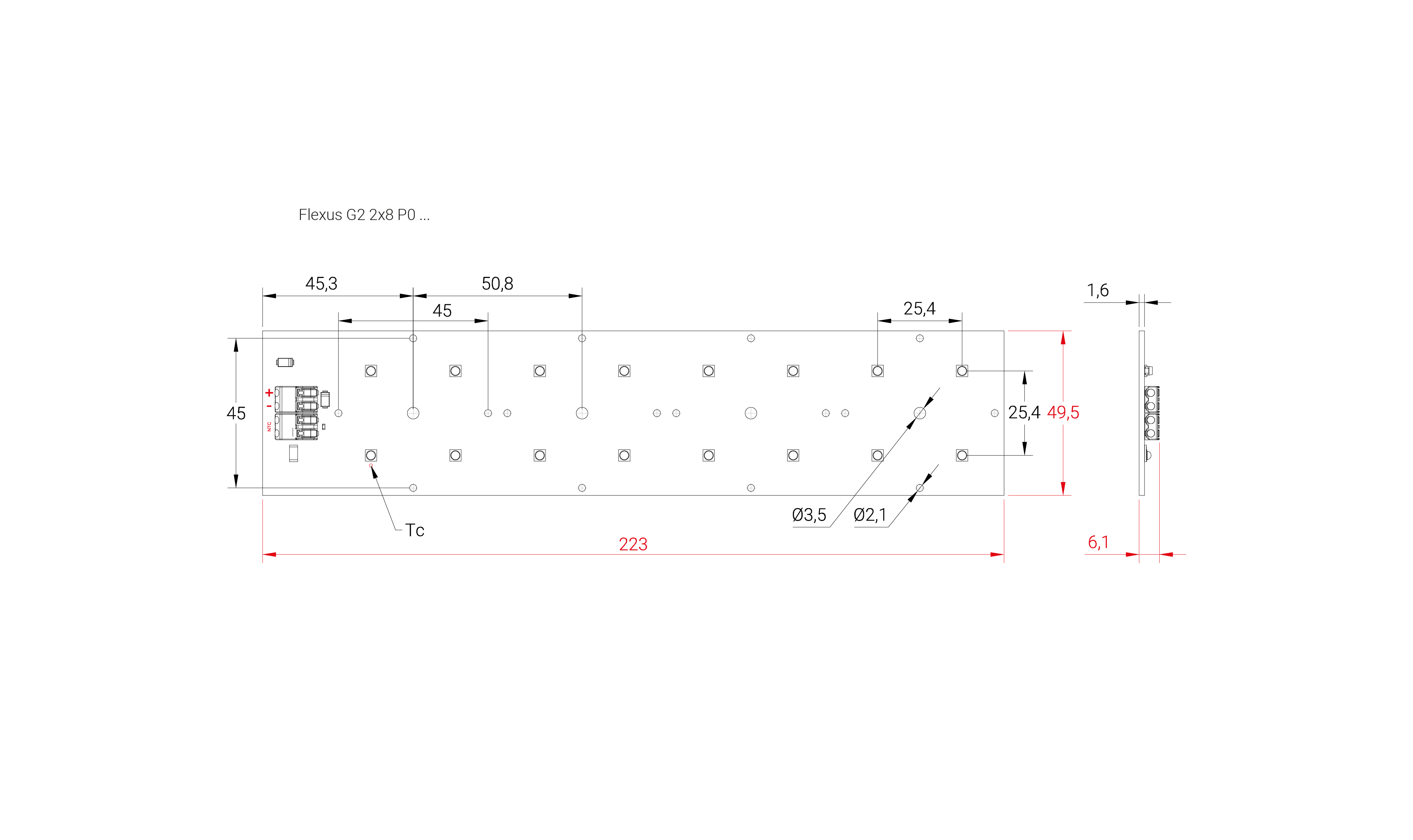

Module drawing
  • square module for installation in luminaires
  • designed for 2x2 and 2x8 optics from various manufacturers
  • 16 High-Power LEDs
  • pitch distance along and across 25 mm
  • length 223 mm
  • width 50 mm
  • 4 connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 1500 mA
  • maximum forward voltage 54.4 V
  • with NTC for temperature monitoring, reverse polarity protection and TVS diode

Downloads

Technical data

Flexus 2x8
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Flexus G2 2x8 P0 730 7550-03018 70 3000 K 100 mA 893 lm 209 lm/W 350 mA 2908 lm 187 lm/W 1500 mA 9888 lm 136 lm/W
Flexus G2 2x8 P0 830 7550-03019 80 3000 K 100 mA 762 lm 174 lm/W 350 mA 2464 lm 154 lm/W 1500 mA 7760 lm 103 lm/W
Flexus G2 2x8 P0 740 7550-03020 70 4000 K 100 mA 958 lm 224 lm/W 350 mA 3120 lm 201 lm/W 1500 mA 10608 lm 146 lm/W
Flexus G2 2x8 P0 840 7550-03021 80 4000 K 100 mA 811 lm 186 lm/W 350 mA 2624 lm 164 lm/W 1500 mA 8272 lm 109 lm/W
Flexus G2 2x8 P0 750 7550-03022 70 5000 K 100 mA 958 lm 224 lm/W 350 mA 3120 lm 201 lm/W 1500 mA 10608 lm 146 lm/W
Flexus G2 2x8 P0 850 7550-03023 80 5000 K 100 mA 811 lm 186 lm/W 350 mA 2624 lm 164 lm/W 1500 mA 8272 lm 109 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Flexus HighPower products

Our iX-LED Flexus HighPower are 2-row LED modules with HighPower LEDs. These modules are in the efficiency range above 220 lm/W or 10,000 lm. They have optimized thermal management and temperature monitoring via an aluminium core PCB and an NTC. Also available on request with LED shunt to increase module failure safety.

iX-LED Flexus combines sustainable thermal management and medium to high performance, e.g. for the street lighting sector.

You can choose from a wide range of lengths, LED arrangements and light colors.

Our Flexus modules offer high compatibility with multiple optics and plug-in terminals from many manufacturers, enabling quick and easy installation.
