Quadrus

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

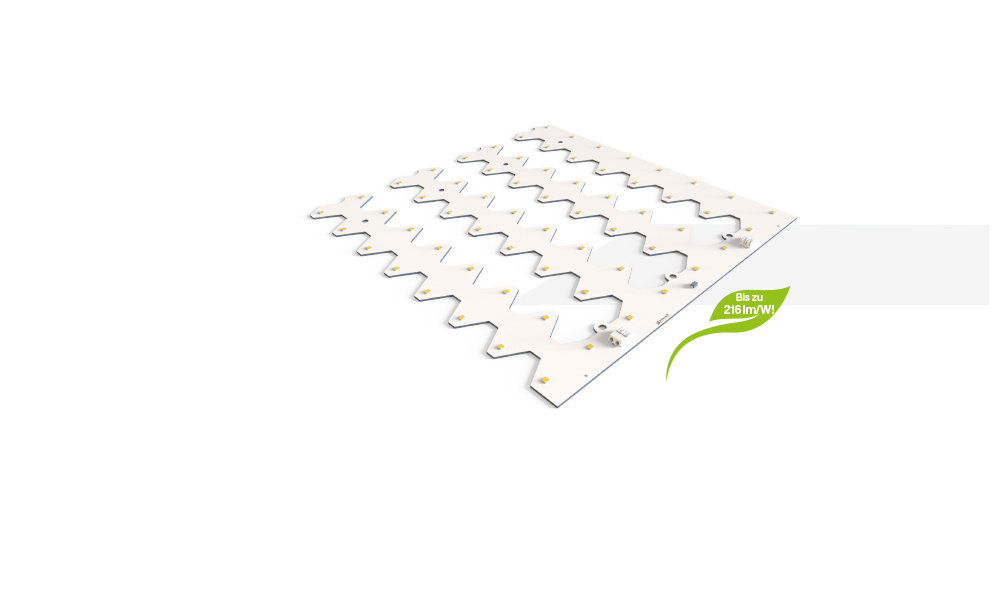

Quadrus 1250

  • LED module ideal for area luminaires
  • 64 Mid-Power-LEDs
  • pitch distance along and across 34 mm
  • length 265 mm
  • width 253 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

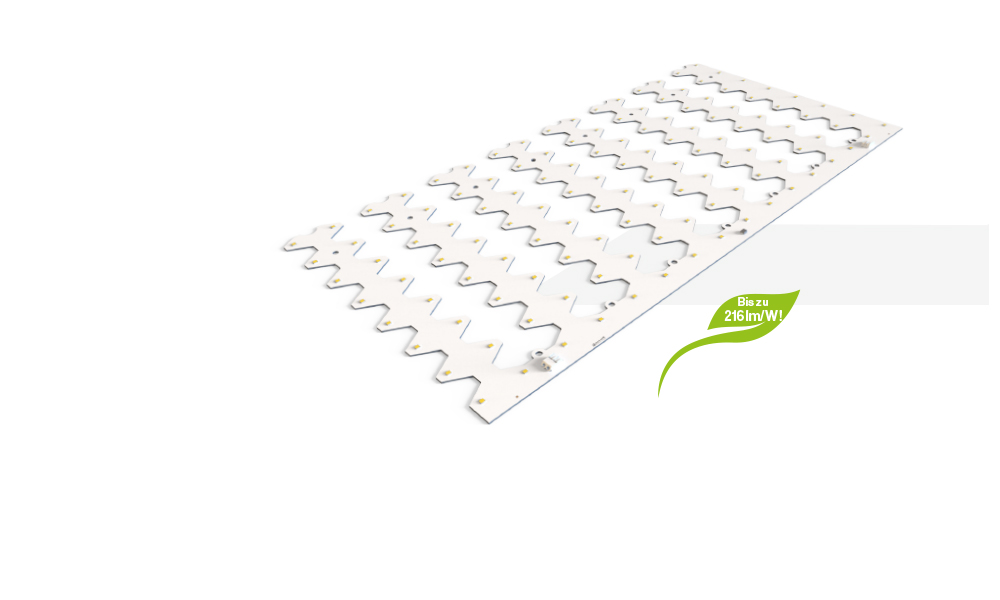

Quadrus 2500

  • LED module ideal for area luminaires
  • 128 Mid-Power LEDs
  • pitch distance along and across 34 mm
  • length 525 mm
  • width 265 mm
  • Products

Quadrus 1250

Features

Big module image

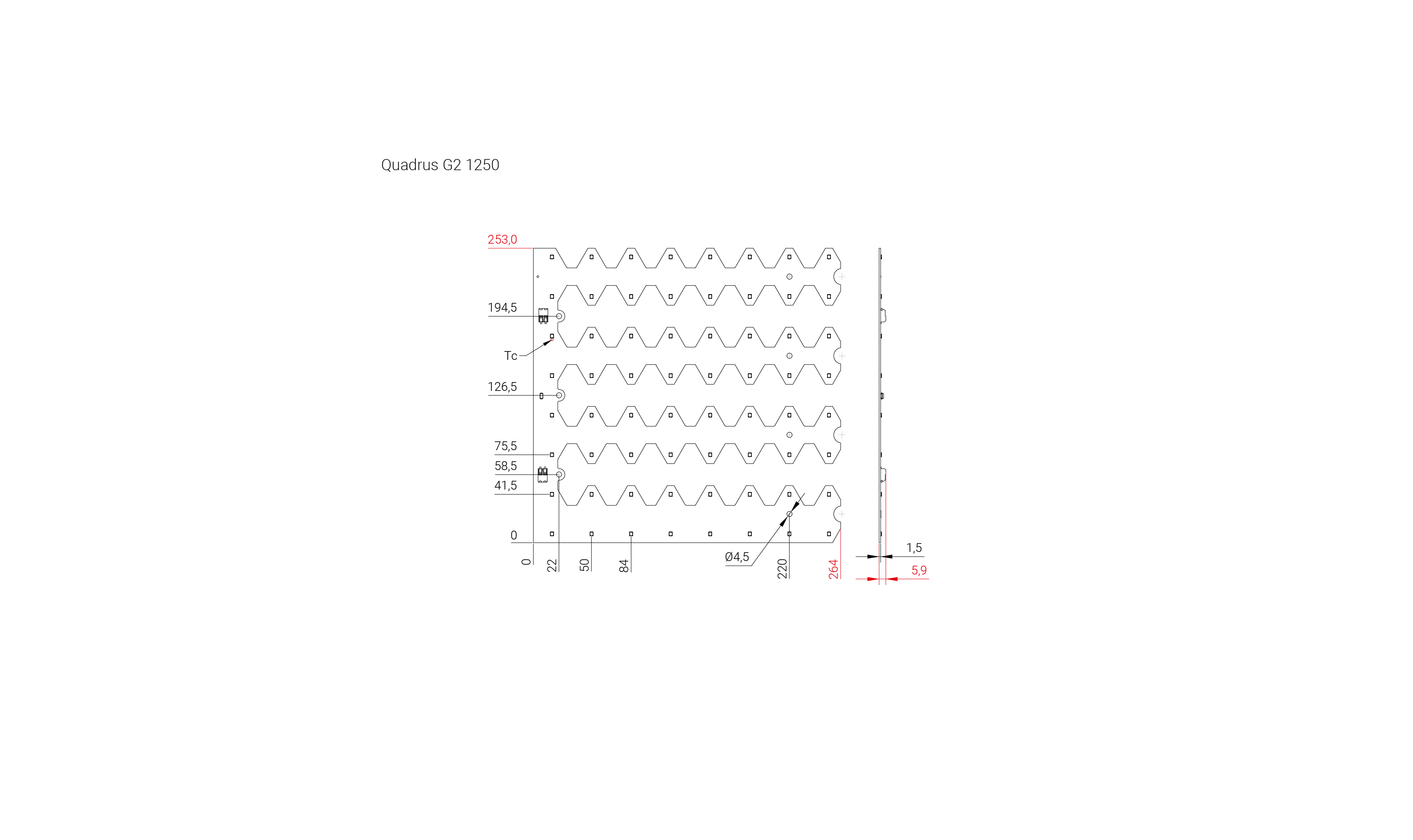

Module drawing
  • LED module ideal for area luminaires
  • 64 Mid-Power-LEDs
  • pitch distance along and across 34 mm
  • length 265 mm
  • width 253 mm
  • 4 connection terminals
  • rated current350 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Quadrus G2 1250
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Quadrus G2 1250 827 7503-10000 80 2700 K 200 mA 815 lm 192 lm/W 350 mA 1412 lm 187 lm/W 1050 mA 4031 lm 169 lm/W
Quadrus G2 1250 830 7503-10001 80 3000 K 200 mA 869 lm 205 lm/W 350 mA 1504 lm 200 lm/W 1050 mA 4296 lm 181 lm/W
Quadrus G2 1250 835 7503-10002 80 3500 K 200 mA 869 lm 205 lm/W 350 mA 1504 lm 200 lm/W 1050 mA 4296 lm 181 lm/W
Quadrus G2 1250 840 7503-10003 80 4000 K 200 mA 903 lm 216 lm/W 350 mA 1563 lm 210 lm/W 1050 mA 4464 lm 190 lm/W
Quadrus G2 1250 850 7503-10004 80 5000 K 200 mA 903 lm 216 lm/W 350 mA 1563 lm 210 lm/W 1050 mA 4464 lm 190 lm/W
Quadrus G2 1250 857 7503-10005 80 5700 K 200 mA 903 lm 216 lm/W 350 mA 1563 lm 210 lm/W 1050 mA 4464 lm 190 lm/W
Quadrus G2 1250 865 7503-10006 80 6500 K 200 mA 903 lm 216 lm/W 350 mA 1563 lm 210 lm/W 1050 mA 4464 lm 190 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Quadrus 2500

Features

Big module image

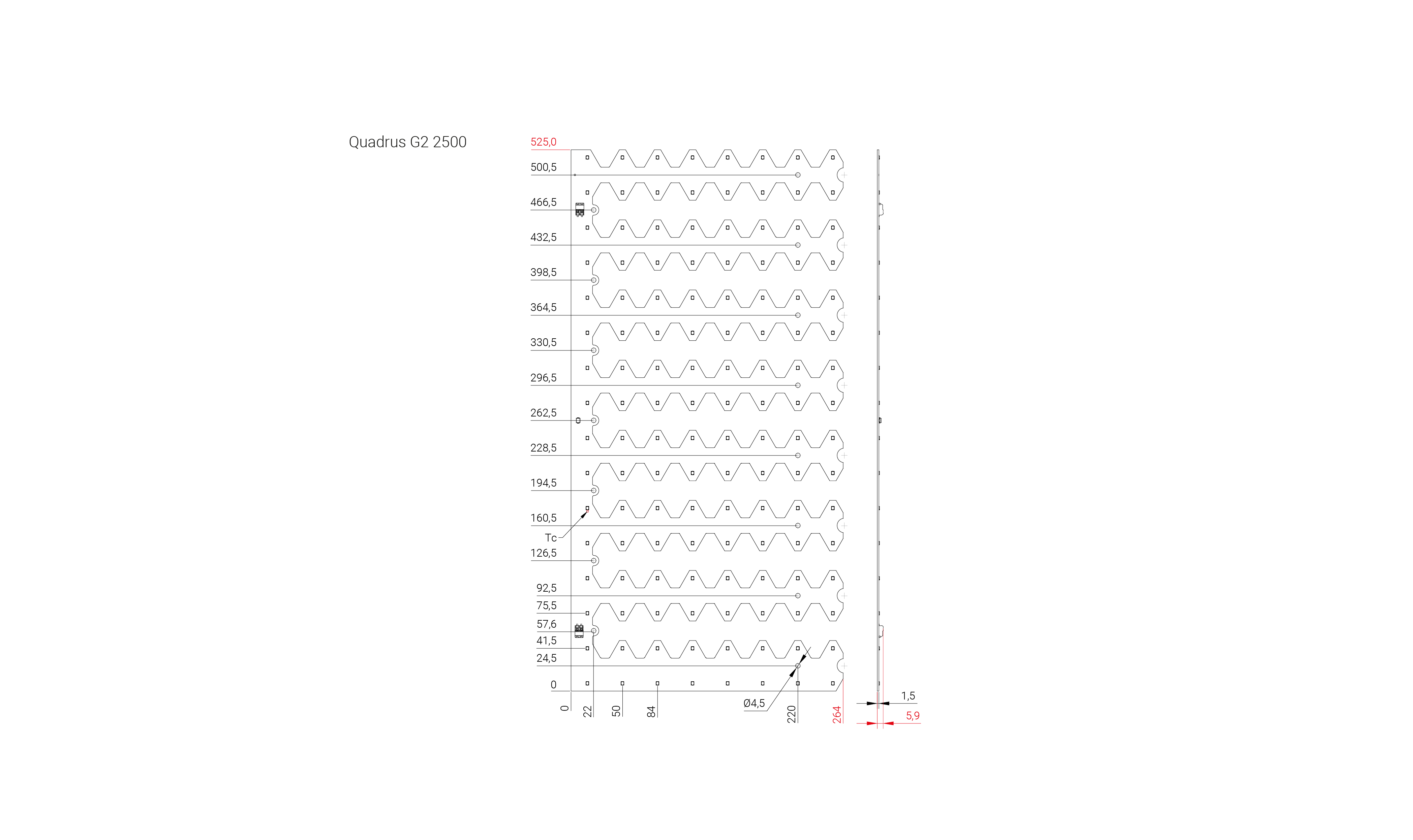

Module drawing
  • LED module ideal for area luminaires
  • 128 Mid-Power LEDs
  • pitch distance along and across 34 mm
  • length 525 mm
  • width 265 mm
  • 4 connection terminals
  • rated current 700 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Quadrus G2 2500
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Quadrus G2 2500 827 7503-10007 80 2700 K 400 mA 1631 lm 192 lm/W 700 mA 2824 lm 187 lm/W 2100 mA 8063 lm 169 lm/W
Quadrus G2 2500 830 7503-10008 80 3000 K 400 mA 1738 lm 205 lm/W 700 mA 3009 lm 200 lm/W 2100 mA 8592 lm 181 lm/W
Quadrus G2 2500 835 7503-10009 80 3500 K 400 mA 1738 lm 205 lm/W 700 mA 3009 lm 200 lm/W 2100 mA 8592 lm 181 lm/W
Quadrus G2 2500 840 7503-10010 80 4000 K 400 mA 1806 lm 216 lm/W 700 mA 3127 lm 210 lm/W 2100 mA 8929 lm 190 lm/W
Quadrus G2 2500 850 7503-10011 80 5000 K 400 mA 1806 lm 216 lm/W 700 mA 3127 lm 210 lm/W 2100 mA 8929 lm 190 lm/W
Quadrus G2 2500 857 7503-10012 80 5700 K 400 mA 1806 lm 216 lm/W 700 mA 3127 lm 210 lm/W 2100 mA 8929 lm 190 lm/W
Quadrus G2 2500 865 7503-10013 80 6500 K 400 mA 1806 lm 216 lm/W 700 mA 3127 lm 210 lm/W 2100 mA 8929 lm 190 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Quadrus products

Quadrus is an LED module for square and rectangular panel luminaires. With an LED spacing of just 34 mm both lengthwise and crosswise, compact dimensions can be realized.

The layout is designed as a “comb” to conserve resources.

The modules are available in two sizes. The square LED module offers you a high degree of flexibility in terms of geometry, as well as low installation and wiring costs. Thanks to carefully selected LEDs, our modules achieve operating currents of over 215 lm/W or almost 9000 lm.
