Curvus 155

  • round LED module for installation in area luminaires
  • 96 Mid-Power-LEDs
  • pitch distance 5 rings at a distance of 14 mm
  • diameter 155 mm
  • 2 connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

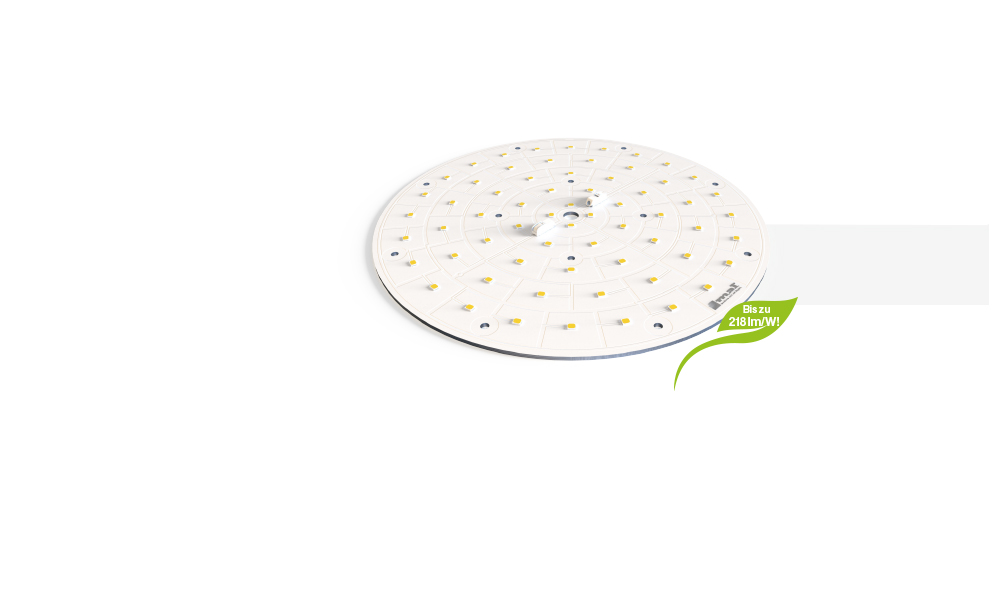

Curvus 195

  • round LED module for installation in area luminaires
  • 64 Mid-Power-LEDs
  • pitch distance 5 rings at a distance of 13.5 mm
  • diameter 195 mm
  • 2 connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

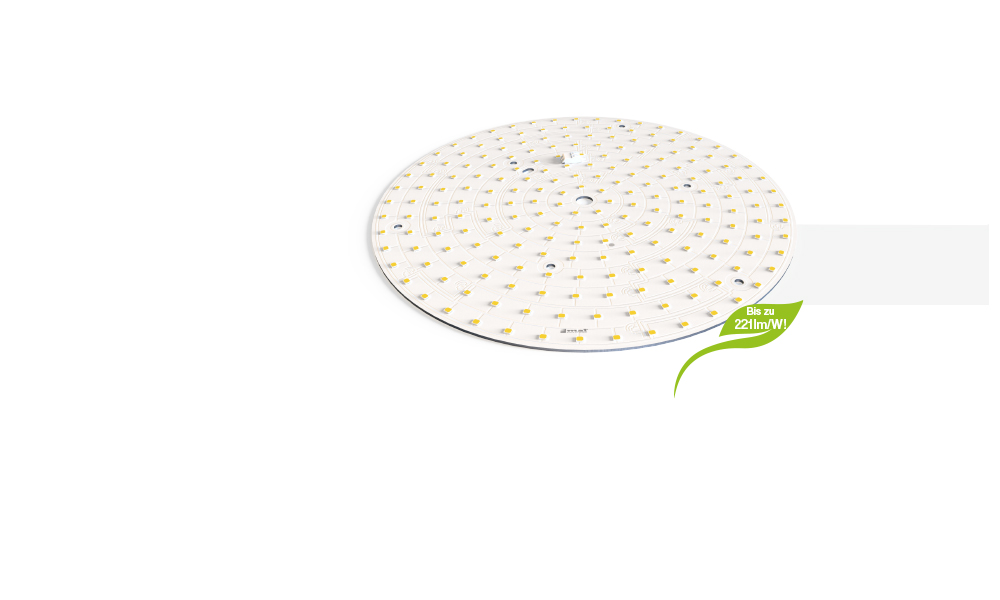

Curvus 240

  • round LED module for installation in area luminaires
  • 208 Mid-Power-LEDs
  • pitch distance 8 rings at a distance of 7 mm
  • diameter 240 mm
  • 2 connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

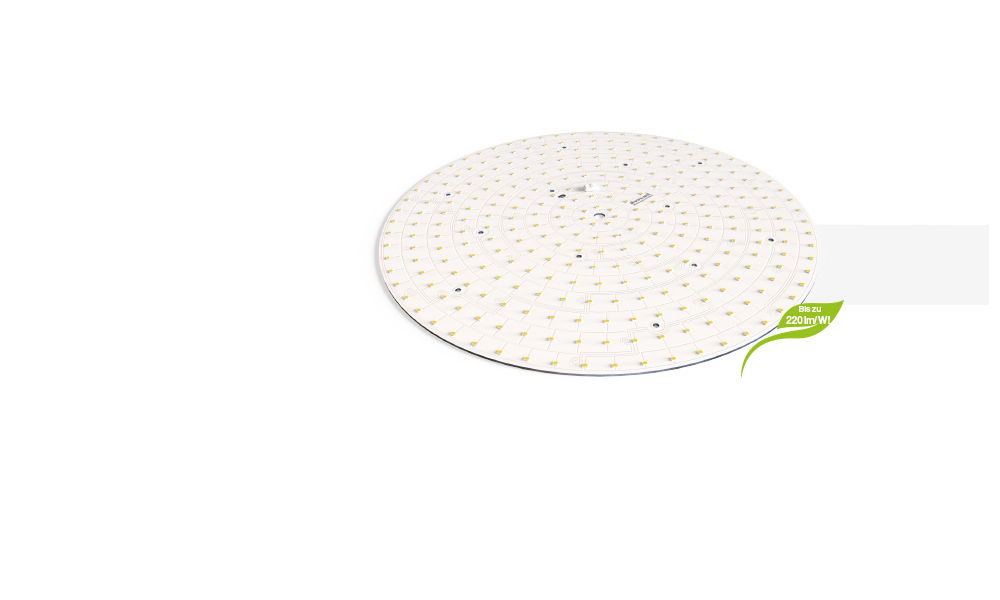

Curvus 380

  • round LED module for installation in area luminaires
  • 296 Mid-Power-LEDs
  • pitch distance 9 rings at a distance of 10.5 mm
  • diameter 380 mm
  • 2 connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

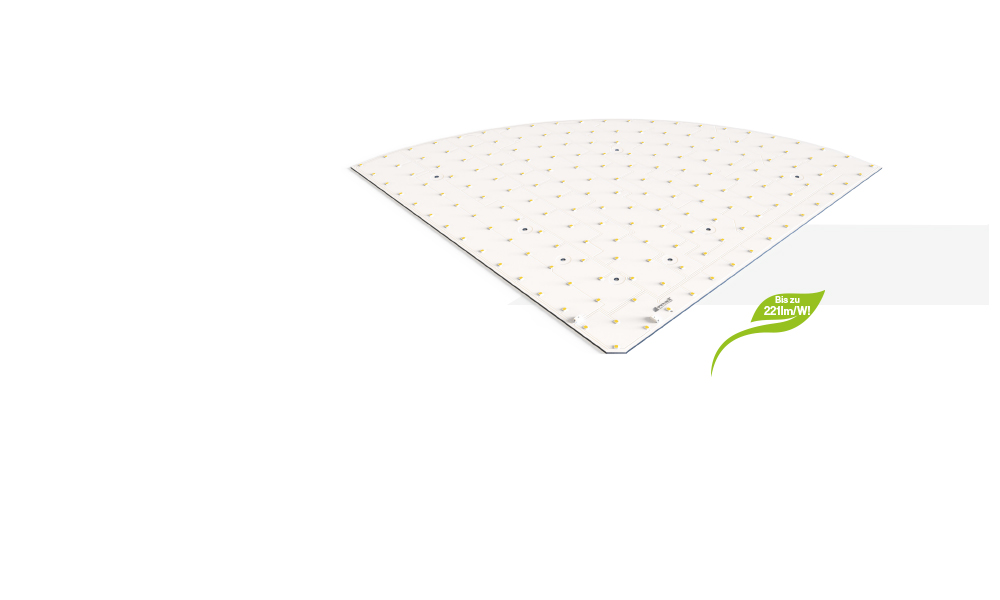

Curvus R401

  • round LED module for installation in area luminaires
  • 176 Mid-Power-LEDs
  • pitch distance 15 ring segments at a distance of 10.7 mm
  • diameter quadrant R 401 mm
  • 2 connection terminals
  • Products

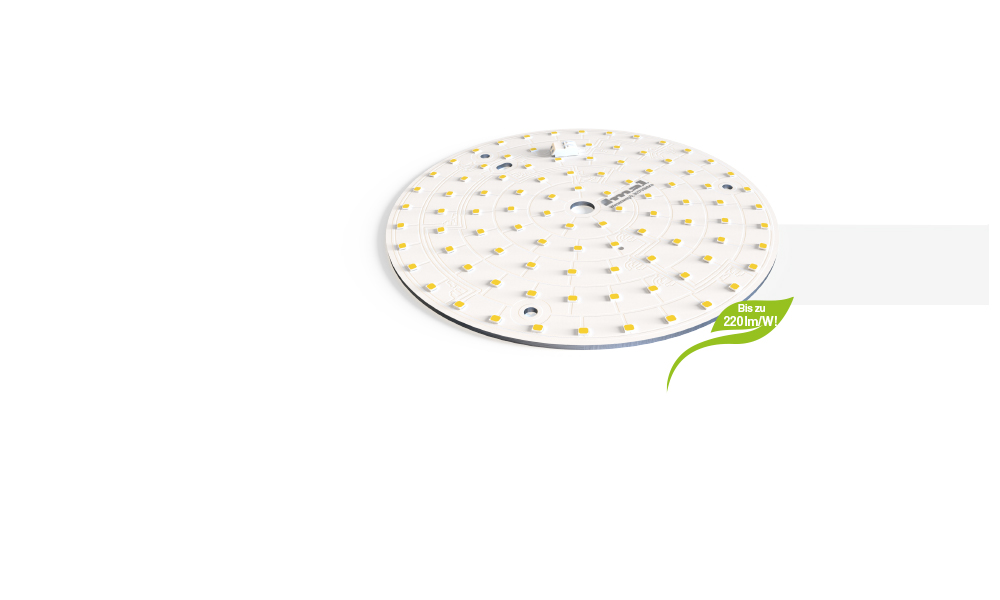

Curvus 155

Features

Big module image

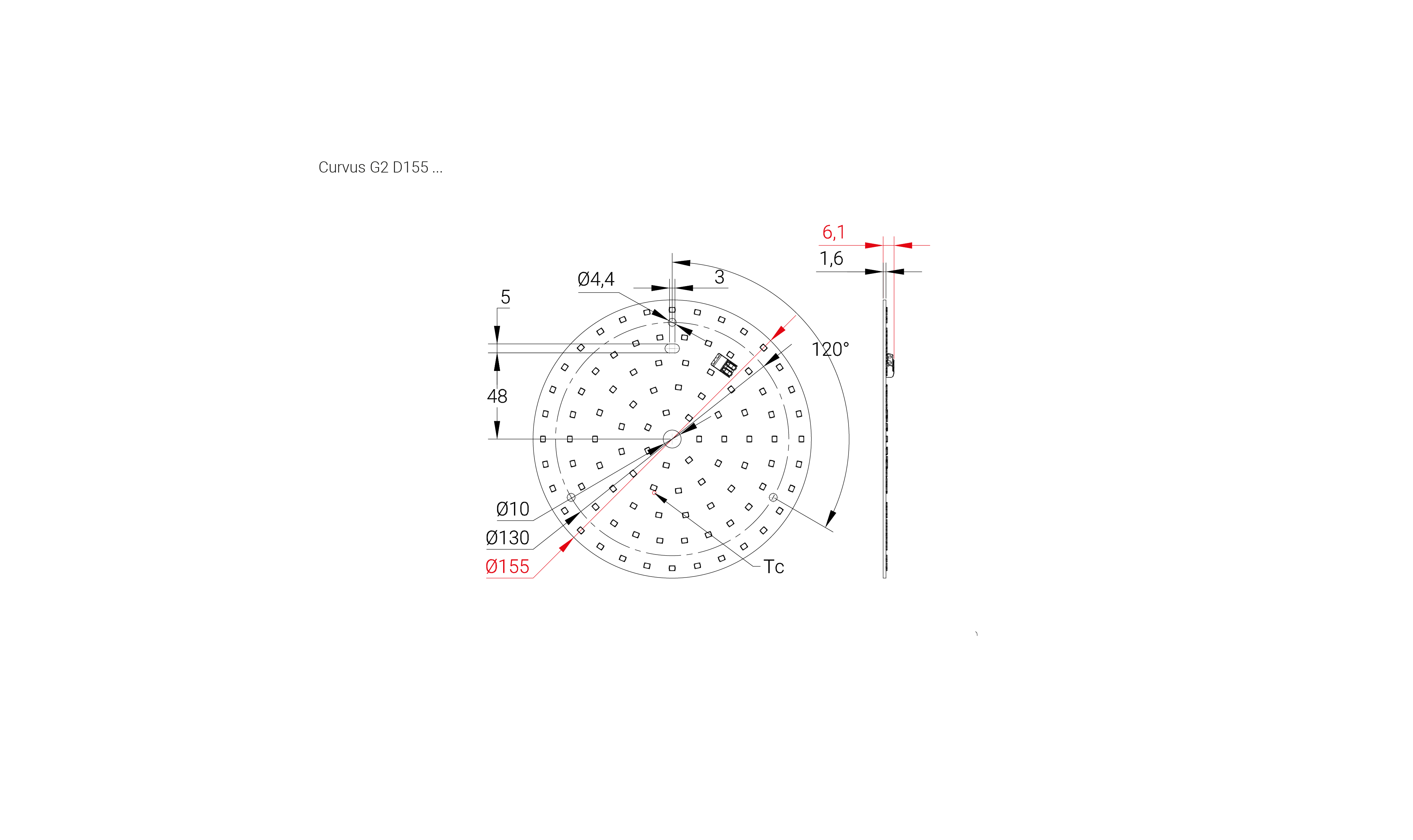

Module drawing
  • round LED module for installation in area luminaires
  • 96 Mid-Power-LEDs
  • pitch distance 5 rings at a distance of 14 mm
  • diameter 155 mm
  • 2 connection terminals
  • rated current 450 mA
  • maximum operating current 1400 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Curvus 155
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Curvus G2 D155 827 7542-01000 80 2700 K 150 mA 616 lm 196 lm/W 450 mA 1822 lm 189 lm/W 1400 mA 5421 lm 172 lm/W
Curvus G2 D155 830 7542-01001 80 3000 K 150 mA 656 lm 209 lm/W 450 mA 1942 lm 202 lm/W 1400 mA 5776 lm 184 lm/W
Curvus G2 D155 835 7542-01002 80 3500 K 150 mA 656 lm 209 lm/W 450 mA 1942 lm 202 lm/W 1400 mA 5776 lm 184 lm/W
Curvus G2 D155 840 7542-01003 80 4000 K 150 mA 682 lm 220 lm/W 450 mA 2018 lm 213 lm/W 1400 mA 6003 lm 193 lm/W
Curvus G2 D155 850 7542-01004 80 5000 K 150 mA 682 lm 220 lm/W 450 mA 2018 lm 213 lm/W 1400 mA 6003 lm 193 lm/W
Curvus G2 D155 857 7542-01005 80 5700 K 150 mA 682 lm 220 lm/W 450 mA 2018 lm 213 lm/W 1400 mA 6003 lm 193 lm/W
Curvus G2 D155 865 7542-01006 80 6500 K 150 mA 682 lm 220 lm/W 450 mA 2018 lm 213 lm/W 1400 mA 6003 lm 193 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Curvus 195

Features

Big module image

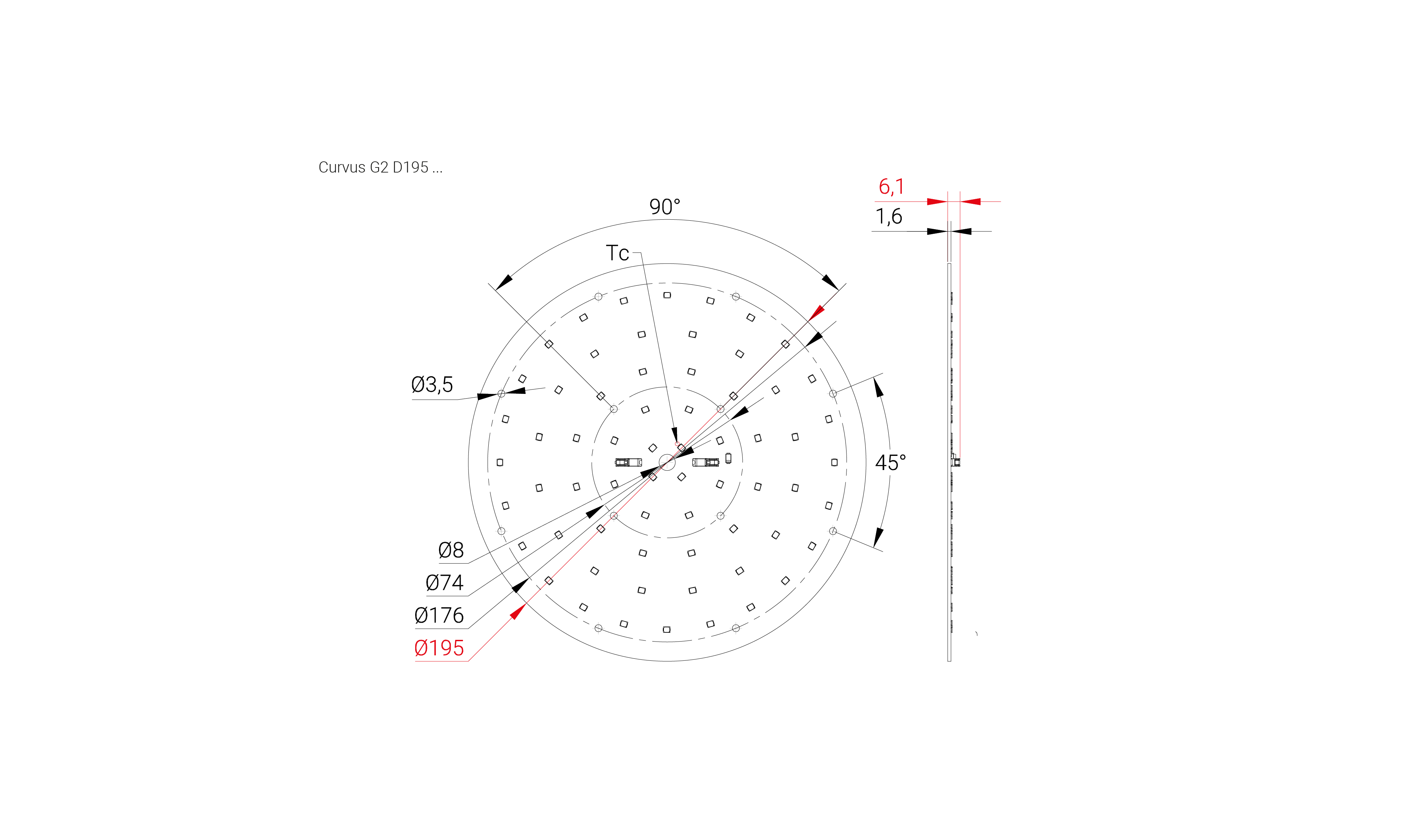

Module drawing
  • round LED module for installation in area luminaires
  • 64 Mid-Power-LEDs
  • pitch distance 5 rings at a distance of 13.5 mm
  • diameter 195 mm
  • 2 connection terminals
  • rated current 700 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Curvus 195
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Curvus G2 D195 827 7542-01007 80 2700 K 150 mA 614 lm 194 lm/W 700 mA 2756 lm 178 lm/W 1050 mA 4032 lm 170 lm/W
Curvus G2 D195 830 7542-01008 80 3000 K 150 mA 654 lm 208 lm/W 700 mA 2936 lm 190 lm/W 1050 mA 4296 lm 181 lm/W
Curvus G2 D195 835 7542-01009 80 3500 K 150 mA 654 lm 208 lm/W 700 mA 2936 lm 190 lm/W 1050 mA 4296 lm 181 lm/W
Curvus G2 D195 840 7542-01010 80 4000 K 150 mA 680 lm 218 lm/W 700 mA 3052 lm 200 lm/W 1050 mA 4465 lm 191 lm/W
Curvus G2 D195 850 7542-01011 80 5000 K 150 mA 680 lm 218 lm/W 700 mA 3052 lm 200 lm/W 1050 mA 4465 lm 191 lm/W
Curvus G2 D195 857 7542-01012 80 5700 K 150 mA 680 lm 218 lm/W 700 mA 3052 lm 200 lm/W 1050 mA 4465 lm 191 lm/W
Curvus G2 D195 865 7542-01013 80 6500 K 150 mA 680 lm 218 lm/W 700 mA 3052 lm 200 lm/W 1050 mA 4465 lm 191 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Curvus 240

Features

Big module image

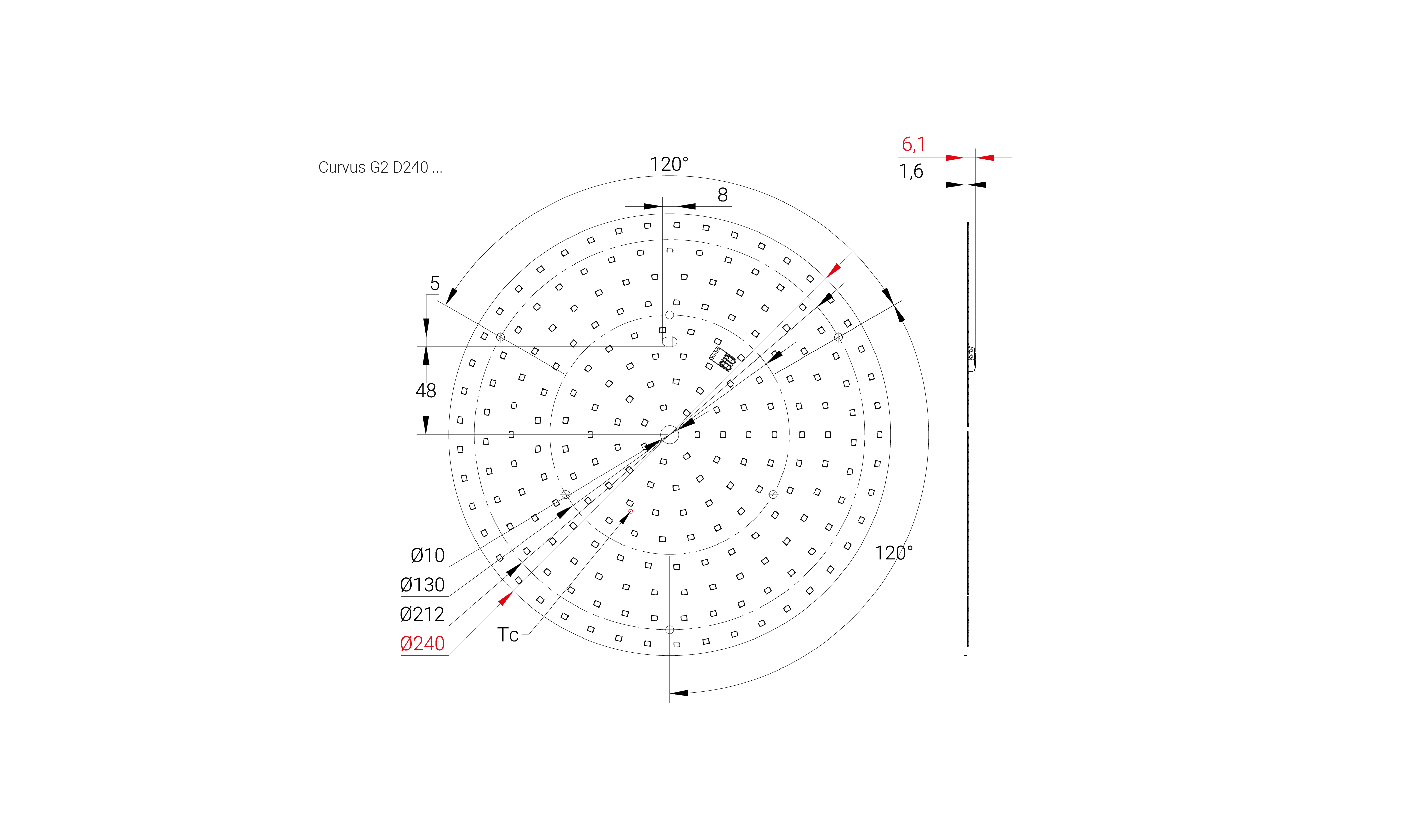

Module drawing
  • round LED module for installation in area luminaires
  • 208 Mid-Power-LEDs
  • pitch distance 8 rings at a distance of 7 mm
  • diameter 240 mm
  • 2 connection terminals
  • rated current 1050 mA
  • maximum operating current 2800 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Curvus 240
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Curvus G2 D240 827 7542-01014 80 2700 K 250 mA 1028 lm 197 lm/W 1050 mA 4245 lm 188 lm/W 2800 mA 10897 lm 174 lm/W
Curvus G2 D240 830 7542-01015 80 3000 K 250 mA 1096 lm 210 lm/W 1050 mA 4523 lm 202 lm/W 2800 mA 11611 lm 186 lm/W
Curvus G2 D240 835 7542-01016 80 3500 K 250 mA 1096 lm 210 lm/W 1050 mA 4523 lm 202 lm/W 2800 mA 11611 lm 186 lm/W
Curvus G2 D240 840 7542-01017 80 4000 K 250 mA 1139 lm 221 lm/W 1050 mA 4701 lm 212 lm/W 2800 mA 12067 lm 195 lm/W
Curvus G2 D240 850 7542-01018 80 5000 K 250 mA 1139 lm 221 lm/W 1050 mA 4701 lm 212 lm/W 2800 mA 12067 lm 195 lm/W
Curvus G2 D240 857 7542-01019 80 5700 K 250 mA 1139 lm 221 lm/W 1050 mA 4701 lm 212 lm/W 2800 mA 12067 lm 195 lm/W
Curvus G2 D240 865 7542-01020 80 6500 K 250 mA 1139 lm 221 lm/W 1050 mA 4701 lm 212 lm/W 2800 mA 12067 lm 195 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Curvus 380

Features

Big module image

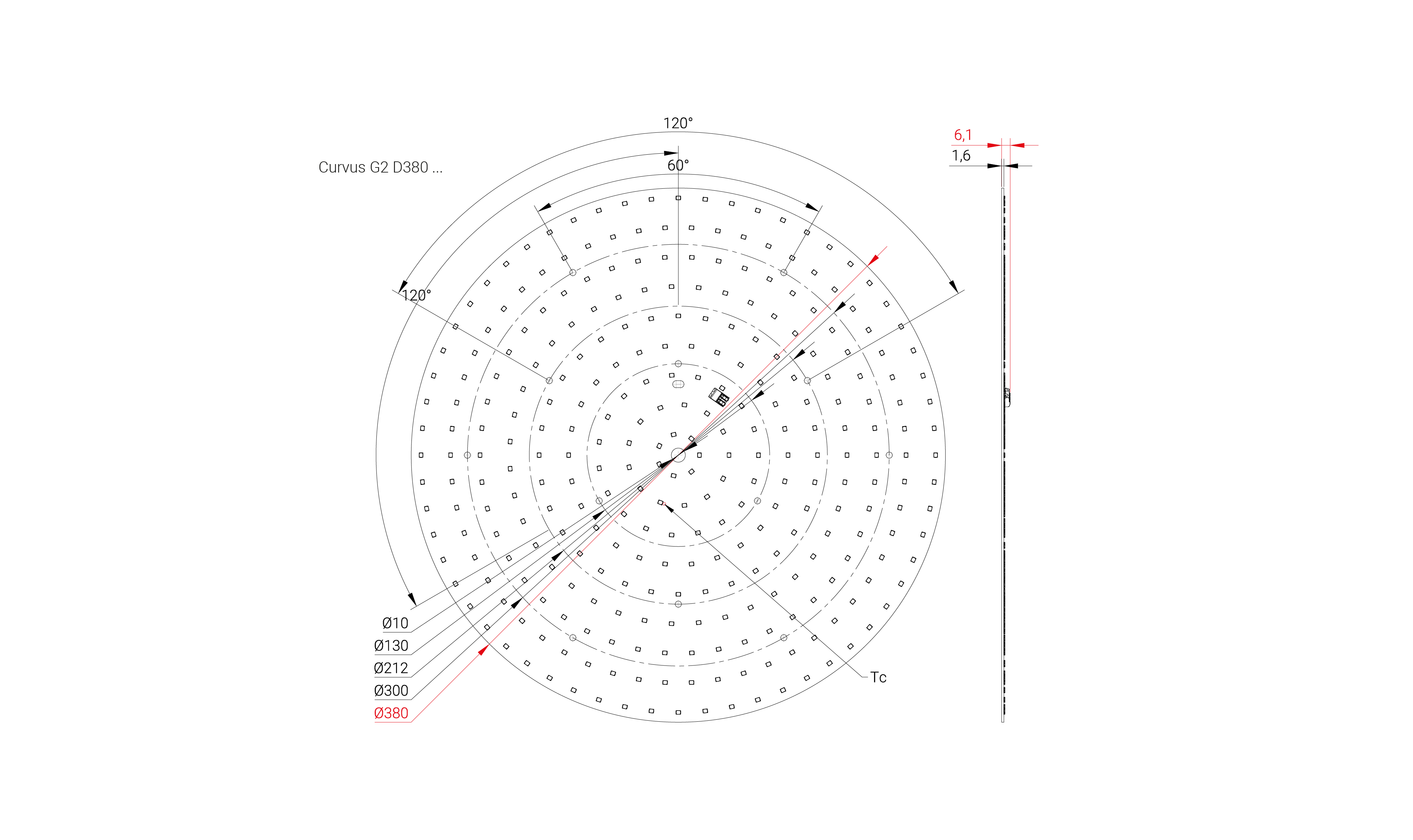

Module drawing
  • round LED module for installation in area luminaires
  • 296 Mid-Power-LEDs
  • pitch distance 9 rings at a distance of 10.5 mm
  • diameter 380 mm
  • 2 connection terminals
  • rated current 2400 mA
  • maximum operating current 4000 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Curvus 380
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Curvus G2 D380 827 7542-01021 80 2700 K 500 mA 2052 lm 196 lm/W 2400 mA 9570 lm 183 lm/W 4000 mA 15564 lm 174 lm/W
Curvus G2 D380 830 7542-01022 80 3000 K 500 mA 2186 lm 209 lm/W 2400 mA 10198 lm 195 lm/W 4000 mA 16583 lm 186 lm/W
Curvus G2 D380 835 7542-01023 80 3500 K 500 mA 2186 lm 209 lm/W 2400 mA 10198 lm 195 lm/W 4000 mA 16583 lm 186 lm/W
Curvus G2 D380 840 7542-01024 80 4000 K 500 mA 2272 lm 220 lm/W 2400 mA 10598 lm 205 lm/W 4000 mA 17235 lm 195 lm/W
Curvus G2 D380 850 7542-01025 80 5000 K 500 mA 2272 lm 220 lm/W 2400 mA 10598 lm 205 lm/W 4000 mA 17235 lm 195 lm/W
Curvus G2 D380 857 7542-01026 80 5700 K 500 mA 2272 lm 220 lm/W 2400 mA 10598 lm 205 lm/W 4000 mA 17235 lm 195 lm/W
Curvus G2 D380 865 7542-01027 80 6500 K 500 mA 2272 lm 220 lm/W 2400 mA 10598 lm 205 lm/W 4000 mA 17235 lm 195 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Curvus R401

Features

Big module image

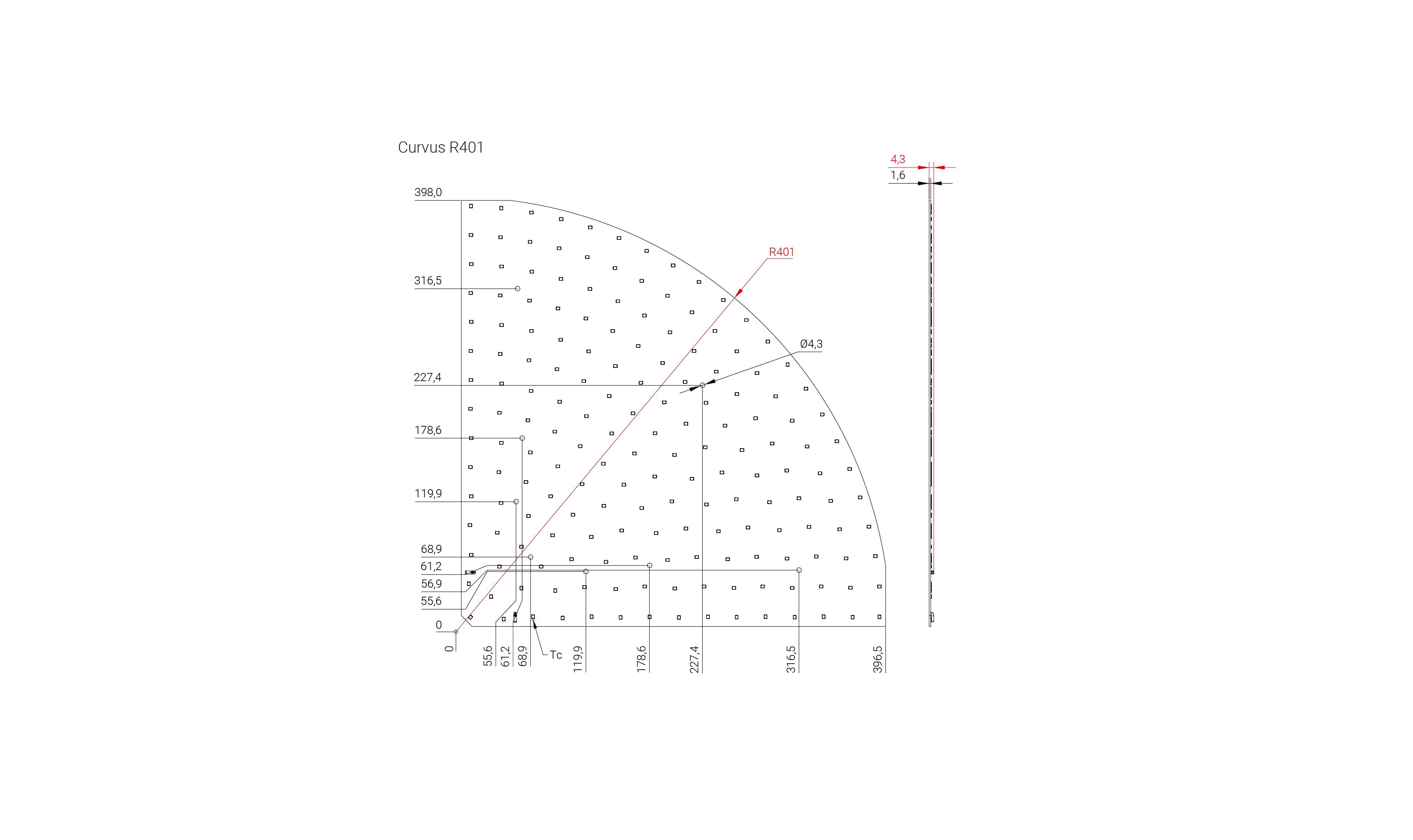

Module drawing
  • round LED module for installation in area luminaires
  • 176 Mid-Power-LEDs
  • pitch distance 15 ring segments at a distance of 10.7 mm
  • diameter quadrant R 401 mm
  • 2 connection terminals
  • rated current 550 mA
  • maximum operating current 1750 mA
  • maximum forward voltage 34.1 V

Downloads

Technical data

Curvus R401
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Curvus G2 Q401 827 7542-01028 80 2700 K 175 mA 989 lm 196 lm/W 550 mA 3068 lm 190 lm/W 1750 mA 9356 lm 174 lm/W
Curvus G2 Q401 830 7542-01029 80 3000 K 175 mA 1054 lm 210 lm/W 550 mA 3269 lm 203 lm/W 1750 mA 9968 lm 186 lm/W
Curvus G2 Q401 835 7542-01030 80 3500 K 175 mA 1054 lm 210 lm/W 550 mA 3269 lm 203 lm/W 1750 mA 9968 lm 186 lm/W
Curvus G2 Q401 840 7542-01031 80 4000 K 175 mA 1095 lm 221 lm/W 550 mA 3397 lm 214 lm/W 1750 mA 10361 lm 195 lm/W
Curvus G2 Q401 850 7542-01032 80 5000 K 175 mA 1095 lm 221 lm/W 550 mA 3397 lm 214 lm/W 1750 mA 10361 lm 195 lm/W
Curvus G2 Q401 857 7542-01033 80 5700 K 175 mA 1095 lm 221 lm/W 550 mA 3397 lm 214 lm/W 1750 mA 10361 lm 195 lm/W
Curvus G2 Q401 865 7542-01034 80 6500 K 175 mA 1095 lm 221 lm/W 550 mA 3397 lm 214 lm/W 1750 mA 10361 lm 195 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Curvus products

You don’t always achieve an optimal solution with “the square has to go in the round”. That is why we have developed our round Curvus surface modules. Our smallest module is the Curvus 155 with a module diameter of 155 mm. The largest module is our Curvus R401, a quarter circle with a radius of 401 mm.

This can be combined with four pieces to a full circle with a diameter of 802 mm. Three other Curvus models with diameters of 195 mm, 240 mm and 380 mm complete our program.

By using the latest generation of MidPower LEDs, our Curuvs modules achieve 220 lm/W or over 17000 lm. A small LED spacing allows a compact luminaire dimension, favoring an LED pitch with an area per LED starting from 2 cm².

Our iX-led standard modules are available at short notice even in small quantities and are very advantageous in the overall concept.
