Quadrus

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Quadrus 1250

  • LED module ideal for area luminaires
  • 64 Mid-Power-LEDs
  • pitch distance along and across 34 mm
  • length 265 mm
  • width 253 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Quadrus 2500

  • LED module ideal for area luminaires
  • 128 Mid-Power LEDs
  • pitch distance along and across 34 mm
  • length 525 mm
  • width 265 mm
  • Products

Quadrus 1250

Features

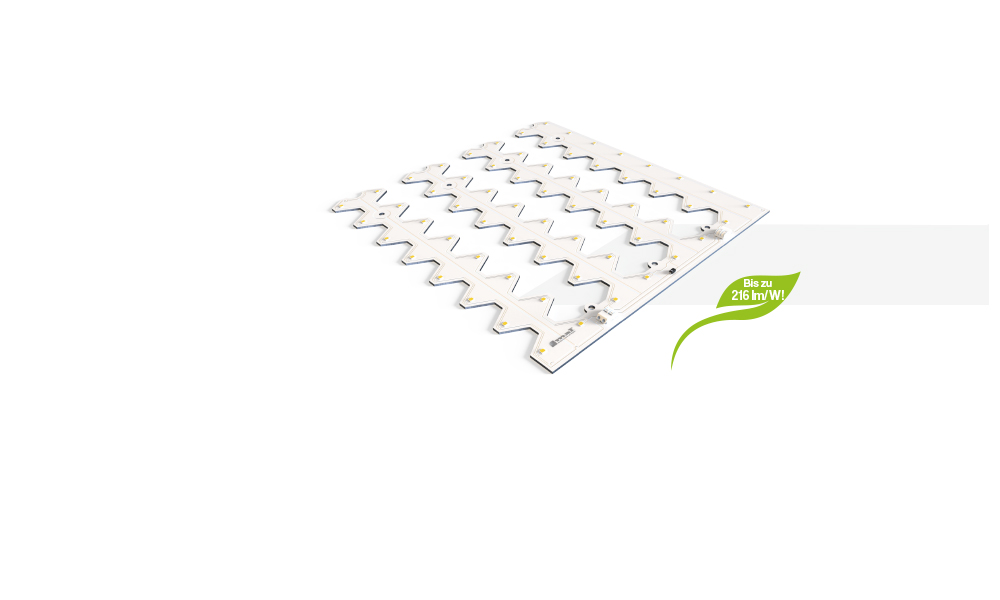

Big module image

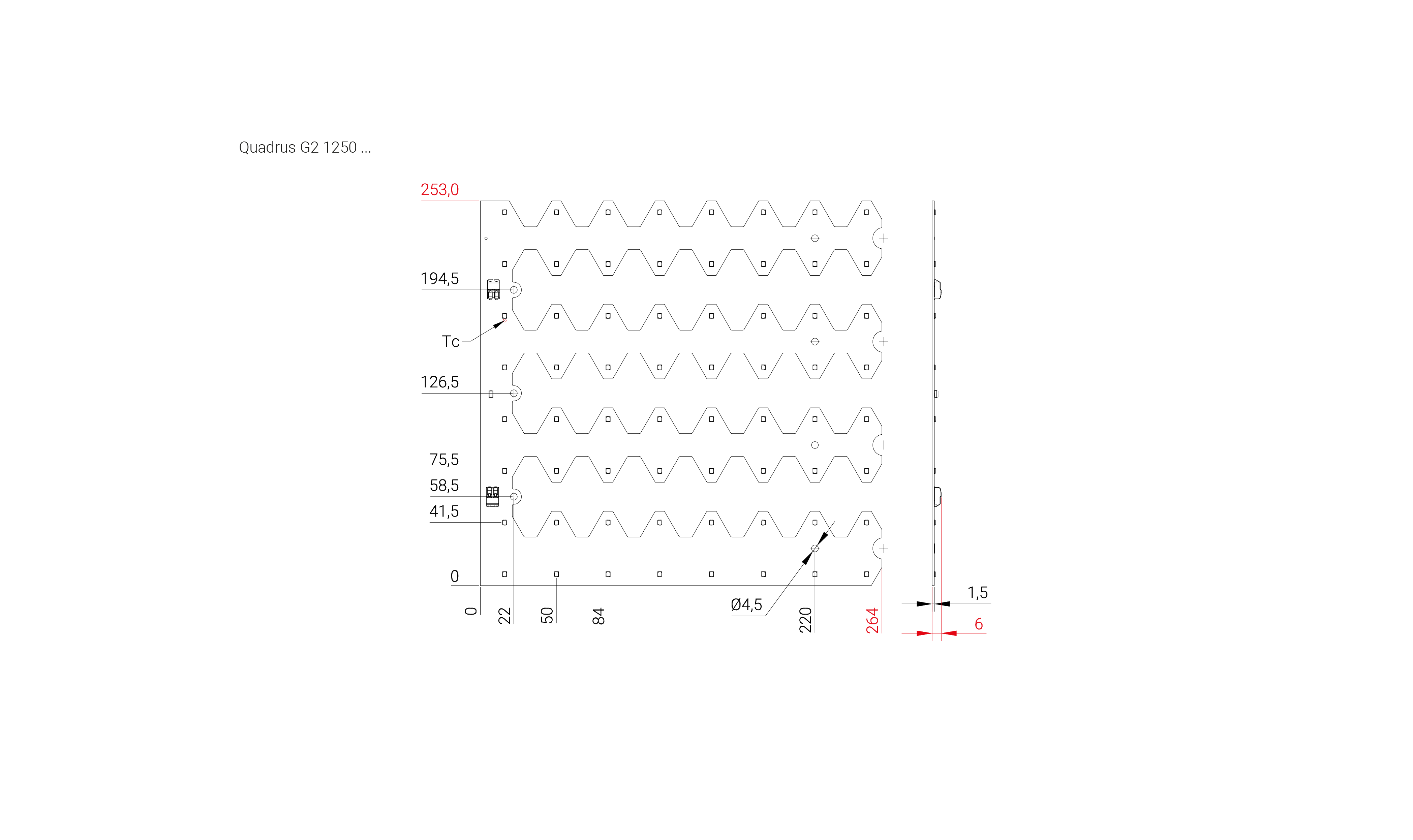

Module drawing
  • LED module ideal for area luminaires
  • 64 Mid-Power-LEDs
  • pitch distance along and across 34 mm
  • length 265 mm
  • width 253 mm
  • 4 connection terminals
  • rated current350 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Quadrus 1250
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Quadrus G2 1250 827 7503-10000 80 2700 K 200 mA 816 lm 192 lm/W 350 mA 1412 lm 188 lm/W 1050 mA 4032 lm 170 lm/W
Quadrus G2 1250 830 7503-10001 80 3000 K 200 mA 869 lm 206 lm/W 350 mA 1505 lm 201 lm/W 1050 mA 4296 lm 181 lm/W
Quadrus G2 1250 835 7503-10002 80 3500 K 200 mA 869 lm 206 lm/W 350 mA 1505 lm 201 lm/W 1050 mA 4296 lm 181 lm/W
Quadrus G2 1250 840 7503-10003 80 4000 K 200 mA 903 lm 216 lm/W 350 mA 1564 lm 211 lm/W 1050 mA 4465 lm 191 lm/W
Quadrus G2 1250 850 7503-10004 80 5000 K 200 mA 903 lm 216 lm/W 350 mA 1564 lm 211 lm/W 1050 mA 4465 lm 191 lm/W
Quadrus G2 1250 857 7503-10005 80 5700 K 200 mA 903 lm 216 lm/W 350 mA 1564 lm 211 lm/W 1050 mA 4465 lm 191 lm/W
Quadrus G2 1250 865 7503-10006 80 6500 K 200 mA 903 lm 216 lm/W 350 mA 1564 lm 211 lm/W 1050 mA 4465 lm 191 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Quadrus 2500

Features

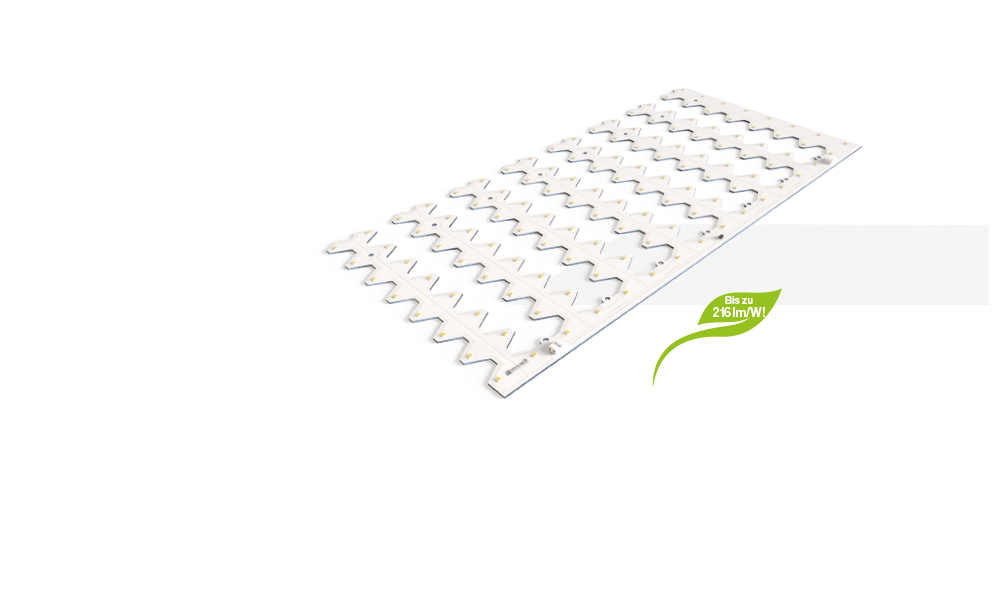

Big module image

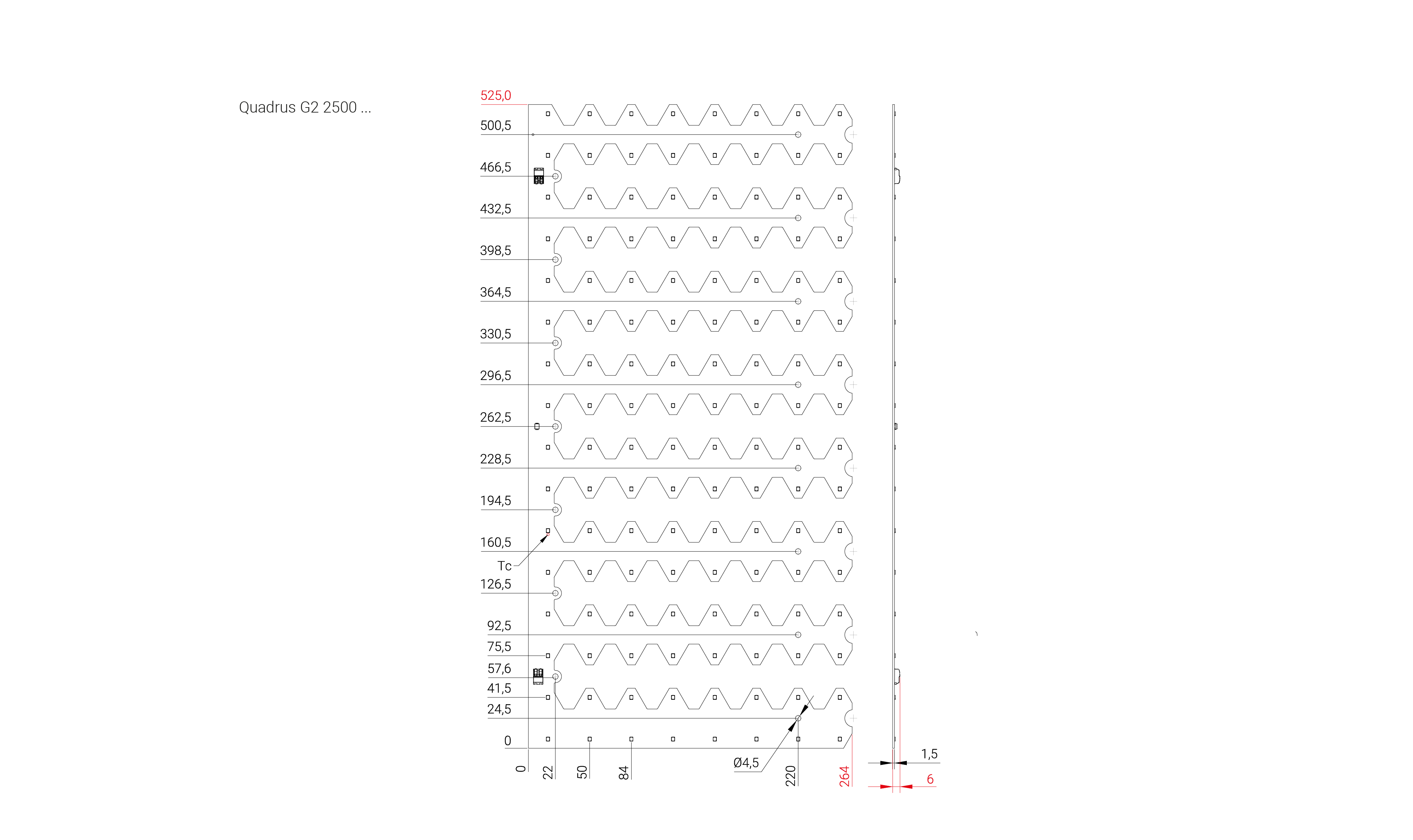

Module drawing
  • LED module ideal for area luminaires
  • 128 Mid-Power LEDs
  • pitch distance along and across 34 mm
  • length 525 mm
  • width 265 mm
  • 4 connection terminals
  • rated current 700 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Quadrus 2500
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Quadrus G2 2500 827 7503-10007 80 2700 K 400 mA 1632 lm 192 lm/W 700 mA 2825 lm 188 lm/W 2100 mA 8064 lm 170 lm/W
Quadrus G2 2500 830 7503-10008 80 3000 K 400 mA 1738 lm 206 lm/W 700 mA 3010 lm 201 lm/W 2100 mA 8593 lm 181 lm/W
Quadrus G2 2500 835 7503-10009 80 3500 K 400 mA 1738 lm 206 lm/W 700 mA 3010 lm 201 lm/W 2100 mA 8593 lm 181 lm/W
Quadrus G2 2500 840 7503-10010 80 4000 K 400 mA 1806 lm 216 lm/W 700 mA 3128 lm 211 lm/W 2100 mA 8929 lm 191 lm/W
Quadrus G2 2500 850 7503-10011 80 5000 K 400 mA 1806 lm 216 lm/W 700 mA 3128 lm 211 lm/W 2100 mA 8929 lm 191 lm/W
Quadrus G2 2500 857 7503-10012 80 5700 K 400 mA 1806 lm 216 lm/W 700 mA 3128 lm 211 lm/W 2100 mA 8929 lm 191 lm/W
Quadrus G2 2500 865 7503-10013 80 6500 K 400 mA 1806 lm 216 lm/W 700 mA 3128 lm 211 lm/W 2100 mA 8929 lm 191 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Quadrus products

Quadrus is an LED module for square and rectangular panel luminaires. With an LED spacing of just 34 mm both lengthwise and crosswise, compact dimensions can be realized.

The layout is designed as a “comb” to conserve resources.

The modules are available in two sizes. The square LED module offers you a high degree of flexibility in terms of geometry, as well as low installation and wiring costs. Thanks to carefully selected LEDs, our modules achieve operating currents of over 215 lm/W or almost 9000 lm.
