Lucidus HCL

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Lucidus HCL L11

  • HCL LED module with 2 channels
  • with high-precision, extremely wide-beam LEDs
  • tunable white 2700 K to 6500 K
  • 2x2 Mid-Power LEDs
  • pitch distance 19 mm / 60 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Lucidus HCL L22

  • HCL LED module with 2 channels
  • with high-precision, extremely wide-beam LEDs
  • tunable white 2700 K to 6500 K
  • 2x4 Mid-Power LEDs
  • pitch distance 19 mm / 60 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Lucidus HCL L46

  • HCL LED module with 2 channels
  • with high-precision, extremely wide-beam LEDs
  • tunable white 2700 K to 6500 K
  • 2x8 Mid-Power LEDs
  • pitch distance 19 mm / 60 mm
  • Products

Lucidus HCL L11

Features

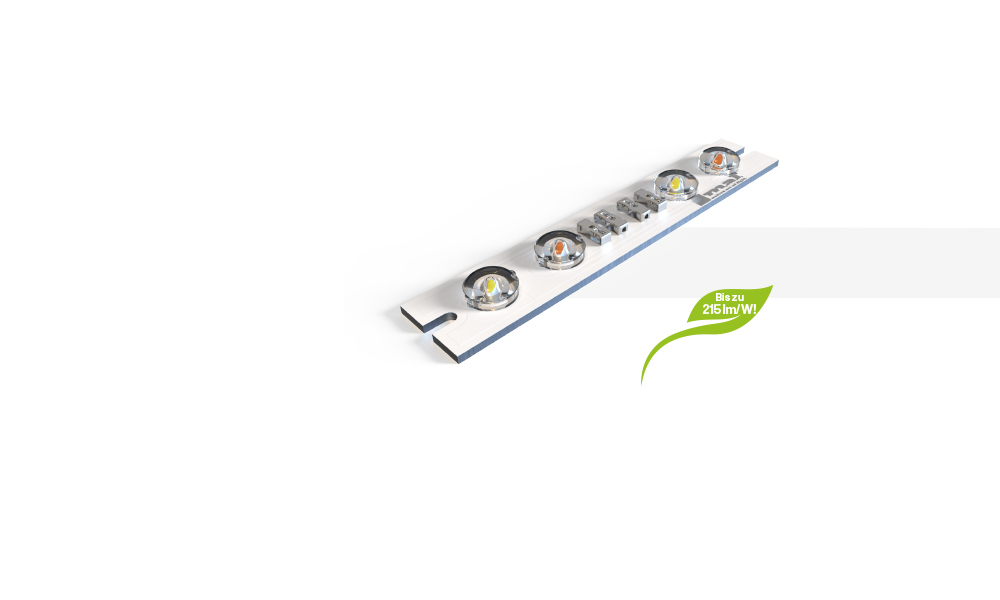

Big module image

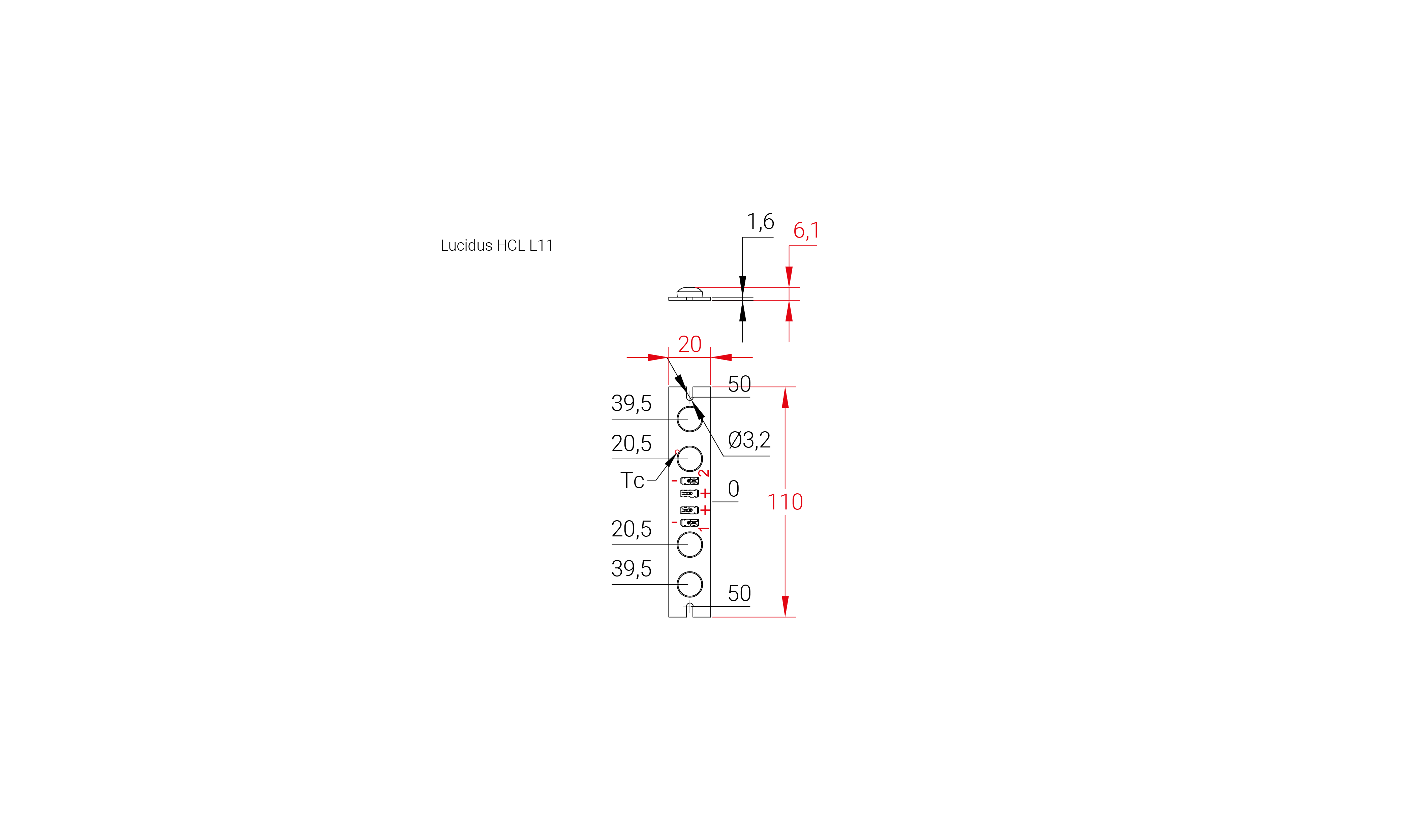

Module drawing
  • HCL LED module with 2 channels
  • with high-precision, extremely wide-beam LEDs
  • tunable white 2700 K to 6500 K
  • 2x2 Mid-Power LEDs
  • pitch distance 19 mm / 60 mm
  • length 110 mm
  • width 20 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 3.25 V
  • Intended for mounting by means of push-in clip(accessories)

Downloads

Technical data

Lucidus HCL L11
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Lucidus HCL G1 L11 W20 340 827-865 7519-00021 80 2700 K 100 mA 51 lm 189 lm/W 350 mA 169 lm 167 lm/W 700 mA 314 lm 145 lm/W
6500 K 100 mA 57 lm 215 lm/W 350 mA 188 lm 190 lm/W 700 mA 348 lm 165 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Lucidus HCL L22

Features

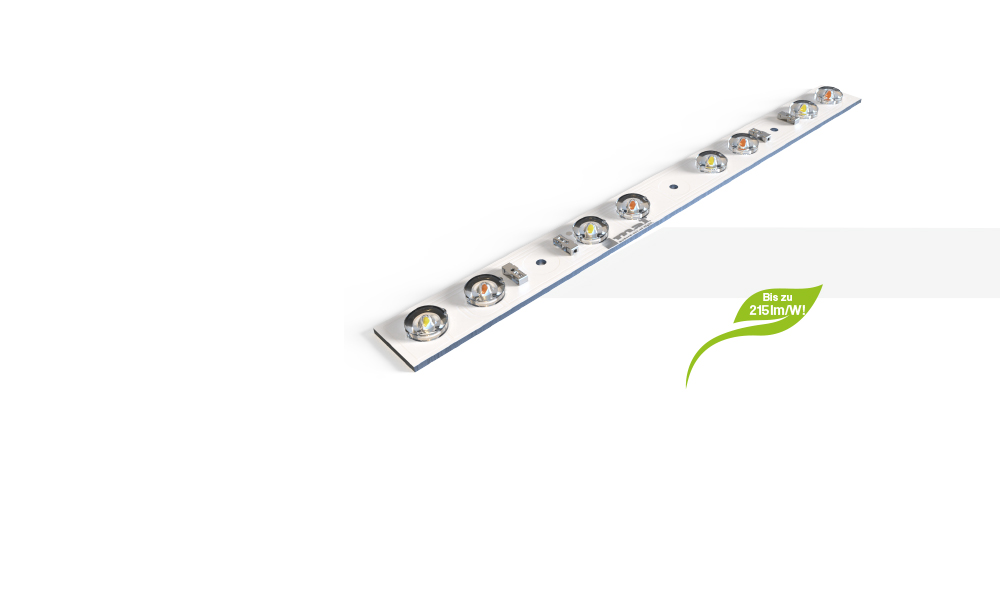

Big module image

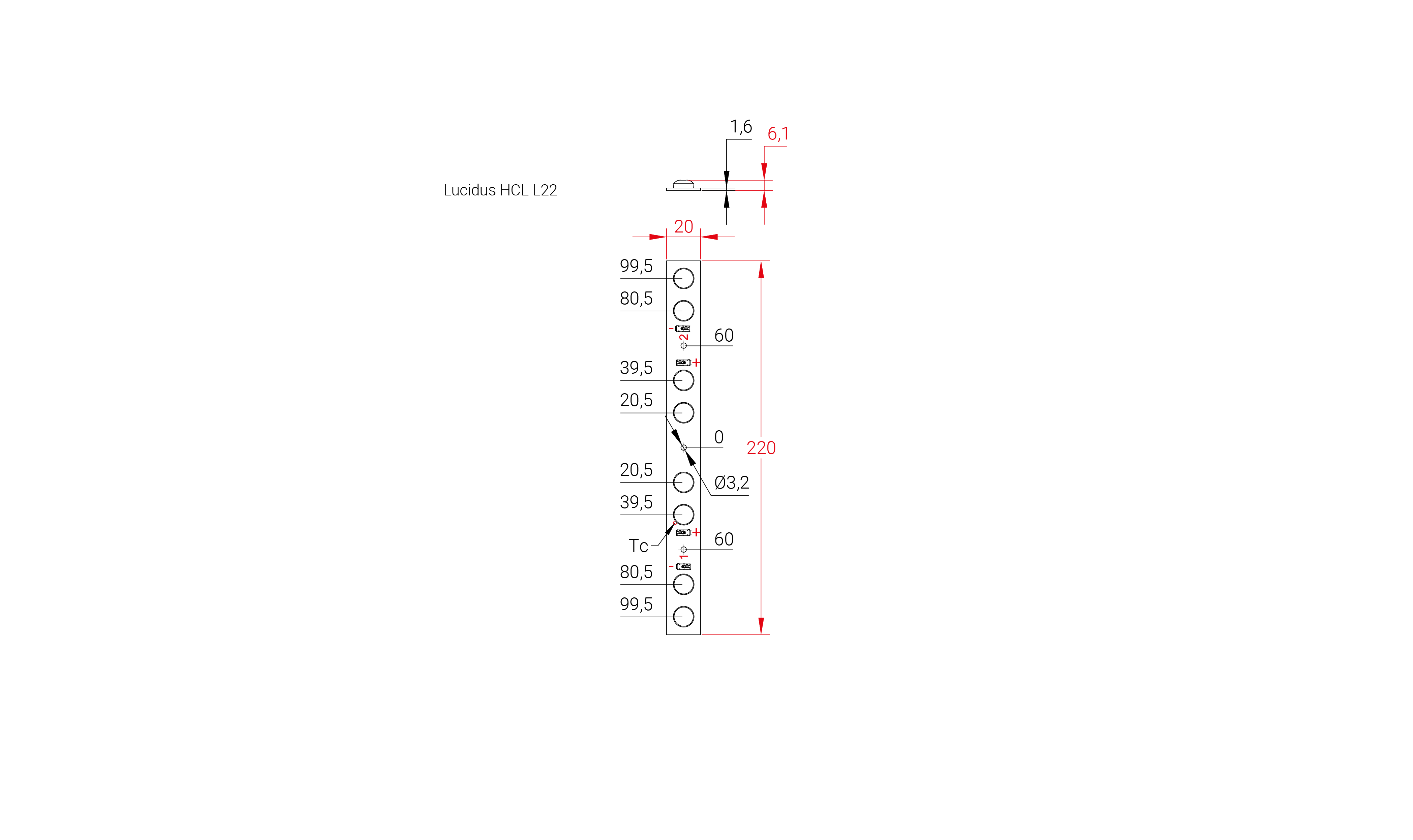

Module drawing
  • HCL LED module with 2 channels
  • with high-precision, extremely wide-beam LEDs
  • tunable white 2700 K to 6500 K
  • 2x4 Mid-Power LEDs
  • pitch distance 19 mm / 60 mm
  • length 220 mm
  • width 20 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 6.5 V
  • Intended for mounting by means of push-in clip(accessories)

Downloads

Technical data

Lucidus HCL L22
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Lucidus HCL G1 L22 W20 670 827-865 7519-00022 80 2700 K 100 mA 103 lm 189 lm/W 350 mA 339 lm 167 lm/W 700 mA 628 lm 145 lm/W
6500 K 100 mA 114 lm 215 lm/W 350 mA 375 lm 190 lm/W 700 mA 696 lm 165 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Lucidus HCL L46

Features

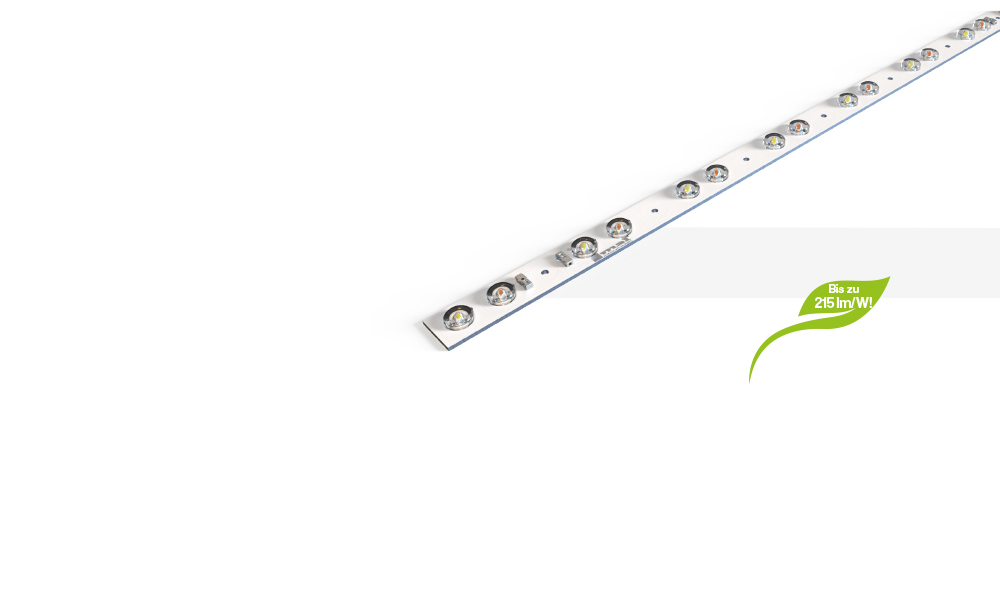

Big module image

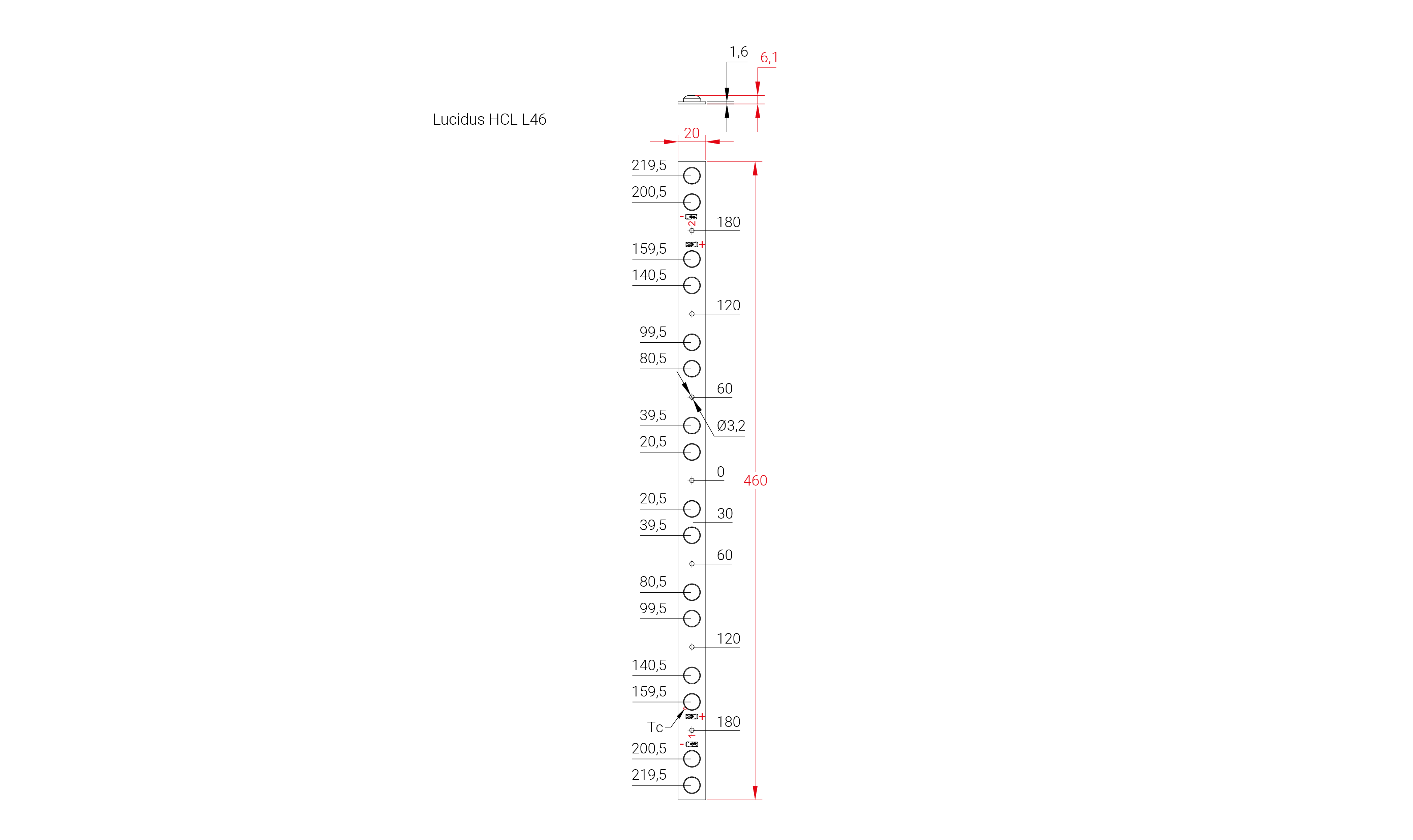

Module drawing
  • HCL LED module with 2 channels
  • with high-precision, extremely wide-beam LEDs
  • tunable white 2700 K to 6500 K
  • 2x8 Mid-Power LEDs
  • pitch distance 19 mm / 60 mm
  • length 460 mm
  • width 20 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 13 V
  • Intended for mounting by means of push-in clip(accessories)

Downloads

Technical data

Lucidus HCL L46
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Lucidus HCL G1 L46 W20 1340 827-865 7519-00023 80 2700 K 100 mA 205 lm 189 lm/W 350 mA 678 lm 167 lm/W 700 mA 1256 lm 145 lm/W
6500 K 100 mA 227 lm 215 lm/W 350 mA 750 lm 190 lm/W 700 mA 1391 lm 165 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Lucidus products

Lucidus is one of our latest product developments. These linear boards focus on uniform, flat backlighting and are optimized for a small distance between the distance between the LED module and the pane or film. By using highly efficient, precise, wide-beam individual lenses made of PMMA, significantly smaller distances for uniform illumination can be achieved, than would be possible with free-emitting LEDs.

With three lengths from 110 mm to 452 mm, Lucidus enables homogeneous illumination of round and free-form surfaces. With up to 215 lm/W, our modules are highly efficient and, with up to 1400 lm, can also cope with demanding tasks. There is a choice of 2 light color channels with 2700 K and 6500 K. Color rendering: CRI 80, CRI 90 is possible on request.

Lucidus is therefore an excellent standard module for mastering a wide range of backlighting tasks.
