LoB Color

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

LoB Color 1215 LES6

  • compact module with color LEDs for installation in luminaires
  • LES 6 mm
  • six light colors from Far Red to Royal Blue
  • 4 High-Power LEDs
  • length 12 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

LoB Color 1619 LES9

  • compact module with color LEDs for installation in luminaires
  • LES 9 mm
  • six light colors from Far Red to Royal Blue
  • 12 High-Power LEDs
  • length 16 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

LoB Color 2024 LES13

  • compact module with color LEDs for installation in luminaires
  • LES 13 mm
  • six light colors from Far Red to Royal Blue
  • 24 High-Power LEDs
  • length 20 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

LoB Color 2828 LES19

  • compact module with color LEDs for installation in luminaires
  • LES 19 mm
  • six light colors from Far Red to Royal Blue
  • 52 High-Power LEDs
  • length 28 mm
  • Products

LoB Color 1215 LES6

Features

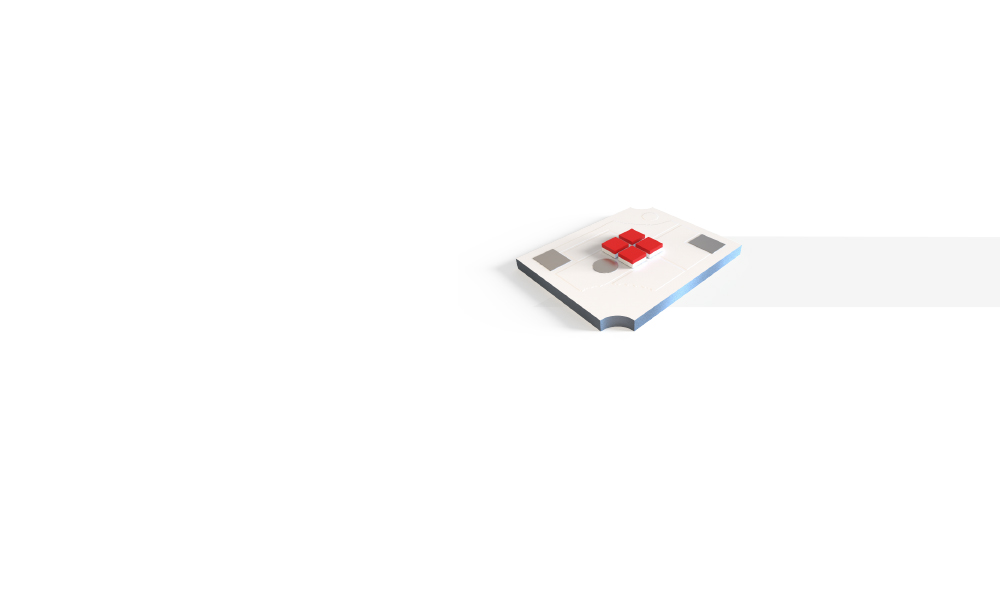

Big module image

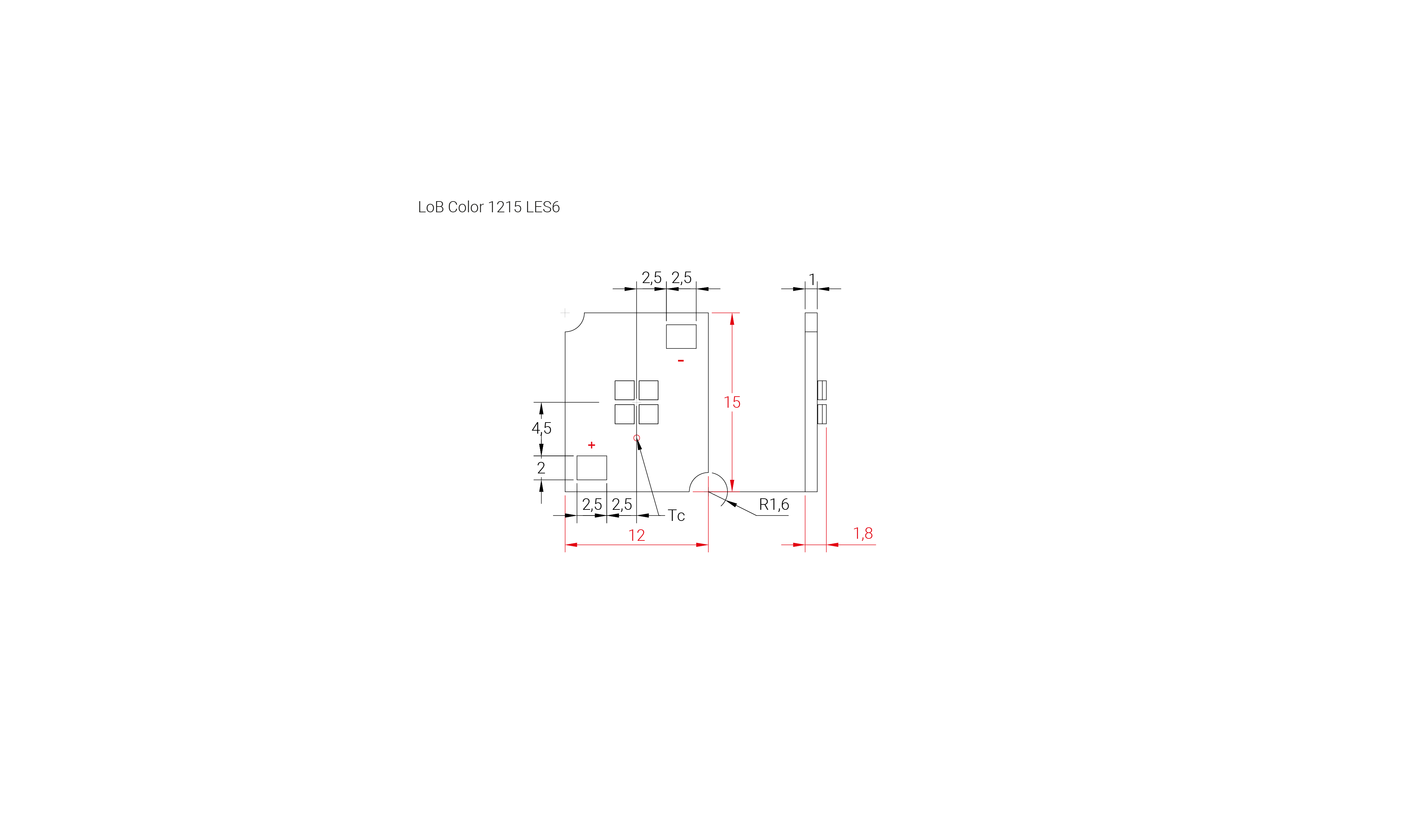

Module drawing
  • compact module with color LEDs for installation in luminaires
  • LES 6 mm
  • six light colors from Far Red to Royal Blue
  • 4 High-Power LEDs
  • length 12 mm
  • width 15 mm
  • two connection terminals
  • compatible with COB holders from various manufacturers
  • ideal as a supplement to white COB modules
  • rated current 350 mA
  • maximum operating current 750 mA

Downloads

Technical data

LoB Color 1215 LES6
Description Order code Light color Wavelength HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
LoB G1 1215 LES6 RED 7525-00000 RED 625 nm 150 mA 98 lm 79 lm/W 350 mA 222 lm 72 lm/W 750 mA 440 lm 60 lm/W
LoB G1 1215 LES6 RNG 7525-00001 RNG 615 nm 150 mA 138 lm 112 lm/W 350 mA 314 lm 103 lm/W 750 mA 616 lm 84 lm/W
LoB G1 1215 LES6 PCA 7525-00002 PCA - 150 mA 142 lm 85 lm/W 350 mA 292 lm 72 lm/W 750 mA 508 lm 55 lm/W
LoB G1 1215 LES6 GRN 7525-00003 GRN 525 nm 150 mA 235 lm 148 lm/W 350 mA 444 lm 112 lm/W 750 mA 712 lm 78 lm/W
LoB G1 1215 LES6 BLU 7525-00004 BLU 475 nm 150 mA 102 lm 61 lm/W 350 mA 207 lm 50 lm/W 750 mA 369 lm 39 lm/W
LoB G1 1215 LES6 RYL 7525-00005 RYL 455 nm 150 mA 1076 mW - 350 mA 2384 mW - 750 mA 4640 mW -
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

LoB Color 1619 LES9

Features

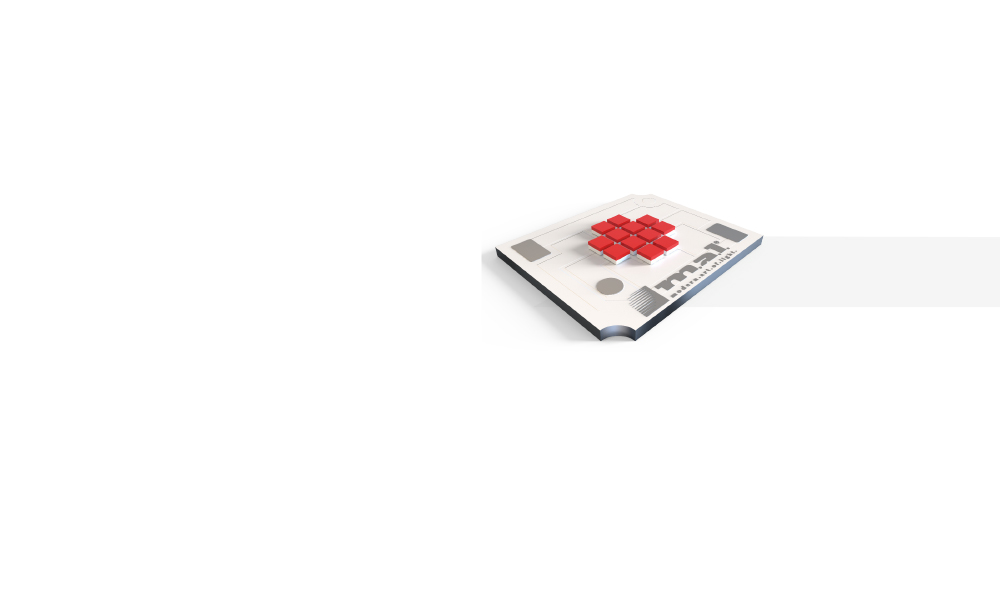

Big module image

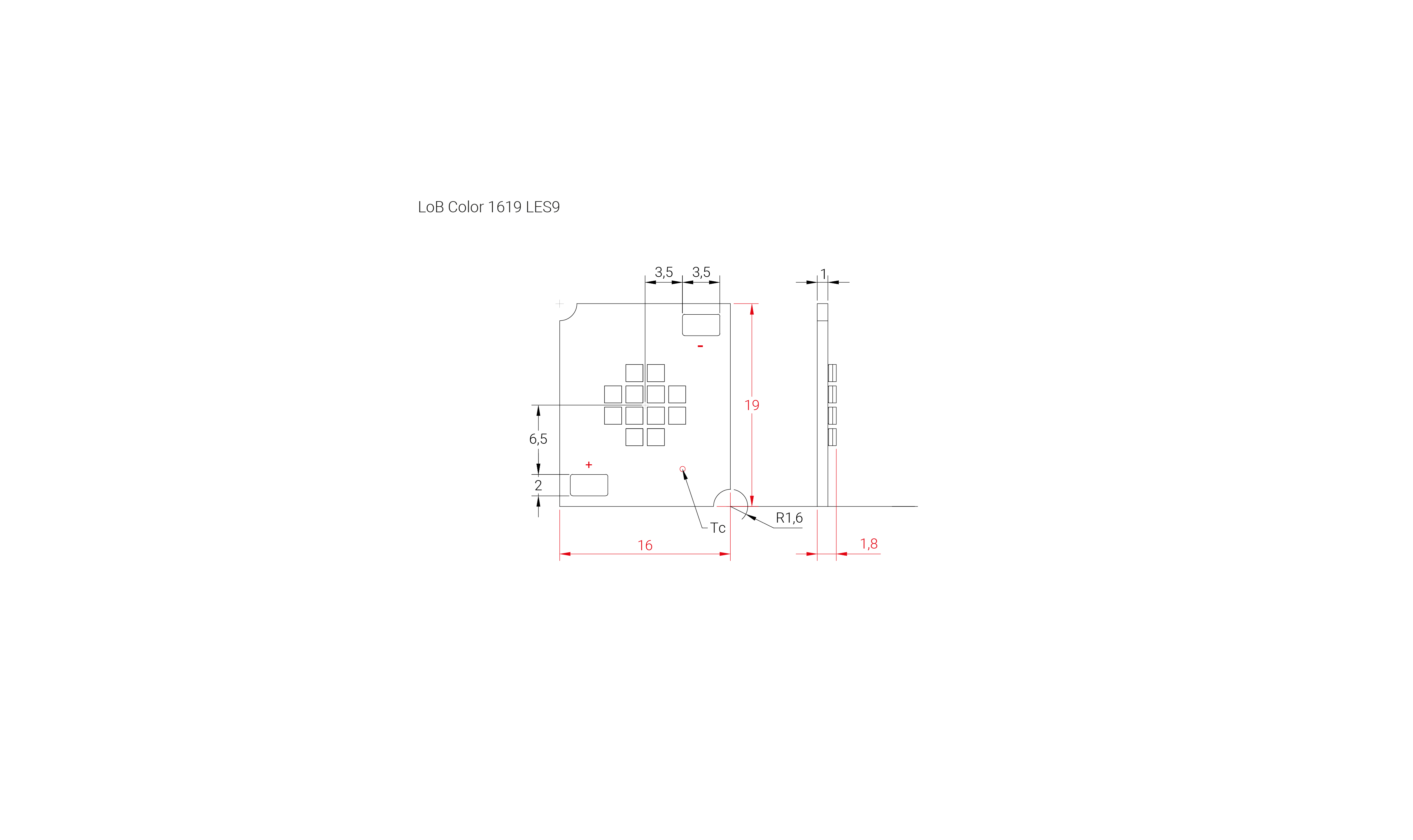

Module drawing
  • compact module with color LEDs for installation in luminaires
  • LES 9 mm
  • six light colors from Far Red to Royal Blue
  • 12 High-Power LEDs
  • length 16 mm
  • width 19 mm
  • two connection terminals
  • compatible with COB holders from various manufacturers
  • ideal as a complement to white COB modules
  • rated current 700 mA
  • maximum operating current 1500 mA

Downloads

Technical data

LoB Color 1619 LES9
Description Order code Light color Wavelength HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
LoB G1 1619 LES9 RED 7525-00010 RED 625 nm 300 mA 293 lm 79 lm/W 700 mA 666 lm 72 lm/W 1500 mA 1320 lm 60 lm/W
LoB G1 1619 LES9 RNG 7525-00011 RNG 615 nm 300 mA 414 lm 112 lm/W 700 mA 943 lm 103 lm/W 1500 mA 1848 lm 84 lm/W
LoB G1 1619 LES9 PCA 7525-00012 PCA - 300 mA 426 lm 85 lm/W 700 mA 875 lm 72 lm/W 1500 mA 1524 lm 55 lm/W
LoB G1 1619 LES9 GRN 7525-00013 GRN 525 nm 300 mA 706 lm 148 lm/W 700 mA 1332 lm 112 lm/W 1500 mA 2136 lm 78 lm/W
LoB G1 1619 LES9 BLU 7525-00014 BLU 475 nm 300 mA 306 lm 61 lm/W 700 mA 622 lm 50 lm/W 1500 mA 1106 lm 39 lm/W
LoB G1 1619 LES9 RYL 7525-00015 RYL 455 nm 300 mA 3228 mW - 700 mA 7152 mW - 1500 mA 13920 mW -
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

LoB Color 2024 LES13

Features

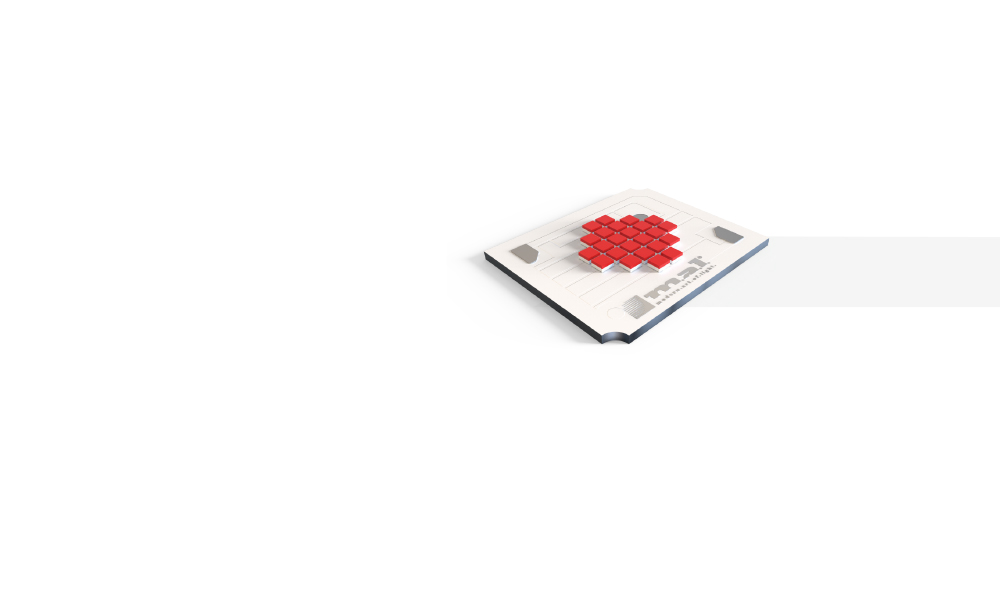

Big module image

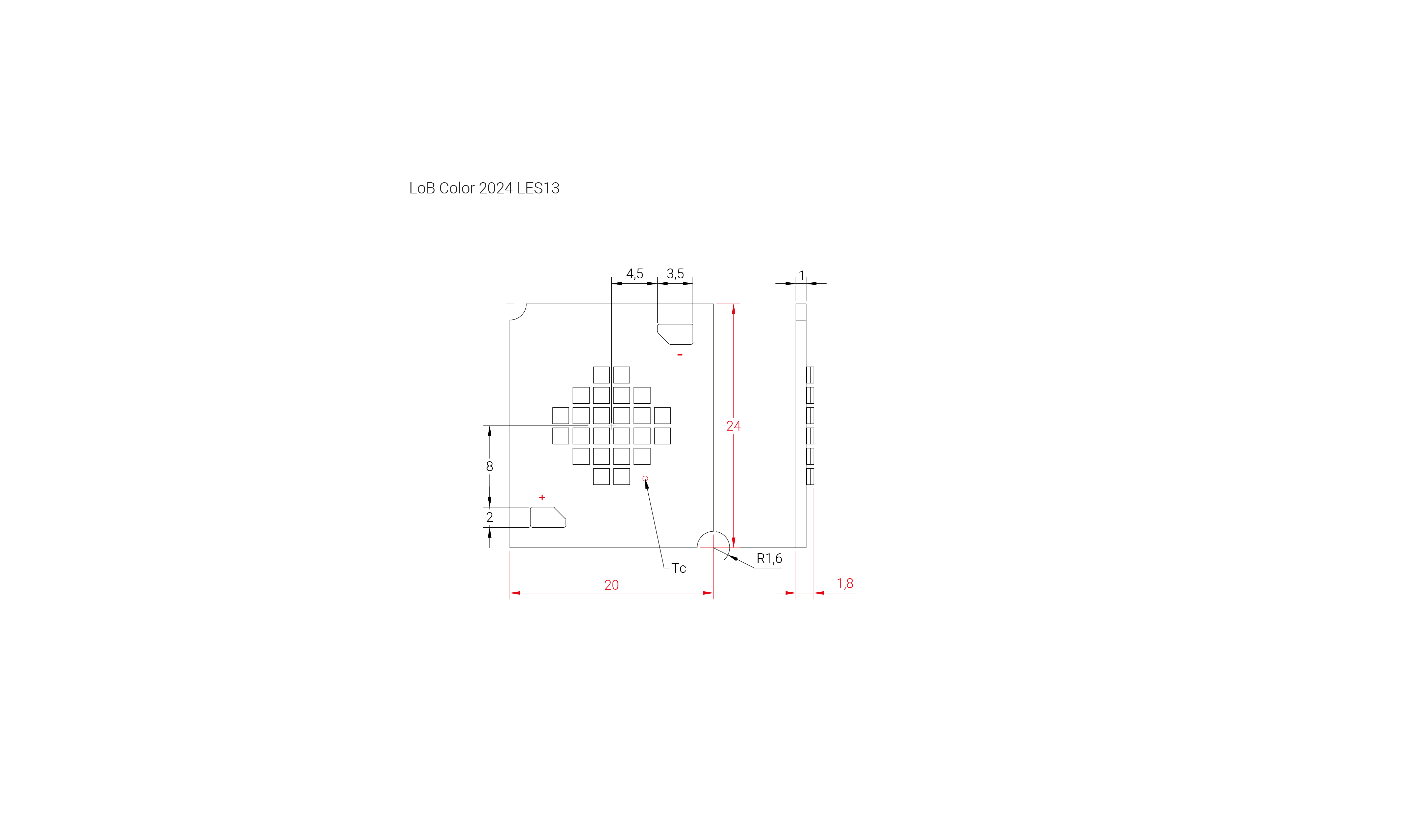

Module drawing
  • compact module with color LEDs for installation in luminaires
  • LES 13 mm
  • six light colors from Far Red to Royal Blue
  • 24 High-Power LEDs
  • length 20 mm
  • width 24 mm
  • two connection terminals
  • compatible with COB holders from various manufacturers
  • ideal as a supplement to white COB modules
  • rated current 700 mA
  • maximum operating current 1500 mA

Downloads

Technical data

LoB Color 2024 LES13
Description Order code Light color Wavelength HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
LoB G1 2024 LES13 RED 7525-00020 RED 625 nm 300 mA 586 lm 79 lm/W 700 mA 1332 lm 72 lm/W 1500 mA 2640 lm 60 lm/W
LoB G1 2024 LES13 RNG 7525-00021 RNG 615 nm 300 mA 828 lm 112 lm/W 700 mA 1886 lm 103 lm/W 1500 mA 3696 lm 84 lm/W
LoB G1 2024 LES13 PCA 7525-00022 PCA - 300 mA 852 lm 85 lm/W 700 mA 1750 lm 72 lm/W 1500 mA 3048 lm 55 lm/W
LoB G1 2024 LES13 GRN 7525-00023 GRN 525 nm 300 mA 1411 lm 148 lm/W 700 mA 2664 lm 112 lm/W 1500 mA 4272 lm 78 lm/W
LoB G1 2024 LES13 BLU 7525-00024 BLU 475 nm 300 mA 612 lm 61 lm/W 700 mA 1243 lm 50 lm/W 1500 mA 2213 lm 39 lm/W
LoB G1 2024 LES13 RYL 7525-00025 RYL 455 nm 300 mA 6456 mW - 700 mA 14304 mW - 1500 mA 27840 mW -
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

LoB Color 2828 LES19

Features

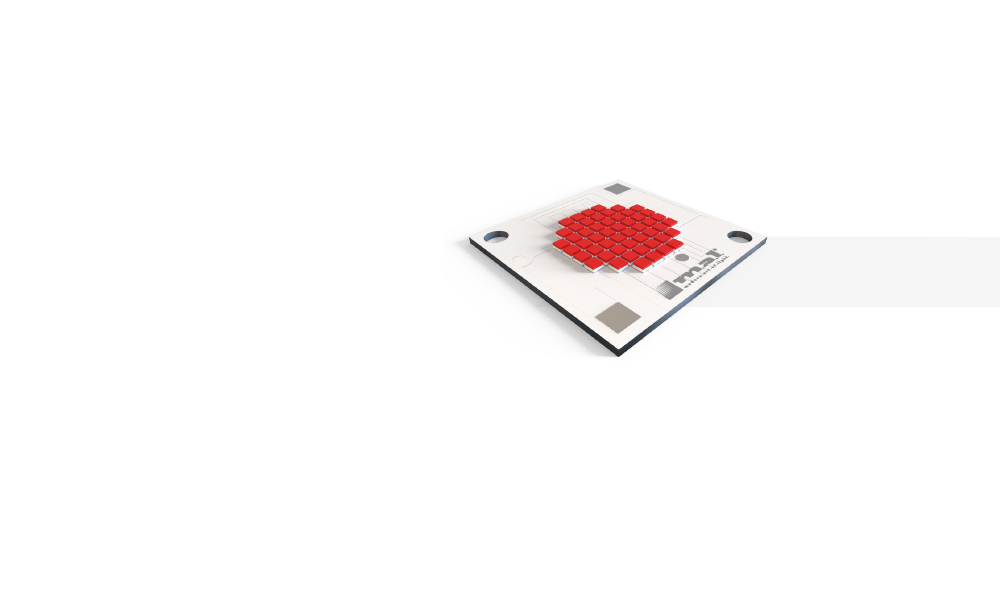

Big module image

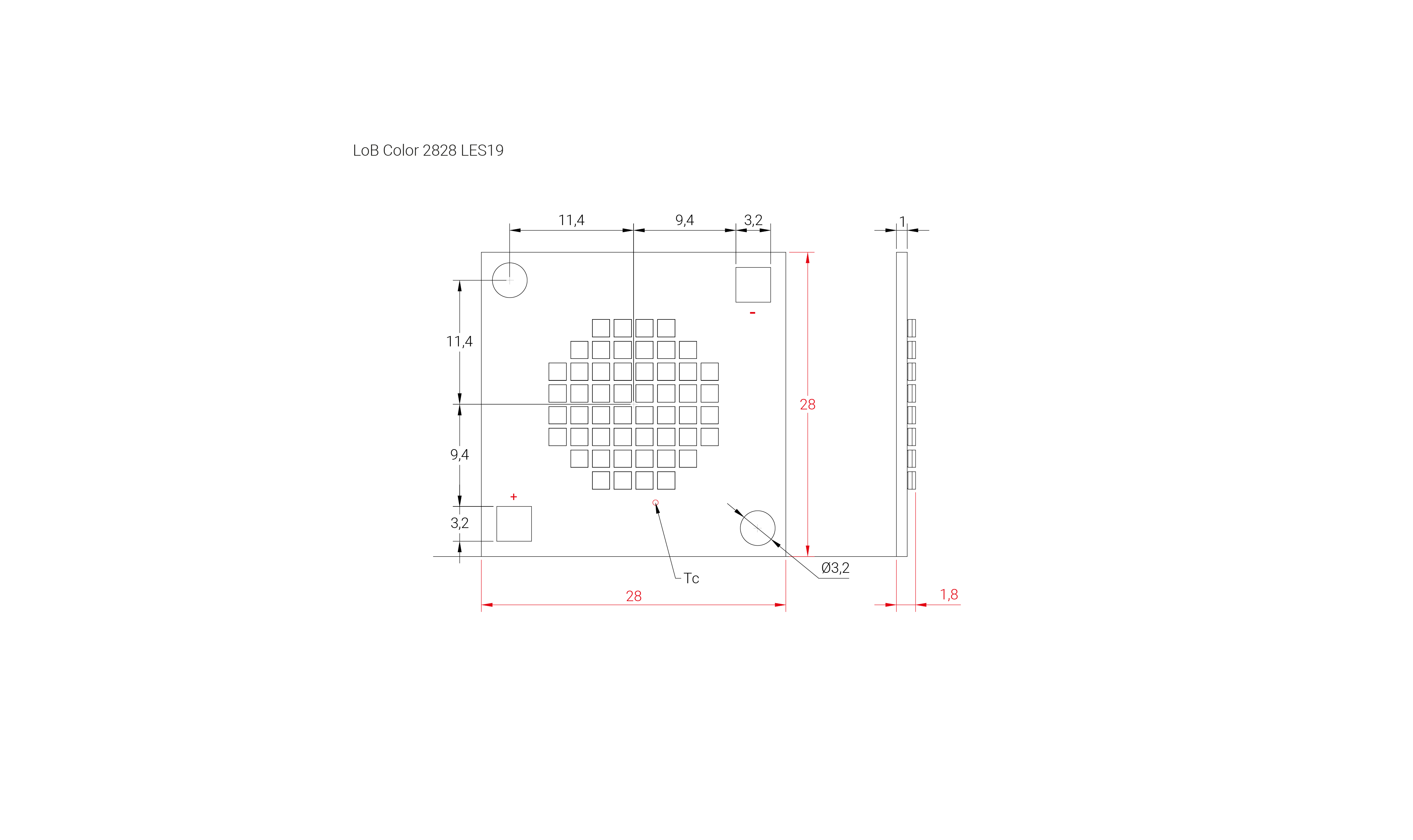

Module drawing
  • compact module with color LEDs for installation in luminaires
  • LES 19 mm
  • six light colors from Far Red to Royal Blue
  • 52 High-Power LEDs
  • length 28 mm
  • width 28 mm
  • two connection terminals
  • compatible with COB holders from various manufacturers
  • ideal as a supplement to white COB modules
  • rated current 1400 mA
  • maximum operating current 3000 mA

Downloads

Technical data

LoB Color 2828 LES19
Description Order code Light color Wavelength HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
LoB G1 2828 LES19 RED 7525-00030 RED 625 nm 600 mA 1269 lm 79 lm/W 1400 mA 2886 lm 72 lm/W 3000 mA 5720 lm 60 lm/W
LoB G1 2828 LES19 RNG 7525-00031 RNG 615 nm 600 mA 1794 lm 112 lm/W 1400 mA 4087 lm 103 lm/W 3000 mA 8008 lm 84 lm/W
LoB G1 2828 LES19 PCA 7525-00032 PCA - 600 mA 1846 lm 85 lm/W 1400 mA 3791 lm 72 lm/W 3000 mA 6604 lm 55 lm/W
LoB G1 2828 LES19 GRN 7525-00033 GRN 525 nm 600 mA 3058 lm 148 lm/W 1400 mA 5772 lm 112 lm/W 3000 mA 9256 lm 78 lm/W
LoB G1 2828 LES19 BLU 7525-00034 BLU 475 nm 600 mA 1326 lm 61 lm/W 1400 mA 2694 lm 50 lm/W 3000 mA 4794 lm 39 lm/W
LoB G1 2828 LES19 RYL 7525-00035 RYL 455 nm 600 mA 13988 mW - 1400 mA 30992 mW - 3000 mA 60320 mW -
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our LoB Color products

Our iX-led LED-on-Board series, LoB for short, is an ideal alternative or supplement to the commercially available CoB modules.

Thanks to SMD LED, it is possible to integrate new LED technologies in a very extremely compact way and implement them according to your wishes. The advantages of the CoB modules are retained, including simple installation, fast luminaire design and a wide range of accessories.

Choose from six light colors: Red, Red-Orange, PC-Amber, Green, Blue and Royal Blue. In addition, you can choose from four Light-Emitting-Surface sizes (LES): LES 6 mm, LES 9 mm, LES 13 mm, LES 19 mm.

Our iX-led standard modules are available at short notice and are favorable in the overall concept.
