Opticus Daisy T

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy T 2x2

  • square module with LED matrix of 4 for installation in luminaires
  • for LEDiL Daisy optics 2x2
  • 16 Mid-Power-LEDs
  • pitch distance along and across 40 mm per 4 matrix
  • length 62 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy T L14

  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 4x1
  • 16 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 140 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

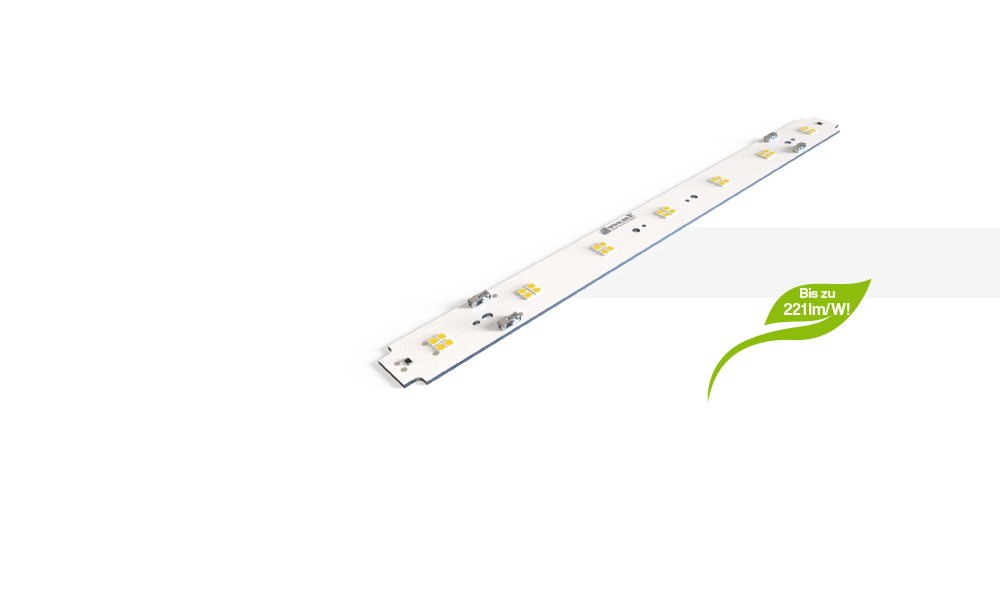

Opticus Daisy T L28

  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 28 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 280 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

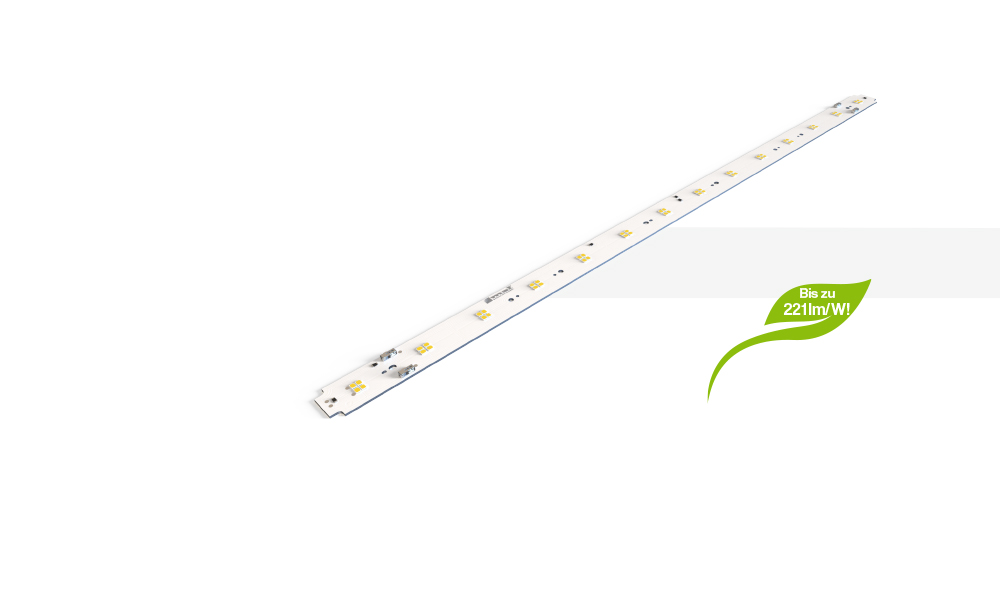

Opticus Daisy T L56

  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 56 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 560 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Opticus Daisy T L112

  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1 and 28x1
  • 112 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 1120 mm
  • Products

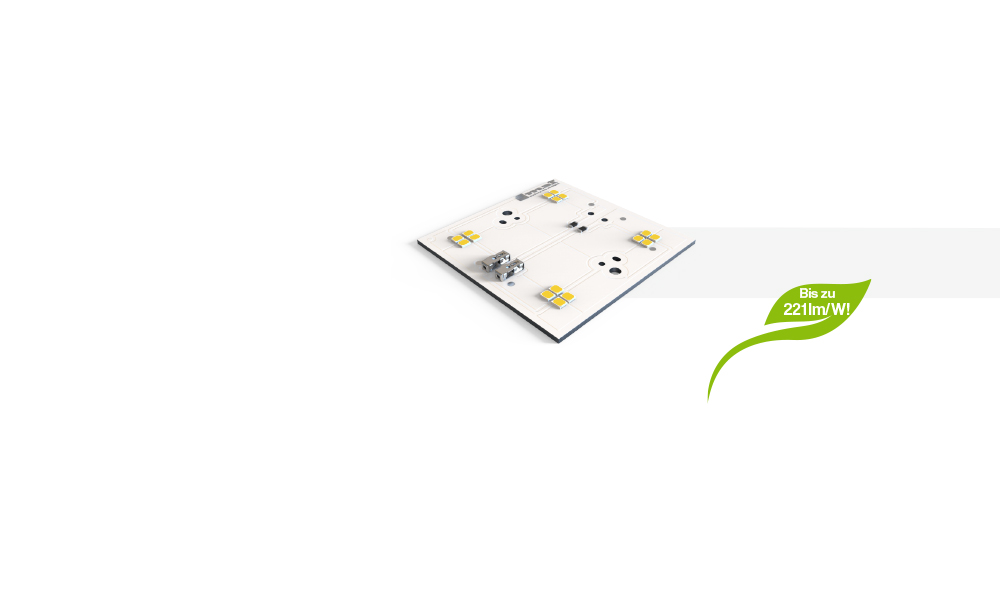

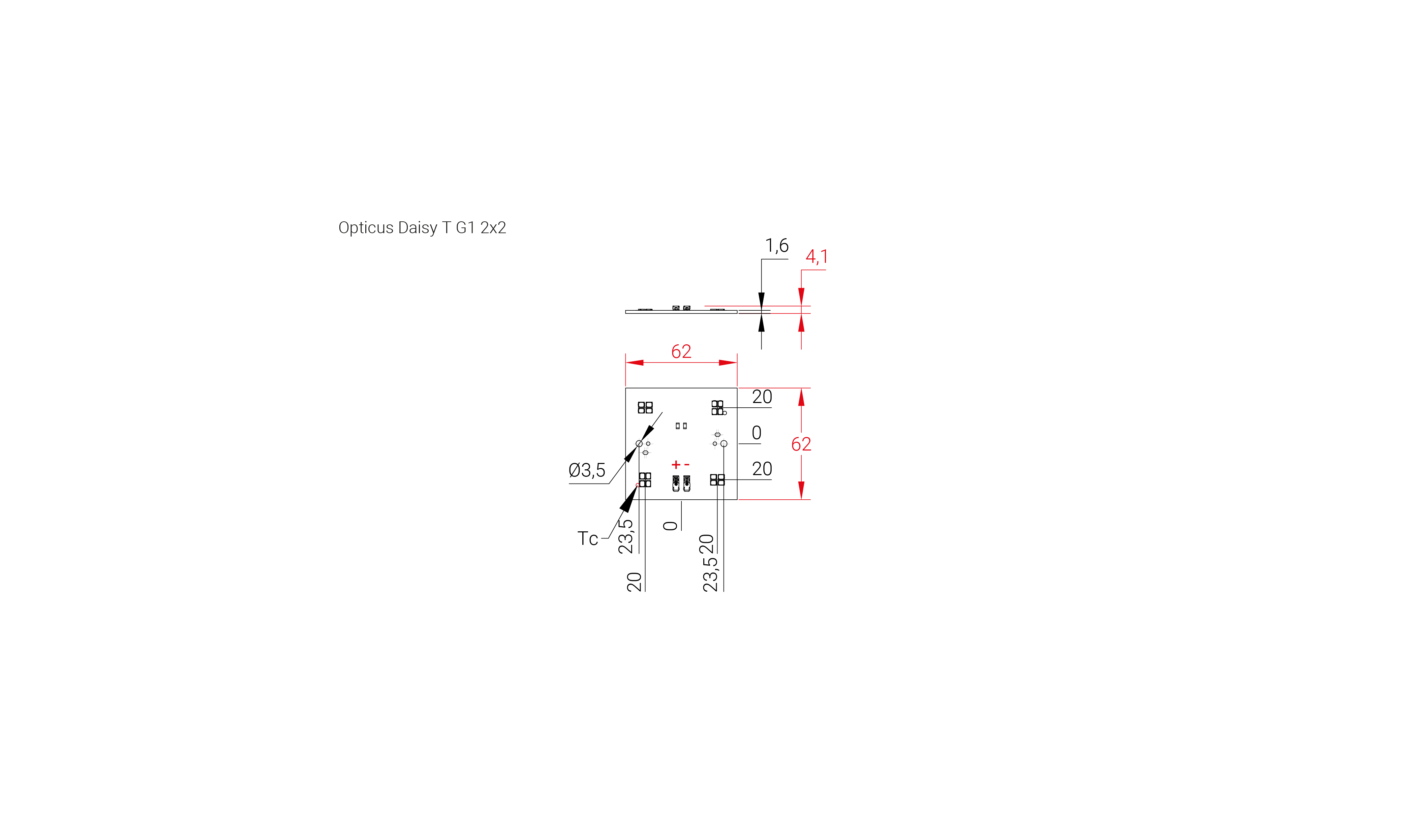

Opticus Daisy T 2x2

Features

Big module image
Module drawing
  • square module with LED matrix of 4 for installation in luminaires
  • for LEDiL Daisy optics 2x2
  • 16 Mid-Power-LEDs
  • pitch distance along and across 40 mm per 4 matrix
  • length 62 mm
  • width 62 mm
  • 2 connection terminals
  • connection also possible from below
  • rated current 350 mA
  • maximum operating current 450 mA
  • maximum forward voltage 26 V

Downloads

Technical data

Opticus Daisy T 2x2
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy T G1 2x2 827 7518-01701 80 2700 K 100 mA 422 lm 194 lm/W 350 mA 1393 lm 171 lm/W 450 mA 1752 lm 164 lm/W
Opticus Daisy T G1 2x2 830 7518-01702 80 3000 K 100 mA 438 lm 207 lm/W 350 mA 1446 lm 183 lm/W 450 mA 1818 lm 175 lm/W
Opticus Daisy T G1 2x2 835 7518-01703 80 3500 K 100 mA 438 lm 207 lm/W 350 mA 1446 lm 183 lm/W 450 mA 1818 lm 175 lm/W
Opticus Daisy T G1 2x2 840 7518-01704 80 4000 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 2x2 850 7518-01705 80 5000 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 2x2 857 7518-01706 80 5700 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 2x2 865 7518-01707 80 6500 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 2x2 927 7518-01708 90 2700 K 100 mA 413 lm 193 lm/W 350 mA 1367 lm 171 lm/W 450 mA 1719 lm 164 lm/W
Opticus Daisy T G1 2x2 930 7518-01709 90 3000 K 100 mA 422 lm 198 lm/W 350 mA 1396 lm 175 lm/W 450 mA 1755 lm 167 lm/W
Opticus Daisy T G1 2x2 935 7518-01710 90 3500 K 100 mA 428 lm 200 lm/W 350 mA 1415 lm 177 lm/W 450 mA 1779 lm 170 lm/W
Opticus Daisy T G1 2x2 940 7518-01711 90 4000 K 100 mA 440 lm 206 lm/W 350 mA 1453 lm 182 lm/W 450 mA 1827 lm 174 lm/W
Opticus Daisy T G1 2x2 950 7518-01712 90 5000 K 100 mA 440 lm 206 lm/W 350 mA 1453 lm 182 lm/W 450 mA 1827 lm 174 lm/W
Opticus Daisy T G1 2x2 957 7518-01713 90 5700 K 100 mA 440 lm 206 lm/W 350 mA 1453 lm 182 lm/W 450 mA 1827 lm 174 lm/W
Opticus Daisy T G1 2x2 965 7518-01714 90 6500 K 100 mA 434 lm 203 lm/W 350 mA 1434 lm 180 lm/W 450 mA 1803 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

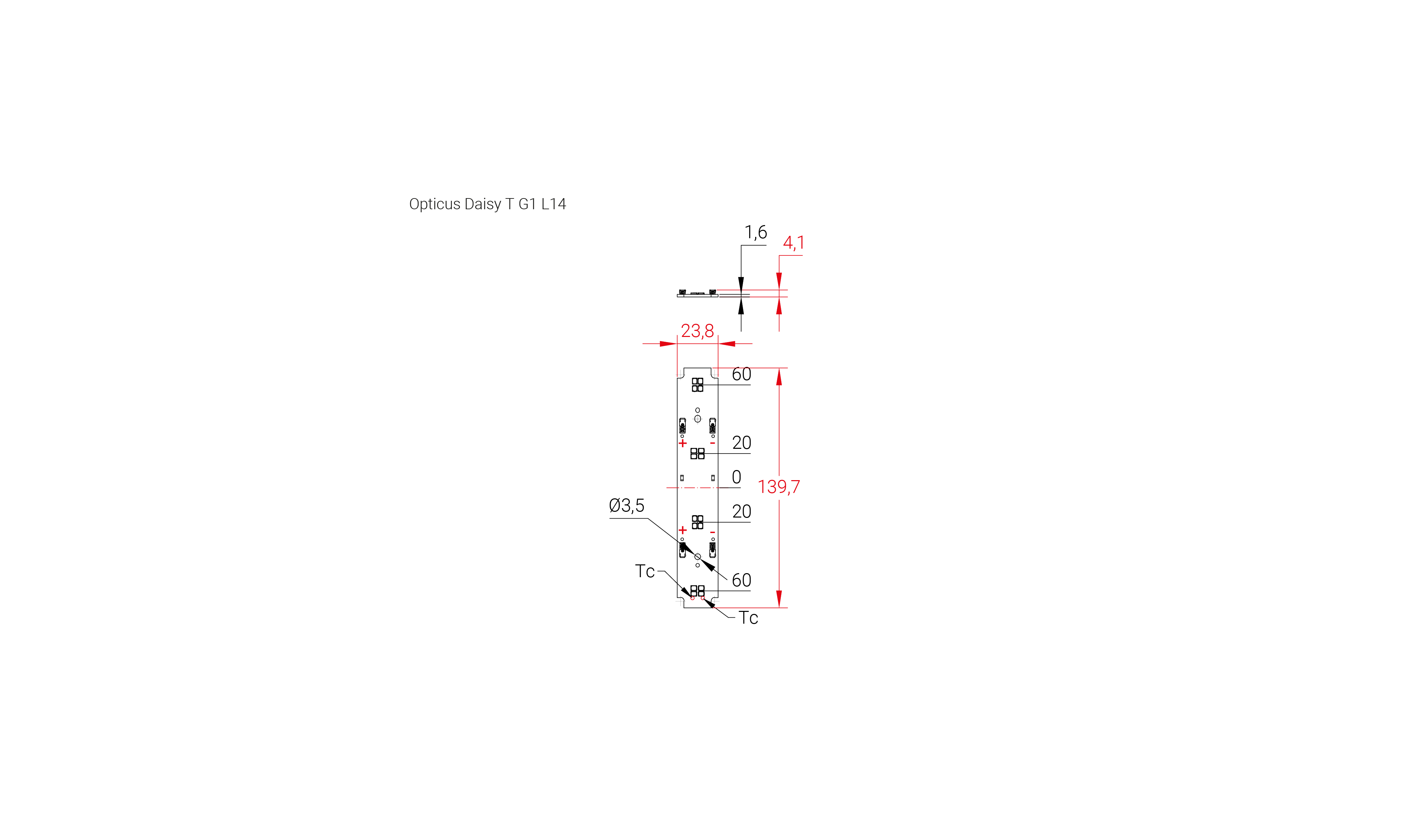

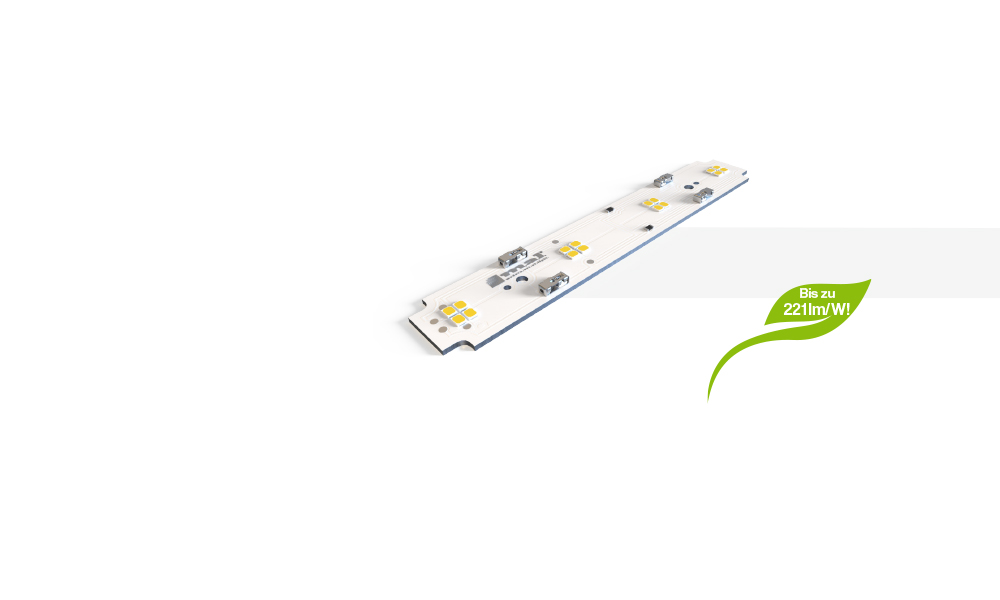

Opticus Daisy T L14

Features

Big module image
Module drawing
  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 4x1
  • 16 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 140 mm
  • width 24 mm
  • 4 connection terminals
  • connection also possible from below
  • rated current 350 mA
  • maximum operating current 450 mA
  • maximum forward voltage 26 V

Downloads

Technical data

Opticus Daisy T L14
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy T G1 L14 W24 827 7518-01001 80 2700 K 100 mA 422 lm 194 lm/W 350 mA 1393 lm 171 lm/W 450 mA 1752 lm 164 lm/W
Opticus Daisy T G1 L14 W24 830 7518-01002 80 3000 K 100 mA 438 lm 207 lm/W 350 mA 1446 lm 183 lm/W 450 mA 1818 lm 175 lm/W
Opticus Daisy T G1 L14 W24 835 7518-01003 80 3500 K 100 mA 438 lm 207 lm/W 350 mA 1446 lm 183 lm/W 450 mA 1818 lm 175 lm/W
Opticus Daisy T G1 L14 W24 840 7518-01004 80 4000 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 L14 W24 850 7518-01005 80 5000 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 L14 W24 857 7518-01006 80 5700 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 L14 W24 865 7518-01007 80 6500 K 100 mA 467 lm 221 lm/W 350 mA 1542 lm 195 lm/W 450 mA 1939 lm 187 lm/W
Opticus Daisy T G1 L14 W24 927 7518-01008 90 2700 K 100 mA 413 lm 193 lm/W 350 mA 1367 lm 171 lm/W 450 mA 1719 lm 164 lm/W
Opticus Daisy T G1 L14 W24 930 7518-01009 90 3000 K 100 mA 422 lm 198 lm/W 350 mA 1396 lm 175 lm/W 450 mA 1755 lm 167 lm/W
Opticus Daisy T G1 L14 W24 935 7518-01010 90 3500 K 100 mA 428 lm 200 lm/W 350 mA 1415 lm 177 lm/W 450 mA 1779 lm 170 lm/W
Opticus Daisy T G1 L14 W24 940 7518-01011 90 4000 K 100 mA 440 lm 206 lm/W 350 mA 1453 lm 182 lm/W 450 mA 1827 lm 174 lm/W
Opticus Daisy T G1 L14 W24 950 7518-01012 90 5000 K 100 mA 440 lm 206 lm/W 350 mA 1453 lm 182 lm/W 450 mA 1827 lm 174 lm/W
Opticus Daisy T G1 L14 W24 957 7518-01013 90 5700 K 100 mA 440 lm 206 lm/W 350 mA 1453 lm 182 lm/W 450 mA 1827 lm 174 lm/W
Opticus Daisy T G1 L14 W24 965 7518-01014 90 6500 K 100 mA 434 lm 203 lm/W 350 mA 1434 lm 180 lm/W 450 mA 1803 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

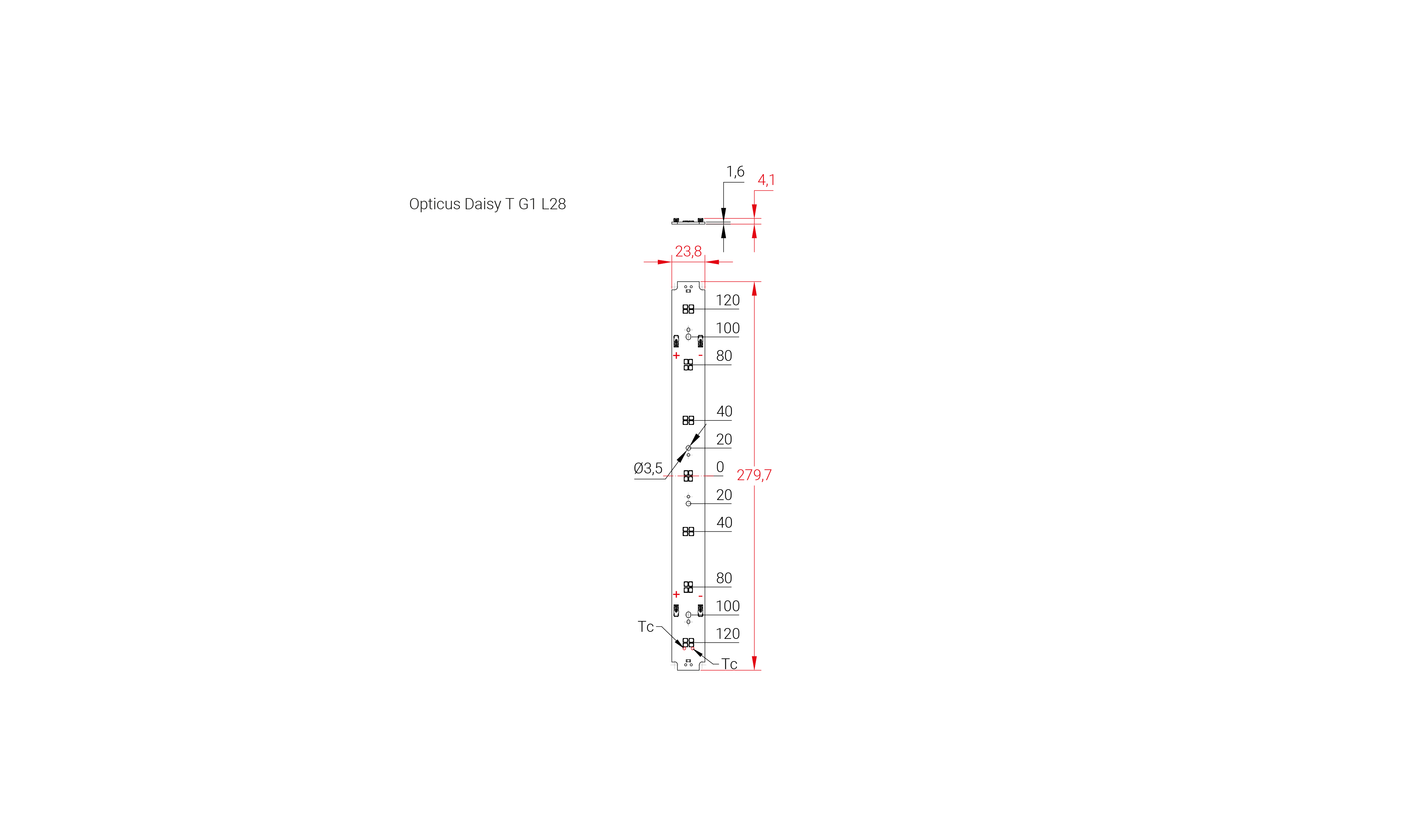

Opticus Daisy T L28

Features

Big module image
Module drawing
  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 28 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 280 mm
  • width 24 mm
  • 4 connection terminals
  • connection also possible from below
  • rated current 350 mA
  • maximum operating current 450 mA
  • maximum forward voltage 45.5 V

Downloads

Technical data

Opticus Daisy T L28
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy T G1 L28 W24 827 7518-01101 80 2700 K 100 mA 739 lm 194 lm/W 350 mA 2438 lm 171 lm/W 450 mA 3065 lm 164 lm/W
Opticus Daisy T G1 L28 W24 830 7518-01102 80 3000 K 100 mA 767 lm 207 lm/W 350 mA 2530 lm 183 lm/W 450 mA 3182 lm 175 lm/W
Opticus Daisy T G1 L28 W24 835 7518-01103 80 3500 K 100 mA 767 lm 207 lm/W 350 mA 2530 lm 183 lm/W 450 mA 3182 lm 175 lm/W
Opticus Daisy T G1 L28 W24 840 7518-01104 80 4000 K 100 mA 818 lm 221 lm/W 350 mA 2699 lm 195 lm/W 450 mA 3393 lm 187 lm/W
Opticus Daisy T G1 L28 W24 850 7518-01105 80 5000 K 100 mA 818 lm 221 lm/W 350 mA 2699 lm 195 lm/W 450 mA 3393 lm 187 lm/W
Opticus Daisy T G1 L28 W24 857 7518-01106 80 5700 K 100 mA 818 lm 221 lm/W 350 mA 2699 lm 195 lm/W 450 mA 3393 lm 187 lm/W
Opticus Daisy T G1 L28 W24 865 7518-01107 80 6500 K 100 mA 818 lm 221 lm/W 350 mA 2699 lm 195 lm/W 450 mA 3393 lm 187 lm/W
Opticus Daisy T G1 L28 W24 927 7518-01108 90 2700 K 100 mA 723 lm 193 lm/W 350 mA 2392 lm 171 lm/W 450 mA 3007 lm 164 lm/W
Opticus Daisy T G1 L28 W24 930 7518-01109 90 3000 K 100 mA 739 lm 198 lm/W 350 mA 2442 lm 175 lm/W 450 mA 3071 lm 167 lm/W
Opticus Daisy T G1 L28 W24 935 7518-01110 90 3500 K 100 mA 749 lm 200 lm/W 350 mA 2476 lm 177 lm/W 450 mA 3113 lm 170 lm/W
Opticus Daisy T G1 L28 W24 940 7518-01111 90 4000 K 100 mA 769 lm 206 lm/W 350 mA 2544 lm 182 lm/W 450 mA 3198 lm 174 lm/W
Opticus Daisy T G1 L28 W24 950 7518-01112 90 5000 K 100 mA 769 lm 206 lm/W 350 mA 2544 lm 182 lm/W 450 mA 3198 lm 174 lm/W
Opticus Daisy T G1 L28 W24 957 7518-01113 90 5700 K 100 mA 769 lm 206 lm/W 350 mA 2544 lm 182 lm/W 450 mA 3198 lm 174 lm/W
Opticus Daisy T G1 L28 W24 965 7518-01114 90 6500 K 100 mA 759 lm 203 lm/W 350 mA 2510 lm 180 lm/W 450 mA 3156 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

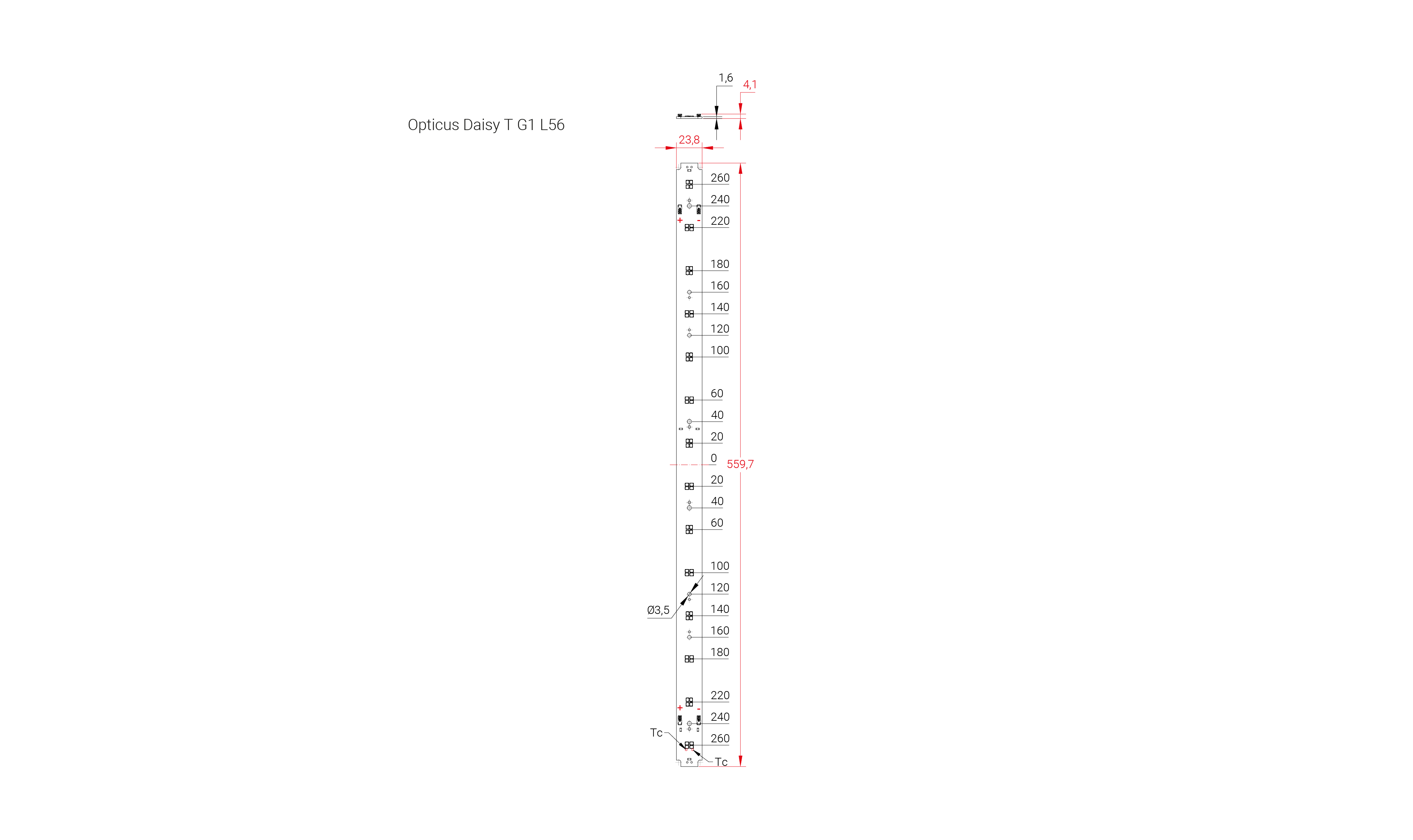

Opticus Daisy T L56

Features

Big module image
Module drawing
  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1
  • 56 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 560 mm
  • width 24 mm
  • 4 connection terminals
  • connection also possible from below
  • rated current 600 mA
  • maximum operating current 850 mA
  • maximum forward voltage 45.5 V

Downloads

Technical data

Opticus Daisy T L56
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy T G1 L56 W24 827 7518-01201 80 2700 K 200 mA 1478 lm 194 lm/W 600 mA 4227 lm 175 lm/W 850 mA 5822 lm 166 lm/W
Opticus Daisy T G1 L56 W24 830 7518-01202 80 3000 K 200 mA 1534 lm 207 lm/W 600 mA 4387 lm 187 lm/W 850 mA 6044 lm 177 lm/W
Opticus Daisy T G1 L56 W24 835 7518-01203 80 3500 K 200 mA 1534 lm 207 lm/W 600 mA 4387 lm 187 lm/W 850 mA 6044 lm 177 lm/W
Opticus Daisy T G1 L56 W24 840 7518-01204 80 4000 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy T G1 L56 W24 850 7518-01205 80 5000 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy T G1 L56 W24 857 7518-01206 80 5700 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy T G1 L56 W24 865 7518-01207 80 6500 K 200 mA 1636 lm 221 lm/W 600 mA 4679 lm 200 lm/W 850 mA 6445 lm 189 lm/W
Opticus Daisy T G1 L56 W24 927 7518-01208 90 2700 K 200 mA 1447 lm 193 lm/W 600 mA 4147 lm 175 lm/W 850 mA 5712 lm 166 lm/W
Opticus Daisy T G1 L56 W24 930 7518-01209 90 3000 K 200 mA 1477 lm 198 lm/W 600 mA 4235 lm 179 lm/W 850 mA 5833 lm 169 lm/W
Opticus Daisy T G1 L56 W24 935 7518-01210 90 3500 K 200 mA 1498 lm 200 lm/W 600 mA 4293 lm 181 lm/W 850 mA 5913 lm 172 lm/W
Opticus Daisy T G1 L56 W24 940 7518-01211 90 4000 K 200 mA 1538 lm 206 lm/W 600 mA 4410 lm 186 lm/W 850 mA 6074 lm 176 lm/W
Opticus Daisy T G1 L56 W24 950 7518-01212 90 5000 K 200 mA 1538 lm 206 lm/W 600 mA 4410 lm 186 lm/W 850 mA 6074 lm 176 lm/W
Opticus Daisy T G1 L56 W24 957 7518-01213 90 5700 K 200 mA 1538 lm 206 lm/W 600 mA 4410 lm 186 lm/W 850 mA 6074 lm 176 lm/W
Opticus Daisy T G1 L56 W24 965 7518-01214 90 6500 K 200 mA 1518 lm 203 lm/W 600 mA 4351 lm 184 lm/W 850 mA 5994 lm 174 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

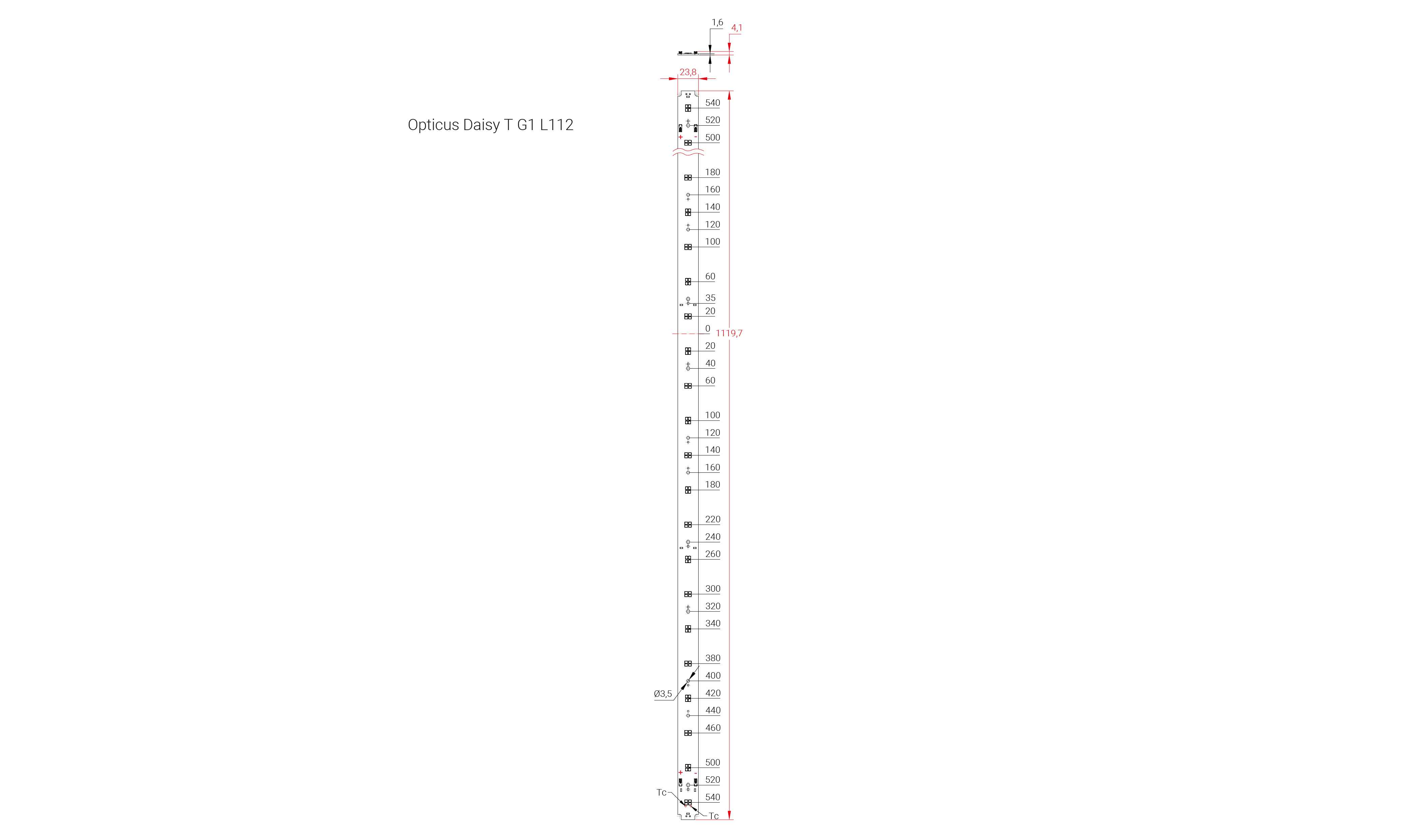

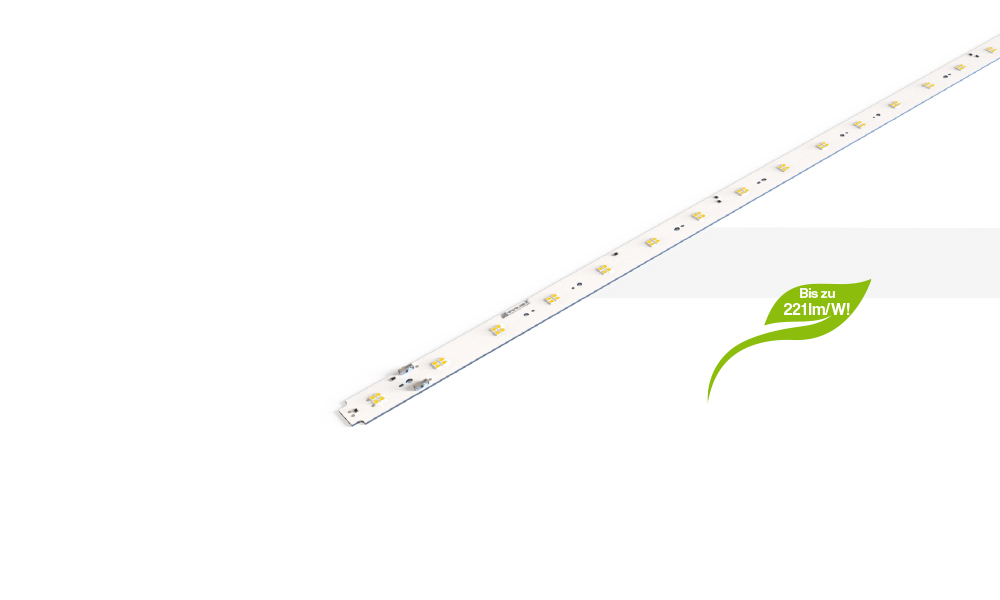

Opticus Daisy T L112

Features

Big module image
Module drawing
  • linear module with LED 4 matrix for installation in luminaires
  • for LEDiL Daisy optics 7x1 and 28x1
  • 112 Mid-Power-LEDs
  • pitch distance 40 mm per 4 matrix
  • length 1120 mm
  • width 24 mm
  • 4 connection terminals
  • connection also possible from below
  • rated current 1200 mA
  • maximum operating current 1750 mA
  • maximum forward voltage 45.5 V

Downloads

Technical data

Opticus Daisy T L112
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Opticus Daisy T G1 L112 W24 827 7518-01401 80 2700 K 400 mA 2956 lm 194 lm/W 1200 mA 8453 lm 175 lm/W 1750 mA 11953 lm 165 lm/W
Opticus Daisy T G1 L112 W24 830 7518-01402 80 3000 K 400 mA 3068 lm 207 lm/W 1200 mA 8775 lm 187 lm/W 1750 mA 12408 lm 176 lm/W
Opticus Daisy T G1 L112 W24 835 7518-01403 80 3500 K 400 mA 3068 lm 207 lm/W 1200 mA 8775 lm 187 lm/W 1750 mA 12408 lm 176 lm/W
Opticus Daisy T G1 L112 W24 840 7518-01404 80 4000 K 400 mA 3272 lm 221 lm/W 1200 mA 9358 lm 200 lm/W 1750 mA 13233 lm 188 lm/W
Opticus Daisy T G1 L112 W24 850 7518-01405 80 5000 K 400 mA 3272 lm 221 lm/W 1200 mA 9358 lm 200 lm/W 1750 mA 13233 lm 188 lm/W
Opticus Daisy T G1 L112 W24 857 7518-01406 80 5700 K 400 mA 3272 lm 221 lm/W 1200 mA 9358 lm 200 lm/W 1750 mA 13233 lm 188 lm/W
Opticus Daisy T G1 L112 W24 865 7518-01407 80 6500 K 400 mA 3272 lm 221 lm/W 1200 mA 9358 lm 200 lm/W 1750 mA 13233 lm 188 lm/W
Opticus Daisy T G1 L112 W24 927 7518-01408 90 2700 K 400 mA 2893 lm 193 lm/W 1200 mA 8294 lm 175 lm/W 1750 mA 11728 lm 165 lm/W
Opticus Daisy T G1 L112 W24 930 7518-01409 90 3000 K 400 mA 2954 lm 198 lm/W 1200 mA 8469 lm 179 lm/W 1750 mA 11976 lm 168 lm/W
Opticus Daisy T G1 L112 W24 935 7518-01410 90 3500 K 400 mA 2995 lm 200 lm/W 1200 mA 8586 lm 181 lm/W 1750 mA 12141 lm 171 lm/W
Opticus Daisy T G1 L112 W24 940 7518-01411 90 4000 K 400 mA 3077 lm 206 lm/W 1200 mA 8820 lm 186 lm/W 1750 mA 12471 lm 175 lm/W
Opticus Daisy T G1 L112 W24 950 7518-01412 90 5000 K 400 mA 3077 lm 206 lm/W 1200 mA 8820 lm 186 lm/W 1750 mA 12471 lm 175 lm/W
Opticus Daisy T G1 L112 W24 957 7518-01413 90 5700 K 400 mA 3077 lm 206 lm/W 1200 mA 8820 lm 186 lm/W 1750 mA 12471 lm 175 lm/W
Opticus Daisy T G1 L112 W24 965 7518-01414 90 6500 K 400 mA 3036 lm 203 lm/W 1200 mA 8703 lm 184 lm/W 1750 mA 12306 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Opticus Daisy T products

With our Opticus Daisy T module, several modules are connected together by a parallel circuit, which results in a total forward voltage. With our Daisy T HCL modules, a Tuneable White application is possible with two channels. You can find more information on this in our HCL products.

Our Opticus Daisy LED modules are perfectly matched to the popular Daisy optics from LEDiL. With the “Daisy “ product series, LEDiL offers outstanding linear optic systems consisting of various lenses and louvre elements. These can be combined with each other. These lenses are combined with louvre elements. Choose between glossy or matt, as well as black, white and silver. You can choose from different dimensions for both the lenses and the louvre elements.

You can choose between clear and matt lenses. The following options are available to you:

• 80° lens • 25° x 70° oval lens
• 50° lens • Asymmetry
• 50° lens with improved glare control • Wallwasher
• 35° lens • Lens for free standing luminaires
