Lucidus L11

  • linear module for backlighting
  • equipped with high-precision, extremely wide-beam lenses
  • 2 Mid-Power LEDs
  • pitch distance 60 mm
  • length 110 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Lucidus L22

  • linear module for backlighting
  • equipped with high-precision, extremely wide-beam lenses
  • 4 Mid-Power LEDs
  • pitch distance 60 mm
  • length 220 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Lucidus L46

  • linear module for backlighting
  • equipped with high-precision, extremely wide-beam lenses
  • 8 Mid-Power-LEDs
  • pitch distance 60 mm
  • length 460 mm
  • Products

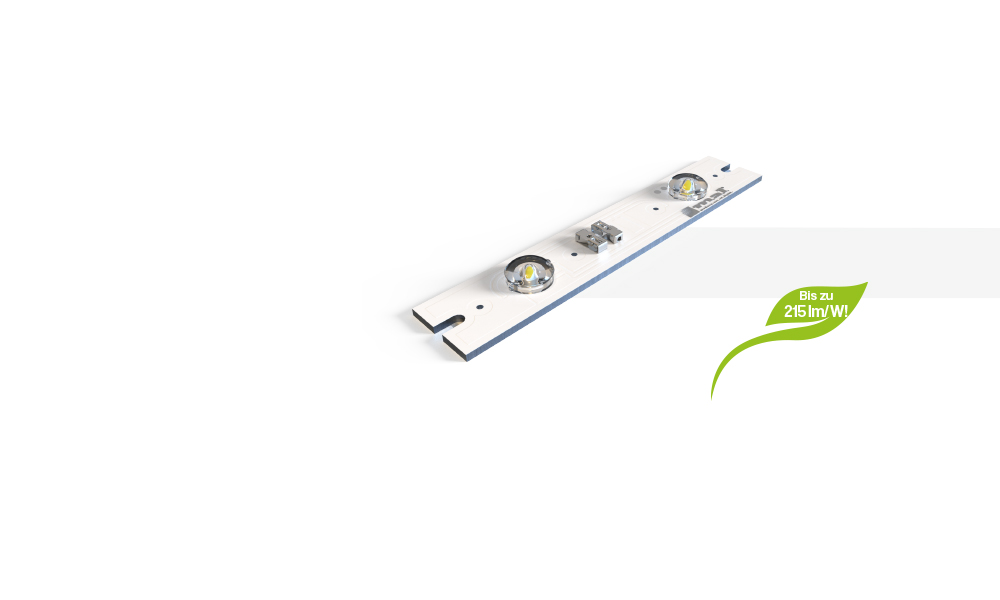

Lucidus L11

Features

Big module image

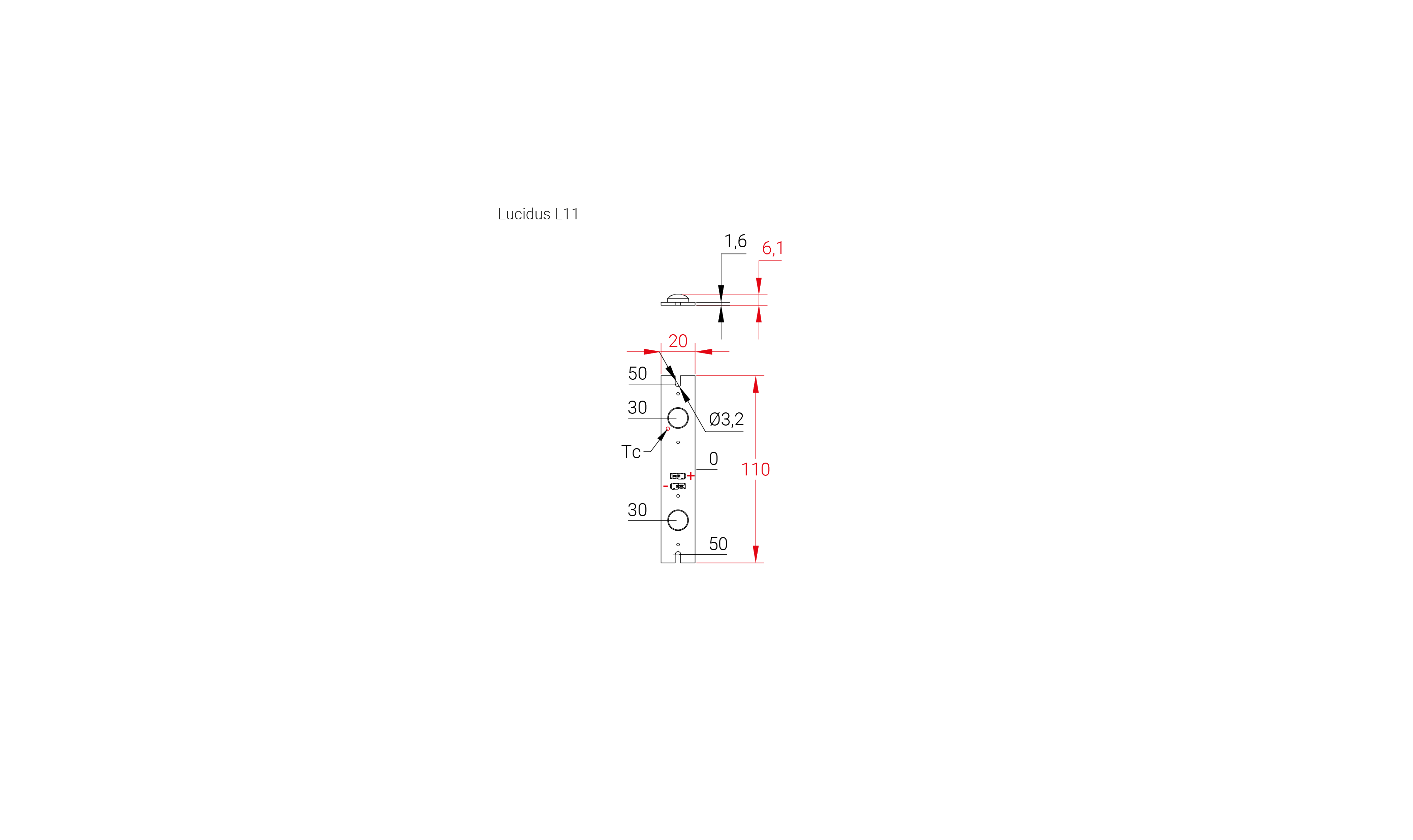

Module drawing
  • linear module for backlighting
  • equipped with high-precision, extremely wide-beam lenses
  • 2 Mid-Power LEDs
  • pitch distance 60 mm
  • length 110 mm
  • width 20 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 3.25 V
  • Intended for mounting by means of push-in clip(accessories)

Downloads

Technical data

Lucidus L11
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Lucidus G1 L11 W20 340 827 7519-00000 80 2700 K 100 mA 51 lm 189 lm/W 350 mA 169 lm 167 lm/W 700 mA 314 lm 145 lm/W
Lucidus G1 L11 W20 340 830 7519-00001 80 3000 K 100 mA 53 lm 202 lm/W 350 mA 176 lm 178 lm/W 700 mA 326 lm 155 lm/W
Lucidus G1 L11 W20 340 835 7519-00002 80 3500 K 100 mA 53 lm 202 lm/W 350 mA 176 lm 178 lm/W 700 mA 326 lm 155 lm/W
Lucidus G1 L11 W20 340 840 7519-00003 80 4000 K 100 mA 57 lm 215 lm/W 350 mA 188 lm 190 lm/W 700 mA 348 lm 165 lm/W
Lucidus G1 L11 W20 340 850 7519-00004 80 5000 K 100 mA 57 lm 215 lm/W 350 mA 188 lm 190 lm/W 700 mA 348 lm 165 lm/W
Lucidus G1 L11 W20 340 857 7519-00005 80 5700 K 100 mA 57 lm 215 lm/W 350 mA 188 lm 190 lm/W 700 mA 348 lm 165 lm/W
Lucidus G1 L11 W20 340 865 7519-00006 80 6500 K 100 mA 57 lm 215 lm/W 350 mA 188 lm 190 lm/W 700 mA 348 lm 165 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

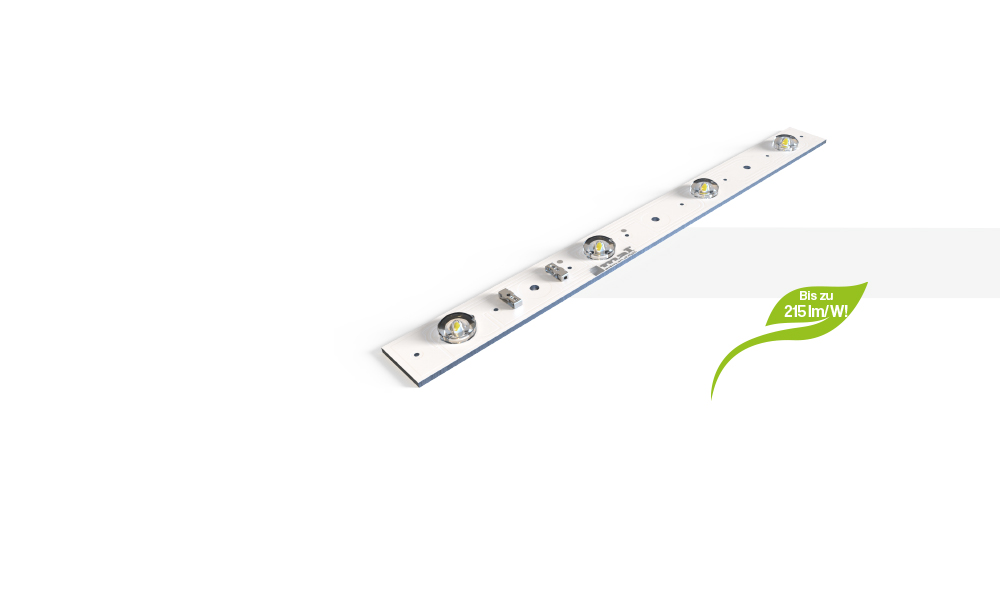

Lucidus L22

Features

Big module image

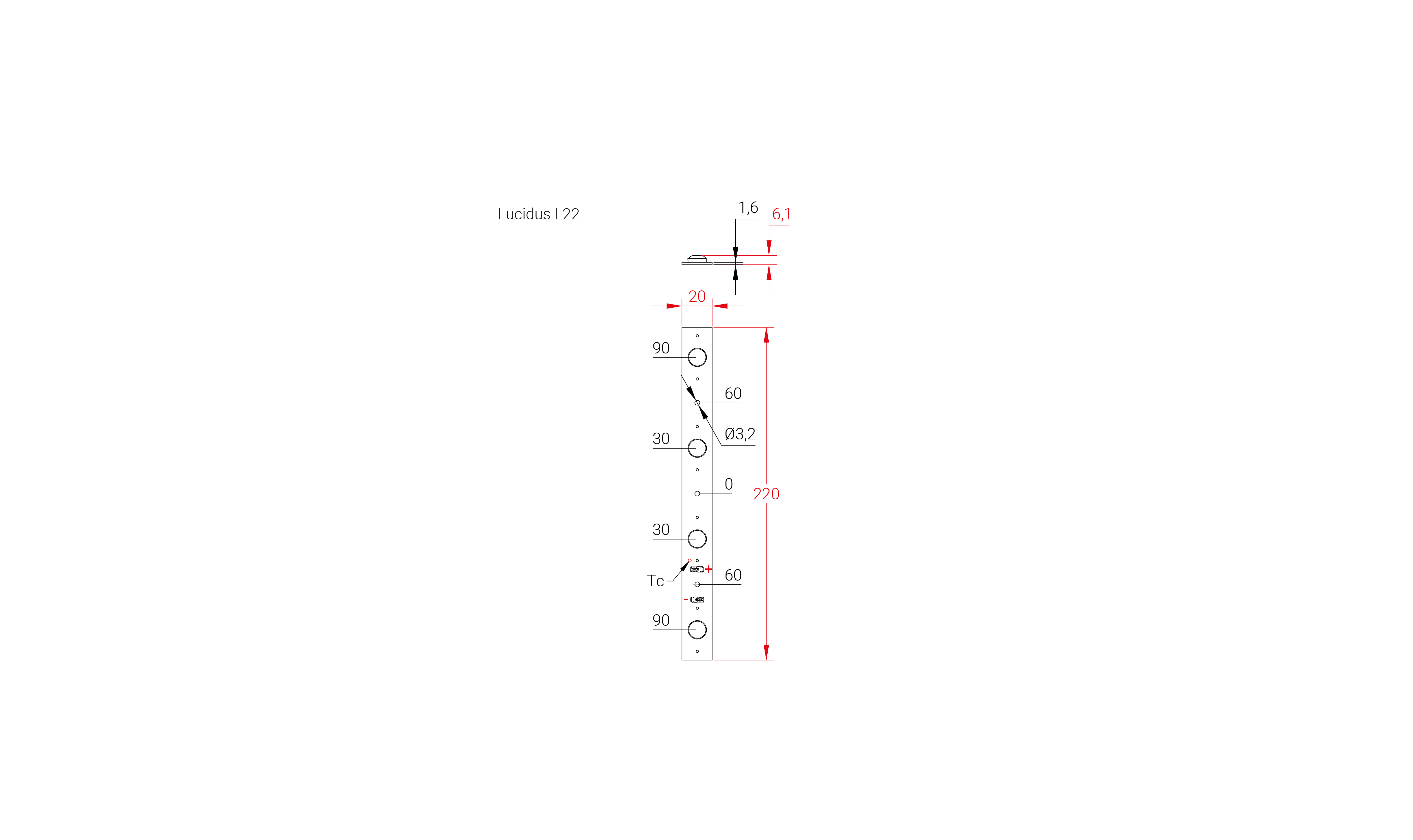

Module drawing
  • linear module for backlighting
  • equipped with high-precision, extremely wide-beam lenses
  • 4 Mid-Power LEDs
  • pitch distance 60 mm
  • length 220 mm
  • width 20 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 6.5 V
  • Intended for mounting by means of push-in clip(accessories)

Downloads

Technical data

Lucidus L22
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Lucidus G1 L22 W20 670 827 7519-00007 80 2700 K 100 mA 103 lm 189 lm/W 350 mA 339 lm 167 lm/W 700 mA 628 lm 145 lm/W
Lucidus G1 L22 W20 670 830 7519-00008 80 3000 K 100 mA 107 lm 202 lm/W 350 mA 352 lm 178 lm/W 700 mA 652 lm 155 lm/W
Lucidus G1 L22 W20 670 835 7519-00009 80 3500 K 100 mA 107 lm 202 lm/W 350 mA 352 lm 178 lm/W 700 mA 652 lm 155 lm/W
Lucidus G1 L22 W20 670 840 7519-00010 80 4000 K 100 mA 114 lm 215 lm/W 350 mA 375 lm 190 lm/W 700 mA 696 lm 165 lm/W
Lucidus G1 L22 W20 670 850 7519-00011 80 5000 K 100 mA 114 lm 215 lm/W 350 mA 375 lm 190 lm/W 700 mA 696 lm 165 lm/W
Lucidus G1 L22 W20 670 857 7519-00012 80 5700 K 100 mA 114 lm 215 lm/W 350 mA 375 lm 190 lm/W 700 mA 696 lm 165 lm/W
Lucidus G1 L22 W20 670 865 7519-00013 80 6500 K 100 mA 114 lm 215 lm/W 350 mA 375 lm 190 lm/W 700 mA 696 lm 165 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

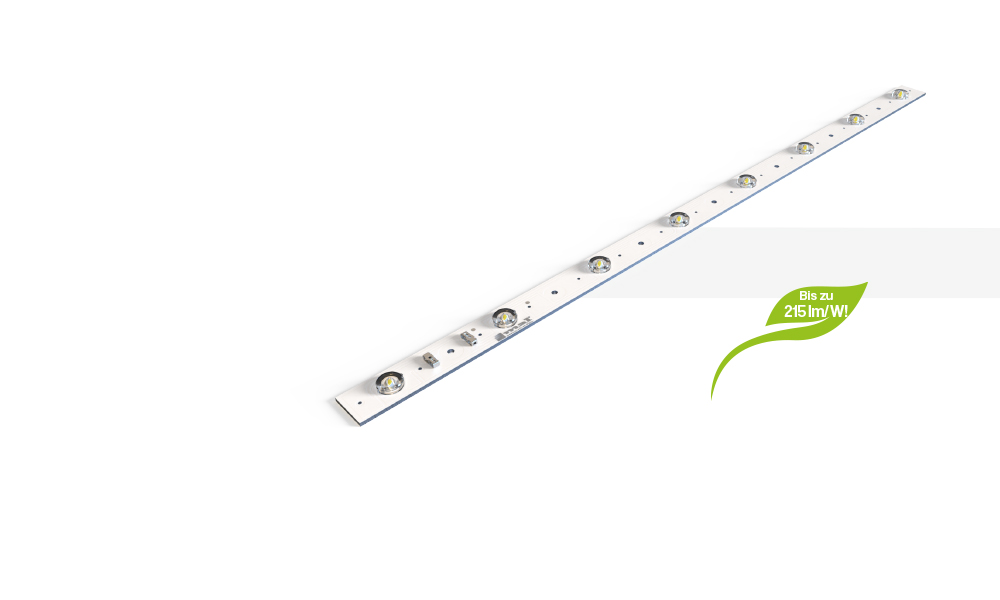

Lucidus L46

Features

Big module image

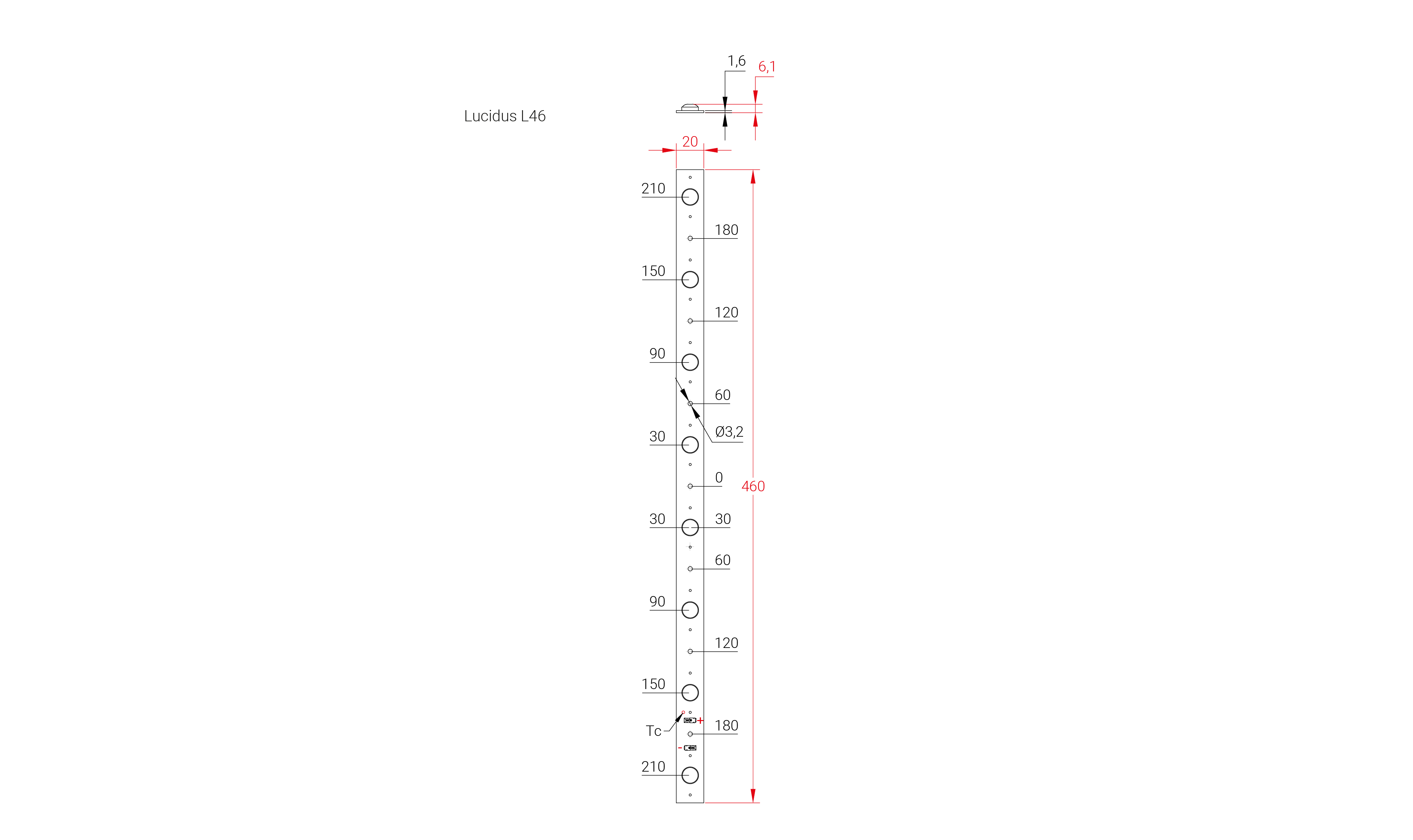

Module drawing
  • linear module for backlighting
  • equipped with high-precision, extremely wide-beam lenses
  • 8 Mid-Power-LEDs
  • pitch distance 60 mm
  • length 460 mm
  • width 20 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 13 V
  • Intended for mounting by means of push-in clip(accessories)

Downloads

Technical data

Lucidus L46
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Lucidus G1 L46 W20 1340 827 7519-00014 80 2700 K 100 mA 205 lm 189 lm/W 350 mA 678 lm 167 lm/W 700 mA 1256 lm 145 lm/W
Lucidus G1 L46 W20 1340 830 7519-00015 80 3000 K 100 mA 213 lm 202 lm/W 350 mA 703 lm 178 lm/W 700 mA 1304 lm 155 lm/W
Lucidus G1 L46 W20 1340 835 7519-00016 80 3500 K 100 mA 213 lm 202 lm/W 350 mA 703 lm 178 lm/W 700 mA 1304 lm 155 lm/W
Lucidus G1 L46 W20 1340 840 7519-00017 80 4000 K 100 mA 227 lm 215 lm/W 350 mA 750 lm 190 lm/W 700 mA 1391 lm 165 lm/W
Lucidus G1 L46 W20 1340 850 7519-00018 80 5000 K 100 mA 227 lm 215 lm/W 350 mA 750 lm 190 lm/W 700 mA 1391 lm 165 lm/W
Lucidus G1 L46 W20 1340 857 7519-00019 80 5700 K 100 mA 227 lm 215 lm/W 350 mA 750 lm 190 lm/W 700 mA 1391 lm 165 lm/W
Lucidus G1 L46 W20 1340 865 7519-00020 80 6500 K 100 mA 227 lm 215 lm/W 350 mA 750 lm 190 lm/W 700 mA 1391 lm 165 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Lucidus products

Lucidus is one of our latest product developments. These linear boards have been developed for uniform, flat backlighting. They are optimized for a small distance between the LED module and the pane or film.

By using highly efficient, wide-beam individual lenses made of PMMA, significantly smaller distances for uniform illumination can be achieved, than would be possible with free-emitting LEDs. With three lengths from 110 mm to 452 mm, Lucidus enables homogeneous illumination of round and free-form surfaces.

With up to 215 lm/W, our modules are highly efficient and, with up to 1400 lm, can master even demanding tasks.

Choose between seven light colors: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 5700 K and 6500 K. Color rendering: CRI 80, CRI 90 is possible on request The lights are connected in series so that simple scaling is possible without any loss of uniformity. Lucidus is therefore an excellent standard module for mastering a wide range of backlighting tasks.
