Varius HCL L7

  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x6 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 70 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Varius HCL L14

  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x12 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 140 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Varius HCL L28

  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x24 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 280 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Varius HCL L56

  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x48 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 560 mm
  • Products

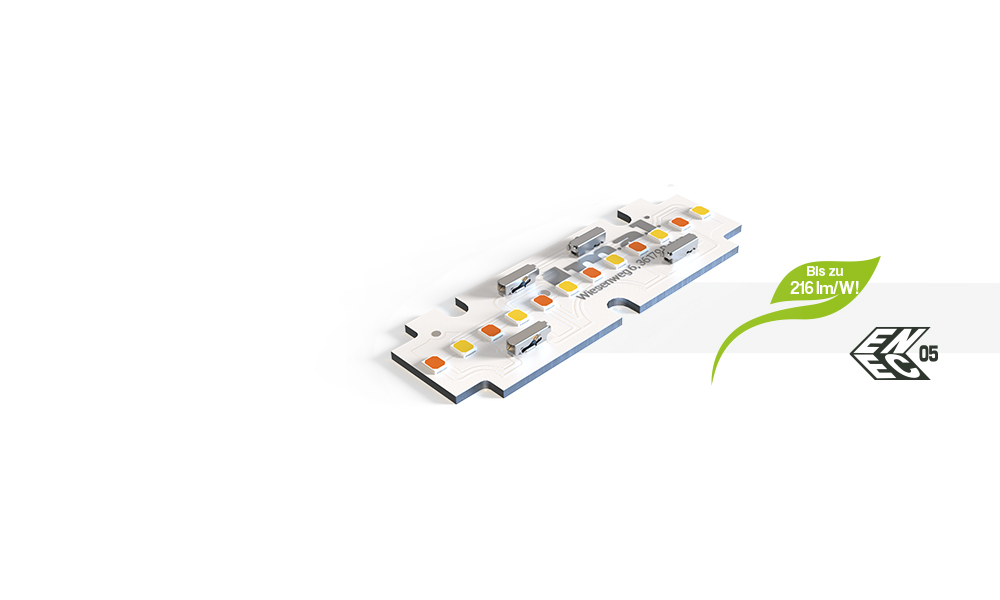

Varius HCL L7

Features

Big module image

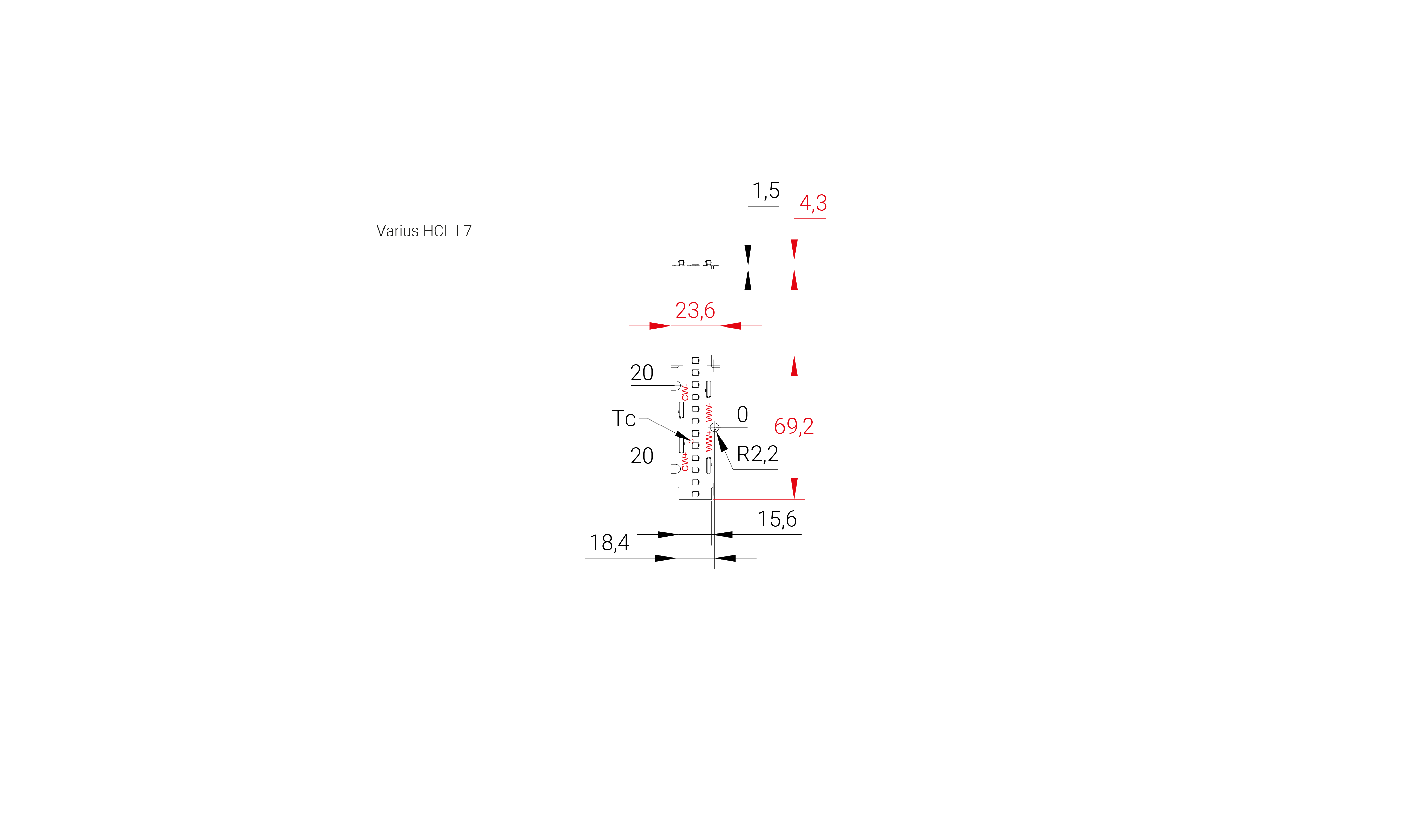

Module drawing
  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x6 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 70 mm
  • width 24 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 3.1 V

Downloads

Technical data

Varius HCL L7
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Varius HCL G2 L7 W24 325 827-865 7533-00503 80 2700 K 150 mA 76 lm 192 lm/W 350 mA 175 lm 184 lm/W 700 mA 339 lm 172 lm/W
6500 K 150 mA 85 lm 216 lm/W 350 mA 194 lm 207 lm/W 700 mA 375 lm 193 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

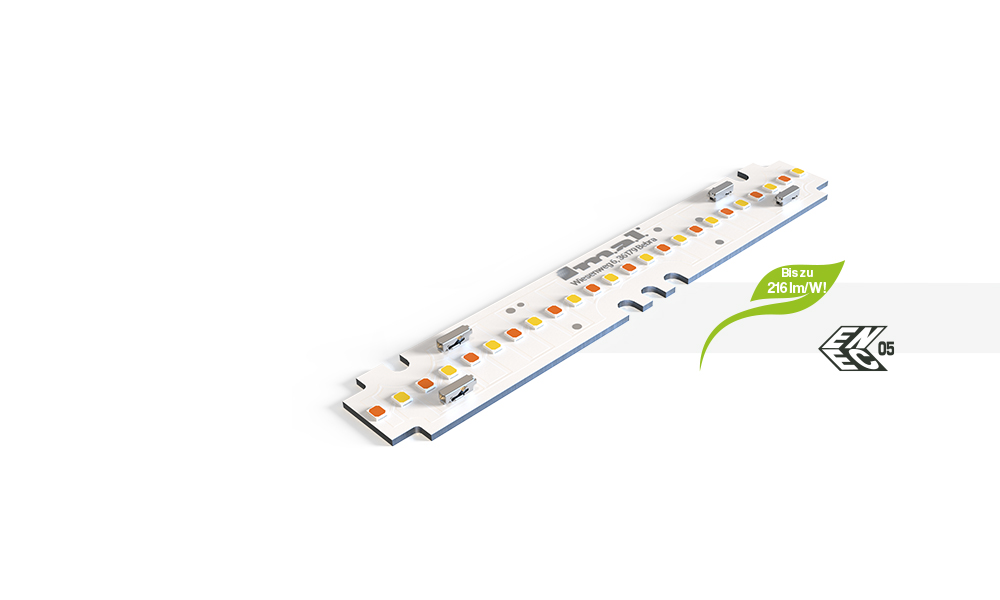

Varius HCL L14

Features

Big module image

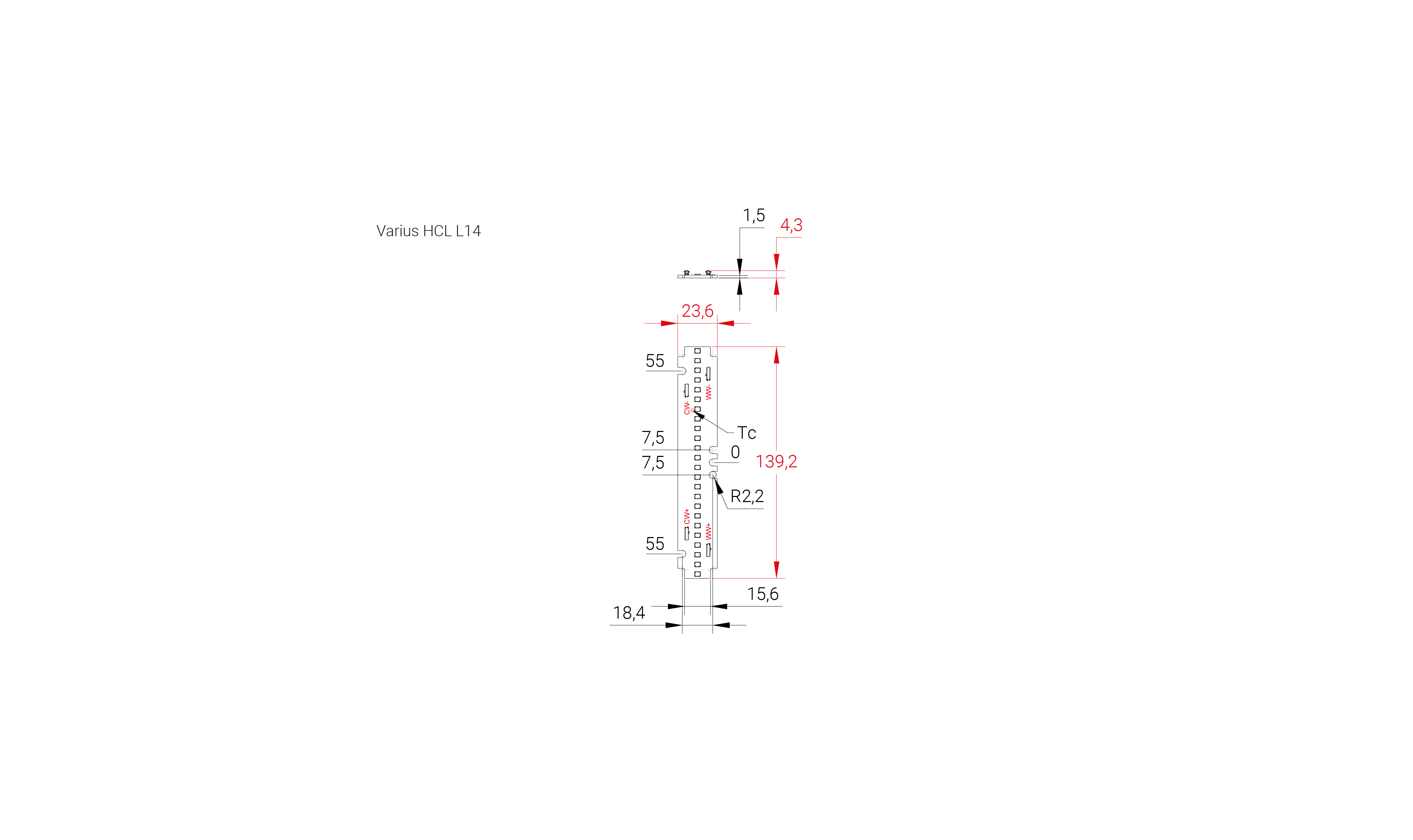

Module drawing
  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x12 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 140 mm
  • width 24 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 6.2 V

Downloads

Technical data

Varius HCL L14
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Varius HCL G2 L14 W24 650 827-865 7533-00500 80 2700 K 150 mA 153 lm 192 lm/W 350 mA 350 lm 184 lm/W 700 mA 678 lm 172 lm/W
6500 K 150 mA 169 lm 216 lm/W 350 mA 388 lm 207 lm/W 700 mA 750 lm 193 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

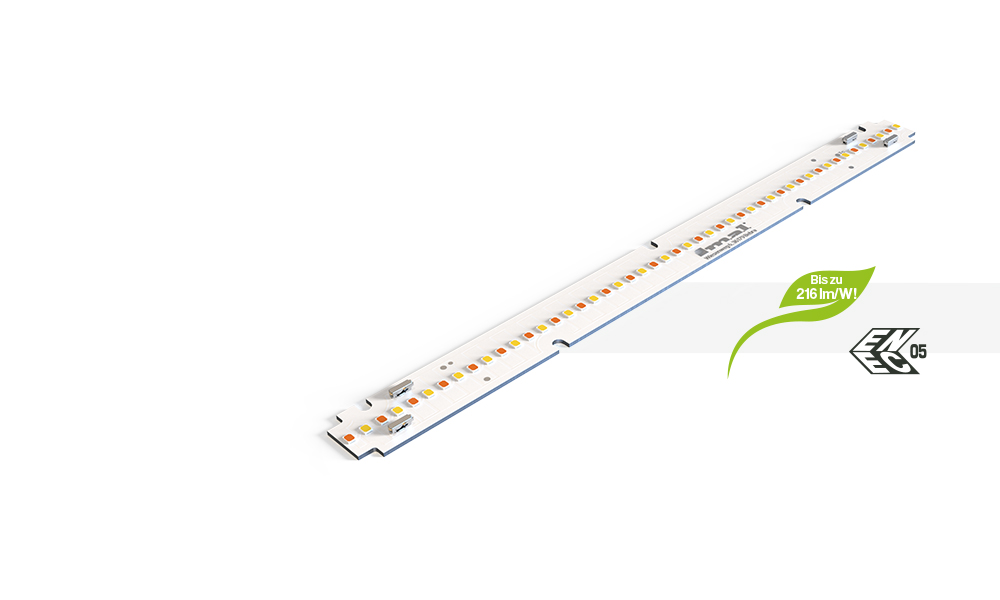

Varius HCL L28

Features

Big module image

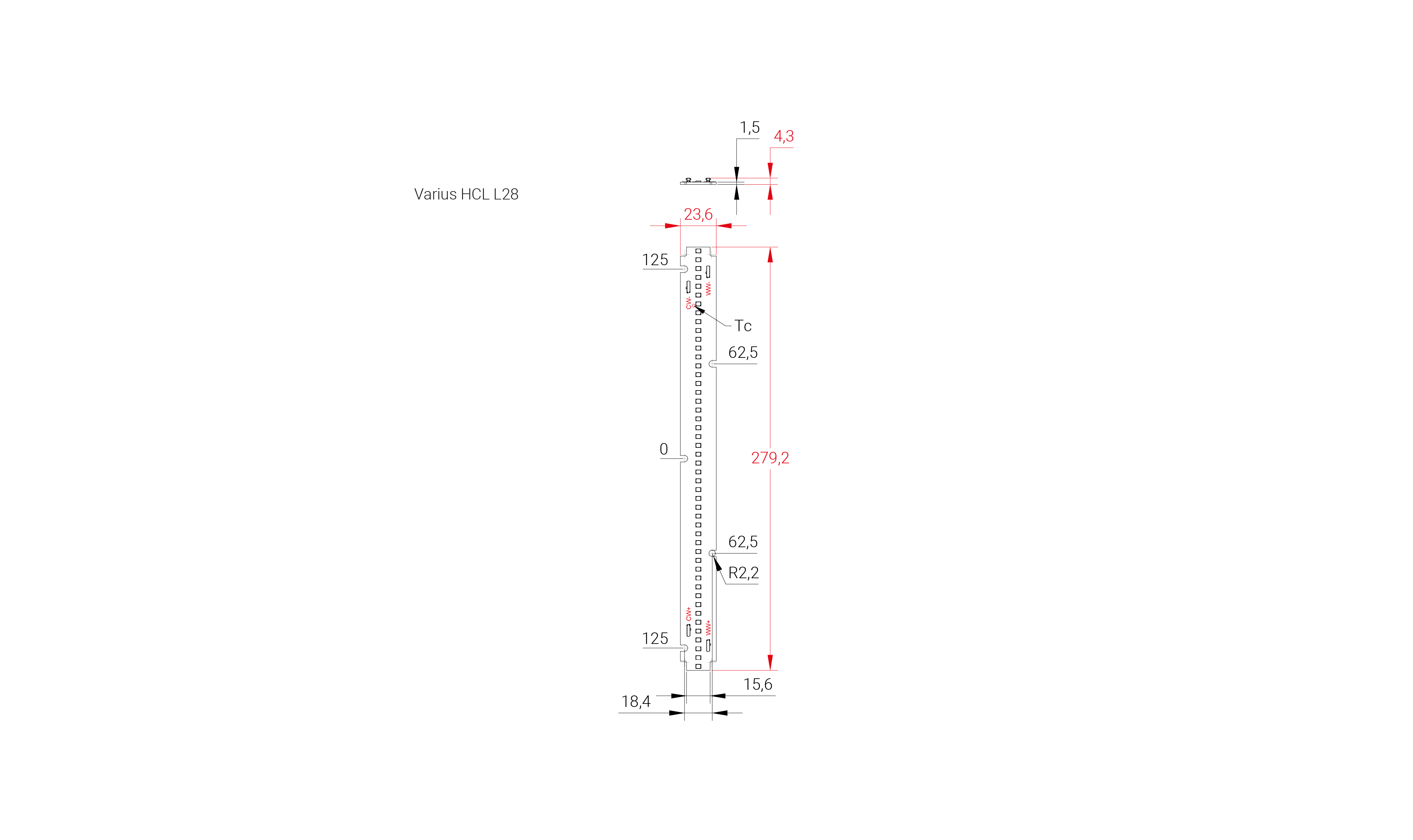

Module drawing
  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x24 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 280 mm
  • width 24 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 12.4 V

Downloads

Technical data

Varius HCL L28
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Varius HCL G2 L28 W24 1300 827-865 7533-00501 80 2700 K 150 mA 306 lm 192 lm/W 350 mA 700 lm 184 lm/W 700 mA 1355 lm 172 lm/W
6500 K 150 mA 339 lm 216 lm/W 350 mA 776 lm 207 lm/W 700 mA 1501 lm 193 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

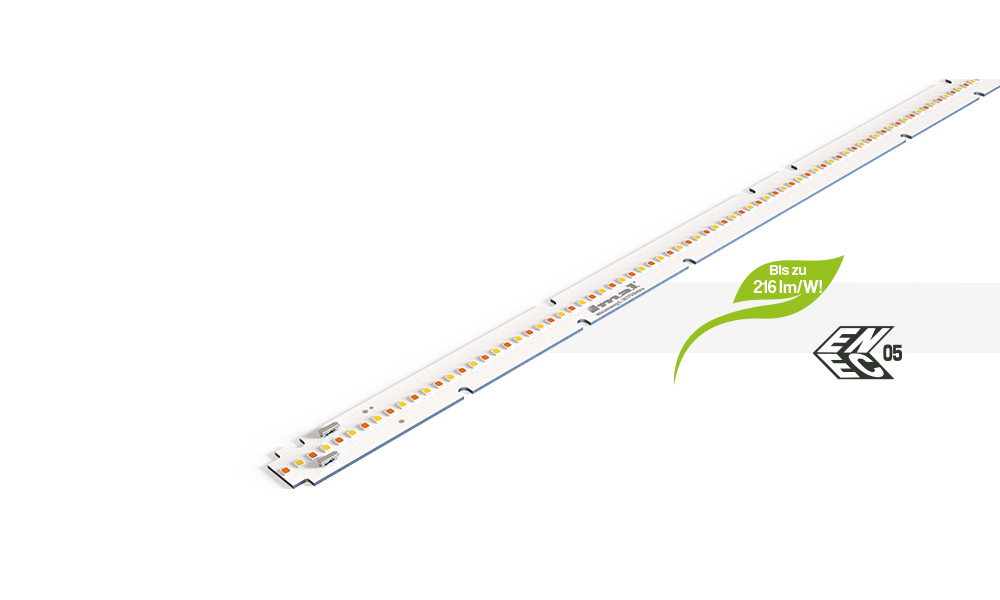

Varius HCL L56

Features

Big module image

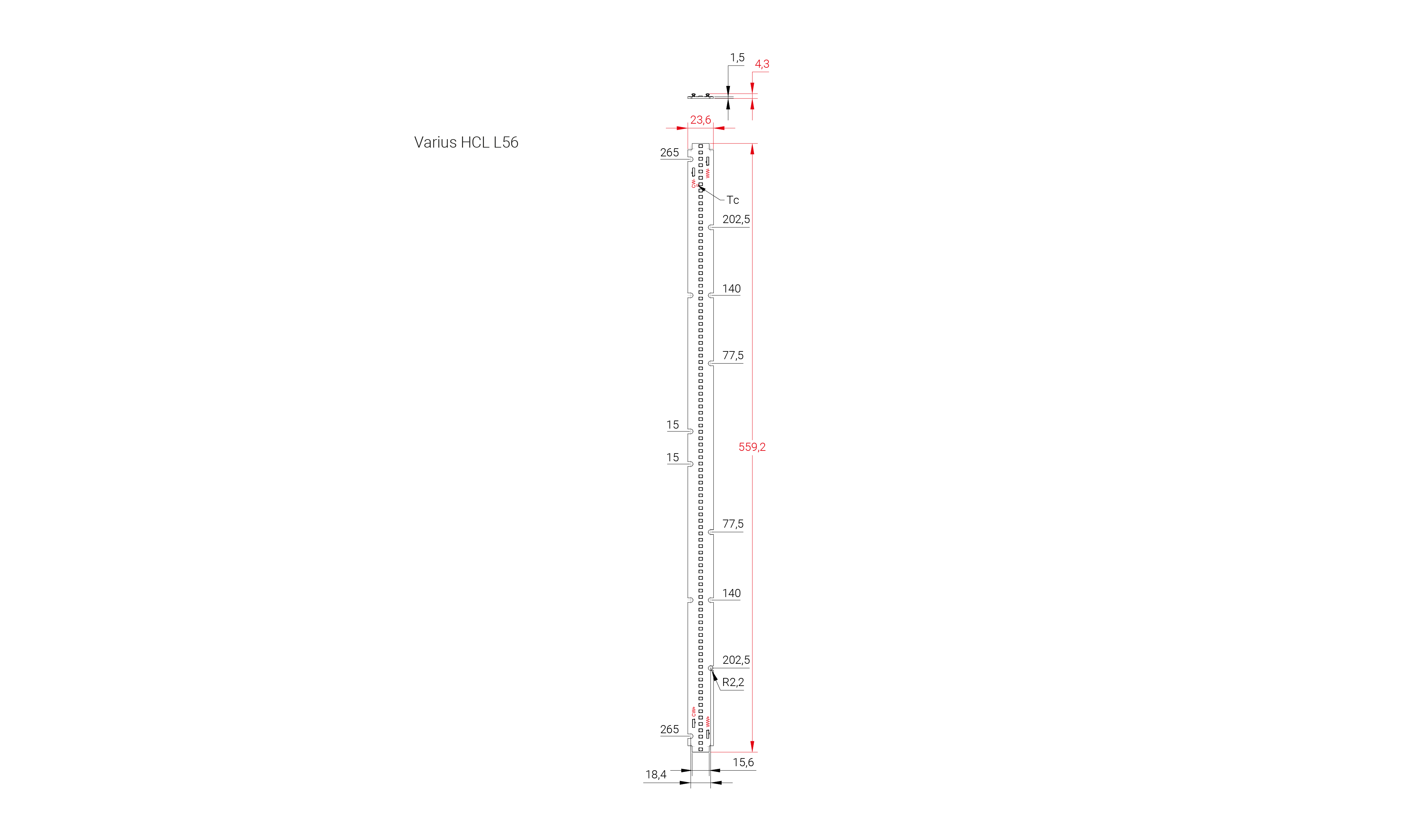

Module drawing
  • HCL linear module with 2 channels for installation in luminaires
  • tunable white 2700 K to 6500 K
  • 2x48 Mid-Power LEDs
  • pitch distance 5.8 mm
  • length 560 mm
  • width 24 mm
  • 4 connection terminals
  • rated current 350 mA
  • maximum operating current 700 mA
  • maximum forward voltage 24.8 V

Downloads

Technical data

Varius HCL L56
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Varius HCL G2 L56 W24 2600 827-865 7533-00502 80 2700 K 150 mA 612 lm 192 lm/W 350 mA 1401 lm 184 lm/W 700 mA 2710 lm 172 lm/W
6500 K 150 mA 677 lm 216 lm/W 350 mA 1551 lm 207 lm/W 700 mA 3001 lm 193 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Varius HCL products

Our iX-led Varius HCL are Zhaga-compliant LED modules ideal for installation in luminaires. There is a choice of four different lengths from 70 mm to 560 mm. The LED modules are equipped with warm white and cool white LEDs in two separate channels.

The color rendering is CRI 80 and CRI 90, CRI 95 is available on request. As light colors 2 channels with 2700 K and 6500 K are available. In terms of lighting technology, the modules are up to date with 216 Im/W or 3000 Im. By selecting LEDs with a color consistency of 3 Step MacAdam, a high color homogeneity is achieved in the module.

Our modules are designed for series connection. Modules of different lengths can also be connected in series without any problems. The spacing of the LEDs is selected in such a way as to ensure that they are distributed as evenly as possible across all modules.

Our iX-led standard modules are available at short notice, even in small quantities, and are advantageous in the overall concept.

Standard does not mean rigid and unchangeable.

Do you need different light colors, different color renderings or minimally shorter/longer versions of the modules? You need the assembly of soldering nuts as spacers or a threaded insert for simplified mounting of the module? No problem. Other terminals or soldered cables are also possible. With the iX-led product family we can adapt and individualize the standard to your needs.
