iX-led ❯ RGBW LED-modules ❯ Varius RGBW

Varius RGBW

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Varius RGBW L28 320

  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 12 RGBW LEDs
  • pitch distance 23.3 mm
  • length 280 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Varius RGBW L28 640

  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 24 RGBW LEDs
  • pitch distance 11.7 mm
  • length 280 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Varius RGBW L56 640

  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 24 RGBW LEDs
  • pitch distance 23.3 mm
  • length 560 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Varius RGBW L56 1280

  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 48 RGBW LEDs
  • pitch distance 11.7 mm
  • length 560 mm
  • Products

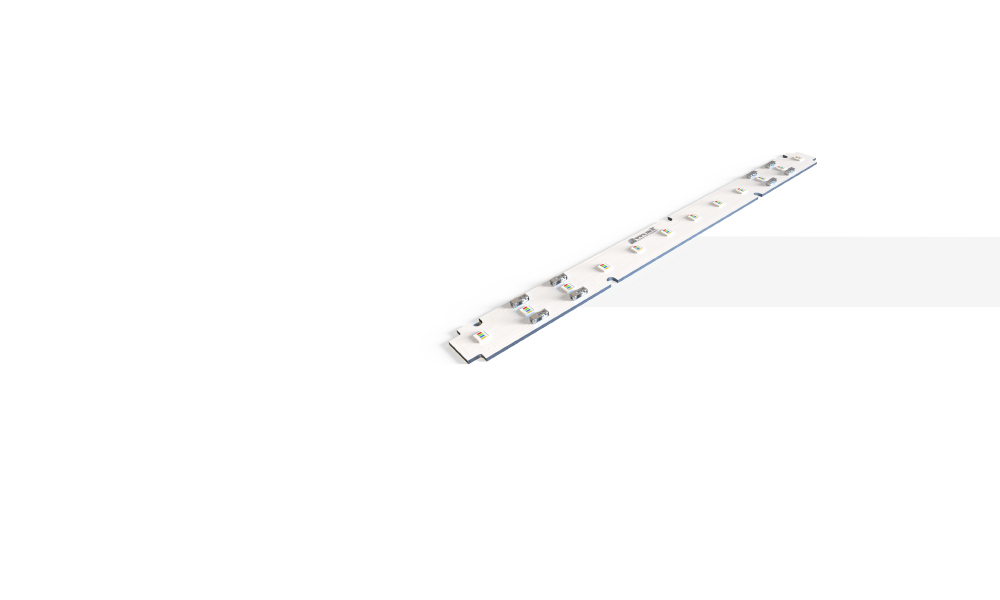

Varius RGBW L28 320

Features

Big module image

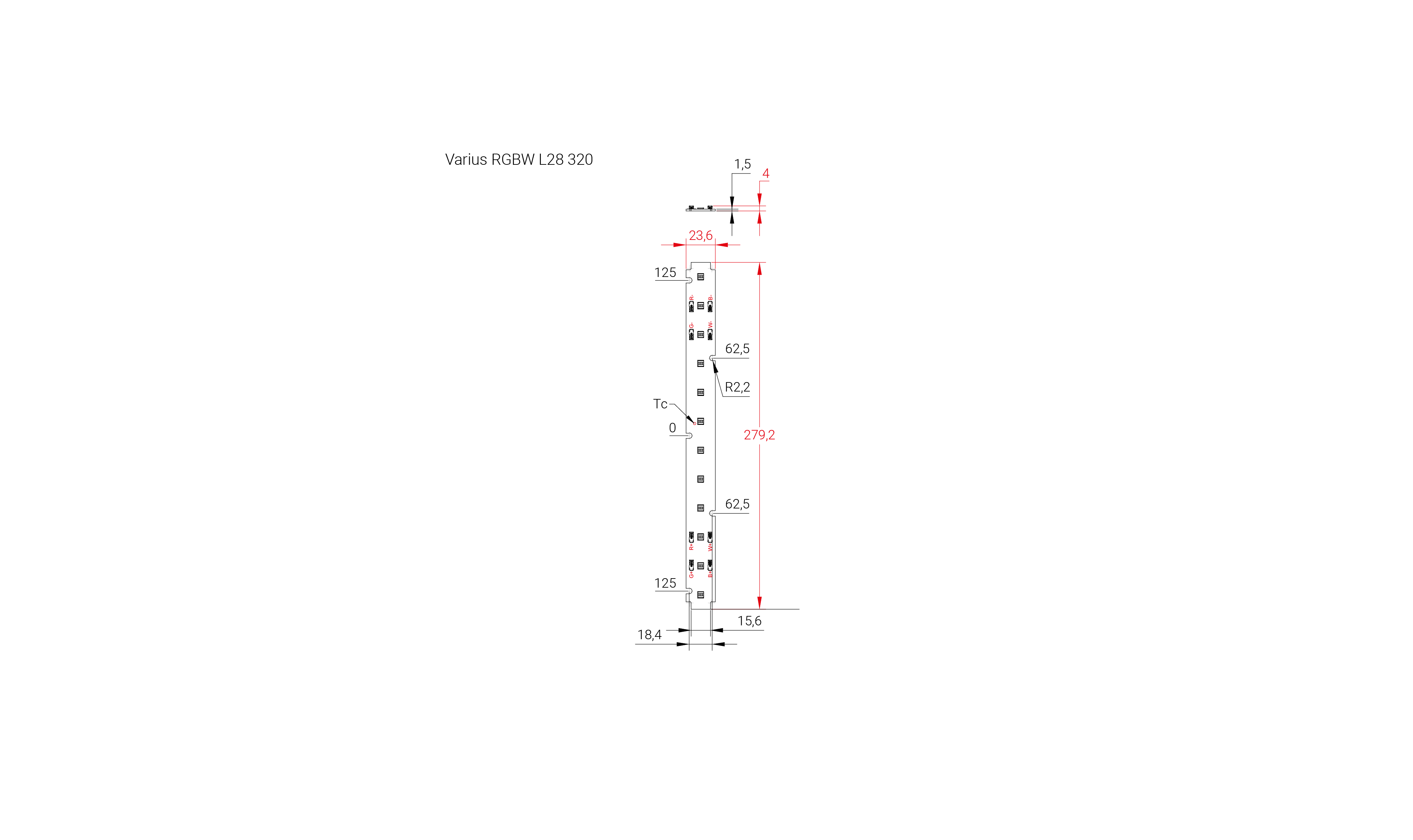

Module drawing
  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 12 RGBW LEDs
  • pitch distance 23.3 mm
  • length 280 mm
  • width 24 mm
  • eight connection terminals
  • rated current 250 mA
  • maximum operating current 350 mA
  • maximum forward voltage 11.4 V

Downloads

Technical data

Varius RGBW L28 320
Description Order code Light color CRI/CCT HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
Varius RGBW G2 L28 W24 320 RGBW857 7533-00004 weiß RGBW857 125 mA 163 lm 161 lm/W 250 mA 319 lm 153 lm/W 350 mA 440 lm 148 lm/W
rot 125 mA 56 lm 80 lm/W 250 mA 107 lm 71 lm/W 350 mA 144 lm 66 lm/W
grün 125 mA 140 lm 153 lm/W 250 mA 249 lm 123 lm/W 350 mA 323 lm 107 lm/W
blau 125 mA 42 lm 41 lm/W 250 mA 75 lm 34 lm/W 350 mA 98 lm 31 lm/W
Varius RGBW G2 L28 W24 320 RGBW840 7533-00005 weiß RGBW840 125 mA 163 lm 161 lm/W 250 mA 319 lm 153 lm/W 350 mA 440 lm 148 lm/W
rot 125 mA 56 lm 80 lm/W 250 mA 107 lm 71 lm/W 350 mA 144 lm 66 lm/W
grün 125 mA 140 lm 153 lm/W 250 mA 249 lm 123 lm/W 350 mA 323 lm 107 lm/W
blau 125 mA 42 lm 41 lm/W 250 mA 75 lm 34 lm/W 350 mA 98 lm 31 lm/W
Varius RGBW G2 L28 W24 320 RGBW830 7533-00010 weiß RGBW830 125 mA 163 lm 161 lm/W 250 mA 319 lm 153 lm/W 350 mA 440 lm 148 lm/W
rot 125 mA 56 lm 80 lm/W 250 mA 107 lm 71 lm/W 350 mA 144 lm 66 lm/W
grün 125 mA 140 lm 153 lm/W 250 mA 249 lm 123 lm/W 350 mA 323 lm 107 lm/W
blau 125 mA 42 lm 41 lm/W 250 mA 75 lm 34 lm/W 350 mA 98 lm 31 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

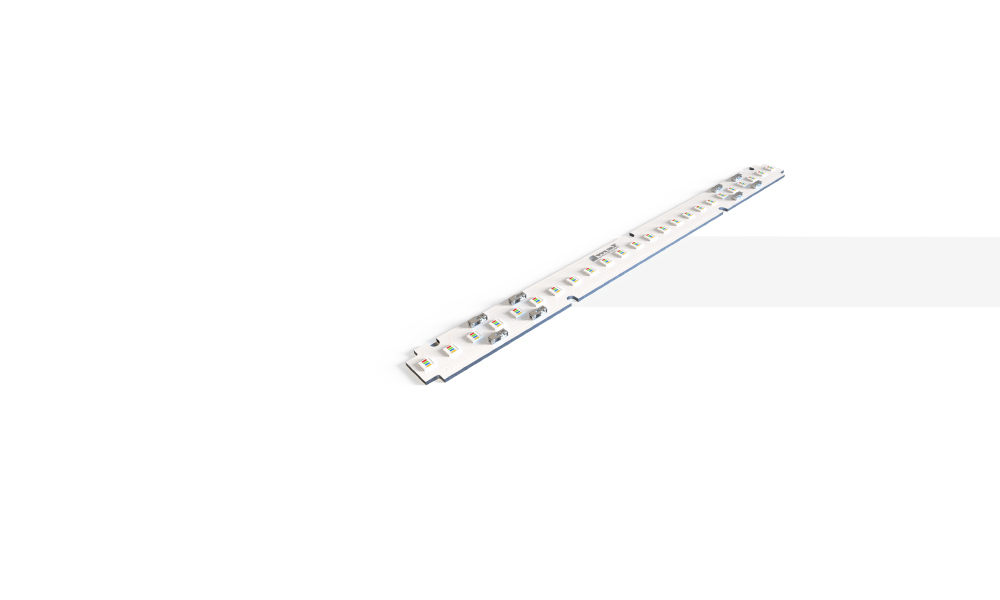

Varius RGBW L28 640

Features

Big module image

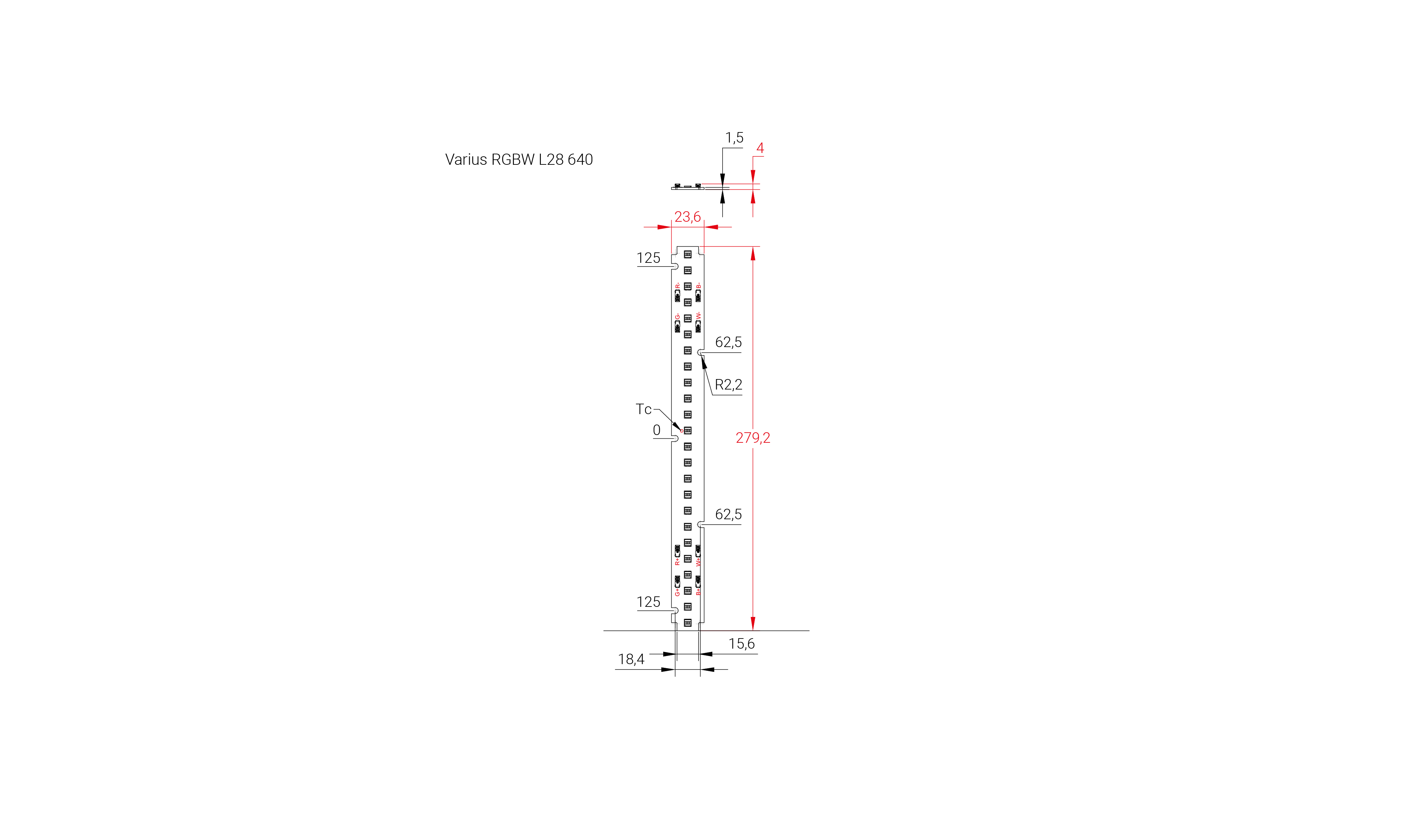

Module drawing
  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 24 RGBW LEDs
  • pitch distance 11.7 mm
  • length 280 mm
  • width 24 mm
  • eight connection terminals
  • rated current 500 mA
  • maximum operating current 700 mA
  • maximum forward voltage 11.4 V

Downloads

Technical data

Varius RGBW L28 640
Description Order code Light color CRI/CCT HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
Varius RGBW G2 L28 W24 640 RGBW857 7533-00000 weiß RGBW857 250 mA 327 lm 161 lm/W 500 mA 638 lm 153 lm/W 700 mA 881 lm 148 lm/W
rot 250 mA 112 lm 80 lm/W 500 mA 213 lm 71 lm/W 700 mA 287 lm 66 lm/W
grün 250 mA 281 lm 153 lm/W 500 mA 498 lm 123 lm/W 700 mA 646 lm 107 lm/W
blau 250 mA 83 lm 41 lm/W 500 mA 149 lm 34 lm/W 700 mA 196 lm 31 lm/W
Varius RGBW G2 L28 W24 640 RGBW840 7533-00001 weiß RGBW840 250 mA 327 lm 161 lm/W 500 mA 638 lm 153 lm/W 700 mA 881 lm 148 lm/W
rot 250 mA 112 lm 80 lm/W 500 mA 213 lm 71 lm/W 700 mA 287 lm 66 lm/W
grün 250 mA 281 lm 153 lm/W 500 mA 498 lm 123 lm/W 700 mA 646 lm 107 lm/W
blau 250 mA 83 lm 41 lm/W 500 mA 149 lm 34 lm/W 700 mA 196 lm 31 lm/W
Varius RGBW G2 L28 W24 640 RGBW830 7533-00008 weiß RGBW830 250 mA 327 lm 161 lm/W 500 mA 638 lm 153 lm/W 700 mA 881 lm 148 lm/W
rot 250 mA 112 lm 80 lm/W 500 mA 213 lm 71 lm/W 700 mA 287 lm 66 lm/W
grün 250 mA 281 lm 153 lm/W 500 mA 498 lm 123 lm/W 700 mA 646 lm 107 lm/W
blau 250 mA 83 lm 41 lm/W 500 mA 149 lm 34 lm/W 700 mA 196 lm 31 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

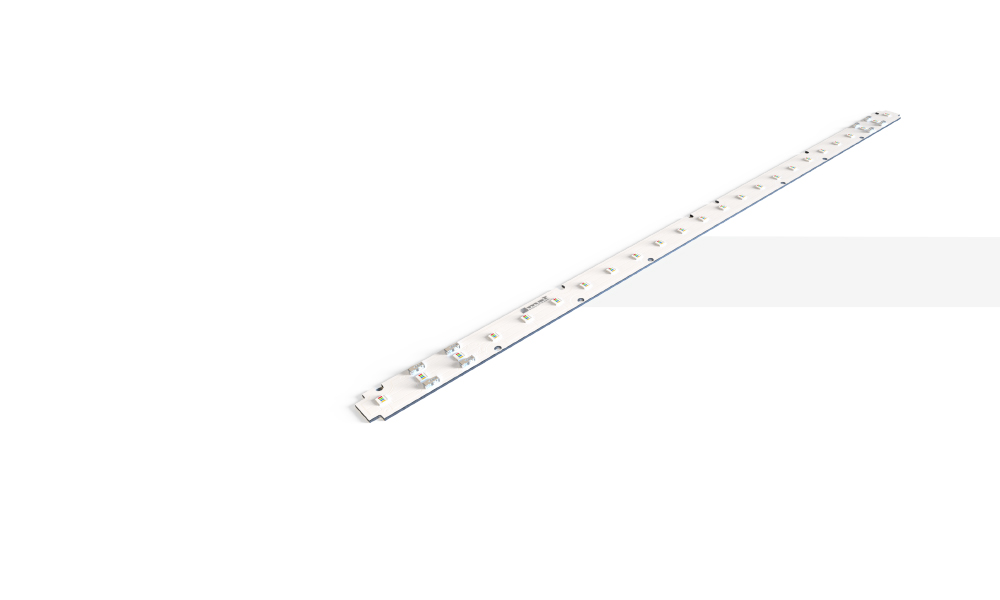

Varius RGBW L56 640

Features

Big module image

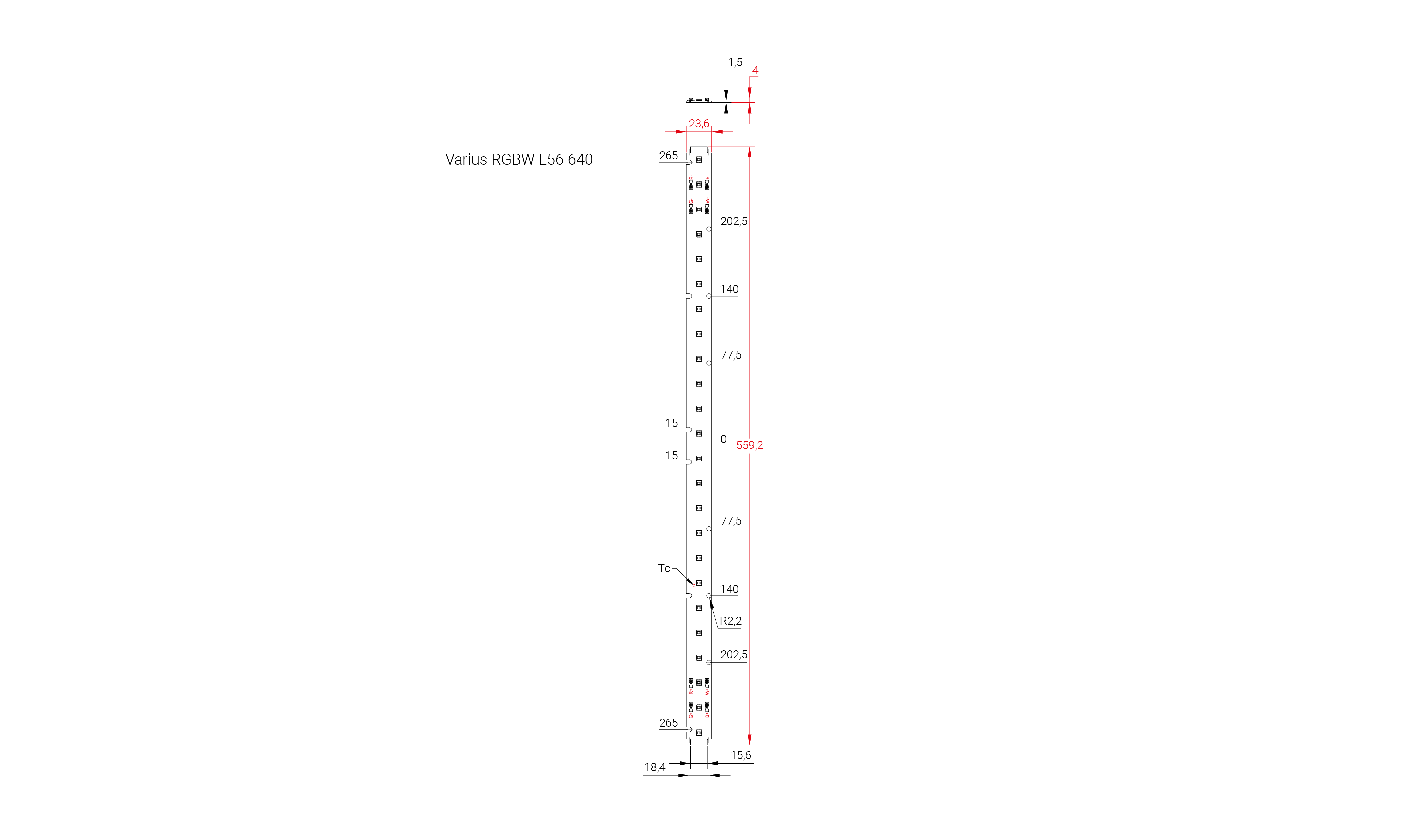

Module drawing
  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 24 RGBW LEDs
  • pitch distance 23.3 mm
  • length 560 mm
  • width 24 mm
  • eight connection terminals
  • rated current 250 mA
  • maximum operating current 350 mA
  • maximum forward voltage 22.8 V

Downloads

Technical data

Varius RGBW L56 640
Description Order code Light color CRI/CCT HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
Varius RGBW G2 L56 W24 640 RGBW857 7533-00006 weiß RGBW857 125 mA 327 lm 161 lm/W 250 mA 638 lm 153 lm/W 350 mA 881 lm 148 lm/W
rot 125 mA 112 lm 80 lm/W 250 mA 213 lm 71 lm/W 350 mA 287 lm 66 lm/W
grün 125 mA 281 lm 153 lm/W 250 mA 498 lm 123 lm/W 350 mA 646 lm 107 lm/W
blau 125 mA 83 lm 41 lm/W 250 mA 149 lm 34 lm/W 350 mA 196 lm 31 lm/W
Varius RGBW G2 L56 W24 640 RGBW840 7533-00007 weiß RGBW840 125 mA 327 lm 161 lm/W 250 mA 638 lm 153 lm/W 350 mA 881 lm 148 lm/W
rot 125 mA 112 lm 80 lm/W 250 mA 213 lm 71 lm/W 350 mA 287 lm 66 lm/W
grün 125 mA 281 lm 153 lm/W 250 mA 498 lm 123 lm/W 350 mA 646 lm 107 lm/W
blau 125 mA 83 lm 41 lm/W 250 mA 149 lm 34 lm/W 350 mA 196 lm 31 lm/W
Varius RGBW G2 L56 W24 640 RGBW830 7533-00011 weiß RGBW830 125 mA 327 lm 161 lm/W 250 mA 638 lm 153 lm/W 350 mA 881 lm 148 lm/W
rot 125 mA 112 lm 80 lm/W 250 mA 213 lm 71 lm/W 350 mA 287 lm 66 lm/W
grün 125 mA 281 lm 153 lm/W 250 mA 498 lm 123 lm/W 350 mA 646 lm 107 lm/W
blau 125 mA 83 lm 41 lm/W 250 mA 149 lm 34 lm/W 350 mA 196 lm 31 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

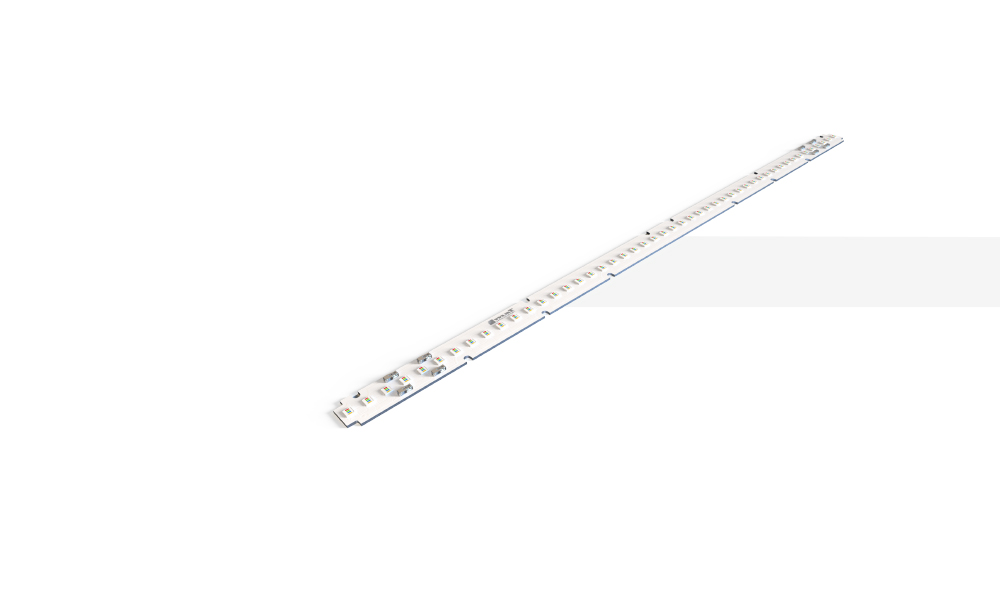

Varius RGBW L56 1280

Features

Big module image

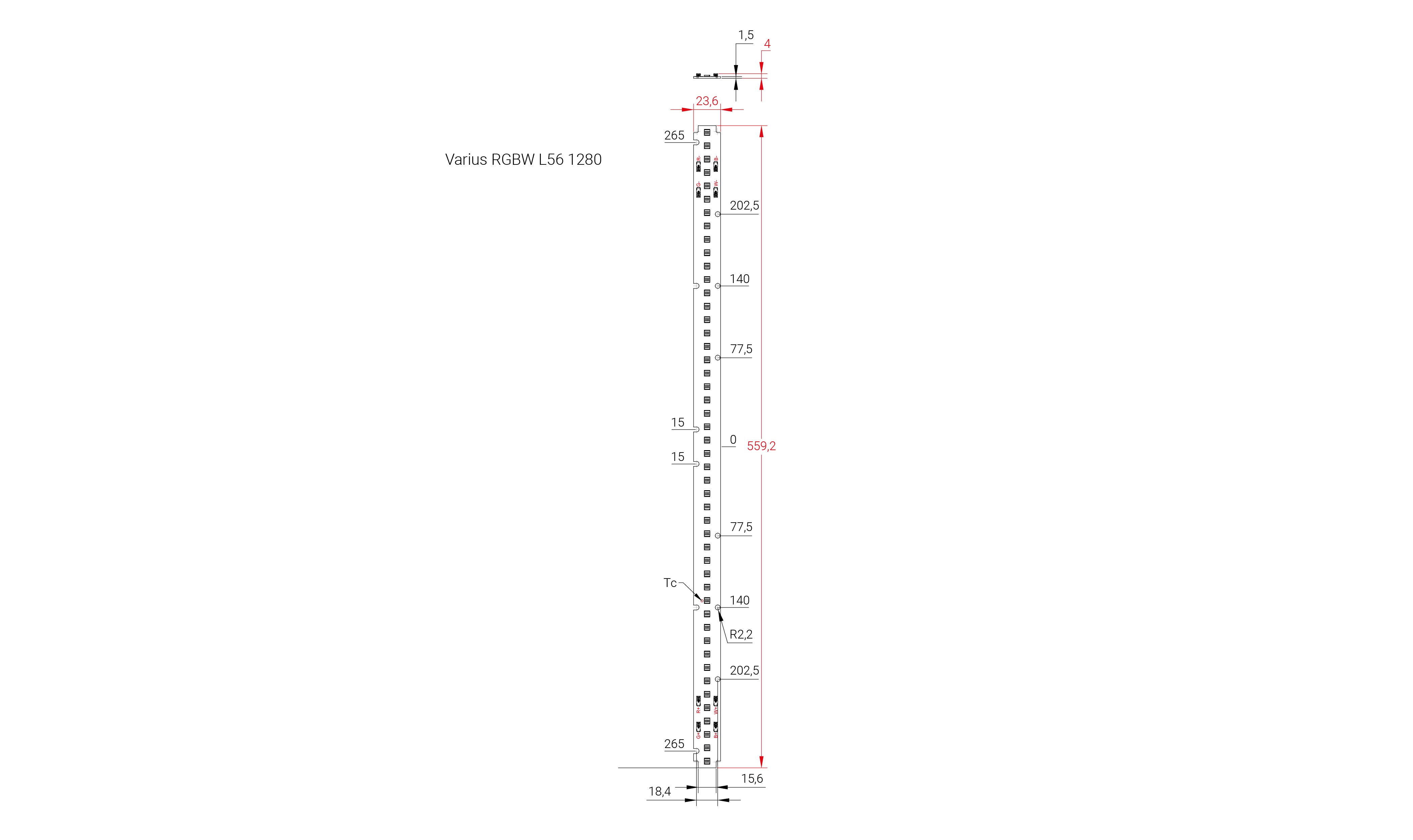

Module drawing
  • RGBW linear module for installation in luminaires
  • RGBW: four channels individually controllable
  • 48 RGBW LEDs
  • pitch distance 11.7 mm
  • length 560 mm
  • width 24 mm
  • eight connection terminals
  • rated current 500 mA
  • maximum operating current 700 mA
  • maximum forward voltage 22.8 V

Downloads

Technical data

Varius RGBW L56 1280
Description Order code Light color CRI/CCT HE RT HO
If Flux Eff. If Flux Eff. If Flux Eff.
Varius RGBW G2 L56 W24 1280 RGBW857 7533-00002 weiß RGBW857 250 mA 654 lm 161 lm/W 500 mA 1277 lm 153 lm/W 700 mA 1762 lm 148 lm/W
rot 250 mA 224 lm 80 lm/W 500 mA 426 lm 71 lm/W 700 mA 574 lm 66 lm/W
grün 250 mA 562 lm 153 lm/W 500 mA 997 lm 123 lm/W 700 mA 1291 lm 107 lm/W
blau 250 mA 166 lm 41 lm/W 500 mA 298 lm 34 lm/W 700 mA 391 lm 31 lm/W
Varius RGBW G2 L56 W24 1280 RGBW840 7533-00003 weiß RGBW840 250 mA 654 lm 161 lm/W 500 mA 1277 lm 153 lm/W 700 mA 1762 lm 148 lm/W
rot 250 mA 224 lm 80 lm/W 500 mA 426 lm 71 lm/W 700 mA 574 lm 66 lm/W
grün 250 mA 562 lm 153 lm/W 500 mA 997 lm 123 lm/W 700 mA 1291 lm 107 lm/W
blau 250 mA 166 lm 41 lm/W 500 mA 298 lm 34 lm/W 700 mA 391 lm 31 lm/W
Varius RGBW G2 L56 W24 1280 RGBW830 7533-00009 weiß RGBW830 250 mA 654 lm 161 lm/W 500 mA 1277 lm 153 lm/W 700 mA 1762 lm 148 lm/W
rot 250 mA 224 lm 80 lm/W 500 mA 426 lm 71 lm/W 700 mA 574 lm 66 lm/W
grün 250 mA 562 lm 153 lm/W 500 mA 997 lm 123 lm/W 700 mA 1291 lm 107 lm/W
blau 250 mA 166 lm 41 lm/W 500 mA 298 lm 34 lm/W 700 mA 391 lm 31 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Varius RGBW products

Our iX-led Varius RGBW modules are Zhaga-compliant LED modules that are ideal for installation in luminaires. Choose from two different lengths.

The LED modules are fitted with RGBW LEDs that can be controlled in four separate channels. The color rendering is CRI 80.

You can choose between the light colors 3000 K, 4000 K and 5700 K.

Our modules are designed for series connection. Modules of different lengths can also be connected in series without any problems. The distance between the LEDs is selected in such a way that they are distributed as evenly as possible across all modules.
