Linearis Z

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

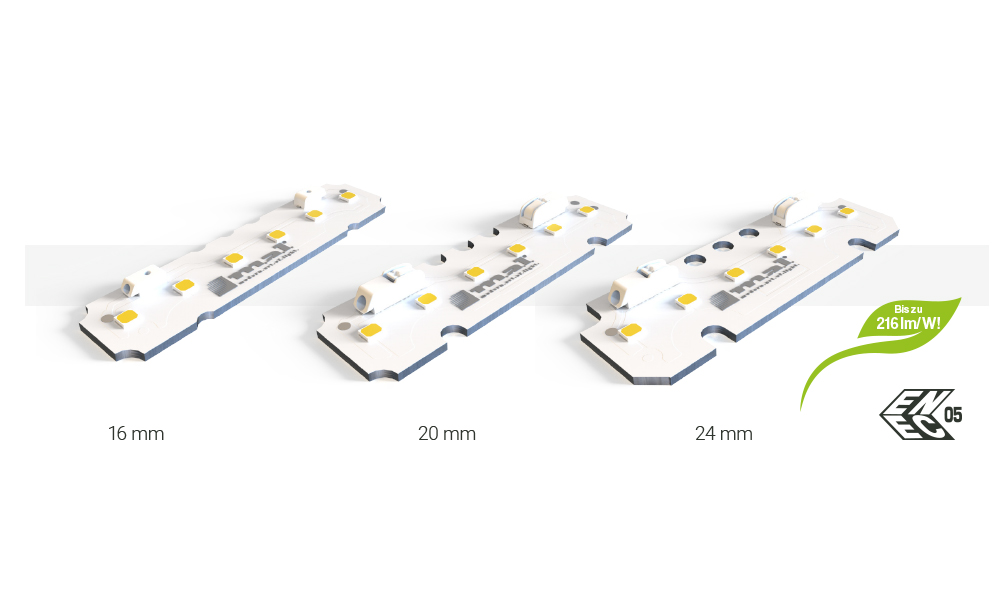

Linearis Z L7 165

  • linear module in three widths for installation in luminaires
  • 3 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 70 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z L7 325

  • linear module in three widths for installation in luminaires
  • 6 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 70 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

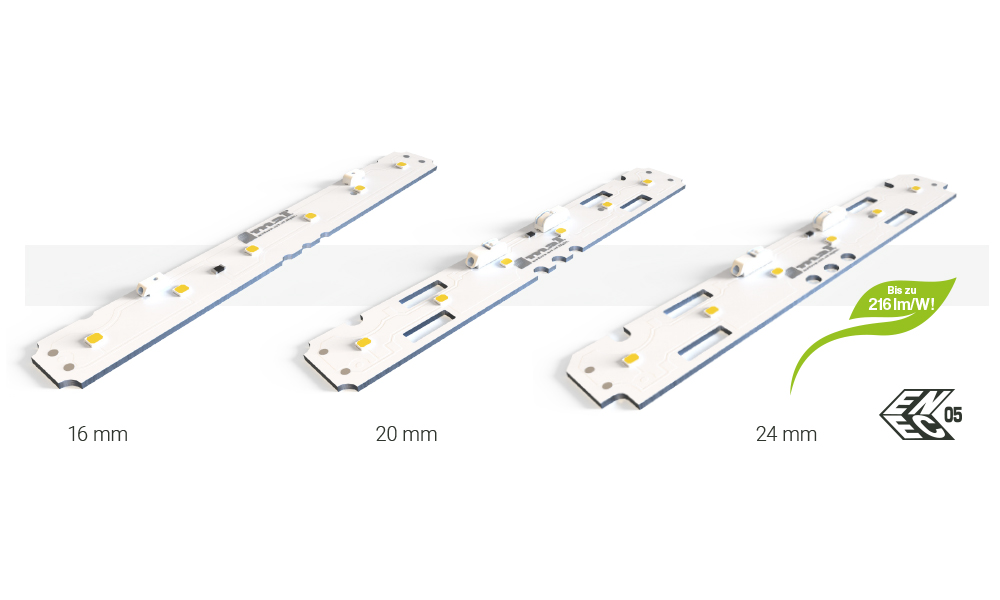

Linearis Z L14 325

  • linear module in three widths for installation in luminaires
  • 6 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 140 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

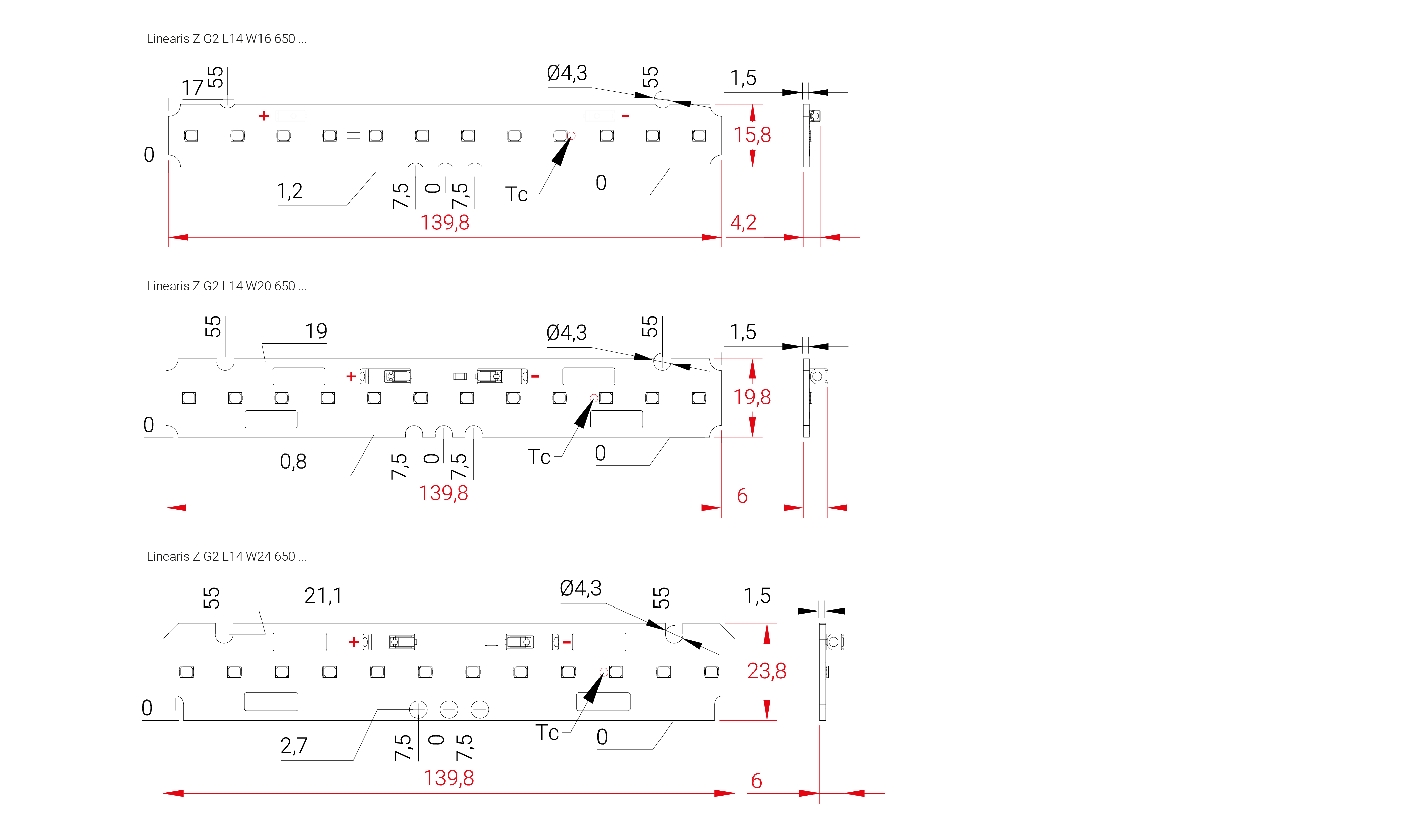

Linearis Z L14 650

  • linear module in three widths for installation in luminaires
  • 12 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 140 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

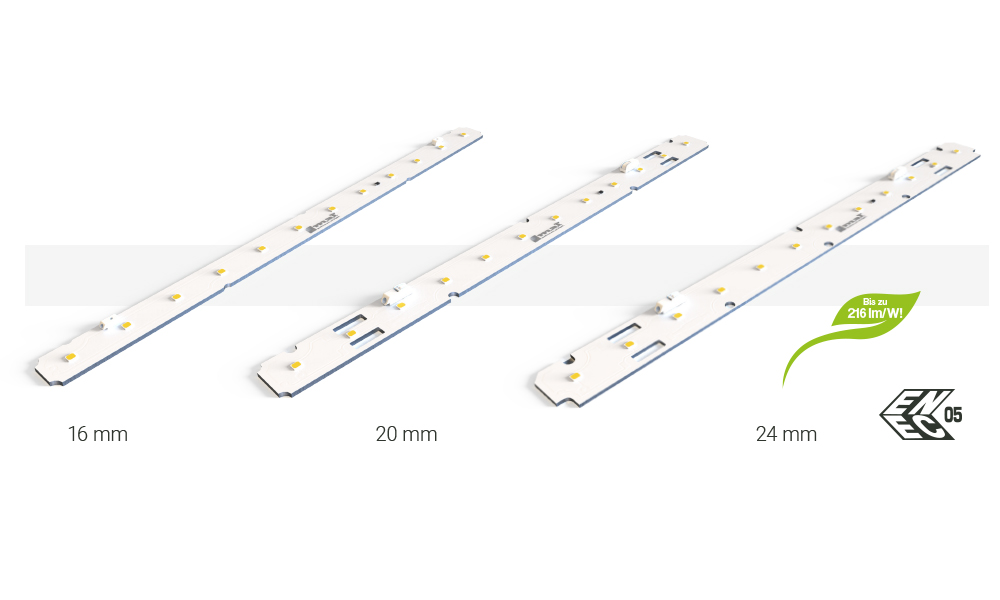

Linearis Z L28 650

  • linear module in three widths for installation in luminaires
  • 12 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 280 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

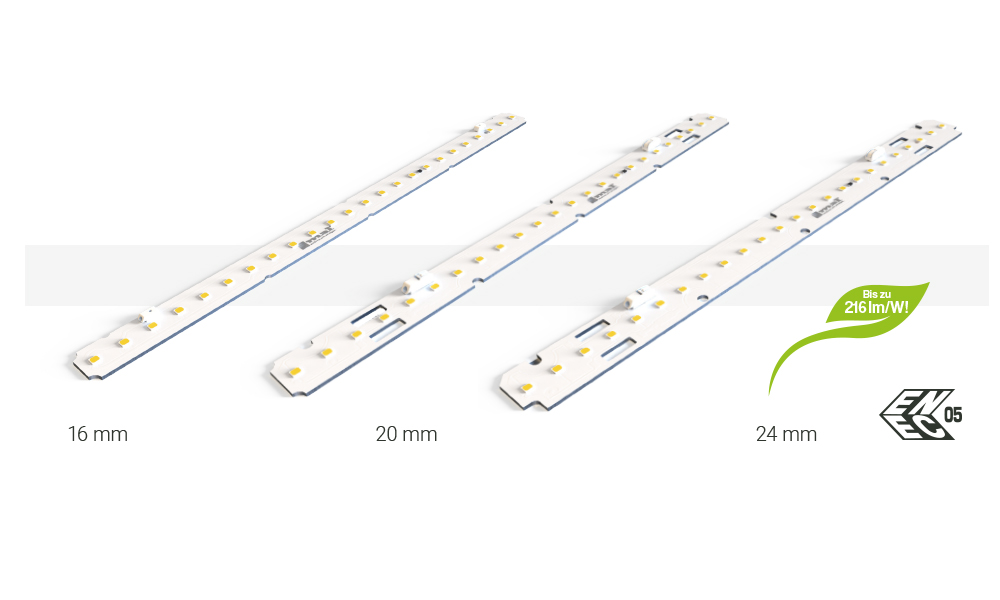

Linearis Z L28 1300

  • linear module in three widths for installation in luminaires
  • 24 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 280 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

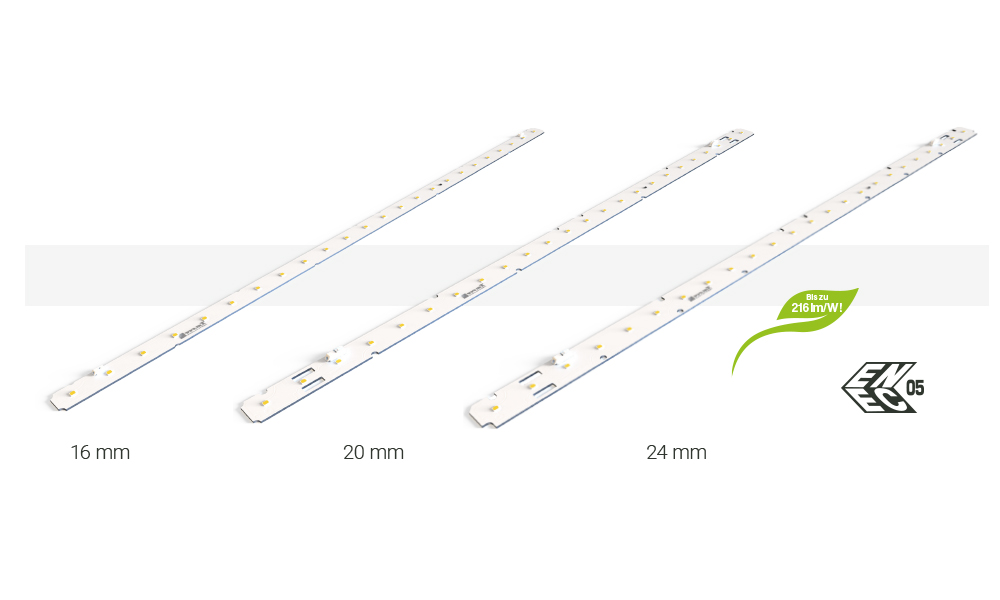

Linearis Z L56 1300

  • linear module in three widths for installation in luminaires
  • 24 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 560 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z L56 2600

  • linear module in three widths for installation in luminaires
  • 48 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 560 mm
  • width 16 mm, 20 mm, 24 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

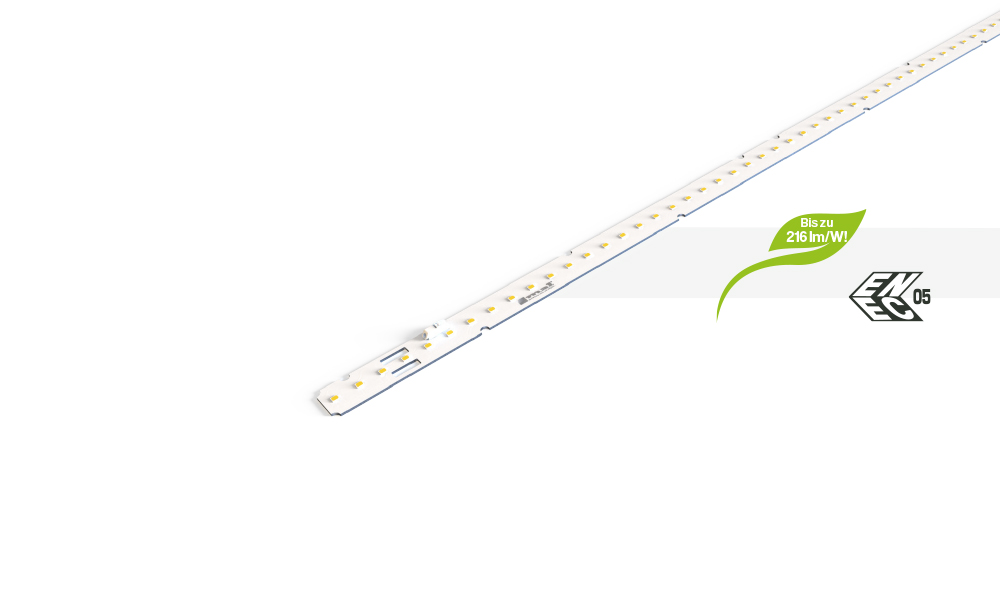

Linearis Z L112 2600

  • linear module for installation in luminaires
  • 48 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1120 mm
  • width 20 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z L112 5200

  • linear module for installation in luminaires
  • 96 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1120 mm
  • width 20 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

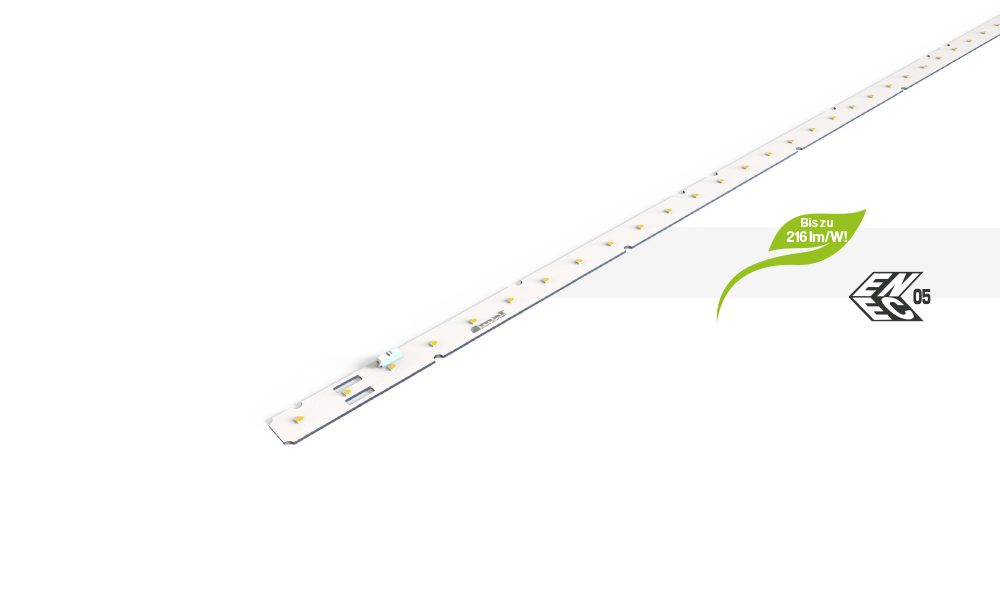

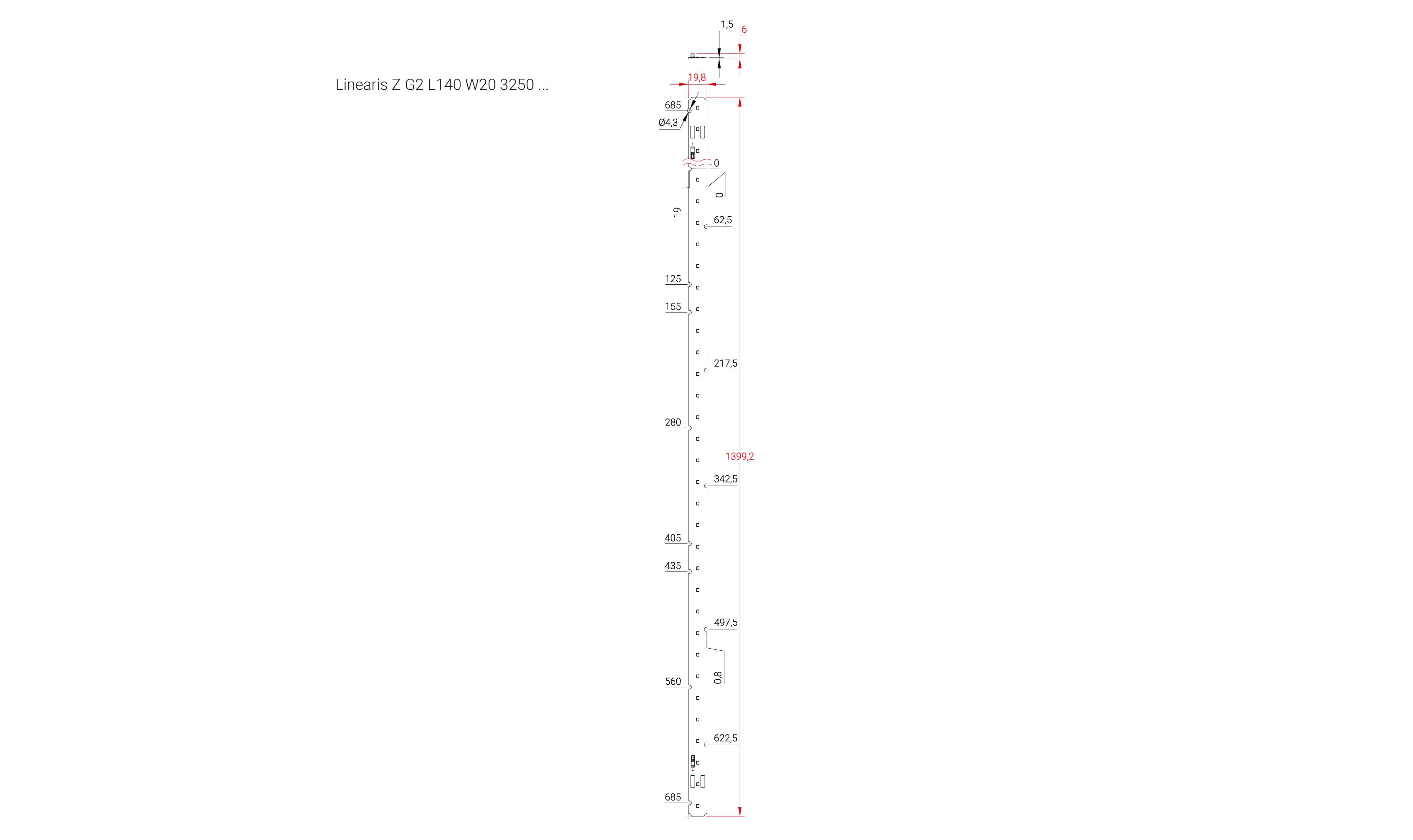

Linearis Z L140 3250

  • linear module for installation in luminaires
  • 60 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1400 mm
  • width 20 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

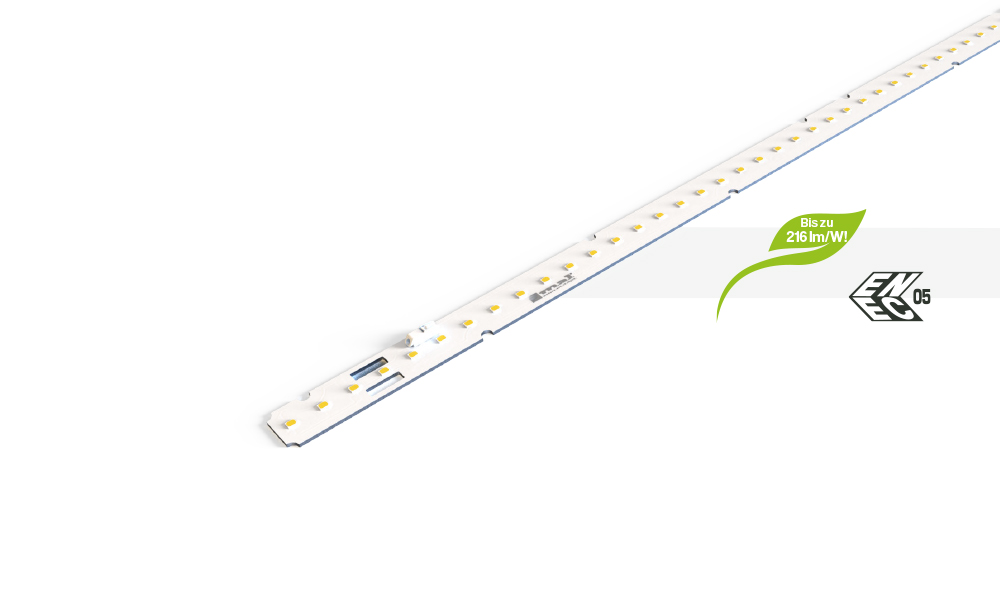

Linearis Z L140 6500

  • linear module for installation in luminaires
  • 120 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1400 mm
  • width 20 mm
  • Products

Linearis Z L7 165

Features

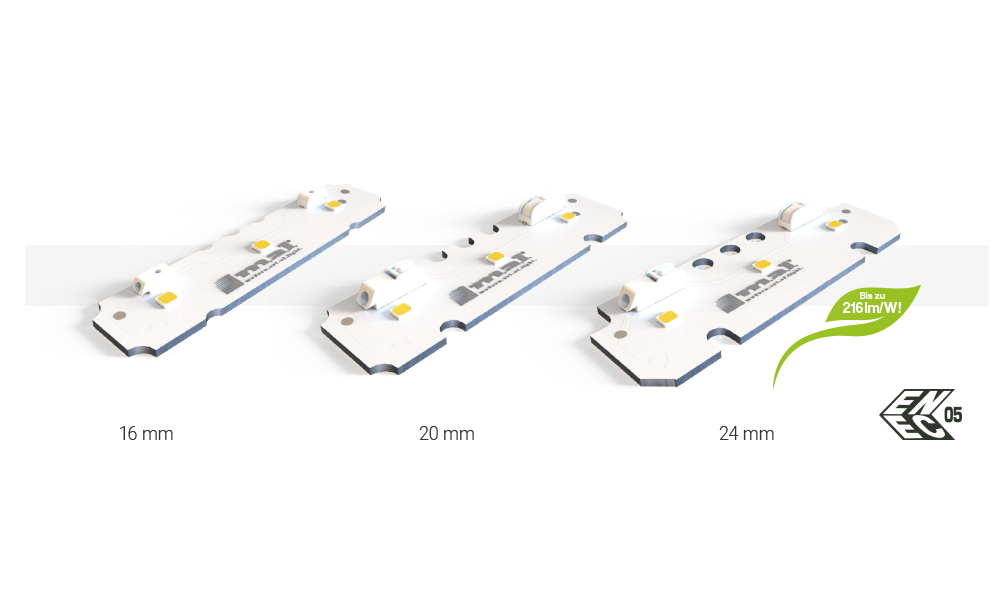

Big module image

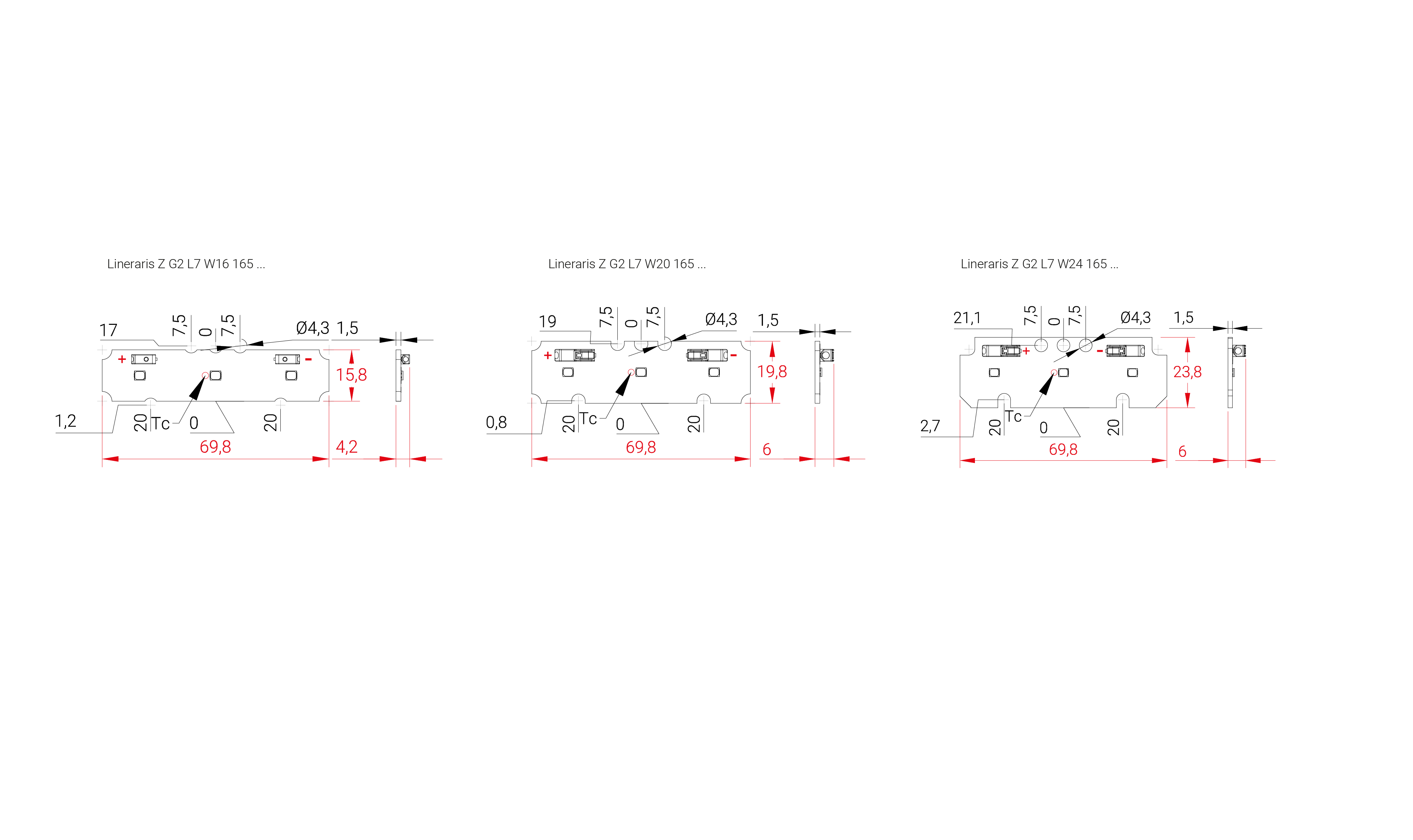

Module drawing
  • linear module in three widths for installation in luminaires
  • 3 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 70 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 3.1 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L7 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L7 W16 165 822 7517-10000 80 2200 K 75 mA 33 lm 170 lm/W 350 mA 145 lm 152 lm/W 500 mA 202 lm 144 lm/W
Linearis Z G2 L7 W16 165 827 7517-10001 80 2700 K 75 mA 38 lm 192 lm/W 350 mA 169 lm 172 lm/W 500 mA 235 lm 164 lm/W
Linearis Z G2 L7 W16 165 830 7517-10002 80 3000 K 75 mA 41 lm 206 lm/W 350 mA 181 lm 184 lm/W 500 mA 251 lm 175 lm/W
Linearis Z G2 L7 W16 165 835 7517-10003 80 3500 K 75 mA 41 lm 206 lm/W 350 mA 181 lm 184 lm/W 500 mA 251 lm 175 lm/W
Linearis Z G2 L7 W16 165 840 7517-10004 80 4000 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W16 165 850 7517-10005 80 5000 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W16 165 857 7517-10006 80 5700 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W16 165 865 7517-10007 80 6500 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W16 165 922 7517-10008 90 2200 K 75 mA 28 lm 141 lm/W 350 mA 124 lm 126 lm/W 500 mA 172 lm 120 lm/W
Linearis Z G2 L7 W16 165 927 7517-10009 90 2700 K 75 mA 38 lm 194 lm/W 350 mA 171 lm 174 lm/W 500 mA 237 lm 166 lm/W
Linearis Z G2 L7 W16 165 930 7517-10010 90 3000 K 75 mA 39 lm 198 lm/W 350 mA 174 lm 178 lm/W 500 mA 242 lm 169 lm/W
Linearis Z G2 L7 W16 165 935 7517-10011 90 3500 K 75 mA 40 lm 203 lm/W 350 mA 179 lm 182 lm/W 500 mA 248 lm 173 lm/W
Linearis Z G2 L7 W16 165 940 7517-10012 90 4000 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W16 165 950 7517-10013 90 5000 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W16 165 957 7517-10014 90 5700 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W16 165 965 7517-10015 90 6500 K 75 mA 40 lm 203 lm/W 350 mA 179 lm 182 lm/W 500 mA 248 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L7 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L7 W20 165 822 7517-10016 80 2200 K 75 mA 33 lm 170 lm/W 350 mA 145 lm 152 lm/W 500 mA 202 lm 144 lm/W
Linearis Z G2 L7 W20 165 827 7517-10017 80 2700 K 75 mA 38 lm 192 lm/W 350 mA 169 lm 172 lm/W 500 mA 235 lm 164 lm/W
Linearis Z G2 L7 W20 165 830 7517-10018 80 3000 K 75 mA 41 lm 206 lm/W 350 mA 181 lm 184 lm/W 500 mA 251 lm 175 lm/W
Linearis Z G2 L7 W20 165 835 7517-10019 80 3500 K 75 mA 41 lm 206 lm/W 350 mA 181 lm 184 lm/W 500 mA 251 lm 175 lm/W
Linearis Z G2 L7 W20 165 840 7517-10020 80 4000 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W20 165 850 7517-10021 80 5000 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W20 165 857 7517-10022 80 5700 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W20 165 865 7517-10023 80 6500 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W20 165 922 7517-10024 90 2200 K 75 mA 28 lm 141 lm/W 350 mA 124 lm 126 lm/W 500 mA 172 lm 120 lm/W
Linearis Z G2 L7 W20 165 927 7517-10025 90 2700 K 75 mA 38 lm 194 lm/W 350 mA 171 lm 174 lm/W 500 mA 237 lm 166 lm/W
Linearis Z G2 L7 W20 165 930 7517-10026 90 3000 K 75 mA 39 lm 198 lm/W 350 mA 174 lm 178 lm/W 500 mA 242 lm 169 lm/W
Linearis Z G2 L7 W20 165 935 7517-10027 90 3500 K 75 mA 40 lm 203 lm/W 350 mA 179 lm 182 lm/W 500 mA 248 lm 173 lm/W
Linearis Z G2 L7 W20 165 940 7517-10028 90 4000 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W20 165 950 7517-10029 90 5000 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W20 165 957 7517-10030 90 5700 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W20 165 965 7517-10031 90 6500 K 75 mA 40 lm 203 lm/W 350 mA 179 lm 182 lm/W 500 mA 248 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L7 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L7 W24 165 822 7517-10032 80 2200 K 75 mA 33 lm 170 lm/W 350 mA 145 lm 152 lm/W 500 mA 202 lm 144 lm/W
Linearis Z G2 L7 W24 165 827 7517-10033 80 2700 K 75 mA 38 lm 192 lm/W 350 mA 169 lm 172 lm/W 500 mA 235 lm 164 lm/W
Linearis Z G2 L7 W24 165 830 7517-10034 80 3000 K 75 mA 41 lm 206 lm/W 350 mA 181 lm 184 lm/W 500 mA 251 lm 175 lm/W
Linearis Z G2 L7 W24 165 835 7517-10035 80 3500 K 75 mA 41 lm 206 lm/W 350 mA 181 lm 184 lm/W 500 mA 251 lm 175 lm/W
Linearis Z G2 L7 W24 165 840 7517-10036 80 4000 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W24 165 850 7517-10037 80 5000 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W24 165 857 7517-10038 80 5700 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W24 165 865 7517-10039 80 6500 K 75 mA 42 lm 216 lm/W 350 mA 188 lm 193 lm/W 500 mA 260 lm 184 lm/W
Linearis Z G2 L7 W24 165 922 7517-10040 90 2200 K 75 mA 28 lm 141 lm/W 350 mA 124 lm 126 lm/W 500 mA 172 lm 120 lm/W
Linearis Z G2 L7 W24 165 927 7517-10041 90 2700 K 75 mA 38 lm 194 lm/W 350 mA 171 lm 174 lm/W 500 mA 237 lm 166 lm/W
Linearis Z G2 L7 W24 165 930 7517-10042 90 3000 K 75 mA 39 lm 198 lm/W 350 mA 174 lm 178 lm/W 500 mA 242 lm 169 lm/W
Linearis Z G2 L7 W24 165 935 7517-10043 90 3500 K 75 mA 40 lm 203 lm/W 350 mA 179 lm 182 lm/W 500 mA 248 lm 173 lm/W
Linearis Z G2 L7 W24 165 940 7517-10044 90 4000 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W24 165 950 7517-10045 90 5000 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W24 165 957 7517-10046 90 5700 K 75 mA 41 lm 205 lm/W 350 mA 180 lm 184 lm/W 500 mA 250 lm 175 lm/W
Linearis Z G2 L7 W24 165 965 7517-10047 90 6500 K 75 mA 40 lm 203 lm/W 350 mA 179 lm 182 lm/W 500 mA 248 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

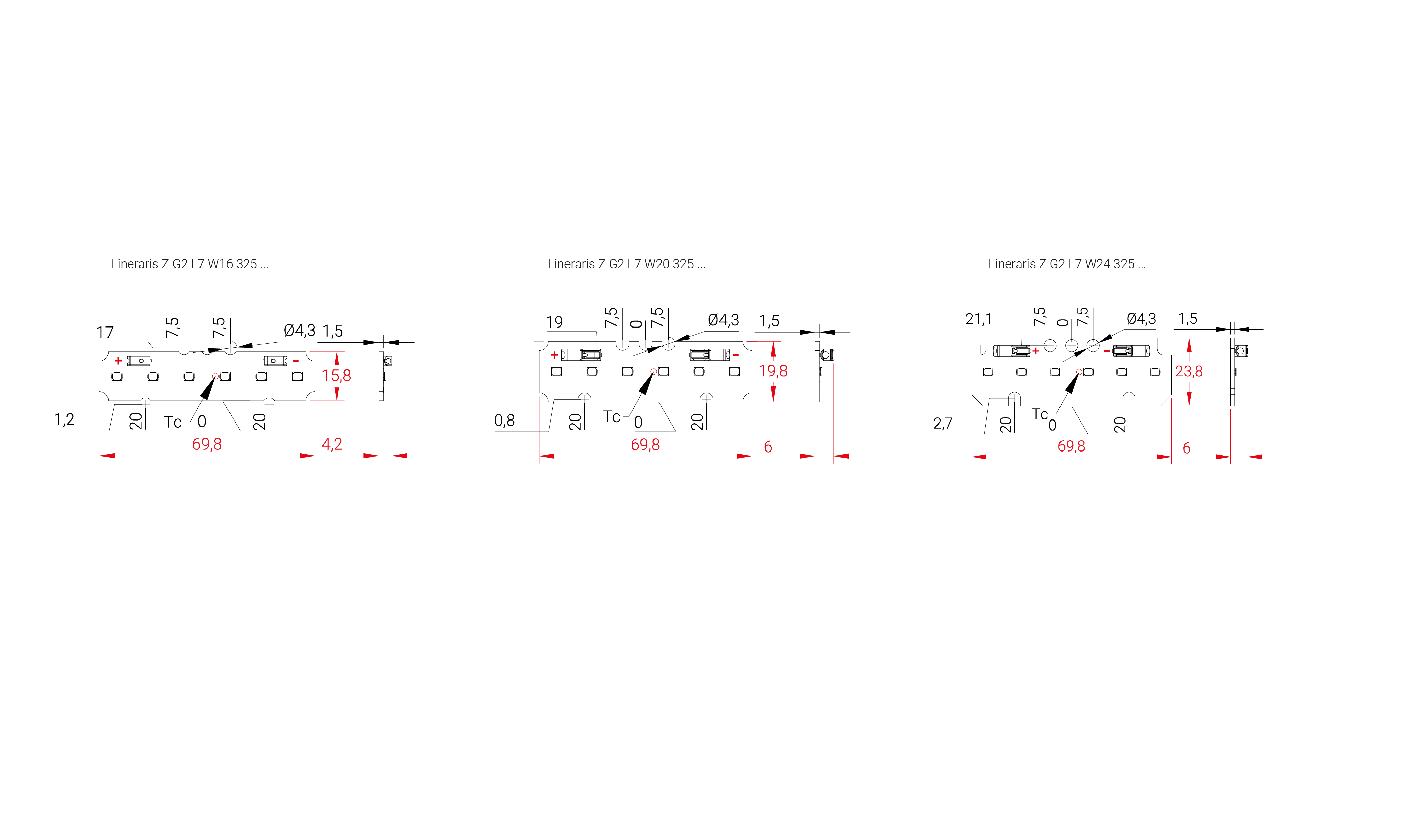

Linearis Z L7 325

Features

Big module image
Module drawing
  • linear module in three widths for installation in luminaires
  • 6 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 70 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 6.2 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L7 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L7 W16 325 822 7517-10048 80 2200 K 75 mA 66 lm 170 lm/W 350 mA 290 lm 152 lm/W 500 mA 403 lm 144 lm/W
Linearis Z G2 L7 W16 325 827 7517-10049 80 2700 K 75 mA 76 lm 192 lm/W 350 mA 339 lm 172 lm/W 500 mA 470 lm 164 lm/W
Linearis Z G2 L7 W16 325 830 7517-10050 80 3000 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W16 325 835 7517-10051 80 3500 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W16 325 840 7517-10052 80 4000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W16 325 850 7517-10053 80 5000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W16 325 857 7517-10054 80 5700 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W16 325 865 7517-10055 80 6500 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W16 325 922 7517-10056 90 2200 K 75 mA 56 lm 141 lm/W 350 mA 248 lm 126 lm/W 500 mA 344 lm 120 lm/W
Linearis Z G2 L7 W16 325 927 7517-10057 90 2700 K 75 mA 77 lm 194 lm/W 350 mA 341 lm 174 lm/W 500 mA 474 lm 166 lm/W
Linearis Z G2 L7 W16 325 930 7517-10058 90 3000 K 75 mA 78 lm 198 lm/W 350 mA 349 lm 178 lm/W 500 mA 484 lm 169 lm/W
Linearis Z G2 L7 W16 325 935 7517-10059 90 3500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Linearis Z G2 L7 W16 325 940 7517-10060 90 4000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W16 325 950 7517-10061 90 5000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W16 325 957 7517-10062 90 5700 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W16 325 965 7517-10063 90 6500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L7 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L7 W20 325 822 7517-10064 80 2200 K 75 mA 66 lm 170 lm/W 350 mA 290 lm 152 lm/W 500 mA 403 lm 144 lm/W
Linearis Z G2 L7 W20 325 827 7517-10065 80 2700 K 75 mA 76 lm 192 lm/W 350 mA 339 lm 172 lm/W 500 mA 470 lm 164 lm/W
Linearis Z G2 L7 W20 325 830 7517-10066 80 3000 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W20 325 835 7517-10067 80 3500 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W20 325 840 7517-10068 80 4000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W20 325 850 7517-10069 80 5000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W20 325 857 7517-10070 80 5700 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W20 325 865 7517-10071 80 6500 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W20 325 922 7517-10072 90 2200 K 75 mA 56 lm 141 lm/W 350 mA 248 lm 126 lm/W 500 mA 344 lm 120 lm/W
Linearis Z G2 L7 W20 325 927 7517-10073 90 2700 K 75 mA 77 lm 194 lm/W 350 mA 341 lm 174 lm/W 500 mA 474 lm 166 lm/W
Linearis Z G2 L7 W20 325 930 7517-10074 90 3000 K 75 mA 78 lm 198 lm/W 350 mA 349 lm 178 lm/W 500 mA 484 lm 169 lm/W
Linearis Z G2 L7 W20 325 935 7517-10075 90 3500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Linearis Z G2 L7 W20 325 940 7517-10076 90 4000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W20 325 950 7517-10077 90 5000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W20 325 957 7517-10078 90 5700 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W20 325 965 7517-10079 90 6500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L7 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L7 W24 325 822 7517-10080 80 2200 K 75 mA 66 lm 170 lm/W 350 mA 290 lm 152 lm/W 500 mA 403 lm 144 lm/W
Linearis Z G2 L7 W24 325 827 7517-10081 80 2700 K 75 mA 76 lm 192 lm/W 350 mA 339 lm 172 lm/W 500 mA 470 lm 164 lm/W
Linearis Z G2 L7 W24 325 830 7517-10082 80 3000 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W24 325 835 7517-10083 80 3500 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W24 325 840 7517-10084 80 4000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W24 325 850 7517-10085 80 5000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W24 325 857 7517-10086 80 5700 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W24 325 865 7517-10087 80 6500 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L7 W24 325 922 7517-10088 90 2200 K 75 mA 56 lm 141 lm/W 350 mA 248 lm 126 lm/W 500 mA 344 lm 120 lm/W
Linearis Z G2 L7 W24 325 927 7517-10089 90 2700 K 75 mA 77 lm 194 lm/W 350 mA 341 lm 174 lm/W 500 mA 474 lm 166 lm/W
Linearis Z G2 L7 W24 325 930 7517-10090 90 3000 K 75 mA 78 lm 198 lm/W 350 mA 349 lm 178 lm/W 500 mA 484 lm 169 lm/W
Linearis Z G2 L7 W24 325 935 7517-10091 90 3500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Linearis Z G2 L7 W24 325 940 7517-10092 90 4000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W24 325 950 7517-10093 90 5000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W24 325 957 7517-10094 90 5700 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L7 W24 325 965 7517-10095 90 6500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L14 325

Features

Big module image

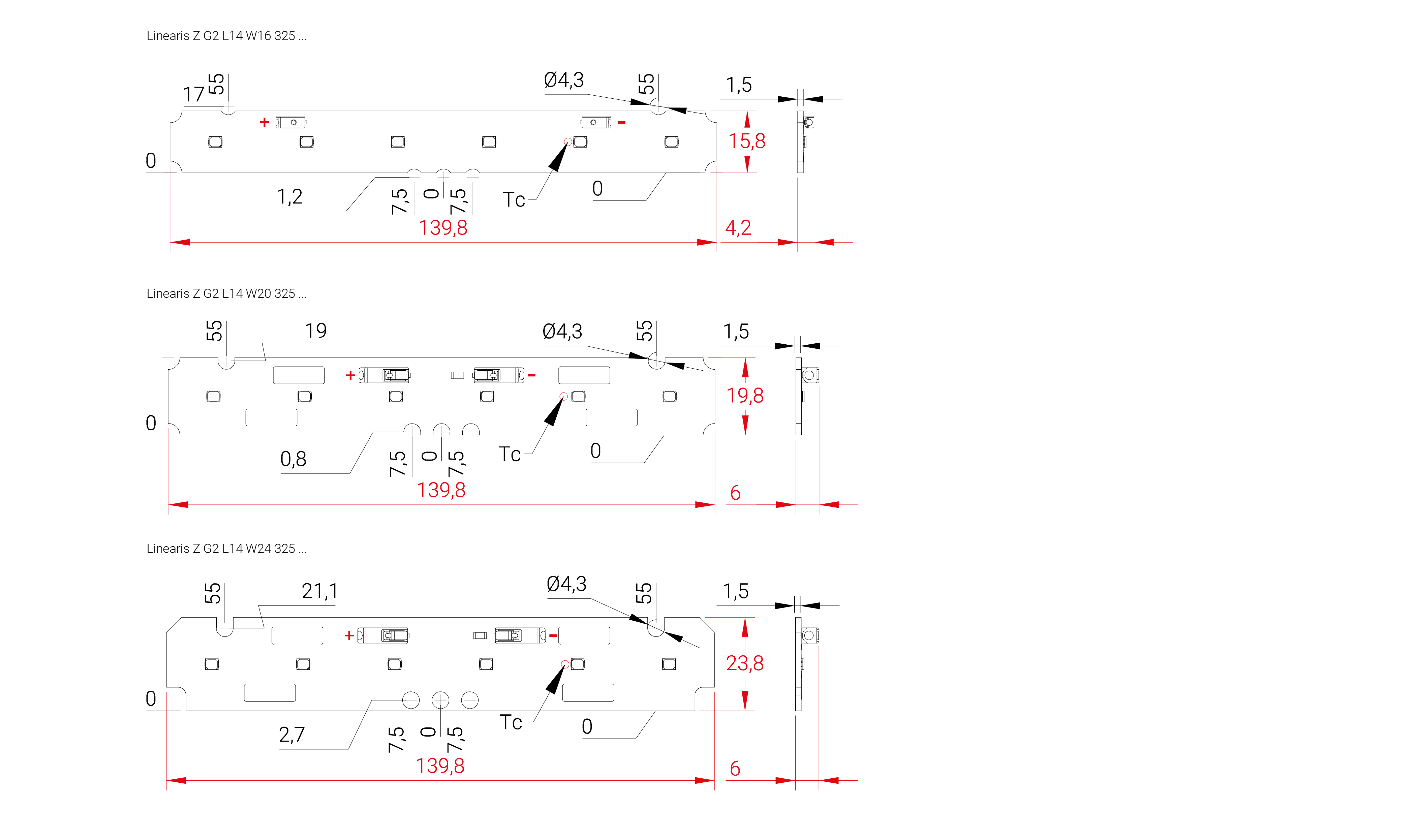

Module drawing
  • linear module in three widths for installation in luminaires
  • 6 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 140 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 6.2 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L14 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L14 W16 325 822 7517-10096 80 2200 K 75 mA 66 lm 170 lm/W 350 mA 290 lm 152 lm/W 500 mA 403 lm 144 lm/W
Linearis Z G2 L14 W16 325 827 7517-10097 80 2700 K 75 mA 76 lm 192 lm/W 350 mA 339 lm 172 lm/W 500 mA 470 lm 164 lm/W
Linearis Z G2 L14 W16 325 830 7517-10098 80 3000 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W16 325 835 7517-10099 80 3500 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W16 325 840 7517-10100 80 4000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W16 325 850 7517-10101 80 5000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W16 325 857 7517-10102 80 5700 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W16 325 865 7517-10103 80 6500 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W16 325 922 7517-10104 90 2200 K 75 mA 56 lm 141 lm/W 350 mA 248 lm 126 lm/W 500 mA 344 lm 120 lm/W
Linearis Z G2 L14 W16 325 927 7517-10105 90 2700 K 75 mA 77 lm 194 lm/W 350 mA 341 lm 174 lm/W 500 mA 474 lm 166 lm/W
Linearis Z G2 L14 W16 325 930 7517-10106 90 3000 K 75 mA 78 lm 198 lm/W 350 mA 349 lm 178 lm/W 500 mA 484 lm 169 lm/W
Linearis Z G2 L14 W16 325 935 7517-10107 90 3500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Linearis Z G2 L14 W16 325 940 7517-10108 90 4000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W16 325 950 7517-10109 90 5000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W16 325 957 7517-10110 90 5700 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W16 325 965 7517-10111 90 6500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L14 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L14 W20 325 822 7517-10112 80 2200 K 75 mA 66 lm 170 lm/W 350 mA 290 lm 152 lm/W 500 mA 403 lm 144 lm/W
Linearis Z G2 L14 W20 325 827 7517-10113 80 2700 K 75 mA 76 lm 192 lm/W 350 mA 339 lm 172 lm/W 500 mA 470 lm 164 lm/W
Linearis Z G2 L14 W20 325 830 7517-10114 80 3000 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W20 325 835 7517-10115 80 3500 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W20 325 840 7517-10116 80 4000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W20 325 850 7517-10117 80 5000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W20 325 857 7517-10118 80 5700 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W20 325 865 7517-10119 80 6500 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W20 325 922 7517-10120 90 2200 K 75 mA 56 lm 141 lm/W 350 mA 248 lm 126 lm/W 500 mA 344 lm 120 lm/W
Linearis Z G2 L14 W20 325 927 7517-10121 90 2700 K 75 mA 77 lm 194 lm/W 350 mA 341 lm 174 lm/W 500 mA 474 lm 166 lm/W
Linearis Z G2 L14 W20 325 930 7517-10122 90 3000 K 75 mA 78 lm 198 lm/W 350 mA 349 lm 178 lm/W 500 mA 484 lm 169 lm/W
Linearis Z G2 L14 W20 325 935 7517-10123 90 3500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Linearis Z G2 L14 W20 325 940 7517-10124 90 4000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W20 325 950 7517-10125 90 5000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W20 325 957 7517-10126 90 5700 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W20 325 965 7517-10127 90 6500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L14 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L14 W24 325 822 7517-10128 80 2200 K 75 mA 66 lm 170 lm/W 350 mA 290 lm 152 lm/W 500 mA 403 lm 144 lm/W
Linearis Z G2 L14 W24 325 827 7517-10129 80 2700 K 75 mA 76 lm 192 lm/W 350 mA 339 lm 172 lm/W 500 mA 470 lm 164 lm/W
Linearis Z G2 L14 W24 325 830 7517-10130 80 3000 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W24 325 835 7517-10131 80 3500 K 75 mA 81 lm 206 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W24 325 840 7517-10132 80 4000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W24 325 850 7517-10133 80 5000 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W24 325 857 7517-10134 80 5700 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W24 325 865 7517-10135 80 6500 K 75 mA 85 lm 216 lm/W 350 mA 375 lm 193 lm/W 500 mA 521 lm 184 lm/W
Linearis Z G2 L14 W24 325 922 7517-10136 90 2200 K 75 mA 56 lm 141 lm/W 350 mA 248 lm 126 lm/W 500 mA 344 lm 120 lm/W
Linearis Z G2 L14 W24 325 927 7517-10137 90 2700 K 75 mA 77 lm 194 lm/W 350 mA 341 lm 174 lm/W 500 mA 474 lm 166 lm/W
Linearis Z G2 L14 W24 325 930 7517-10138 90 3000 K 75 mA 78 lm 198 lm/W 350 mA 349 lm 178 lm/W 500 mA 484 lm 169 lm/W
Linearis Z G2 L14 W24 325 935 7517-10139 90 3500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Linearis Z G2 L14 W24 325 940 7517-10140 90 4000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W24 325 950 7517-10141 90 5000 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W24 325 957 7517-10142 90 5700 K 75 mA 81 lm 205 lm/W 350 mA 361 lm 184 lm/W 500 mA 501 lm 175 lm/W
Linearis Z G2 L14 W24 325 965 7517-10143 90 6500 K 75 mA 80 lm 203 lm/W 350 mA 357 lm 182 lm/W 500 mA 496 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L14 650

Features

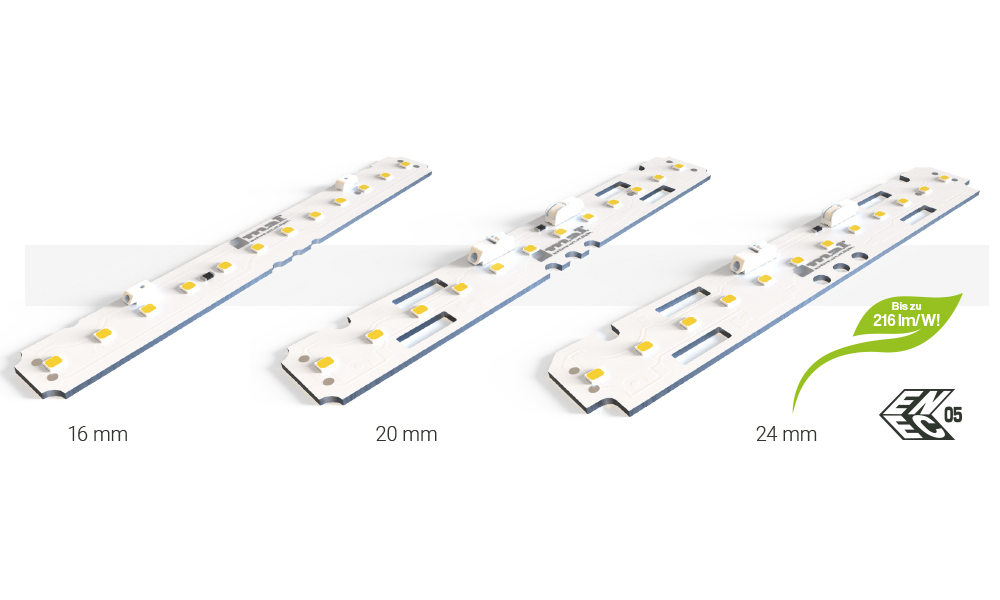

Big module image
Module drawing
  • linear module in three widths for installation in luminaires
  • 12 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 140 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 12.4 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L14 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L14 W16 650 822 7517-10144 80 2200 K 75 mA 131 lm 170 lm/W 350 mA 580 lm 152 lm/W 500 mA 806 lm 144 lm/W
Linearis Z G2 L14 W16 650 827 7517-10145 80 2700 K 75 mA 153 lm 192 lm/W 350 mA 678 lm 172 lm/W 500 mA 941 lm 164 lm/W
Linearis Z G2 L14 W16 650 830 7517-10146 80 3000 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W16 650 835 7517-10147 80 3500 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W16 650 840 7517-10148 80 4000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W16 650 850 7517-10149 80 5000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W16 650 857 7517-10150 80 5700 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W16 650 865 7517-10151 80 6500 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W16 650 922 7517-10152 90 2200 K 75 mA 112 lm 141 lm/W 350 mA 495 lm 126 lm/W 500 mA 688 lm 120 lm/W
Linearis Z G2 L14 W16 650 927 7517-10153 90 2700 K 75 mA 153 lm 194 lm/W 350 mA 682 lm 174 lm/W 500 mA 947 lm 166 lm/W
Linearis Z G2 L14 W16 650 930 7517-10154 90 3000 K 75 mA 157 lm 198 lm/W 350 mA 697 lm 178 lm/W 500 mA 967 lm 169 lm/W
Linearis Z G2 L14 W16 650 935 7517-10155 90 3500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Linearis Z G2 L14 W16 650 940 7517-10156 90 4000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W16 650 950 7517-10157 90 5000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W16 650 957 7517-10158 90 5700 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W16 650 965 7517-10159 90 6500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L14 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L14 W20 650 822 7517-10160 80 2200 K 75 mA 131 lm 170 lm/W 350 mA 580 lm 152 lm/W 500 mA 806 lm 144 lm/W
Linearis Z G2 L14 W20 650 827 7517-10161 80 2700 K 75 mA 153 lm 192 lm/W 350 mA 678 lm 172 lm/W 500 mA 941 lm 164 lm/W
Linearis Z G2 L14 W20 650 830 7517-10162 80 3000 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W20 650 835 7517-10163 80 3500 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W20 650 840 7517-10164 80 4000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W20 650 850 7517-10165 80 5000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W20 650 857 7517-10166 80 5700 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W20 650 865 7517-10167 80 6500 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W20 650 922 7517-10168 90 2200 K 75 mA 112 lm 141 lm/W 350 mA 495 lm 126 lm/W 500 mA 688 lm 120 lm/W
Linearis Z G2 L14 W20 650 927 7517-10169 90 2700 K 75 mA 153 lm 194 lm/W 350 mA 682 lm 174 lm/W 500 mA 947 lm 166 lm/W
Linearis Z G2 L14 W20 650 930 7517-10170 90 3000 K 75 mA 157 lm 198 lm/W 350 mA 697 lm 178 lm/W 500 mA 967 lm 169 lm/W
Linearis Z G2 L14 W20 650 935 7517-10171 90 3500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Linearis Z G2 L14 W20 650 940 7517-10172 90 4000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W20 650 950 7517-10173 90 5000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W20 650 957 7517-10174 90 5700 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W20 650 965 7517-10175 90 6500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L14 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L14 W24 650 822 7517-10176 80 2200 K 75 mA 131 lm 170 lm/W 350 mA 580 lm 152 lm/W 500 mA 806 lm 144 lm/W
Linearis Z G2 L14 W24 650 827 7517-10177 80 2700 K 75 mA 153 lm 192 lm/W 350 mA 678 lm 172 lm/W 500 mA 941 lm 164 lm/W
Linearis Z G2 L14 W24 650 830 7517-10178 80 3000 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W24 650 835 7517-10179 80 3500 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W24 650 840 7517-10180 80 4000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W24 650 850 7517-10181 80 5000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W24 650 857 7517-10182 80 5700 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W24 650 865 7517-10183 80 6500 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L14 W24 650 922 7517-10184 90 2200 K 75 mA 112 lm 141 lm/W 350 mA 495 lm 126 lm/W 500 mA 688 lm 120 lm/W
Linearis Z G2 L14 W24 650 927 7517-10185 90 2700 K 75 mA 153 lm 194 lm/W 350 mA 682 lm 174 lm/W 500 mA 947 lm 166 lm/W
Linearis Z G2 L14 W24 650 930 7517-10186 90 3000 K 75 mA 157 lm 198 lm/W 350 mA 697 lm 178 lm/W 500 mA 967 lm 169 lm/W
Linearis Z G2 L14 W24 650 935 7517-10187 90 3500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Linearis Z G2 L14 W24 650 940 7517-10188 90 4000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W24 650 950 7517-10189 90 5000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W24 650 957 7517-10190 90 5700 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L14 W24 650 965 7517-10191 90 6500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L28 650

Features

Big module image

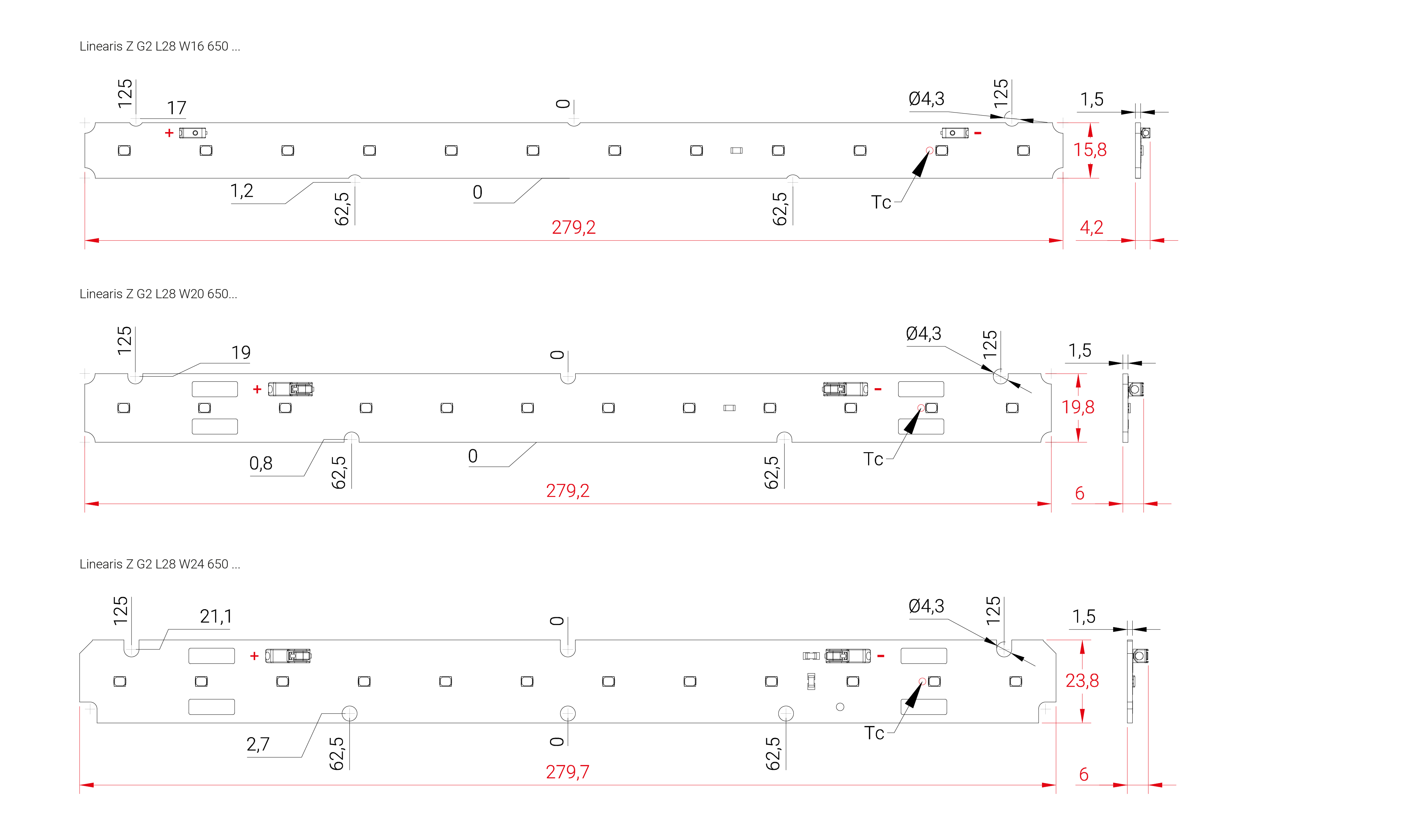

Module drawing
  • linear module in three widths for installation in luminaires
  • 12 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 280 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 12.4 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L28 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L28 W16 650 822 7517-10192 80 2200 K 75 mA 131 lm 170 lm/W 350 mA 580 lm 152 lm/W 500 mA 806 lm 144 lm/W
Linearis Z G2 L28 W16 650 827 7517-10193 80 2700 K 75 mA 153 lm 192 lm/W 350 mA 678 lm 172 lm/W 500 mA 941 lm 164 lm/W
Linearis Z G2 L28 W16 650 830 7517-10194 80 3000 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W16 650 835 7517-10195 80 3500 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W16 650 840 7517-10196 80 4000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W16 650 850 7517-10197 80 5000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W16 650 857 7517-10198 80 5700 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W16 650 865 7517-10199 80 6500 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W16 650 922 7517-10200 90 2200 K 75 mA 112 lm 141 lm/W 350 mA 495 lm 126 lm/W 500 mA 688 lm 120 lm/W
Linearis Z G2 L28 W16 650 927 7517-10201 90 2700 K 75 mA 153 lm 194 lm/W 350 mA 682 lm 174 lm/W 500 mA 947 lm 166 lm/W
Linearis Z G2 L28 W16 650 930 7517-10202 90 3000 K 75 mA 157 lm 198 lm/W 350 mA 697 lm 178 lm/W 500 mA 967 lm 169 lm/W
Linearis Z G2 L28 W16 650 935 7517-10203 90 3500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Linearis Z G2 L28 W16 650 940 7517-10204 90 4000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W16 650 950 7517-10205 90 5000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W16 650 957 7517-10206 90 5700 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W16 650 965 7517-10207 90 6500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L28 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L28 W20 650 822 7517-10208 80 2200 K 75 mA 131 lm 170 lm/W 350 mA 580 lm 152 lm/W 500 mA 806 lm 144 lm/W
Linearis Z G2 L28 W20 650 827 7517-10209 80 2700 K 75 mA 153 lm 192 lm/W 350 mA 678 lm 172 lm/W 500 mA 941 lm 164 lm/W
Linearis Z G2 L28 W20 650 830 7517-10210 80 3000 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W20 650 835 7517-10211 80 3500 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W20 650 840 7517-10212 80 4000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W20 650 850 7517-10213 80 5000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W20 650 857 7517-10214 80 5700 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W20 650 865 7517-10215 80 6500 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W20 650 922 7517-10216 90 2200 K 75 mA 112 lm 141 lm/W 350 mA 495 lm 126 lm/W 500 mA 688 lm 120 lm/W
Linearis Z G2 L28 W20 650 927 7517-10217 90 2700 K 75 mA 153 lm 194 lm/W 350 mA 682 lm 174 lm/W 500 mA 947 lm 166 lm/W
Linearis Z G2 L28 W20 650 930 7517-10218 90 3000 K 75 mA 157 lm 198 lm/W 350 mA 697 lm 178 lm/W 500 mA 967 lm 169 lm/W
Linearis Z G2 L28 W20 650 935 7517-10219 90 3500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Linearis Z G2 L28 W20 650 940 7517-10220 90 4000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W20 650 950 7517-10221 90 5000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W20 650 957 7517-10222 90 5700 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W20 650 965 7517-10223 90 6500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L28 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L28 W24 650 822 7517-10224 80 2200 K 75 mA 131 lm 170 lm/W 350 mA 580 lm 152 lm/W 500 mA 806 lm 144 lm/W
Linearis Z G2 L28 W24 650 827 7517-10225 80 2700 K 75 mA 153 lm 192 lm/W 350 mA 678 lm 172 lm/W 500 mA 941 lm 164 lm/W
Linearis Z G2 L28 W24 650 830 7517-10226 80 3000 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W24 650 835 7517-10227 80 3500 K 75 mA 163 lm 206 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W24 650 840 7517-10228 80 4000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W24 650 850 7517-10229 80 5000 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W24 650 857 7517-10230 80 5700 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W24 650 865 7517-10231 80 6500 K 75 mA 169 lm 216 lm/W 350 mA 750 lm 193 lm/W 500 mA 1042 lm 184 lm/W
Linearis Z G2 L28 W24 650 922 7517-10232 90 2200 K 75 mA 112 lm 141 lm/W 350 mA 495 lm 126 lm/W 500 mA 688 lm 120 lm/W
Linearis Z G2 L28 W24 650 927 7517-10233 90 2700 K 75 mA 153 lm 194 lm/W 350 mA 682 lm 174 lm/W 500 mA 947 lm 166 lm/W
Linearis Z G2 L28 W24 650 930 7517-10234 90 3000 K 75 mA 157 lm 198 lm/W 350 mA 697 lm 178 lm/W 500 mA 967 lm 169 lm/W
Linearis Z G2 L28 W24 650 935 7517-10235 90 3500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Linearis Z G2 L28 W24 650 940 7517-10236 90 4000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W24 650 950 7517-10237 90 5000 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W24 650 957 7517-10238 90 5700 K 75 mA 162 lm 205 lm/W 350 mA 722 lm 184 lm/W 500 mA 1002 lm 175 lm/W
Linearis Z G2 L28 W24 650 965 7517-10239 90 6500 K 75 mA 160 lm 203 lm/W 350 mA 714 lm 182 lm/W 500 mA 991 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L28 1300

Features

Big module image

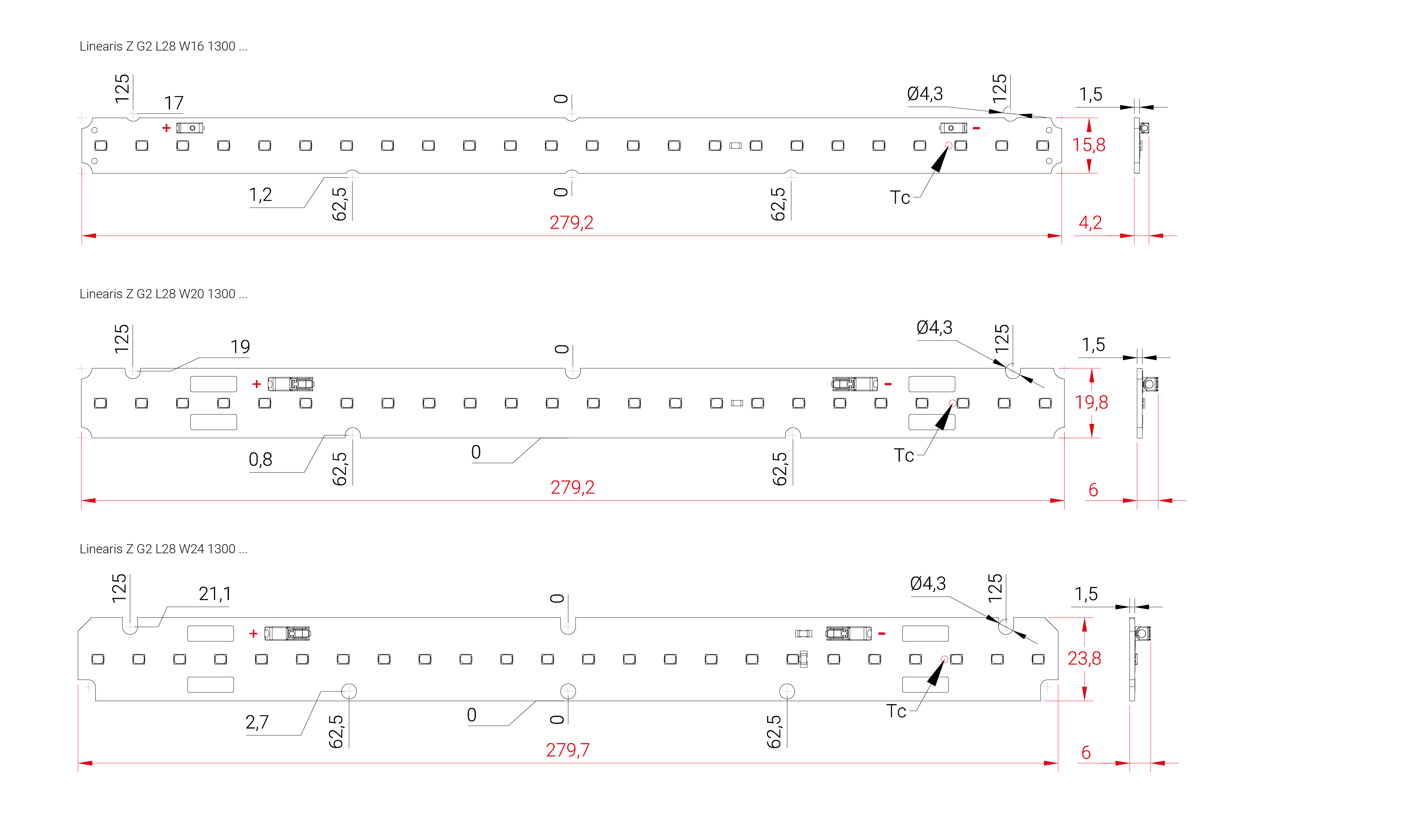

Module drawing
  • linear module in three widths for installation in luminaires
  • 24 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 280 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 24.8 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L28 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L28 W16 1300 822 7517-10240 80 2200 K 75 mA 262 lm 170 lm/W 350 mA 1161 lm 152 lm/W 500 mA 1612 lm 144 lm/W
Linearis Z G2 L28 W16 1300 827 7517-10241 80 2700 K 75 mA 306 lm 192 lm/W 350 mA 1355 lm 172 lm/W 500 mA 1882 lm 164 lm/W
Linearis Z G2 L28 W16 1300 830 7517-10242 80 3000 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L28 W16 1300 835 7517-10243 80 3500 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L28 W16 1300 840 7517-10244 80 4000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W16 1300 850 7517-10245 80 5000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W16 1300 857 7517-10246 80 5700 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W16 1300 865 7517-10247 80 6500 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W16 1300 922 7517-10248 90 2200 K 75 mA 224 lm 141 lm/W 350 mA 991 lm 126 lm/W 500 mA 1376 lm 120 lm/W
Linearis Z G2 L28 W16 1300 927 7517-10249 90 2700 K 75 mA 306 lm 194 lm/W 350 mA 1365 lm 174 lm/W 500 mA 1894 lm 166 lm/W
Linearis Z G2 L28 W16 1300 930 7517-10250 90 3000 K 75 mA 313 lm 198 lm/W 350 mA 1394 lm 178 lm/W 500 mA 1935 lm 169 lm/W
Linearis Z G2 L28 W16 1300 935 7517-10251 90 3500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Linearis Z G2 L28 W16 1300 940 7517-10252 90 4000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W16 1300 950 7517-10253 90 5000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W16 1300 957 7517-10254 90 5700 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W16 1300 965 7517-10255 90 6500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L28 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L28 W20 1300 822 7517-10256 80 2200 K 75 mA 262 lm 170 lm/W 350 mA 1161 lm 152 lm/W 500 mA 1612 lm 144 lm/W
Linearis Z G2 L28 W20 1300 827 7517-10257 80 2700 K 75 mA 306 lm 192 lm/W 350 mA 1355 lm 172 lm/W 500 mA 1882 lm 164 lm/W
Linearis Z G2 L28 W20 1300 830 7517-10258 80 3000 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L28 W20 1300 835 7517-10259 80 3500 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L28 W20 1300 840 7517-10260 80 4000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W20 1300 850 7517-10261 80 5000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W20 1300 857 7517-10262 80 5700 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W20 1300 865 7517-10263 80 6500 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W20 1300 922 7517-10264 90 2200 K 75 mA 224 lm 141 lm/W 350 mA 991 lm 126 lm/W 500 mA 1376 lm 120 lm/W
Linearis Z G2 L28 W20 1300 927 7517-10265 90 2700 K 75 mA 306 lm 194 lm/W 350 mA 1365 lm 174 lm/W 500 mA 1894 lm 166 lm/W
Linearis Z G2 L28 W20 1300 930 7517-10266 90 3000 K 75 mA 313 lm 198 lm/W 350 mA 1394 lm 178 lm/W 500 mA 1935 lm 169 lm/W
Linearis Z G2 L28 W20 1300 935 7517-10267 90 3500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Linearis Z G2 L28 W20 1300 940 7517-10268 90 4000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W20 1300 950 7517-10269 90 5000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W20 1300 957 7517-10270 90 5700 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W20 1300 965 7517-10271 90 6500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L28 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L28 W24 1300 822 7517-10272 80 2200 K 75 mA 262 lm 170 lm/W 350 mA 1161 lm 152 lm/W 500 mA 1612 lm 144 lm/W
Linearis Z G2 L28 W24 1300 827 7517-10273 80 2700 K 75 mA 306 lm 192 lm/W 350 mA 1355 lm 172 lm/W 500 mA 1882 lm 164 lm/W
Linearis Z G2 L28 W24 1300 830 7517-10274 80 3000 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L28 W24 1300 835 7517-10275 80 3500 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L28 W24 1300 840 7517-10276 80 4000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W24 1300 850 7517-10277 80 5000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W24 1300 857 7517-10278 80 5700 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W24 1300 865 7517-10279 80 6500 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L28 W24 1300 922 7517-10280 90 2200 K 75 mA 224 lm 141 lm/W 350 mA 991 lm 126 lm/W 500 mA 1376 lm 120 lm/W
Linearis Z G2 L28 W24 1300 927 7517-10281 90 2700 K 75 mA 306 lm 194 lm/W 350 mA 1365 lm 174 lm/W 500 mA 1894 lm 166 lm/W
Linearis Z G2 L28 W24 1300 930 7517-10282 90 3000 K 75 mA 313 lm 198 lm/W 350 mA 1394 lm 178 lm/W 500 mA 1935 lm 169 lm/W
Linearis Z G2 L28 W24 1300 935 7517-10283 90 3500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Linearis Z G2 L28 W24 1300 940 7517-10284 90 4000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W24 1300 950 7517-10285 90 5000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W24 1300 957 7517-10286 90 5700 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L28 W24 1300 965 7517-10287 90 6500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L56 1300

Features

Big module image

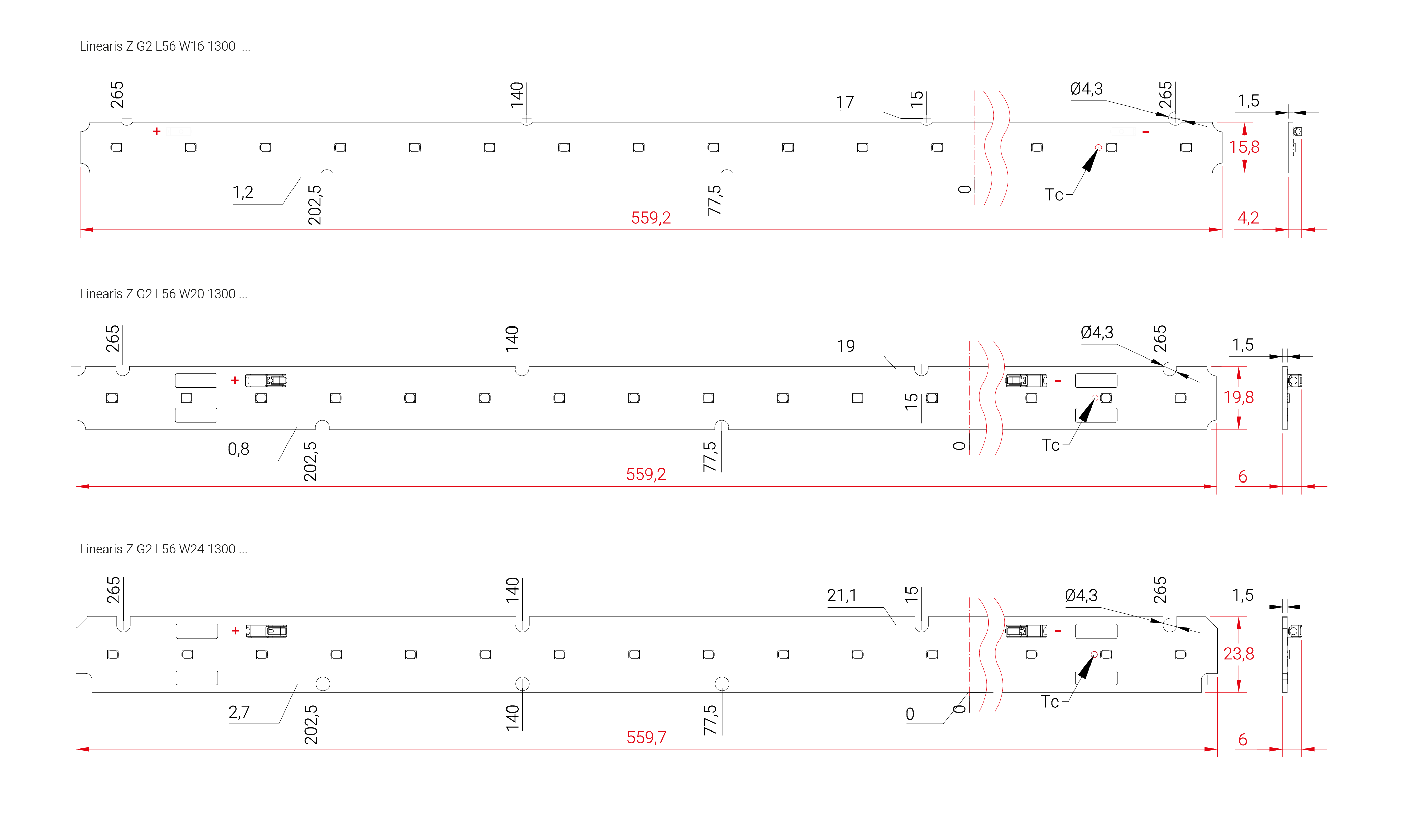

Module drawing
  • linear module in three widths for installation in luminaires
  • 24 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 560 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 24.8 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L56 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L56 W16 1300 822 7517-10288 80 2200 K 75 mA 262 lm 170 lm/W 350 mA 1161 lm 152 lm/W 500 mA 1612 lm 144 lm/W
Linearis Z G2 L56 W16 1300 827 7517-10289 80 2700 K 75 mA 306 lm 192 lm/W 350 mA 1355 lm 172 lm/W 500 mA 1882 lm 164 lm/W
Linearis Z G2 L56 W16 1300 830 7517-10290 80 3000 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L56 W16 1300 835 7517-10291 80 3500 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L56 W16 1300 840 7517-10292 80 4000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W16 1300 850 7517-10293 80 5000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W16 1300 857 7517-10294 80 5700 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W16 1300 865 7517-10295 80 6500 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W16 1300 922 7517-10296 90 2200 K 75 mA 224 lm 141 lm/W 350 mA 991 lm 126 lm/W 500 mA 1376 lm 120 lm/W
Linearis Z G2 L56 W16 1300 927 7517-10297 90 2700 K 75 mA 306 lm 194 lm/W 350 mA 1365 lm 174 lm/W 500 mA 1894 lm 166 lm/W
Linearis Z G2 L56 W16 1300 930 7517-10298 90 3000 K 75 mA 313 lm 198 lm/W 350 mA 1394 lm 178 lm/W 500 mA 1935 lm 169 lm/W
Linearis Z G2 L56 W16 1300 935 7517-10299 90 3500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Linearis Z G2 L56 W16 1300 940 7517-10300 90 4000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W16 1300 950 7517-10301 90 5000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W16 1300 957 7517-10302 90 5700 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W16 1300 965 7517-10303 90 6500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L56 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L56 W20 1300 822 7517-10304 80 2200 K 75 mA 262 lm 170 lm/W 350 mA 1161 lm 152 lm/W 500 mA 1612 lm 144 lm/W
Linearis Z G2 L56 W20 1300 827 7517-10305 80 2700 K 75 mA 306 lm 192 lm/W 350 mA 1355 lm 172 lm/W 500 mA 1882 lm 164 lm/W
Linearis Z G2 L56 W20 1300 830 7517-10306 80 3000 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L56 W20 1300 835 7517-10307 80 3500 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L56 W20 1300 840 7517-10308 80 4000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W20 1300 850 7517-10309 80 5000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W20 1300 857 7517-10310 80 5700 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W20 1300 865 7517-10311 80 6500 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W20 1300 922 7517-10312 90 2200 K 75 mA 224 lm 141 lm/W 350 mA 991 lm 126 lm/W 500 mA 1376 lm 120 lm/W
Linearis Z G2 L56 W20 1300 927 7517-10313 90 2700 K 75 mA 306 lm 194 lm/W 350 mA 1365 lm 174 lm/W 500 mA 1894 lm 166 lm/W
Linearis Z G2 L56 W20 1300 930 7517-10314 90 3000 K 75 mA 313 lm 198 lm/W 350 mA 1394 lm 178 lm/W 500 mA 1935 lm 169 lm/W
Linearis Z G2 L56 W20 1300 935 7517-10315 90 3500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Linearis Z G2 L56 W20 1300 940 7517-10316 90 4000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W20 1300 950 7517-10317 90 5000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W20 1300 957 7517-10318 90 5700 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W20 1300 965 7517-10319 90 6500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L56 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L56 W24 1300 822 7517-10320 80 2200 K 75 mA 262 lm 170 lm/W 350 mA 1161 lm 152 lm/W 500 mA 1612 lm 144 lm/W
Linearis Z G2 L56 W24 1300 827 7517-10321 80 2700 K 75 mA 306 lm 192 lm/W 350 mA 1355 lm 172 lm/W 500 mA 1882 lm 164 lm/W
Linearis Z G2 L56 W24 1300 830 7517-10322 80 3000 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L56 W24 1300 835 7517-10323 80 3500 K 75 mA 326 lm 206 lm/W 350 mA 1444 lm 184 lm/W 500 mA 2005 lm 175 lm/W
Linearis Z G2 L56 W24 1300 840 7517-10324 80 4000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W24 1300 850 7517-10325 80 5000 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W24 1300 857 7517-10326 80 5700 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W24 1300 865 7517-10327 80 6500 K 75 mA 339 lm 216 lm/W 350 mA 1501 lm 193 lm/W 500 mA 2084 lm 184 lm/W
Linearis Z G2 L56 W24 1300 922 7517-10328 90 2200 K 75 mA 224 lm 141 lm/W 350 mA 991 lm 126 lm/W 500 mA 1376 lm 120 lm/W
Linearis Z G2 L56 W24 1300 927 7517-10329 90 2700 K 75 mA 306 lm 194 lm/W 350 mA 1365 lm 174 lm/W 500 mA 1894 lm 166 lm/W
Linearis Z G2 L56 W24 1300 930 7517-10330 90 3000 K 75 mA 313 lm 198 lm/W 350 mA 1394 lm 178 lm/W 500 mA 1935 lm 169 lm/W
Linearis Z G2 L56 W24 1300 935 7517-10331 90 3500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Linearis Z G2 L56 W24 1300 940 7517-10332 90 4000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W24 1300 950 7517-10333 90 5000 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W24 1300 957 7517-10334 90 5700 K 75 mA 324 lm 205 lm/W 350 mA 1443 lm 184 lm/W 500 mA 2003 lm 175 lm/W
Linearis Z G2 L56 W24 1300 965 7517-10335 90 6500 K 75 mA 321 lm 203 lm/W 350 mA 1429 lm 182 lm/W 500 mA 1983 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L56 2600

Features

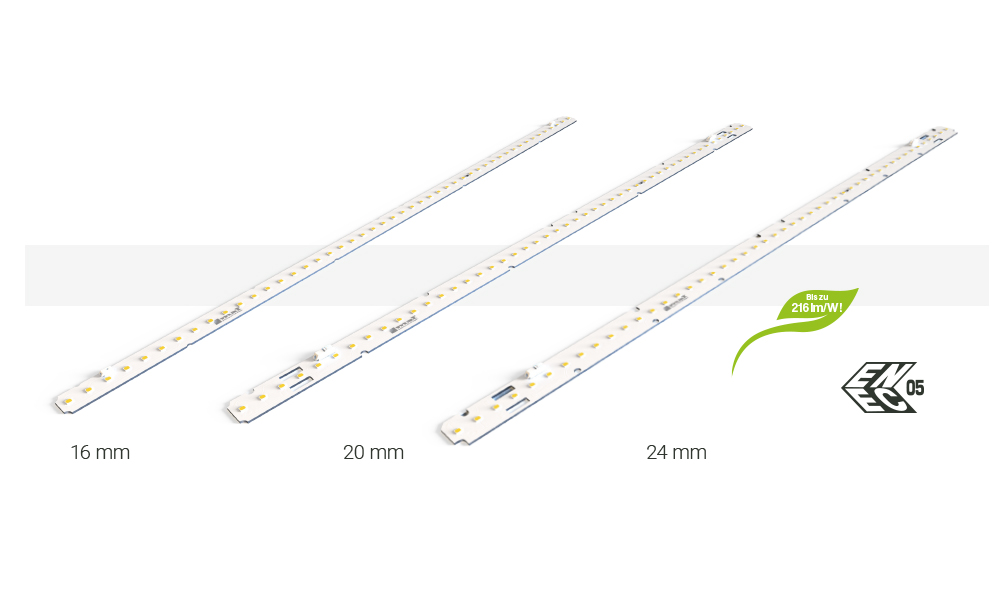

Big module image

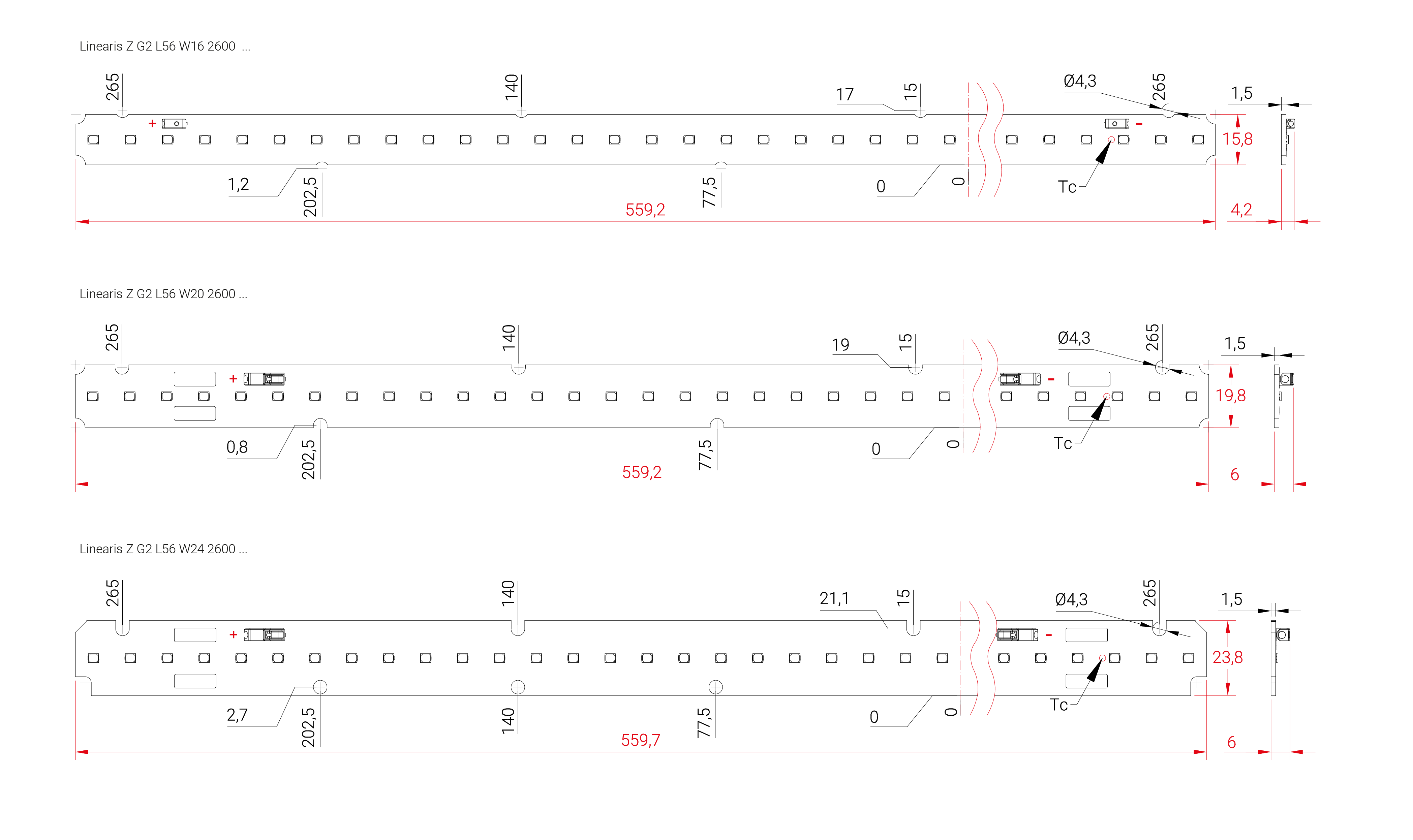

Module drawing
  • linear module in three widths for installation in luminaires
  • 48 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 560 mm
  • width 16 mm, 20 mm, 24 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 49.6 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L56 - Breite 16 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L56 W16 2600 822 7517-10336 80 2200 K 75 mA 524 lm 170 lm/W 350 mA 2322 lm 152 lm/W 500 mA 3224 lm 144 lm/W
Linearis Z G2 L56 W16 2600 827 7517-10337 80 2700 K 75 mA 612 lm 192 lm/W 350 mA 2710 lm 172 lm/W 500 mA 3763 lm 164 lm/W
Linearis Z G2 L56 W16 2600 830 7517-10338 80 3000 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L56 W16 2600 835 7517-10339 80 3500 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L56 W16 2600 840 7517-10340 80 4000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W16 2600 850 7517-10341 80 5000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W16 2600 857 7517-10342 80 5700 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W16 2600 865 7517-10343 80 6500 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W16 2600 922 7517-10344 90 2200 K 75 mA 447 lm 141 lm/W 350 mA 1982 lm 126 lm/W 500 mA 2752 lm 120 lm/W
Linearis Z G2 L56 W16 2600 927 7517-10345 90 2700 K 75 mA 613 lm 194 lm/W 350 mA 2729 lm 174 lm/W 500 mA 3788 lm 166 lm/W
Linearis Z G2 L56 W16 2600 930 7517-10346 90 3000 K 75 mA 626 lm 198 lm/W 350 mA 2788 lm 178 lm/W 500 mA 3870 lm 169 lm/W
Linearis Z G2 L56 W16 2600 935 7517-10347 90 3500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Linearis Z G2 L56 W16 2600 940 7517-10348 90 4000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W16 2600 950 7517-10349 90 5000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W16 2600 957 7517-10350 90 5700 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W16 2600 965 7517-10351 90 6500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L56 - Breite 20 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L56 W20 2600 822 7517-10352 80 2200 K 75 mA 524 lm 170 lm/W 350 mA 2322 lm 152 lm/W 500 mA 3224 lm 144 lm/W
Linearis Z G2 L56 W20 2600 827 7517-10353 80 2700 K 75 mA 612 lm 192 lm/W 350 mA 2710 lm 172 lm/W 500 mA 3763 lm 164 lm/W
Linearis Z G2 L56 W20 2600 830 7517-10354 80 3000 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L56 W20 2600 835 7517-10355 80 3500 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L56 W20 2600 840 7517-10356 80 4000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W20 2600 850 7517-10357 80 5000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W20 2600 857 7517-10358 80 5700 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W20 2600 865 7517-10359 80 6500 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W20 2600 922 7517-10360 90 2200 K 75 mA 447 lm 141 lm/W 350 mA 1982 lm 126 lm/W 500 mA 2752 lm 120 lm/W
Linearis Z G2 L56 W20 2600 927 7517-10361 90 2700 K 75 mA 613 lm 194 lm/W 350 mA 2729 lm 174 lm/W 500 mA 3788 lm 166 lm/W
Linearis Z G2 L56 W20 2600 930 7517-10362 90 3000 K 75 mA 626 lm 198 lm/W 350 mA 2788 lm 178 lm/W 500 mA 3870 lm 169 lm/W
Linearis Z G2 L56 W20 2600 935 7517-10363 90 3500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Linearis Z G2 L56 W20 2600 940 7517-10364 90 4000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W20 2600 950 7517-10365 90 5000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W20 2600 957 7517-10366 90 5700 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W20 2600 965 7517-10367 90 6500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated
Linearis Z G2 L56 - Breite 24 mm
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L56 W24 2600 822 7517-10368 80 2200 K 75 mA 524 lm 170 lm/W 350 mA 2322 lm 152 lm/W 500 mA 3224 lm 144 lm/W
Linearis Z G2 L56 W24 2600 827 7517-10369 80 2700 K 75 mA 612 lm 192 lm/W 350 mA 2710 lm 172 lm/W 500 mA 3763 lm 164 lm/W
Linearis Z G2 L56 W24 2600 830 7517-10370 80 3000 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L56 W24 2600 835 7517-10371 80 3500 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L56 W24 2600 840 7517-10372 80 4000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W24 2600 850 7517-10373 80 5000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W24 2600 857 7517-10374 80 5700 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W24 2600 865 7517-10375 80 6500 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L56 W24 2600 922 7517-10376 90 2200 K 75 mA 447 lm 141 lm/W 350 mA 1982 lm 126 lm/W 500 mA 2752 lm 120 lm/W
Linearis Z G2 L56 W24 2600 927 7517-10377 90 2700 K 75 mA 613 lm 194 lm/W 350 mA 2729 lm 174 lm/W 500 mA 3788 lm 166 lm/W
Linearis Z G2 L56 W24 2600 930 7517-10378 90 3000 K 75 mA 626 lm 198 lm/W 350 mA 2788 lm 178 lm/W 500 mA 3870 lm 169 lm/W
Linearis Z G2 L56 W24 2600 935 7517-10379 90 3500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Linearis Z G2 L56 W24 2600 940 7517-10380 90 4000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W24 2600 950 7517-10381 90 5000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W24 2600 957 7517-10382 90 5700 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L56 W24 2600 965 7517-10383 90 6500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L112 2600

Features

Big module image

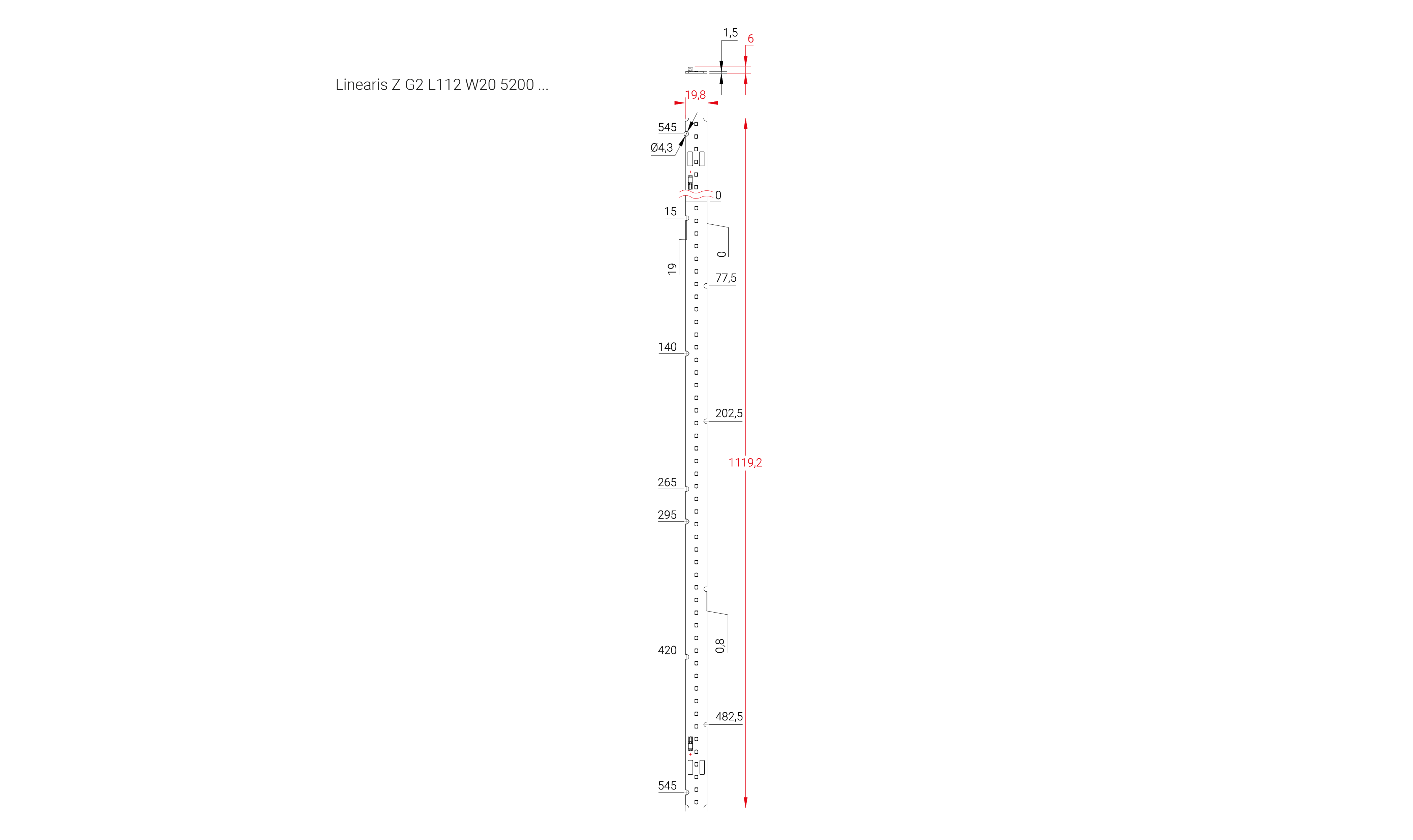

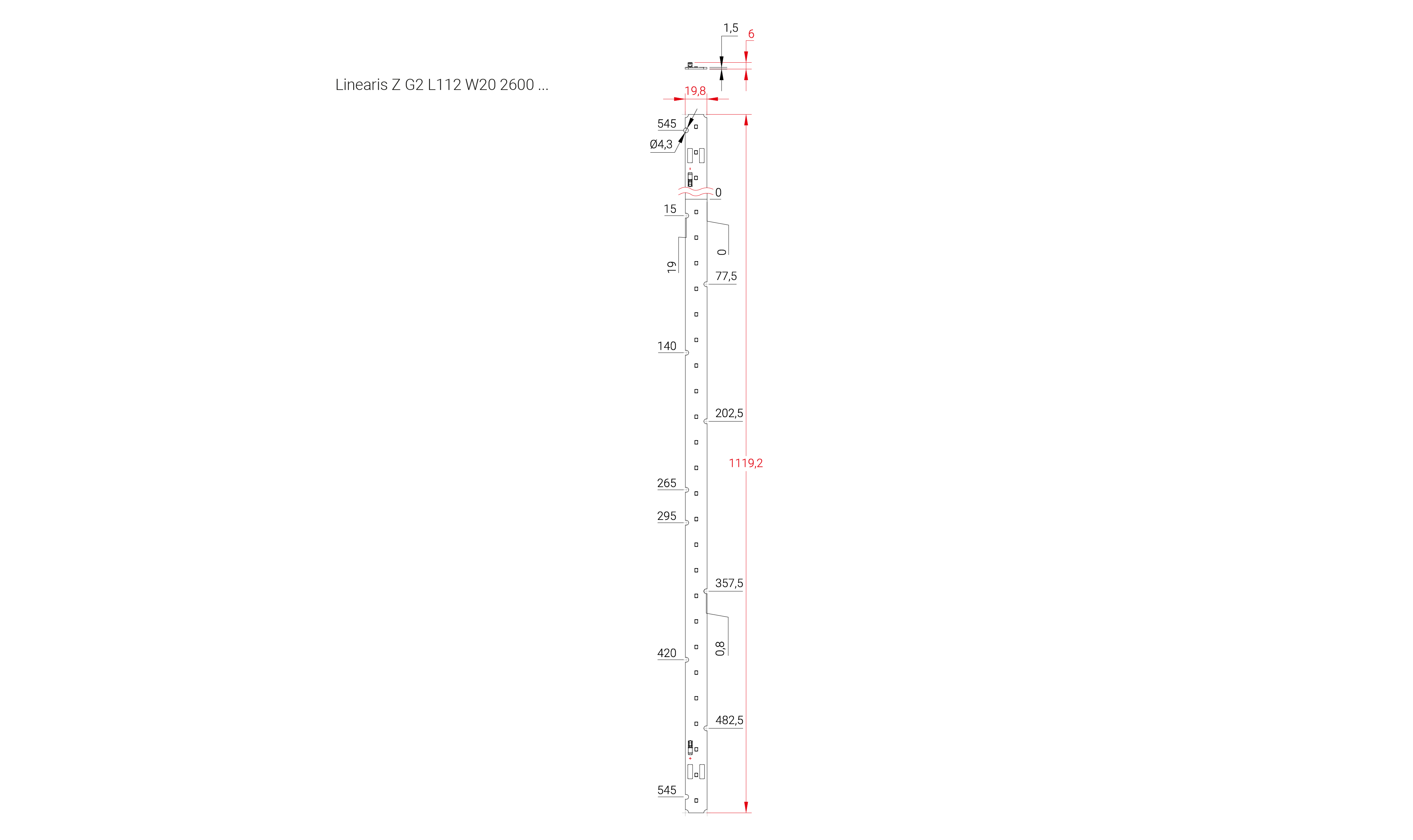

Module drawing
  • linear module for installation in luminaires
  • 48 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1120 mm
  • width 20 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 49.6 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L112
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L112 W20 2600 822 7517-10384 80 2200 K 75 mA 524 lm 170 lm/W 350 mA 2322 lm 152 lm/W 500 mA 3224 lm 144 lm/W
Linearis Z G2 L112 W20 2600 827 7517-10385 80 2700 K 75 mA 612 lm 192 lm/W 350 mA 2710 lm 172 lm/W 500 mA 3763 lm 164 lm/W
Linearis Z G2 L112 W20 2600 830 7517-10386 80 3000 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L112 W20 2600 835 7517-10387 80 3500 K 75 mA 652 lm 206 lm/W 350 mA 2888 lm 184 lm/W 500 mA 4010 lm 175 lm/W
Linearis Z G2 L112 W20 2600 840 7517-10388 80 4000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L112 W20 2600 850 7517-10389 80 5000 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L112 W20 2600 857 7517-10390 80 5700 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L112 W20 2600 865 7517-10391 80 6500 K 75 mA 677 lm 216 lm/W 350 mA 3001 lm 193 lm/W 500 mA 4167 lm 184 lm/W
Linearis Z G2 L112 W20 2600 922 7517-10392 90 2200 K 75 mA 447 lm 141 lm/W 350 mA 1982 lm 126 lm/W 500 mA 2752 lm 120 lm/W
Linearis Z G2 L112 W20 2600 927 7517-10393 90 2700 K 75 mA 613 lm 194 lm/W 350 mA 2729 lm 174 lm/W 500 mA 3788 lm 166 lm/W
Linearis Z G2 L112 W20 2600 930 7517-10394 90 3000 K 75 mA 626 lm 198 lm/W 350 mA 2788 lm 178 lm/W 500 mA 3870 lm 169 lm/W
Linearis Z G2 L112 W20 2600 935 7517-10395 90 3500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Linearis Z G2 L112 W20 2600 940 7517-10396 90 4000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L112 W20 2600 950 7517-10397 90 5000 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L112 W20 2600 957 7517-10398 90 5700 K 75 mA 648 lm 205 lm/W 350 mA 2887 lm 184 lm/W 500 mA 4006 lm 175 lm/W
Linearis Z G2 L112 W20 2600 965 7517-10399 90 6500 K 75 mA 642 lm 203 lm/W 350 mA 2857 lm 182 lm/W 500 mA 3965 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L112 5200

Features

Big module image
Module drawing
  • linear module for installation in luminaires
  • 96 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1120 mm
  • width 20 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 99.2 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L112
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L112 W20 5200 822 7517-10400 80 2200 K 75 mA 1048 lm 170 lm/W 350 mA 4644 lm 152 lm/W 500 mA 6448 lm 144 lm/W
Linearis Z G2 L112 W20 5200 827 7517-10401 80 2700 K 75 mA 1224 lm 192 lm/W 350 mA 5421 lm 172 lm/W 500 mA 7527 lm 164 lm/W
Linearis Z G2 L112 W20 5200 830 7517-10402 80 3000 K 75 mA 1304 lm 206 lm/W 350 mA 5776 lm 184 lm/W 500 mA 8019 lm 175 lm/W
Linearis Z G2 L112 W20 5200 835 7517-10403 80 3500 K 75 mA 1304 lm 206 lm/W 350 mA 5776 lm 184 lm/W 500 mA 8019 lm 175 lm/W
Linearis Z G2 L112 W20 5200 840 7517-10404 80 4000 K 75 mA 1355 lm 216 lm/W 350 mA 6003 lm 193 lm/W 500 mA 8334 lm 184 lm/W
Linearis Z G2 L112 W20 5200 850 7517-10405 80 5000 K 75 mA 1355 lm 216 lm/W 350 mA 6003 lm 193 lm/W 500 mA 8334 lm 184 lm/W
Linearis Z G2 L112 W20 5200 857 7517-10406 80 5700 K 75 mA 1355 lm 216 lm/W 350 mA 6003 lm 193 lm/W 500 mA 8334 lm 184 lm/W
Linearis Z G2 L112 W20 5200 865 7517-10407 80 6500 K 75 mA 1355 lm 216 lm/W 350 mA 6003 lm 193 lm/W 500 mA 8334 lm 184 lm/W
Linearis Z G2 L112 W20 5200 922 7517-10408 90 2200 K 75 mA 895 lm 141 lm/W 350 mA 3964 lm 126 lm/W 500 mA 5503 lm 120 lm/W
Linearis Z G2 L112 W20 5200 927 7517-10409 90 2700 K 75 mA 1226 lm 194 lm/W 350 mA 5459 lm 174 lm/W 500 mA 7576 lm 166 lm/W
Linearis Z G2 L112 W20 5200 930 7517-10410 90 3000 K 75 mA 1252 lm 198 lm/W 350 mA 5577 lm 178 lm/W 500 mA 7740 lm 169 lm/W
Linearis Z G2 L112 W20 5200 935 7517-10411 90 3500 K 75 mA 1283 lm 203 lm/W 350 mA 5714 lm 182 lm/W 500 mA 7930 lm 173 lm/W
Linearis Z G2 L112 W20 5200 940 7517-10412 90 4000 K 75 mA 1296 lm 205 lm/W 350 mA 5773 lm 184 lm/W 500 mA 8012 lm 175 lm/W
Linearis Z G2 L112 W20 5200 950 7517-10413 90 5000 K 75 mA 1296 lm 205 lm/W 350 mA 5773 lm 184 lm/W 500 mA 8012 lm 175 lm/W
Linearis Z G2 L112 W20 5200 957 7517-10414 90 5700 K 75 mA 1296 lm 205 lm/W 350 mA 5773 lm 184 lm/W 500 mA 8012 lm 175 lm/W
Linearis Z G2 L112 W20 5200 965 7517-10415 90 6500 K 75 mA 1283 lm 203 lm/W 350 mA 5714 lm 182 lm/W 500 mA 7930 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L140 3250

Features

Big module image
Module drawing
  • linear module for installation in luminaires
  • 60 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1400 mm
  • width 20 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 62 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L140
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L140 W20 3250 822 7517-10416 80 2200 K 75 mA 655 lm 170 lm/W 350 mA 2902 lm 152 lm/W 500 mA 4030 lm 144 lm/W
Linearis Z G2 L140 W20 3250 827 7517-10417 80 2700 K 75 mA 765 lm 192 lm/W 350 mA 3388 lm 172 lm/W 500 mA 4704 lm 164 lm/W
Linearis Z G2 L140 W20 3250 830 7517-10418 80 3000 K 75 mA 815 lm 206 lm/W 350 mA 3610 lm 184 lm/W 500 mA 5012 lm 175 lm/W
Linearis Z G2 L140 W20 3250 835 7517-10419 80 3500 K 75 mA 815 lm 206 lm/W 350 mA 3610 lm 184 lm/W 500 mA 5012 lm 175 lm/W
Linearis Z G2 L140 W20 3250 840 7517-10420 80 4000 K 75 mA 847 lm 216 lm/W 350 mA 3752 lm 193 lm/W 500 mA 5209 lm 184 lm/W
Linearis Z G2 L140 W20 3250 850 7517-10421 80 5000 K 75 mA 847 lm 216 lm/W 350 mA 3752 lm 193 lm/W 500 mA 5209 lm 184 lm/W
Linearis Z G2 L140 W20 3250 857 7517-10422 80 5700 K 75 mA 847 lm 216 lm/W 350 mA 3752 lm 193 lm/W 500 mA 5209 lm 184 lm/W
Linearis Z G2 L140 W20 3250 865 7517-10423 80 6500 K 75 mA 847 lm 216 lm/W 350 mA 3752 lm 193 lm/W 500 mA 5209 lm 184 lm/W
Linearis Z G2 L140 W20 3250 922 7517-10424 90 2200 K 75 mA 559 lm 141 lm/W 350 mA 2477 lm 126 lm/W 500 mA 3440 lm 120 lm/W
Linearis Z G2 L140 W20 3250 927 7517-10425 90 2700 K 75 mA 766 lm 194 lm/W 350 mA 3412 lm 174 lm/W 500 mA 4735 lm 166 lm/W
Linearis Z G2 L140 W20 3250 930 7517-10426 90 3000 K 75 mA 783 lm 198 lm/W 350 mA 3485 lm 178 lm/W 500 mA 4837 lm 169 lm/W
Linearis Z G2 L140 W20 3250 935 7517-10427 90 3500 K 75 mA 802 lm 203 lm/W 350 mA 3571 lm 182 lm/W 500 mA 4956 lm 173 lm/W
Linearis Z G2 L140 W20 3250 940 7517-10428 90 4000 K 75 mA 810 lm 205 lm/W 350 mA 3608 lm 184 lm/W 500 mA 5008 lm 175 lm/W
Linearis Z G2 L140 W20 3250 950 7517-10429 90 5000 K 75 mA 810 lm 205 lm/W 350 mA 3608 lm 184 lm/W 500 mA 5008 lm 175 lm/W
Linearis Z G2 L140 W20 3250 957 7517-10430 90 5700 K 75 mA 810 lm 205 lm/W 350 mA 3608 lm 184 lm/W 500 mA 5008 lm 175 lm/W
Linearis Z G2 L140 W20 3250 965 7517-10431 90 6500 K 75 mA 802 lm 203 lm/W 350 mA 3571 lm 182 lm/W 500 mA 4956 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Linearis Z L140 6500

Features

Big module image

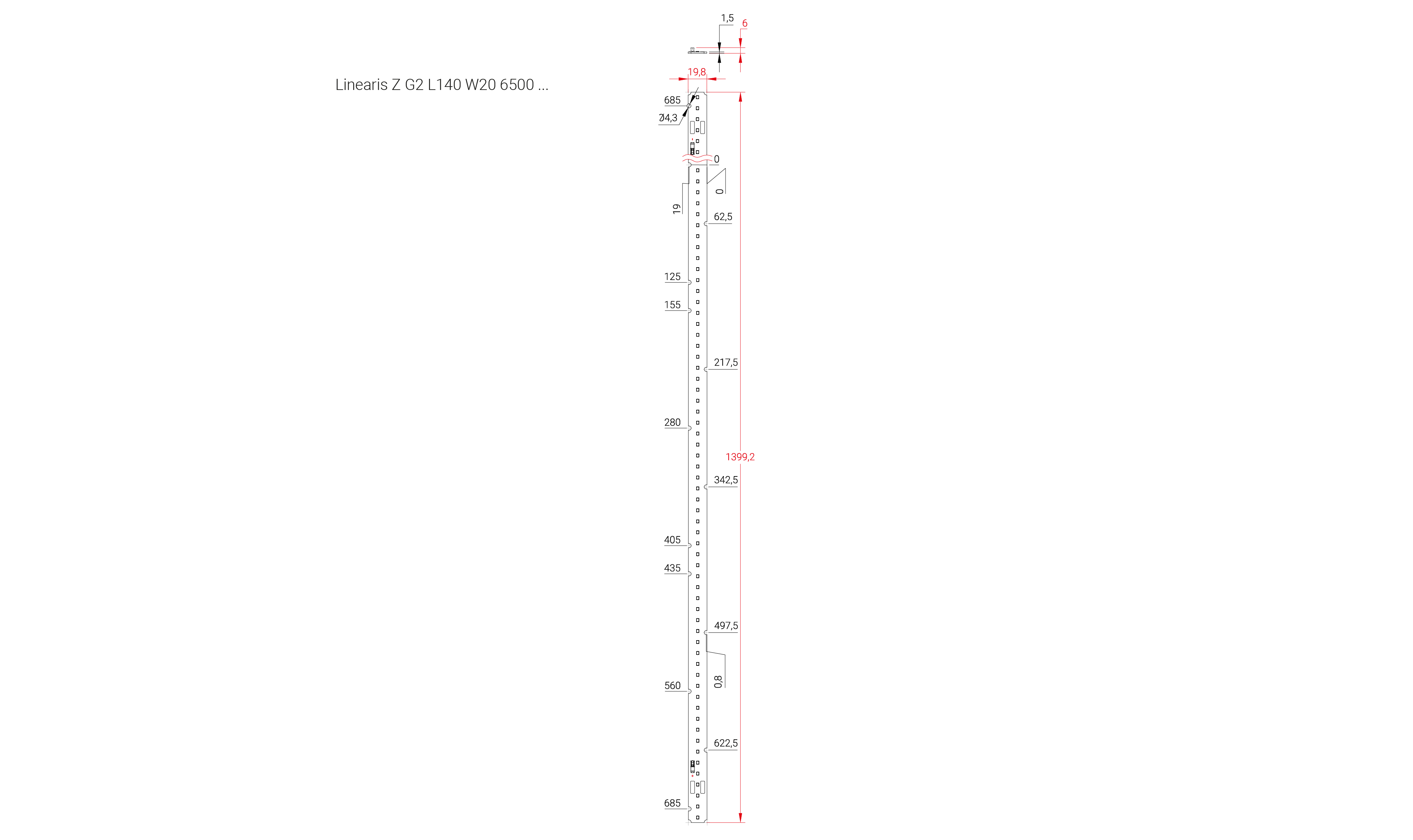

Module drawing
  • linear module for installation in luminaires
  • 120 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1400 mm
  • width 20 mm
  • 2 connection terminals
  • rated current 350 mA
  • maximum operating current 500 mA
  • maximum forward voltage 124 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z G2 L140
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z G2 L140 W20 6500 822 7517-10432 80 2200 K 75 mA 1310 lm 170 lm/W 350 mA 5805 lm 152 lm/W 500 mA 8060 lm 144 lm/W
Linearis Z G2 L140 W20 6500 827 7517-10433 80 2700 K 75 mA 1530 lm 192 lm/W 350 mA 6776 lm 172 lm/W 500 mA 9408 lm 164 lm/W
Linearis Z G2 L140 W20 6500 830 7517-10434 80 3000 K 75 mA 1630 lm 206 lm/W 350 mA 7220 lm 184 lm/W 500 mA 10024 lm 175 lm/W
Linearis Z G2 L140 W20 6500 835 7517-10435 80 3500 K 75 mA 1630 lm 206 lm/W 350 mA 7220 lm 184 lm/W 500 mA 10024 lm 175 lm/W
Linearis Z G2 L140 W20 6500 840 7517-10436 80 4000 K 75 mA 1694 lm 216 lm/W 350 mA 7503 lm 193 lm/W 500 mA 10418 lm 184 lm/W
Linearis Z G2 L140 W20 6500 850 7517-10437 80 5000 K 75 mA 1694 lm 216 lm/W 350 mA 7503 lm 193 lm/W 500 mA 10418 lm 184 lm/W
Linearis Z G2 L140 W20 6500 857 7517-10438 80 5700 K 75 mA 1694 lm 216 lm/W 350 mA 7503 lm 193 lm/W 500 mA 10418 lm 184 lm/W
Linearis Z G2 L140 W20 6500 865 7517-10439 80 6500 K 75 mA 1694 lm 216 lm/W 350 mA 7503 lm 193 lm/W 500 mA 10418 lm 184 lm/W
Linearis Z G2 L140 W20 6500 922 7517-10440 90 2200 K 75 mA 1118 lm 141 lm/W 350 mA 4954 lm 126 lm/W 500 mA 6879 lm 120 lm/W
Linearis Z G2 L140 W20 6500 927 7517-10441 90 2700 K 75 mA 1532 lm 194 lm/W 350 mA 6824 lm 174 lm/W 500 mA 9470 lm 166 lm/W
Linearis Z G2 L140 W20 6500 930 7517-10442 90 3000 K 75 mA 1565 lm 198 lm/W 350 mA 6971 lm 178 lm/W 500 mA 9674 lm 169 lm/W
Linearis Z G2 L140 W20 6500 935 7517-10443 90 3500 K 75 mA 1604 lm 203 lm/W 350 mA 7143 lm 182 lm/W 500 mA 9913 lm 173 lm/W
Linearis Z G2 L140 W20 6500 940 7517-10444 90 4000 K 75 mA 1621 lm 205 lm/W 350 mA 7216 lm 184 lm/W 500 mA 10015 lm 175 lm/W
Linearis Z G2 L140 W20 6500 950 7517-10445 90 5000 K 75 mA 1621 lm 205 lm/W 350 mA 7216 lm 184 lm/W 500 mA 10015 lm 175 lm/W
Linearis Z G2 L140 W20 6500 957 7517-10446 90 5700 K 75 mA 1621 lm 205 lm/W 350 mA 7216 lm 184 lm/W 500 mA 10015 lm 175 lm/W
Linearis Z G2 L140 W20 6500 965 7517-10447 90 6500 K 75 mA 1604 lm 203 lm/W 350 mA 7143 lm 182 lm/W 500 mA 9913 lm 173 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Linearis products

Standard redefined: Our standard modules of the Linearis Z series are Zhaga-compliant LED modules with ENEC certification, which are available at short notice and are ideal for ideal for installation in luminaires.

There is a choice of six different lengths from 70 mm to 1400 mm and three widths from 16 mm to 24 mm.

The modules are available in two luminous flux packages. The spacing of the LEDs is either 11.7 mm or 23.3 mm. Color renderings of CRI 80, CRI 90 and, on request, CRI 95 are available for white-equipped LED modules.

Choose from a variety of eight light colors: 2200 K, 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 5700 K and 6500 K. The photometric range extends up to 216 Im/W or a good 10000 Im.

By selecting LEDs with a color consistency of 3 Step MacAdam, a high level of color homogeneity is achieved in the module.

Our modules are designed for series connection.

Even modules of different lengths can be combined with each other without any problems. The spacing of the LEDs is chosen in such a way that an even distribution over all modules is ensured.

In addition to modules with white LEDs, you can also choose from a range of modules with colored LEDs.

The Linearis Z LV variants in lengths of 1120 mm and 1400 mm are a special feature. These are designed for higher operating currents and are therefore suitable for SELV operation.
