iX-led ❯ White LED-modules ❯ Linearis Z LV

Linearis Z LV

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z LV L112 2600

  • linear module in SELV for installation in luminaires
  • 48 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1120 mm
  • width 20 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z LV L112 5200

  • linear module in SELV for installation in luminaires
  • 96 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1120 mm
  • width 20 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z LV L140 3250

  • linear module in SELV for installation in luminaires
  • 60 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1400 mm
  • width 20 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Linearis Z LV L140 6500

  • linear module in SELV for installation in luminaires
  • 120 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1400 mm
  • width 20 mm
  • Products

Linearis Z LV L112 2600

Features

Big module image

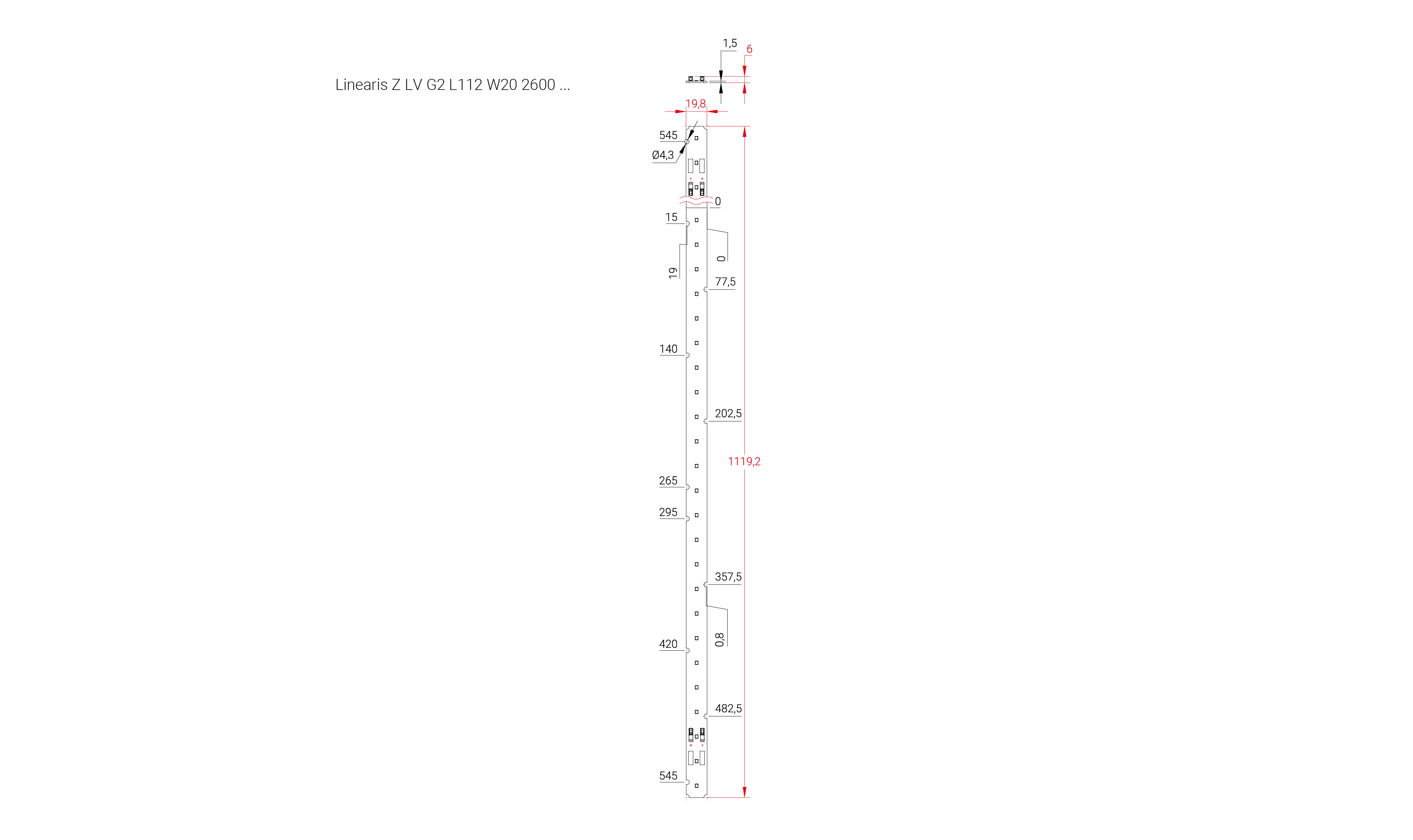

Module drawing
  • linear module in SELV for installation in luminaires
  • 48 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1120 mm
  • width 20 mm
  • 4 connection terminals
  • rated current 700 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 24.8 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z LV L112 2600
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z LV G2 L112 W20 2600 822 7517-10448 80 2200 K 150 mA 524 lm 170 lm/W 700 mA 2322 lm 152 lm/W 1050 mA 3369 lm 143 lm/W
Linearis Z LV G2 L112 W20 2600 827 7517-10449 80 2700 K 150 mA 612 lm 192 lm/W 700 mA 2710 lm 172 lm/W 1050 mA 3932 lm 162 lm/W
Linearis Z LV G2 L112 W20 2600 830 7517-10450 80 3000 K 150 mA 652 lm 206 lm/W 700 mA 2888 lm 184 lm/W 1050 mA 4191 lm 174 lm/W
Linearis Z LV G2 L112 W20 2600 835 7517-10451 80 3500 K 150 mA 652 lm 206 lm/W 700 mA 2888 lm 184 lm/W 1050 mA 4191 lm 174 lm/W
Linearis Z LV G2 L112 W20 2600 840 7517-10452 80 4000 K 150 mA 677 lm 216 lm/W 700 mA 3001 lm 193 lm/W 1050 mA 4355 lm 182 lm/W
Linearis Z LV G2 L112 W20 2600 850 7517-10453 80 5000 K 150 mA 677 lm 216 lm/W 700 mA 3001 lm 193 lm/W 1050 mA 4355 lm 182 lm/W
Linearis Z LV G2 L112 W20 2600 857 7517-10454 80 5700 K 150 mA 677 lm 216 lm/W 700 mA 3001 lm 193 lm/W 1050 mA 4355 lm 182 lm/W
Linearis Z LV G2 L112 W20 2600 865 7517-10455 80 6500 K 150 mA 677 lm 216 lm/W 700 mA 3001 lm 193 lm/W 1050 mA 4355 lm 182 lm/W
Linearis Z LV G2 L112 W20 2600 922 7517-10456 90 2200 K 150 mA 447 lm 141 lm/W 700 mA 1982 lm 126 lm/W 1050 mA 2875 lm 119 lm/W
Linearis Z LV G2 L112 W20 2600 927 7517-10457 90 2700 K 150 mA 613 lm 194 lm/W 700 mA 2729 lm 174 lm/W 1050 mA 3958 lm 164 lm/W
Linearis Z LV G2 L112 W20 2600 930 7517-10458 90 3000 K 150 mA 626 lm 198 lm/W 700 mA 2788 lm 178 lm/W 1050 mA 4044 lm 168 lm/W
Linearis Z LV G2 L112 W20 2600 935 7517-10459 90 3500 K 150 mA 642 lm 203 lm/W 700 mA 2857 lm 182 lm/W 1050 mA 4144 lm 172 lm/W
Linearis Z LV G2 L112 W20 2600 940 7517-10460 90 4000 K 150 mA 648 lm 205 lm/W 700 mA 2887 lm 184 lm/W 1050 mA 4186 lm 174 lm/W
Linearis Z LV G2 L112 W20 2600 950 7517-10461 90 5000 K 150 mA 648 lm 205 lm/W 700 mA 2887 lm 184 lm/W 1050 mA 4186 lm 174 lm/W
Linearis Z LV G2 L112 W20 2600 957 7517-10462 90 5700 K 150 mA 648 lm 205 lm/W 700 mA 2887 lm 184 lm/W 1050 mA 4186 lm 174 lm/W
Linearis Z LV G2 L112 W20 2600 965 7517-10463 90 6500 K 150 mA 642 lm 203 lm/W 700 mA 2857 lm 182 lm/W 1050 mA 4144 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

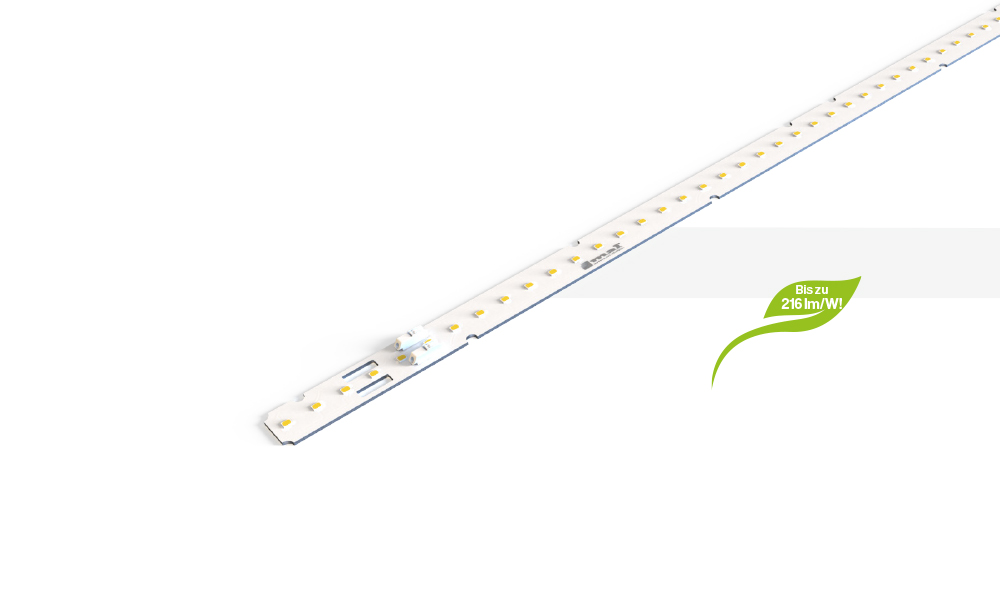

Linearis Z LV L112 5200

Features

Big module image

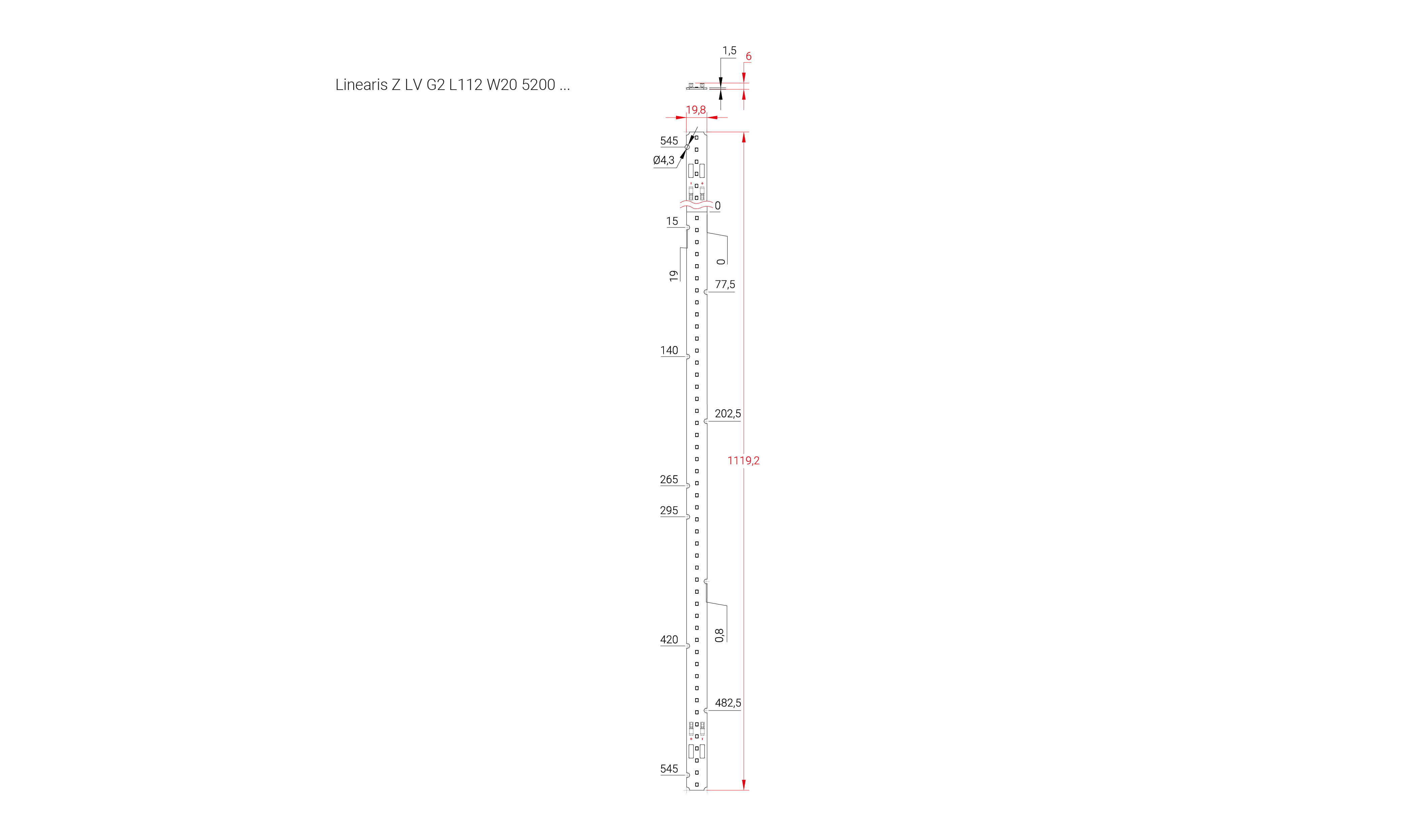

Module drawing
  • linear module in SELV for installation in luminaires
  • 96 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1120 mm
  • width 20 mm
  • 4 connection terminals
  • rated current 1400 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 24.8 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z LV L112 5200
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z LV G2 L112 W20 5200 822 7517-10464 80 2200 K 300 mA 1048 lm 170 lm/W 1400 mA 4644 lm 152 lm/W 2100 mA 6739 lm 143 lm/W
Linearis Z LV G2 L112 W20 5200 827 7517-10465 80 2700 K 300 mA 1224 lm 192 lm/W 1400 mA 5421 lm 172 lm/W 2100 mA 7865 lm 162 lm/W
Linearis Z LV G2 L112 W20 5200 830 7517-10466 80 3000 K 300 mA 1304 lm 206 lm/W 1400 mA 5776 lm 184 lm/W 2100 mA 8381 lm 174 lm/W
Linearis Z LV G2 L112 W20 5200 835 7517-10467 80 3500 K 300 mA 1304 lm 206 lm/W 1400 mA 5776 lm 184 lm/W 2100 mA 8381 lm 174 lm/W
Linearis Z LV G2 L112 W20 5200 840 7517-10468 80 4000 K 300 mA 1355 lm 216 lm/W 1400 mA 6003 lm 193 lm/W 2100 mA 8710 lm 182 lm/W
Linearis Z LV G2 L112 W20 5200 850 7517-10469 80 5000 K 300 mA 1355 lm 216 lm/W 1400 mA 6003 lm 193 lm/W 2100 mA 8710 lm 182 lm/W
Linearis Z LV G2 L112 W20 5200 857 7517-10470 80 5700 K 300 mA 1355 lm 216 lm/W 1400 mA 6003 lm 193 lm/W 2100 mA 8710 lm 182 lm/W
Linearis Z LV G2 L112 W20 5200 865 7517-10471 80 6500 K 300 mA 1355 lm 216 lm/W 1400 mA 6003 lm 193 lm/W 2100 mA 8710 lm 182 lm/W
Linearis Z LV G2 L112 W20 5200 922 7517-10472 90 2200 K 300 mA 895 lm 141 lm/W 1400 mA 3964 lm 126 lm/W 2100 mA 5751 lm 119 lm/W
Linearis Z LV G2 L112 W20 5200 927 7517-10473 90 2700 K 300 mA 1226 lm 194 lm/W 1400 mA 5459 lm 174 lm/W 2100 mA 7917 lm 164 lm/W
Linearis Z LV G2 L112 W20 5200 930 7517-10474 90 3000 K 300 mA 1252 lm 198 lm/W 1400 mA 5577 lm 178 lm/W 2100 mA 8088 lm 168 lm/W
Linearis Z LV G2 L112 W20 5200 935 7517-10475 90 3500 K 300 mA 1283 lm 203 lm/W 1400 mA 5714 lm 182 lm/W 2100 mA 8287 lm 172 lm/W
Linearis Z LV G2 L112 W20 5200 940 7517-10476 90 4000 K 300 mA 1296 lm 205 lm/W 1400 mA 5773 lm 184 lm/W 2100 mA 8372 lm 174 lm/W
Linearis Z LV G2 L112 W20 5200 950 7517-10477 90 5000 K 300 mA 1296 lm 205 lm/W 1400 mA 5773 lm 184 lm/W 2100 mA 8372 lm 174 lm/W
Linearis Z LV G2 L112 W20 5200 957 7517-10478 90 5700 K 300 mA 1296 lm 205 lm/W 1400 mA 5773 lm 184 lm/W 2100 mA 8372 lm 174 lm/W
Linearis Z LV G2 L112 W20 5200 965 7517-10479 90 6500 K 300 mA 1283 lm 203 lm/W 1400 mA 5714 lm 182 lm/W 2100 mA 8287 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

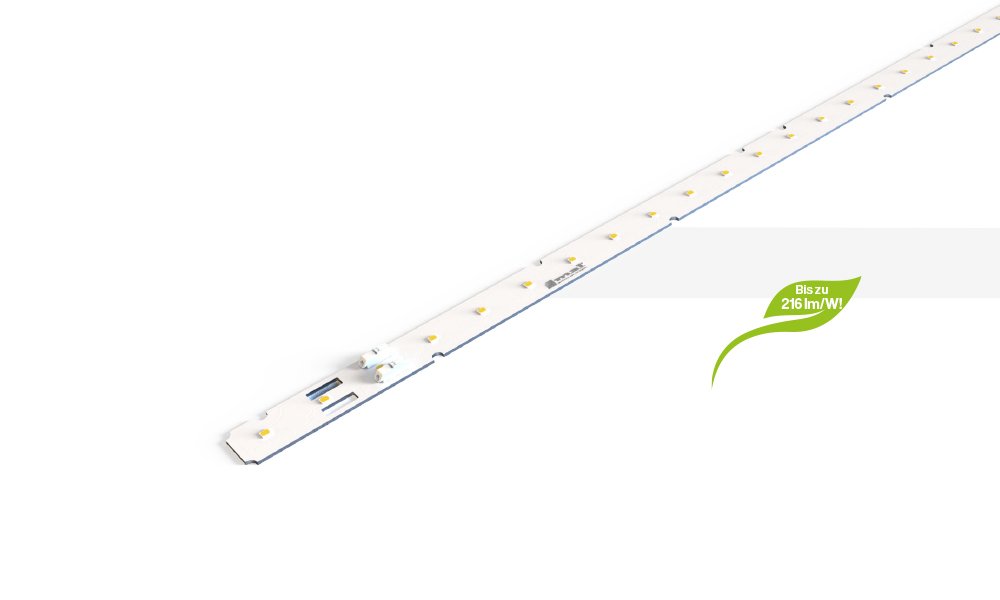

Linearis Z LV L140 3250

Features

Big module image
Module drawing
  • linear module in SELV for installation in luminaires
  • 60 Mid-Power-LEDs
  • pitch distance 23.3 mm
  • length 1400 mm
  • width 20 mm
  • 4 connection terminals
  • rated current 700 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 31 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z LV L140 3250
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z LV G2 L140 W20 3250 822 7517-10480 80 2200 K 150 mA 655 lm 170 lm/W 700 mA 2902 lm 152 lm/W 1050 mA 4212 lm 143 lm/W
Linearis Z LV G2 L140 W20 3250 827 7517-10481 80 2700 K 150 mA 765 lm 192 lm/W 700 mA 3388 lm 172 lm/W 1050 mA 4915 lm 162 lm/W
Linearis Z LV G2 L140 W20 3250 830 7517-10482 80 3000 K 150 mA 815 lm 206 lm/W 700 mA 3610 lm 184 lm/W 1050 mA 5238 lm 174 lm/W
Linearis Z LV G2 L140 W20 3250 835 7517-10483 80 3500 K 150 mA 815 lm 206 lm/W 700 mA 3610 lm 184 lm/W 1050 mA 5238 lm 174 lm/W
Linearis Z LV G2 L140 W20 3250 840 7517-10484 80 4000 K 150 mA 847 lm 216 lm/W 700 mA 3752 lm 193 lm/W 1050 mA 5444 lm 182 lm/W
Linearis Z LV G2 L140 W20 3250 850 7517-10485 80 5000 K 150 mA 847 lm 216 lm/W 700 mA 3752 lm 193 lm/W 1050 mA 5444 lm 182 lm/W
Linearis Z LV G2 L140 W20 3250 857 7517-10486 80 5700 K 150 mA 847 lm 216 lm/W 700 mA 3752 lm 193 lm/W 1050 mA 5444 lm 182 lm/W
Linearis Z LV G2 L140 W20 3250 865 7517-10487 80 6500 K 150 mA 847 lm 216 lm/W 700 mA 3752 lm 193 lm/W 1050 mA 5444 lm 182 lm/W
Linearis Z LV G2 L140 W20 3250 922 7517-10488 90 2200 K 150 mA 559 lm 141 lm/W 700 mA 2477 lm 126 lm/W 1050 mA 3594 lm 119 lm/W
Linearis Z LV G2 L140 W20 3250 927 7517-10489 90 2700 K 150 mA 766 lm 194 lm/W 700 mA 3412 lm 174 lm/W 1050 mA 4948 lm 164 lm/W
Linearis Z LV G2 L140 W20 3250 930 7517-10490 90 3000 K 150 mA 783 lm 198 lm/W 700 mA 3485 lm 178 lm/W 1050 mA 5055 lm 168 lm/W
Linearis Z LV G2 L140 W20 3250 935 7517-10491 90 3500 K 150 mA 802 lm 203 lm/W 700 mA 3571 lm 182 lm/W 1050 mA 5179 lm 172 lm/W
Linearis Z LV G2 L140 W20 3250 940 7517-10492 90 4000 K 150 mA 810 lm 205 lm/W 700 mA 3608 lm 184 lm/W 1050 mA 5233 lm 174 lm/W
Linearis Z LV G2 L140 W20 3250 950 7517-10493 90 5000 K 150 mA 810 lm 205 lm/W 700 mA 3608 lm 184 lm/W 1050 mA 5233 lm 174 lm/W
Linearis Z LV G2 L140 W20 3250 957 7517-10494 90 5700 K 150 mA 810 lm 205 lm/W 700 mA 3608 lm 184 lm/W 1050 mA 5233 lm 174 lm/W
Linearis Z LV G2 L140 W20 3250 965 7517-10495 90 6500 K 150 mA 802 lm 203 lm/W 700 mA 3571 lm 182 lm/W 1050 mA 5179 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

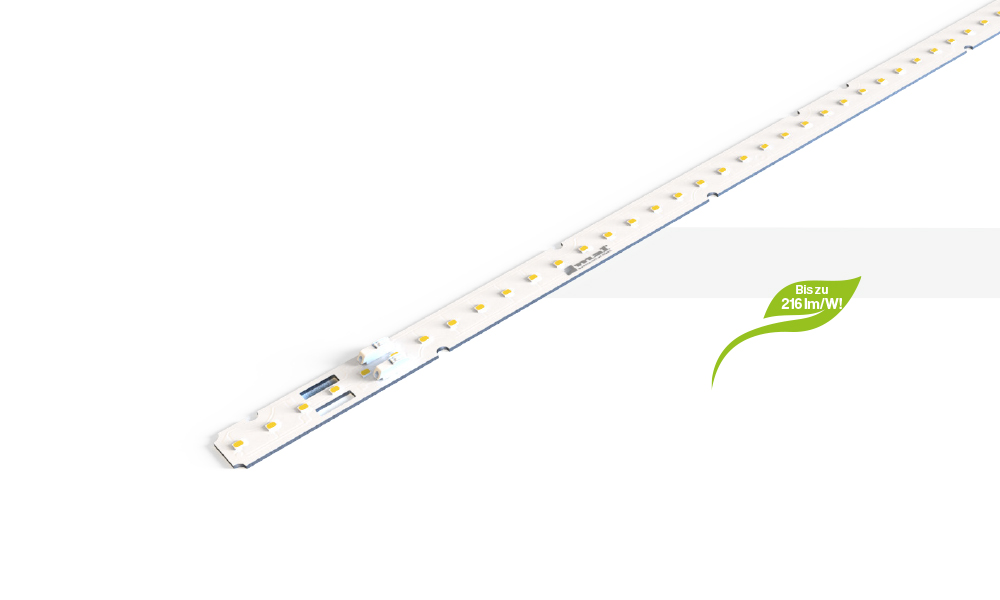

Linearis Z LV L140 6500

Features

Big module image
Module drawing
  • linear module in SELV for installation in luminaires
  • 120 Mid-Power-LEDs
  • pitch distance 11.7 mm
  • length 1400 mm
  • width 20 mm
  • 4 connection terminals
  • rated current 1400 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 31 V
  • meets the well-known industry standard

Downloads

Technical data

Linearis Z LV L140 6500
Description Order-nr. CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Linearis Z LV G2 L140 W20 6500 822 7517-10496 80 2200 K 300 mA 1310 lm 170 lm/W 1400 mA 5805 lm 152 lm/W 2100 mA 8424 lm 143 lm/W
Linearis Z LV G2 L140 W20 6500 827 7517-10497 80 2700 K 300 mA 1530 lm 192 lm/W 1400 mA 6776 lm 172 lm/W 2100 mA 9831 lm 162 lm/W
Linearis Z LV G2 L140 W20 6500 830 7517-10498 80 3000 K 300 mA 1630 lm 206 lm/W 1400 mA 7220 lm 184 lm/W 2100 mA 10476 lm 174 lm/W
Linearis Z LV G2 L140 W20 6500 835 7517-10499 80 3500 K 300 mA 1630 lm 206 lm/W 1400 mA 7220 lm 184 lm/W 2100 mA 10476 lm 174 lm/W
Linearis Z LV G2 L140 W20 6500 840 7517-10500 80 4000 K 300 mA 1694 lm 216 lm/W 1400 mA 7503 lm 193 lm/W 2100 mA 10887 lm 182 lm/W
Linearis Z LV G2 L140 W20 6500 850 7517-10501 80 5000 K 300 mA 1694 lm 216 lm/W 1400 mA 7503 lm 193 lm/W 2100 mA 10887 lm 182 lm/W
Linearis Z LV G2 L140 W20 6500 857 7517-10502 80 5700 K 300 mA 1694 lm 216 lm/W 1400 mA 7503 lm 193 lm/W 2100 mA 10887 lm 182 lm/W
Linearis Z LV G2 L140 W20 6500 865 7517-10503 80 6500 K 300 mA 1694 lm 216 lm/W 1400 mA 7503 lm 193 lm/W 2100 mA 10887 lm 182 lm/W
Linearis Z LV G2 L140 W20 6500 922 7517-10504 90 2200 K 300 mA 1118 lm 141 lm/W 1400 mA 4954 lm 126 lm/W 2100 mA 7188 lm 119 lm/W
Linearis Z LV G2 L140 W20 6500 927 7517-10505 90 2700 K 300 mA 1532 lm 194 lm/W 1400 mA 6824 lm 174 lm/W 2100 mA 9896 lm 164 lm/W
Linearis Z LV G2 L140 W20 6500 930 7517-10506 90 3000 K 300 mA 1565 lm 198 lm/W 1400 mA 6971 lm 178 lm/W 2100 mA 10110 lm 168 lm/W
Linearis Z LV G2 L140 W20 6500 935 7517-10507 90 3500 K 300 mA 1604 lm 203 lm/W 1400 mA 7143 lm 182 lm/W 2100 mA 10359 lm 172 lm/W
Linearis Z LV G2 L140 W20 6500 940 7517-10508 90 4000 K 300 mA 1621 lm 205 lm/W 1400 mA 7216 lm 184 lm/W 2100 mA 10466 lm 174 lm/W
Linearis Z LV G2 L140 W20 6500 950 7517-10509 90 5000 K 300 mA 1621 lm 205 lm/W 1400 mA 7216 lm 184 lm/W 2100 mA 10466 lm 174 lm/W
Linearis Z LV G2 L140 W20 6500 957 7517-10510 90 5700 K 300 mA 1621 lm 205 lm/W 1400 mA 7216 lm 184 lm/W 2100 mA 10466 lm 174 lm/W
Linearis Z LV G2 L140 W20 6500 965 7517-10511 90 6500 K 300 mA 1604 lm 203 lm/W 1400 mA 7143 lm 182 lm/W 2100 mA 10359 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Linearis Z Low Voltage products

Our standard modules of the iX-led Linearis Z LV series are Zhaga-compliant LED modules that are available at short notice and are ideal for installation in luminaires.

Compared to the Linearis-Z module family, the Linearis Z LV are designed for more universal connections.

They have four terminals, so that a single-sided supply is possible. Due to a special switching of the LEDs, the modules are designed for higher current. Nevertheless, they maintain a voltage of ≥ 50 V. Thus, the modules are excellently suited for installation in luminaires with SELV design.

They are available in two lengths: 1120 mm and 1400 mm, with a width of 20 mm.

The modules are each available in two luminous flux packages. The LED spacing is either 23.3 mm or 11.7 mm.

Color renderings of CRI 80 and CRI 90 are possible for white-equipped LED modules, and CRI 95 is available on request.

Choose from a variety of eight light colors: 2200 K, 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 5700 K and 6500 K. With this range, almost all lighting tasks can be solved.

The photometric bandwidth extends up to 216 Im/W or almost 10000 Im.

By selecting LEDs with a color consistency of 3 Step MacAdam, a high color homogeneity is achieved in the module.

Primarily our modules are developed for single applications, but can also be connected in series or parallel.
