Circulus

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus 50

  • ring-shaped LED module for installation in luminaires
  • 24 Mid-Power-LEDs
  • pitch distance 6.5 mm
  • diameter outside 75 mm and inside 25 mm
  • two connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus 105

  • ring-shaped LED module for installation in luminaires
  • 48 Mid-Power LEDs
  • pitch distance 6.9 mm
  • diameter outside 130 mm and inside 80 mm
  • two connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus 160

  • ring-shaped LED module for installation in luminaires
  • 72 Mid-Power LEDs
  • pitch distance 7 mm
  • diameter outside 185 mm and inside 135 mm
  • two connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus 215

  • ring-shaped LED module for installation in luminaires
  • 96 Mid-Power LEDs
  • pitch distance 7 mm
  • diameter outside 240 mm and inside 190 mm
  • two connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus 270

  • ring-shaped LED module for installation in luminaires
  • 120 Mid-Power LEDs
  • pitch distance 7.1 mm
  • diameter outside 295 mm and inside 245 mm
  • two connection terminals
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus T5R 22

  • ring-shaped LED module for installation in luminaires
  • Intended as a replacement for T5R lamp with 22 W
  • 60 Mid-Power LEDs
  • pitch distance 11.2 mm
  • diameter outside 238 mm and inside 190 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus T5R 32/40/55

  • ring-shaped LED module for installation in luminaires
  • Intended as a replacement for T5R lamp with 32/40/55 W
  • 72 Mid-Power LEDs
  • pitch distance 12.6 mm
  • diameter outside 313 mm and inside 265 mm
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus T5R 60

  • ring-shaped LED module for installation in luminaires
  • Intended as a replacement for T5R lamp with 60 W
  • 96 Mid-Power LEDs
  • pitch distance 11.9 mm
  • diameter outside 313 mm and inside 265 mm
  • Products
  • Related products

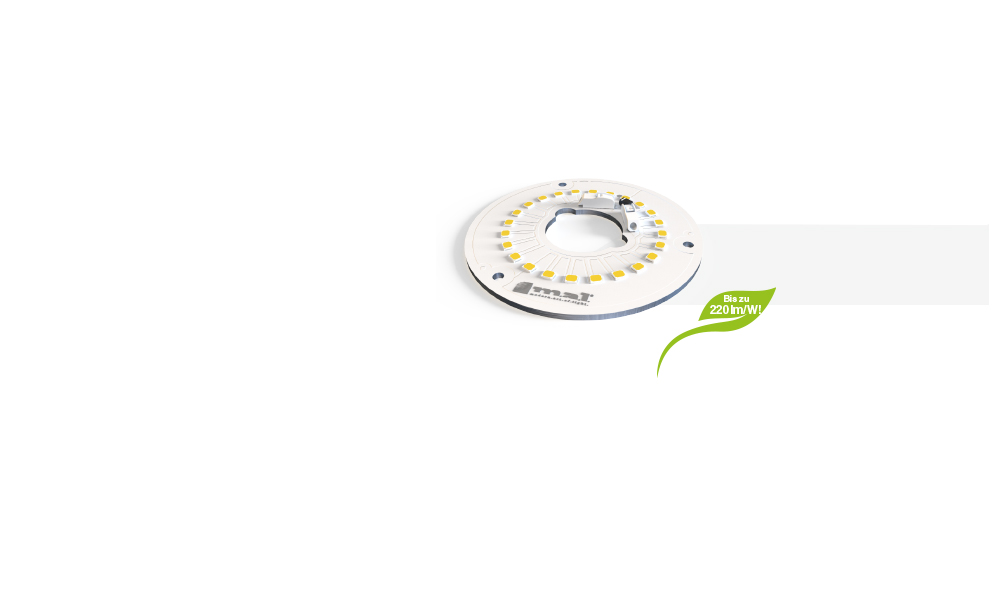

Circulus 50

Features

Big module image

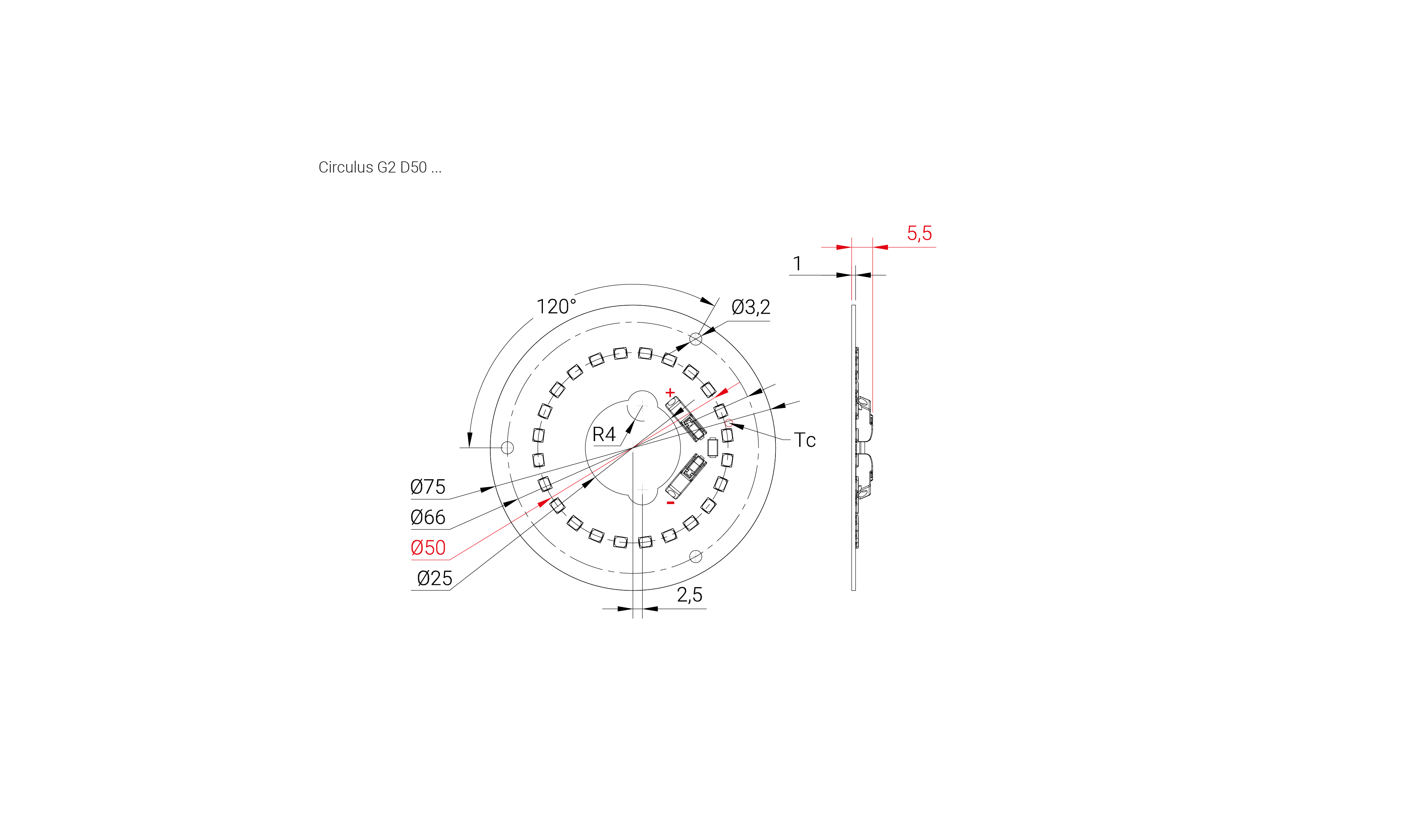

Module drawing
  • ring-shaped LED module for installation in luminaires
  • 24 Mid-Power-LEDs
  • pitch distance 6.5 mm
  • diameter outside 75 mm and inside 25 mm
  • two connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 6.2 V
  • the five ring modules Circulus 50, 105, 160, 215 und Circulus 270 can be arranged inside each other

Downloads

Technical data

Circulus 50
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus G2 D50 827 7543-20000 80 2700 K 150 mA 154 lm 196 lm/W 350 mA 356 lm 191 lm/W 2100 mA 1966 lm 162 lm/W
Circulus G2 D50 830 7543-20001 80 3000 K 150 mA 164 lm 209 lm/W 350 mA 379 lm 205 lm/W 2100 mA 2095 lm 174 lm/W
Circulus G2 D50 835 7543-20002 80 3500 K 150 mA 164 lm 209 lm/W 350 mA 379 lm 205 lm/W 2100 mA 2095 lm 174 lm/W
Circulus G2 D50 840 7543-20003 80 4000 K 150 mA 171 lm 220 lm/W 350 mA 394 lm 215 lm/W 2100 mA 2177 lm 182 lm/W
Circulus G2 D50 850 7543-20004 80 5000 K 150 mA 171 lm 220 lm/W 350 mA 394 lm 215 lm/W 2100 mA 2177 lm 182 lm/W
Circulus G2 D50 857 7543-20005 80 5700 K 150 mA 171 lm 220 lm/W 350 mA 394 lm 215 lm/W 2100 mA 2177 lm 182 lm/W
Circulus G2 D50 865 7543-20006 80 6500 K 150 mA 171 lm 220 lm/W 350 mA 394 lm 215 lm/W 2100 mA 2177 lm 182 lm/W
Circulus G2 D50 927 7543-20007 90 2700 K 150 mA 153 lm 195 lm/W 350 mA 357 lm 193 lm/W 2100 mA 1979 lm 164 lm/W
Circulus G2 D50 930 7543-20008 90 3000 K 150 mA 156 lm 199 lm/W 350 mA 365 lm 197 lm/W 2100 mA 2022 lm 168 lm/W
Circulus G2 D50 935 7543-20009 90 3500 K 150 mA 160 lm 204 lm/W 350 mA 374 lm 202 lm/W 2100 mA 2072 lm 172 lm/W
Circulus G2 D50 940 7543-20010 90 4000 K 150 mA 161 lm 206 lm/W 350 mA 378 lm 204 lm/W 2100 mA 2093 lm 174 lm/W
Circulus G2 D50 950 7543-20011 90 5000 K 150 mA 161 lm 206 lm/W 350 mA 378 lm 204 lm/W 2100 mA 2093 lm 174 lm/W
Circulus G2 D50 957 7543-20012 90 5700 K 150 mA 161 lm 206 lm/W 350 mA 378 lm 204 lm/W 2100 mA 2093 lm 174 lm/W
Circulus G2 D50 965 7543-20013 90 6500 K 150 mA 160 lm 204 lm/W 350 mA 374 lm 202 lm/W 2100 mA 2072 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

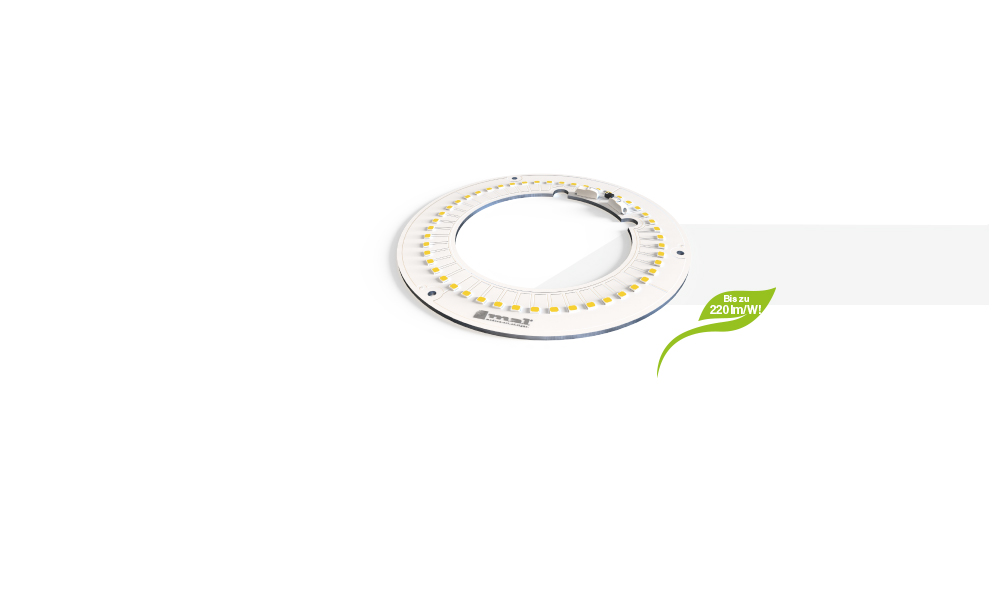

Circulus 105

Features

Big module image

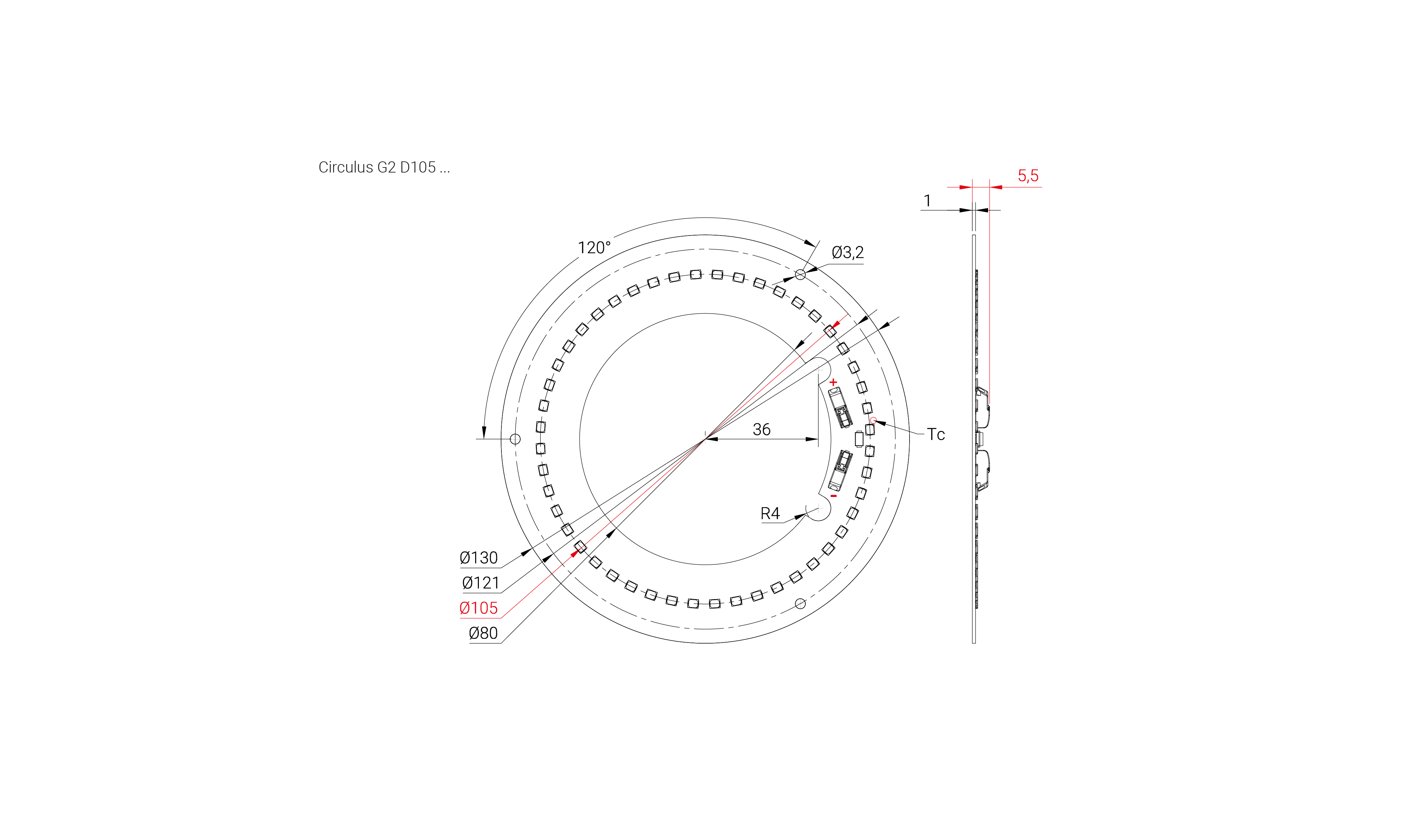

Module drawing
  • ring-shaped LED module for installation in luminaires
  • 48 Mid-Power LEDs
  • pitch distance 6.9 mm
  • diameter outside 130 mm and inside 80 mm
  • two connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 12.4 V
  • the five ring modules Circulus 50, 105, 160, 215 und Circulus 270 can be arranged inside each other

Downloads

Technical data

Circulus 105
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus G2 D105 827 7543-20014 80 2700 K 150 mA 308 lm 196 lm/W 350 mA 712 lm 191 lm/W 2100 mA 3932 lm 162 lm/W
Circulus G2 D105 830 7543-20015 80 3000 K 150 mA 328 lm 209 lm/W 350 mA 759 lm 205 lm/W 2100 mA 4191 lm 174 lm/W
Circulus G2 D105 835 7543-20016 80 3500 K 150 mA 328 lm 209 lm/W 350 mA 759 lm 205 lm/W 2100 mA 4191 lm 174 lm/W
Circulus G2 D105 840 7543-20017 80 4000 K 150 mA 341 lm 220 lm/W 350 mA 788 lm 215 lm/W 2100 mA 4355 lm 182 lm/W
Circulus G2 D105 850 7543-20018 80 5000 K 150 mA 341 lm 220 lm/W 350 mA 788 lm 215 lm/W 2100 mA 4355 lm 182 lm/W
Circulus G2 D105 857 7543-20019 80 5700 K 150 mA 341 lm 220 lm/W 350 mA 788 lm 215 lm/W 2100 mA 4355 lm 182 lm/W
Circulus G2 D105 865 7543-20020 80 6500 K 150 mA 341 lm 220 lm/W 350 mA 788 lm 215 lm/W 2100 mA 4355 lm 182 lm/W
Circulus G2 D105 927 7543-20021 90 2700 K 150 mA 305 lm 195 lm/W 350 mA 714 lm 193 lm/W 2100 mA 3958 lm 164 lm/W
Circulus G2 D105 930 7543-20022 90 3000 K 150 mA 312 lm 199 lm/W 350 mA 730 lm 197 lm/W 2100 mA 4044 lm 168 lm/W
Circulus G2 D105 935 7543-20023 90 3500 K 150 mA 319 lm 204 lm/W 350 mA 748 lm 202 lm/W 2100 mA 4144 lm 172 lm/W
Circulus G2 D105 940 7543-20024 90 4000 K 150 mA 323 lm 206 lm/W 350 mA 756 lm 204 lm/W 2100 mA 4186 lm 174 lm/W
Circulus G2 D105 950 7543-20025 90 5000 K 150 mA 323 lm 206 lm/W 350 mA 756 lm 204 lm/W 2100 mA 4186 lm 174 lm/W
Circulus G2 D105 957 7543-20026 90 5700 K 150 mA 323 lm 206 lm/W 350 mA 756 lm 204 lm/W 2100 mA 4186 lm 174 lm/W
Circulus G2 D105 965 7543-20027 90 6500 K 150 mA 319 lm 204 lm/W 350 mA 748 lm 202 lm/W 2100 mA 4144 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

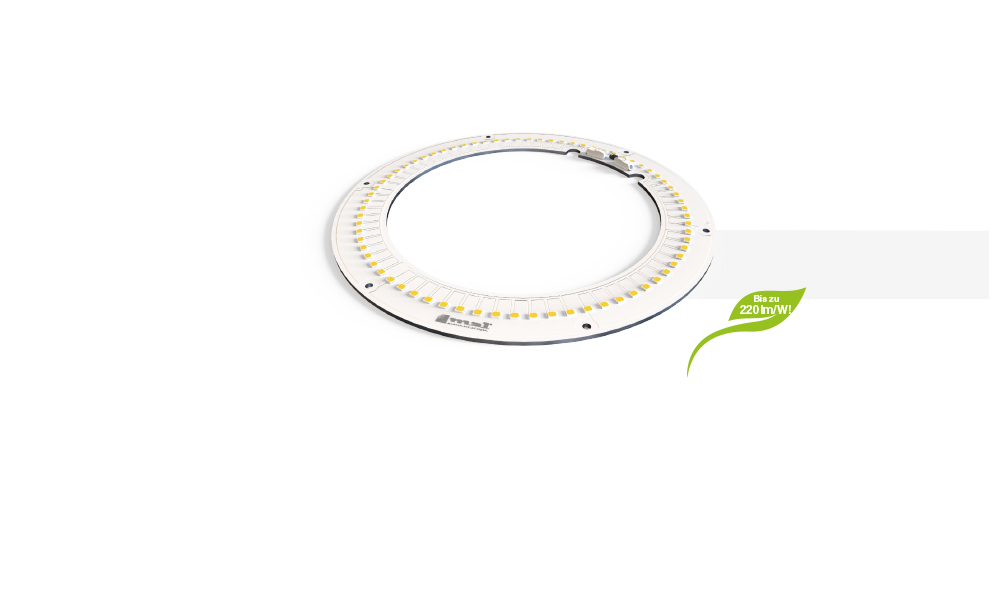

Circulus 160

Features

Big module image

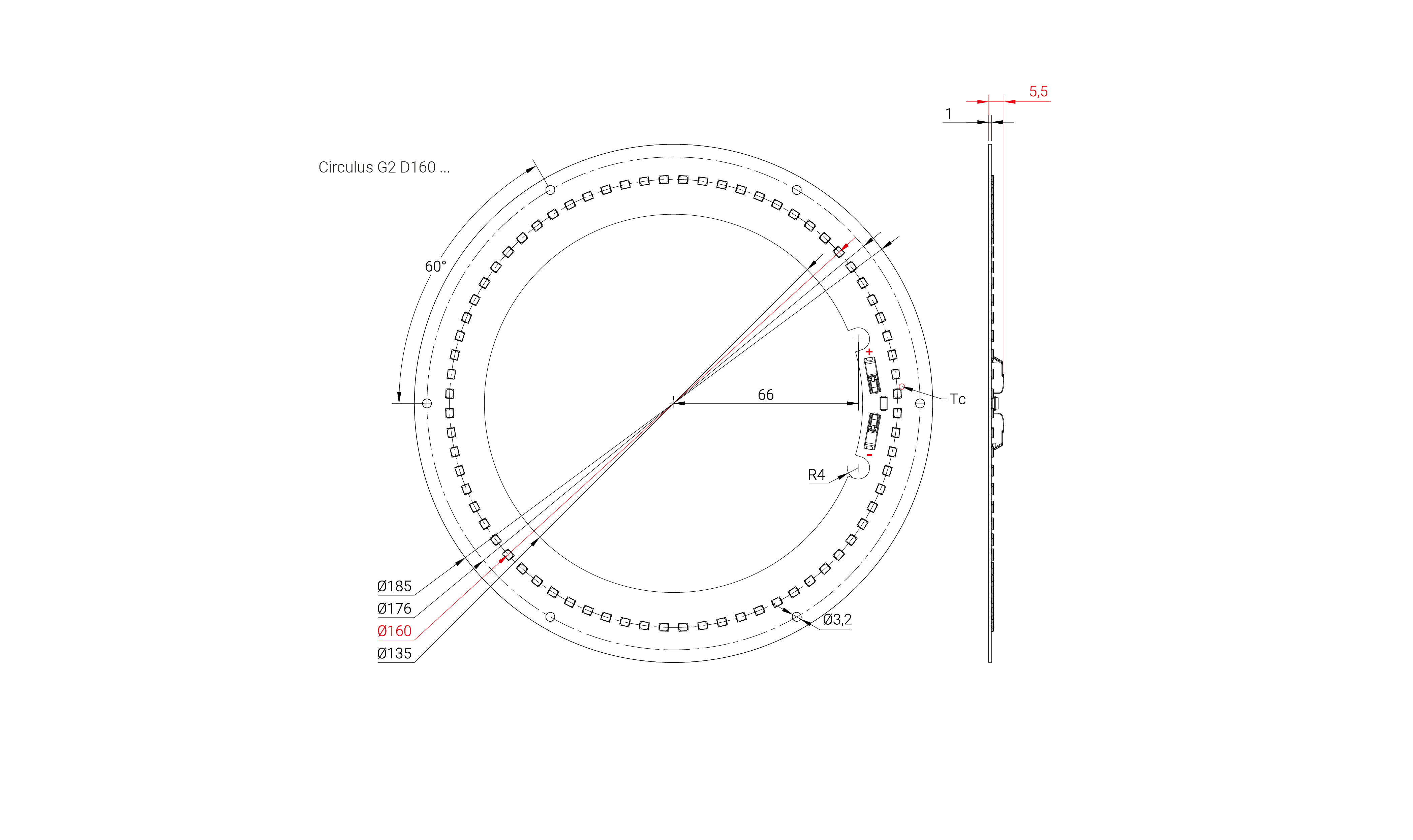

Module drawing
  • ring-shaped LED module for installation in luminaires
  • 72 Mid-Power LEDs
  • pitch distance 7 mm
  • diameter outside 185 mm and inside 135 mm
  • two connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 18.6 V
  • the five ring modules Circulus 50, 105, 160, 215 und Circulus 270 can be arranged inside each other

Downloads

Technical data

Circulus 160
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus G2 D160 827 7543-20028 80 2700 K 150 mA 462 lm 196 lm/W 350 mA 1068 lm 191 lm/W 2100 mA 5899 lm 162 lm/W
Circulus G2 D160 830 7543-20029 80 3000 K 150 mA 492 lm 209 lm/W 350 mA 1138 lm 205 lm/W 2100 mA 6286 lm 174 lm/W
Circulus G2 D160 835 7543-20030 80 3500 K 150 mA 492 lm 209 lm/W 350 mA 1138 lm 205 lm/W 2100 mA 6286 lm 174 lm/W
Circulus G2 D160 840 7543-20031 80 4000 K 150 mA 512 lm 220 lm/W 350 mA 1183 lm 215 lm/W 2100 mA 6532 lm 182 lm/W
Circulus G2 D160 850 7543-20032 80 5000 K 150 mA 512 lm 220 lm/W 350 mA 1183 lm 215 lm/W 2100 mA 6532 lm 182 lm/W
Circulus G2 D160 857 7543-20033 80 5700 K 150 mA 512 lm 220 lm/W 350 mA 1183 lm 215 lm/W 2100 mA 6532 lm 182 lm/W
Circulus G2 D160 865 7543-20034 80 6500 K 150 mA 512 lm 220 lm/W 350 mA 1183 lm 215 lm/W 2100 mA 6532 lm 182 lm/W
Circulus G2 D160 927 7543-20035 90 2700 K 150 mA 458 lm 195 lm/W 350 mA 1072 lm 193 lm/W 2100 mA 5938 lm 164 lm/W
Circulus G2 D160 930 7543-20036 90 3000 K 150 mA 468 lm 199 lm/W 350 mA 1095 lm 197 lm/W 2100 mA 6066 lm 168 lm/W
Circulus G2 D160 935 7543-20037 90 3500 K 150 mA 479 lm 204 lm/W 350 mA 1122 lm 202 lm/W 2100 mA 6215 lm 172 lm/W
Circulus G2 D160 940 7543-20038 90 4000 K 150 mA 484 lm 206 lm/W 350 mA 1133 lm 204 lm/W 2100 mA 6279 lm 174 lm/W
Circulus G2 D160 950 7543-20039 90 5000 K 150 mA 484 lm 206 lm/W 350 mA 1133 lm 204 lm/W 2100 mA 6279 lm 174 lm/W
Circulus G2 D160 957 7543-20040 90 5700 K 150 mA 484 lm 206 lm/W 350 mA 1133 lm 204 lm/W 2100 mA 6279 lm 174 lm/W
Circulus G2 D160 965 7543-20041 90 6500 K 150 mA 479 lm 204 lm/W 350 mA 1122 lm 202 lm/W 2100 mA 6215 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

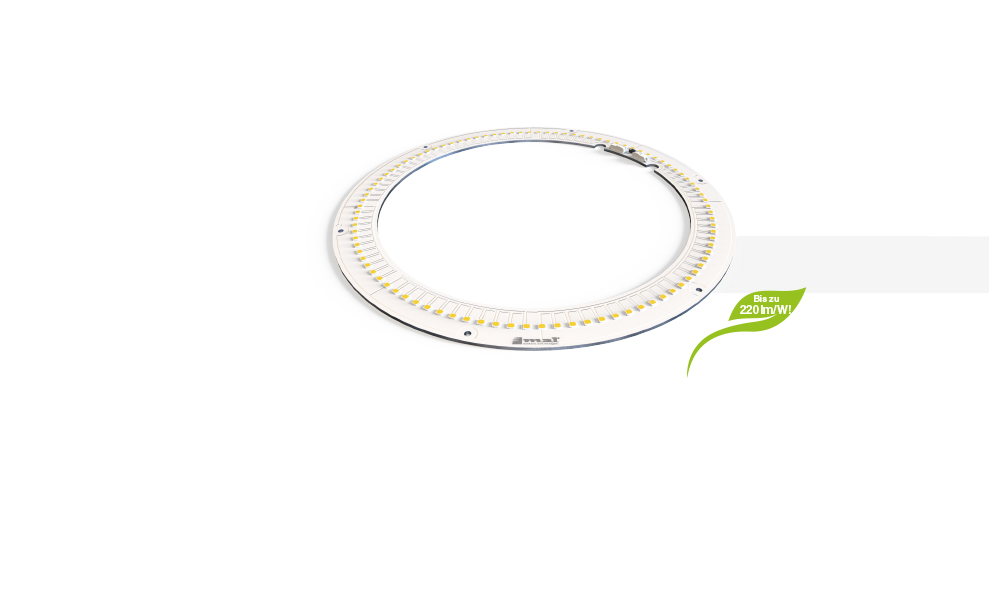

Circulus 215

Features

Big module image

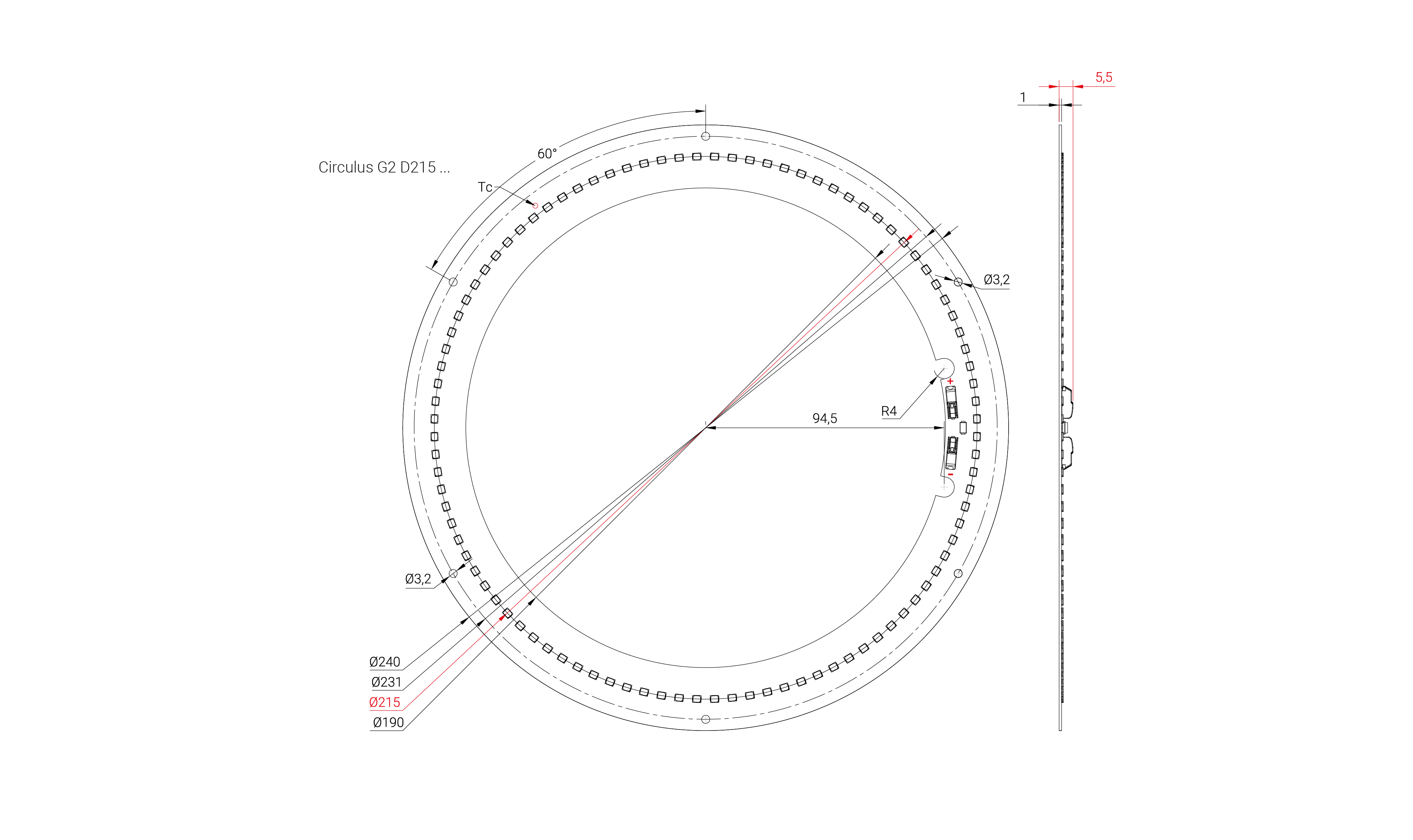

Module drawing
  • ring-shaped LED module for installation in luminaires
  • 96 Mid-Power LEDs
  • pitch distance 7 mm
  • diameter outside 240 mm and inside 190 mm
  • two connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 24.8 V
  • the five ring modules Circulus 50, 105, 160, 215 und Circulus 270 can be arranged inside each other

Downloads

Technical data

Circulus 215
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus G2 D215 827 7543-20042 80 2700 K 150 mA 616 lm 196 lm/W 350 mA 1424 lm 191 lm/W 2100 mA 7865 lm 162 lm/W
Circulus G2 D215 830 7543-20043 80 3000 K 150 mA 656 lm 209 lm/W 350 mA 1517 lm 205 lm/W 2100 mA 8381 lm 174 lm/W
Circulus G2 D215 835 7543-20044 80 3500 K 150 mA 656 lm 209 lm/W 350 mA 1517 lm 205 lm/W 2100 mA 8381 lm 174 lm/W
Circulus G2 D215 840 7543-20045 80 4000 K 150 mA 682 lm 220 lm/W 350 mA 1577 lm 215 lm/W 2100 mA 8710 lm 182 lm/W
Circulus G2 D215 850 7543-20046 80 5000 K 150 mA 682 lm 220 lm/W 350 mA 1577 lm 215 lm/W 2100 mA 8710 lm 182 lm/W
Circulus G2 D215 857 7543-20047 80 5700 K 150 mA 682 lm 220 lm/W 350 mA 1577 lm 215 lm/W 2100 mA 8710 lm 182 lm/W
Circulus G2 D215 865 7543-20048 80 6500 K 150 mA 682 lm 220 lm/W 350 mA 1577 lm 215 lm/W 2100 mA 8710 lm 182 lm/W
Circulus G2 D215 927 7543-20049 90 2700 K 150 mA 610 lm 195 lm/W 350 mA 1429 lm 193 lm/W 2100 mA 7917 lm 164 lm/W
Circulus G2 D215 930 7543-20050 90 3000 K 150 mA 624 lm 199 lm/W 350 mA 1460 lm 197 lm/W 2100 mA 8088 lm 168 lm/W
Circulus G2 D215 935 7543-20051 90 3500 K 150 mA 639 lm 204 lm/W 350 mA 1496 lm 202 lm/W 2100 mA 8287 lm 172 lm/W
Circulus G2 D215 940 7543-20052 90 4000 K 150 mA 646 lm 206 lm/W 350 mA 1511 lm 204 lm/W 2100 mA 8372 lm 174 lm/W
Circulus G2 D215 950 7543-20053 90 5000 K 150 mA 646 lm 206 lm/W 350 mA 1511 lm 204 lm/W 2100 mA 8372 lm 174 lm/W
Circulus G2 D215 957 7543-20054 90 5700 K 150 mA 646 lm 206 lm/W 350 mA 1511 lm 204 lm/W 2100 mA 8372 lm 174 lm/W
Circulus G2 D215 965 7543-20055 90 6500 K 150 mA 639 lm 204 lm/W 350 mA 1496 lm 202 lm/W 2100 mA 8287 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

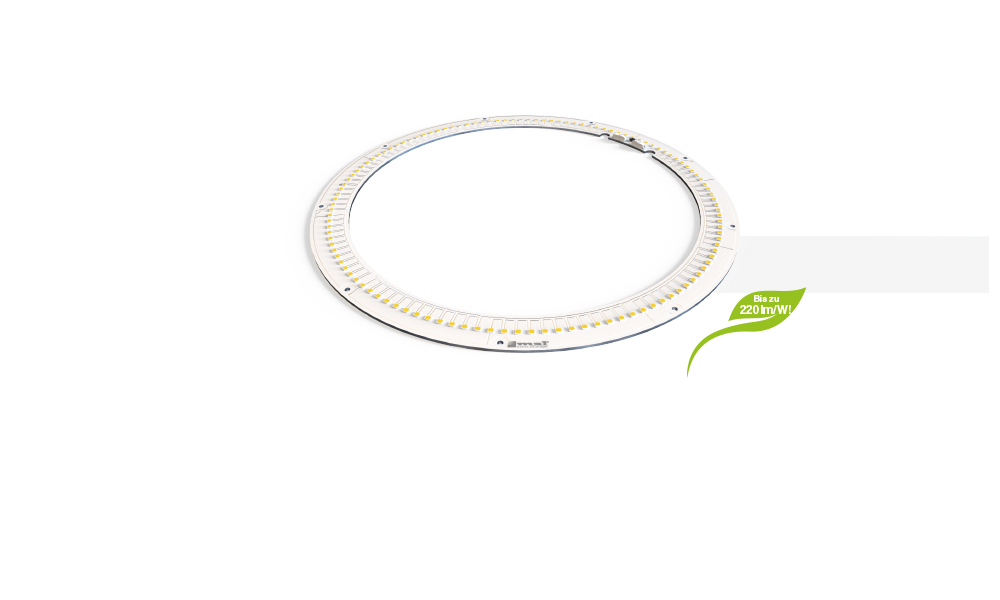

Circulus 270

Features

Big module image

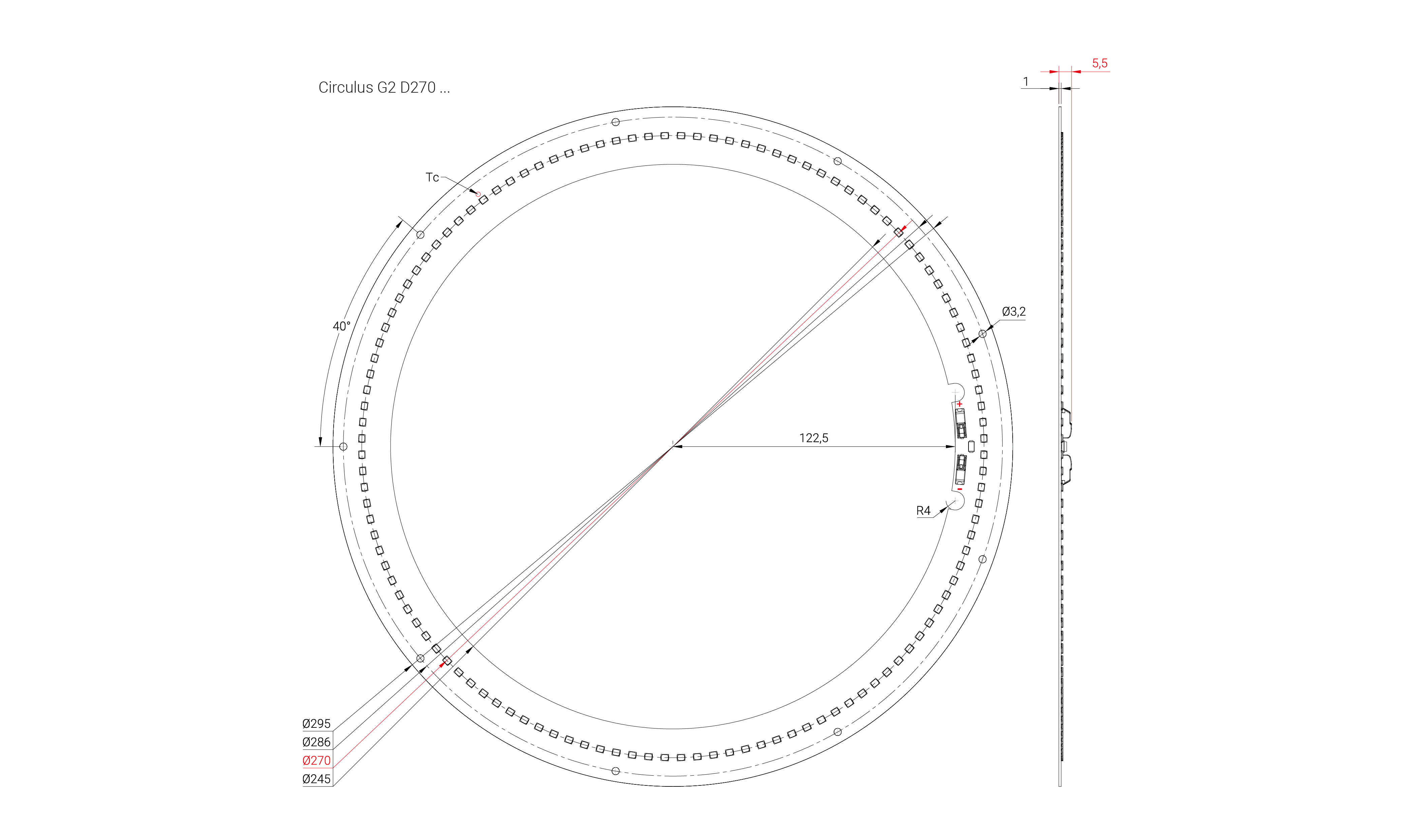

Module drawing
  • ring-shaped LED module for installation in luminaires
  • 120 Mid-Power LEDs
  • pitch distance 7.1 mm
  • diameter outside 295 mm and inside 245 mm
  • two connection terminals
  • aluminum core PCB for perfect thermal management
  • rated current 350 mA
  • maximum operating current 2100 mA
  • maximum forward voltage 31 V
  • the five ring modules Circulus 50, 105, 160, 215 und Circulus 270 can be arranged inside each other

Downloads

Technical data

Circulus 270
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus G2 D270 827 7543-20056 80 2700 K 150 mA 770 lm 196 lm/W 350 mA 1780 lm 191 lm/W 2100 mA 9831 lm 162 lm/W
Circulus G2 D270 830 7543-20057 80 3000 K 150 mA 820 lm 209 lm/W 350 mA 1897 lm 205 lm/W 2100 mA 10476 lm 174 lm/W
Circulus G2 D270 835 7543-20058 80 3500 K 150 mA 820 lm 209 lm/W 350 mA 1897 lm 205 lm/W 2100 mA 10476 lm 174 lm/W
Circulus G2 D270 840 7543-20059 80 4000 K 150 mA 853 lm 220 lm/W 350 mA 1971 lm 215 lm/W 2100 mA 10887 lm 182 lm/W
Circulus G2 D270 850 7543-20060 80 5000 K 150 mA 853 lm 220 lm/W 350 mA 1971 lm 215 lm/W 2100 mA 10887 lm 182 lm/W
Circulus G2 D270 857 7543-20061 80 5700 K 150 mA 853 lm 220 lm/W 350 mA 1971 lm 215 lm/W 2100 mA 10887 lm 182 lm/W
Circulus G2 D270 865 7543-20062 80 6500 K 150 mA 853 lm 220 lm/W 350 mA 1971 lm 215 lm/W 2100 mA 10887 lm 182 lm/W
Circulus G2 D270 927 7543-20063 90 2700 K 150 mA 763 lm 195 lm/W 350 mA 1786 lm 193 lm/W 2100 mA 9896 lm 164 lm/W
Circulus G2 D270 930 7543-20064 90 3000 K 150 mA 779 lm 199 lm/W 350 mA 1825 lm 197 lm/W 2100 mA 10110 lm 168 lm/W
Circulus G2 D270 935 7543-20065 90 3500 K 150 mA 799 lm 204 lm/W 350 mA 1870 lm 202 lm/W 2100 mA 10359 lm 172 lm/W
Circulus G2 D270 940 7543-20066 90 4000 K 150 mA 807 lm 206 lm/W 350 mA 1889 lm 204 lm/W 2100 mA 10466 lm 174 lm/W
Circulus G2 D270 950 7543-20067 90 5000 K 150 mA 807 lm 206 lm/W 350 mA 1889 lm 204 lm/W 2100 mA 10466 lm 174 lm/W
Circulus G2 D270 957 7543-20068 90 5700 K 150 mA 807 lm 206 lm/W 350 mA 1889 lm 204 lm/W 2100 mA 10466 lm 174 lm/W
Circulus G2 D270 965 7543-20069 90 6500 K 150 mA 799 lm 204 lm/W 350 mA 1870 lm 202 lm/W 2100 mA 10359 lm 172 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Circulus T5R 22

Features

Big module image
Module drawing
  • ring-shaped LED module for installation in luminaires
  • Intended as a replacement for T5R lamp with 22 W
  • 60 Mid-Power LEDs
  • pitch distance 11.2 mm
  • diameter outside 238 mm and inside 190 mm
  • two connection terminals
  • rated current 350 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 30 V
  • The 3 ring modules Circulus T5R 22 (Ø 214 mm), Circulus T5R 32/40/55 (Ø 289 mm) and Circulus T5R 60 (Ø 363 mm) can be arranged inside each other

Downloads

Technical data

Circulus T5R 22
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus T5R G1 22 822 7543-21000 80 2200 K 150 mA 655 lm 170 lm/W 350 mA 1500 lm 163 lm/W 1050 mA 4212 lm 143 lm/W
Circulus T5R G1 22 827 7543-21001 80 2700 K 150 mA 765 lm 192 lm/W 350 mA 1751 lm 184 lm/W 1050 mA 4915 lm 162 lm/W
Circulus T5R G1 22 830 7543-21002 80 3000 K 150 mA 815 lm 206 lm/W 350 mA 1866 lm 197 lm/W 1050 mA 5238 lm 174 lm/W
Circulus T5R G1 22 835 7543-21003 80 3500 K 150 mA 815 lm 206 lm/W 350 mA 1866 lm 197 lm/W 1050 mA 5238 lm 174 lm/W
Circulus T5R G1 22 840 7543-21004 80 4000 K 150 mA 847 lm 216 lm/W 350 mA 1939 lm 207 lm/W 1050 mA 5444 lm 182 lm/W
Circulus T5R G1 22 850 7543-21005 80 5000 K 150 mA 847 lm 216 lm/W 350 mA 1939 lm 207 lm/W 1050 mA 5444 lm 182 lm/W
Circulus T5R G1 22 857 7543-21006 80 5700 K 150 mA 847 lm 216 lm/W 350 mA 1939 lm 207 lm/W 1050 mA 5444 lm 182 lm/W
Circulus T5R G1 22 865 7543-21007 80 6500 K 150 mA 847 lm 216 lm/W 350 mA 1939 lm 207 lm/W 1050 mA 5444 lm 182 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Circulus T5R 32/40/55

Features

Big module image
Module drawing
  • ring-shaped LED module for installation in luminaires
  • Intended as a replacement for T5R lamp with 32/40/55 W
  • 72 Mid-Power LEDs
  • pitch distance 12.6 mm
  • diameter outside 313 mm and inside 265 mm
  • two connection terminals
  • rated current 350 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 36 V
  • The 3 ring modules Circulus T5R 22 (Ø 214 mm), Circulus T5R 32/40/55 (Ø 289 mm) and Circulus T5R 60 (Ø 363 mm) can be arranged inside each other

Downloads

Technical data

Circulus T5R 32/40/55
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus T5R G1 32/40/55 822 7543-21100 80 2200 K 150 mA 786 lm 170 lm/W 350 mA 1800 lm 163 lm/W 1050 mA 5054 lm 143 lm/W
Circulus T5R G1 32/40/55 827 7543-21101 80 2700 K 150 mA 918 lm 192 lm/W 350 mA 2101 lm 184 lm/W 1050 mA 5899 lm 162 lm/W
Circulus T5R G1 32/40/55 830 7543-21102 80 3000 K 150 mA 978 lm 206 lm/W 350 mA 2239 lm 197 lm/W 1050 mA 6286 lm 174 lm/W
Circulus T5R G1 32/40/55 835 7543-21103 80 3500 K 150 mA 978 lm 206 lm/W 350 mA 2239 lm 197 lm/W 1050 mA 6286 lm 174 lm/W
Circulus T5R G1 32/40/55 840 7543-21104 80 4000 K 150 mA 1016 lm 216 lm/W 350 mA 2327 lm 207 lm/W 1050 mA 6532 lm 182 lm/W
Circulus T5R G1 32/40/55 850 7543-21105 80 5000 K 150 mA 1016 lm 216 lm/W 350 mA 2327 lm 207 lm/W 1050 mA 6532 lm 182 lm/W
Circulus T5R G1 32/40/55 857 7543-21106 80 5700 K 150 mA 1016 lm 216 lm/W 350 mA 2327 lm 207 lm/W 1050 mA 6532 lm 182 lm/W
Circulus T5R G1 32/40/55 865 7543-21107 80 6500 K 150 mA 1016 lm 216 lm/W 350 mA 2327 lm 207 lm/W 1050 mA 6532 lm 182 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Circulus T5R 60

Features

Big module image
Module drawing
  • ring-shaped LED module for installation in luminaires
  • Intended as a replacement for T5R lamp with 60 W
  • 96 Mid-Power LEDs
  • pitch distance 11.9 mm
  • diameter outside 313 mm and inside 265 mm
  • two connection terminals
  • rated current 350 mA
  • maximum operating current 1050 mA
  • maximum forward voltage 48 V
  • The 3 ring modules Circulus T5R 22 (Ø 214 mm), Circulus T5R 32/40/55 (Ø 289 mm) and Circulus T5R 60 (Ø 363 mm) can be arranged inside each other

Downloads

Technical data

Circulus T5R 60
Description Order code CRI CCT HE RT HO
If Flux LPW If Flux LPW If Flux LPW
Circulus T5R G1 60 822 7543-21200 80 2200 K 150 mA 1048 lm 170 lm/W 350 mA 2400 lm 163 lm/W 1050 mA 6739 lm 143 lm/W
Circulus T5R G1 60 827 7543-21201 80 2700 K 150 mA 1224 lm 192 lm/W 350 mA 2802 lm 184 lm/W 1050 mA 7865 lm 162 lm/W
Circulus T5R G1 60 830 7543-21202 80 3000 K 150 mA 1304 lm 206 lm/W 350 mA 2985 lm 197 lm/W 1050 mA 8381 lm 174 lm/W
Circulus T5R G1 60 835 7543-21203 80 3500 K 150 mA 1304 lm 206 lm/W 350 mA 2985 lm 197 lm/W 1050 mA 8381 lm 174 lm/W
Circulus T5R G1 60 840 7543-21204 80 4000 K 150 mA 1355 lm 216 lm/W 350 mA 3102 lm 207 lm/W 1050 mA 8710 lm 182 lm/W
Circulus T5R G1 60 850 7543-21205 80 5000 K 150 mA 1355 lm 216 lm/W 350 mA 3102 lm 207 lm/W 1050 mA 8710 lm 182 lm/W
Circulus T5R G1 60 857 7543-21206 80 5700 K 150 mA 1355 lm 216 lm/W 350 mA 3102 lm 207 lm/W 1050 mA 8710 lm 182 lm/W
Circulus T5R G1 60 865 7543-21207 80 6500 K 150 mA 1355 lm 216 lm/W 350 mA 3102 lm 207 lm/W 1050 mA 8710 lm 182 lm/W
Subject to change. Information provided without guarantee. Tolerances for optical and electrical data + / - 10 %. Data at TC=25°C. HE = High Efficiency, HO = High Output, RT = Rated

Good to know … - Information about our Circulus products

With our Circulus LED module, we offer ring-shaped LED modules to complement our round Curvus modules. You can choose from five different diameters: Circulus D50, Circulus D105, Circulus D160, Circulus D215 and Circulus D270.

All five diameters have a uniform ring width of 25 mm. For optimum thermal management and high efficiency with a long service life, all Circulus modules are based on high-quality aluminum core PCBs. The cutting-edge LED gives the Circulus modules efficiencies of up to 220 lm/W or light quantities of over 10000 lm. The LED pitch is virtually the same for all modules and is very small at 6.5 mm.

Expansion of the Circulus LED module family – the new Circulus T5R ring lights

With the Circulus T5R ring lights, our successful Circulus LED module family is growing to include a versatile and powerful solution for modern lighting concepts. The T5R series was developed as a replacement for conventional T5 ring tubes. They combine the familiar form factor for easy conversion of existing luminaires with the high efficiency and long service life of modern LED technology. The series is available in diameters of Ø 214 mm, Ø 289 mm, and Ø 363 mm.

Our modules offer a standard color rendering index (CRI) of 80 – ideal for most commercial, industrial, and residential applications. For particularly demanding lighting tasks, such as in retail or museum settings, the modules are also available with CRI 90 in KSF technology upon request.

For maximum flexibility, there are eight different light colors (CCT) to choose from: 2200 K, 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 5700 K, and 6500 K.

The Circulus T5R ring lights thus open up a wide range of design options – from atmospheric warm-toned lighting to neutral or daylight-like color temperatures.

Your benefits at a glance:

Related products

Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus HCL

  • HCL-ring module in 5 different diameters:Ø 50 mm, Ø 105 mm, Ø 160 mm, Ø 215 mm and Ø 270 mm
  • T5R modules as replacement for T5 ring lamps
  • color rendering: CRI 80 — CRI 90 on request
  • light colors: 2 channels with CCT 2700 K and 6500 K
Produktbild der Produktfamilie von m.a.l. Effekt-Technik

Circulus Color

  • LED ring module in 5 different diameters:Ø 50 mm, Ø 105 mm, Ø 160 mm, Ø 215 mm and Ø 270 mm
  • 6 light colors: Red, Red Orange, PC Amber, Green, Blue and Royal Blue
